POTTERTON COMMERCIAL
SIRIUS WH 50, 60, 70 ISS 05 - (Exploded View)
Appliance Code: WH 50, 60, 70 iss 05

Appliance Diagram


Exploded View diagram for Potterton Commercial Sirius WH 50, 60, 70 iss 05Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

  TERMINAL BOARD WIRING
Potterton part no. 5132147		 £8.80
  AGU WIRING
Potterton part no. 5132149		 £7.10
  SANITARY PRIORITY WIRING
Potterton part no. 5132150		 £2.55
  PCB OUTPUT 230V WIRING
Potterton part no. 5132151		 £2.49
  RAST5 3611 02-K10 WIRING
Potterton part no. 5132154		 £5.51
  RAST5 3611 02-K32 WIRING
Potterton part no. 5132155		 £3.81
  DISPLAY PCB WIRING
Potterton part no. 5132158		 £6.90
  PCB INPUT WIRING
Potterton part no. 5132159		 £4.22
  PUMPS WIRING
Potterton part no. 5132173		 £8.02
  EXTERNAL PROBE
Potterton part no. 5132177		 £32.03
  WIRING THERMOSTAT ARRANGEMENT
Potterton part no. 5132549		 £24.26
  FLUE THERMOSTAT/FAN WIRING
Potterton part no. 5132573		 £30.23
  FAN CHECK WIRING
Potterton part no. 5132574		 £17.11
  WIRING-HEATING NTC SENSOR/PUMP
Potterton part no. 5132575		 £22.91
  GAS VALVE WIRING
Potterton part no. 5132576		 £12.41
  WIRING - EARTHS
Potterton part no. 5132577		 £6.03
1   LATERAL SUPPORT
Potterton part no. 5132551		 £8.76
1   WALL BRACKET
Potterton part no. 710821200		 £27.00
2   PANEL ASSEMBLY - LEFT - GREY
Potterton part no. 5132553		 £27.03
2   WH506070 LEFT PANEL-WHITE
Potterton part no. 5141601		 £30.27
3   PANEL ASSEMBLY - RIGHT - GREY
Potterton part no. 5132552		 £21.78
3   WH506070 RIGHT PANEL-WHITE
Potterton part no. 5141603		 £30.27
4   PANEL ASSEMBLY - FRONT - GREY
Potterton part no. 5132555		 £51.37
4   WH FRONT PANEL-WHITE
Potterton part no. 5141605		 £72.26
5   UPPER SUPPORT
Potterton part no. 5118360		 £12.56
6   CONNECTIONS SUPPORT
Potterton part no. 5118361		 £10.27
7   OUTER CASE BRACKET
Potterton part no. 247412		 £8.51
8 Part number 248628, PRESSURE SWITCH PIPE PRESSURE SWITCH PIPE
Potterton part no. 248628		 £7.97
10   FLUE ADAPTER
Potterton part no. 5132522		 £10.54
11   GASKET ADOPTOR
Potterton part no. 5132516		 £2.18
12 Part number 247731, PLATE BLANKING PLATE BLANKING
Potterton part no. 247731		 £6.05
13 Part number 247732, GASKET - PLATE BLANKING GASKET - PLATE BLANKING
Potterton part no. 247732		 £3.26
18 Part number 5114683, PRESSURE SENSING VENTURI PRESSURE SENSING VENTURI
Potterton part no. 5114683		 £57.22
18   PRESSURE SENSING VENTURI D.28
Potterton part no. 5132530		 £35.34
18   PRESSURE SENSING VENTURI D.30
Potterton part no. 5132543		 £52.51
21 Part number 248000, WASHER - SEALING WASHER - SEALING
Potterton part no. 248000		 £3.26
21   OBSOLETE WASHER SEALING
Potterton part no. 5132509

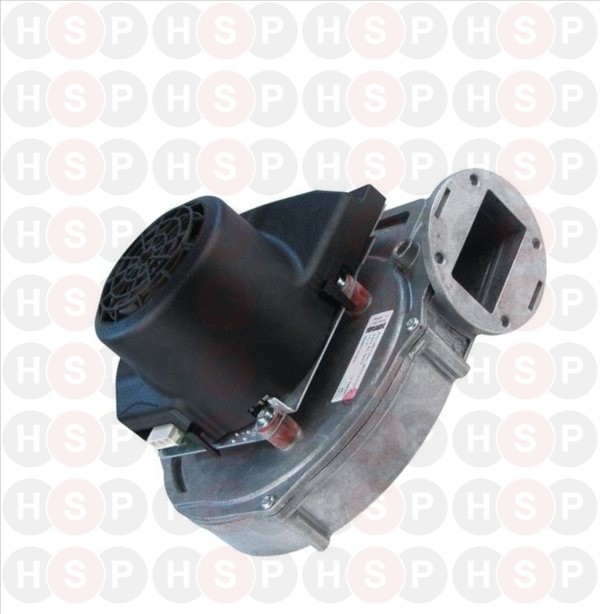

22 Part number 5132531, FAN FAN
Potterton part no. 5132531		 £347.22
26   SEALED CHAMBER LATERAL PANEL
Potterton part no. 5132488		 £26.68
27   SEALED CHAMBER ASSEMBLY
Potterton part no. 5118362		 £62.60
29 Part number 5115060, REAR INSULATION REAR INSULATION
Potterton part no. 5115060		 £9.80
30 Part number 5132183, Insulation burner flange INSULATION BURNER FLANGE
Potterton part no. 5132183
32   HEAT EXCHANGER ASSY 45/50KW
Potterton part no. 5132382		 £1,371.82
32   HEAT EXCHANGER - 60KW
Potterton part no. 5132539		 £1,110.95
32   HEAT EXCHANGER - 70KW
Potterton part no. 5132540		 £1,684.03
33   O-RING 20,24X2,62
Potterton part no. 5132414		 £1.77
37   COMBUSTION BOX FRONT (SEALED)
Potterton part no. 5132542		 £36.87
38 Part number 247435, VIEWING WINDOW GASKET VIEWING WINDOW GASKET
Potterton part no. 247435		 £3.46
39 Part number 247436, VIEWING WINDOW VIEWING WINDOW
Potterton part no. 247436		 £6.05
40   SURROUND - SIGHT GLASS
Potterton part no. 5132489		 £1.82
41   BURNER - 60KW
Potterton part no. 5132174		 £63.73
41   BURNER - 40KW
Potterton part no. 5132175		 £51.60
41   BURNER - 70/90KW
Potterton part no. 5132529		 £71.59
46   GAS PIPE ASSEMBLY - 60KW
Potterton part no. 5132535		 £18.18
46   GAS PIPE ASSEMBLY - 50KW
Potterton part no. 5132536		 £16.81
46   GAS PIPE ASSEMBLY - 70KW
Potterton part no. 5132537		 £18.41
49   FLUE TEST CAP
Potterton part no. 5132521		 £12.78
59 Part number 5132148, Ignition electrode cable IGNITION ELECTRODE CABLE
Potterton part no. 5132148		 £11.56
63 Part number 720222801, KIT - ELECTRODE IGNITION KIT - ELECTRODE IGNITION
Potterton part no. 720222801		 £26.77
65 Part number 720222901, KIT - ELECTRODE IONISATION KIT - ELECTRODE IONISATION
Potterton part no. 720222901		 £24.89
75   GROMMET
Potterton part no. 5120225		 £3.36
87   INLET PIPE ASSY WH 50,60,70
Potterton part no. 5132532		 £32.04
91 Part number 248055, DRAIN TAP DRAIN TAP
Potterton part no. 248055		 £10.17
131   NOW USE NTC SENSOR INC GASKET
Potterton part no. 7809939		 £7.17
131 Part number 5114725, NOW USE 7809939 NTC SENSOR NOW USE 7809939 NTC SENSOR
Potterton part no. 5114725
132 Part number 7211908, WASHER COPPER SEALING WASHER COPPER SEALING
Potterton part no. 7211908		 £3.24
132 Part number 062695, NOW USE 7211908 WASHER COPPER INJECTOR SEALING NOW USE 7211908 WASHER COPPER INJECTOR SEALING
Potterton part no. 062695
134   INJECTOR D.8,5 WH50
Potterton part no. 5132501		 £6.49
134   INJECTOR D.15 WH60
Potterton part no. 5132502		 £1.71
135 Part number 248079, THERMOSTAT - LIMIT THERMOSTAT - LIMIT
Potterton part no. 248079		 £12.56
136   OUTLET PIPE ASSEMBLY
Potterton part no. 5132533		 £39.39
137   CONNECTING ELEMENT GAS VALVE
Potterton part no. 5132498		 £15.72
138 Part number 247741, O RING 22.22 x 2.62 O RING 22.22 X 2.62
Potterton part no. 247741		 £3.26
139   PIPE - GAS VALVE INLET
Potterton part no. 5132545		 £28.23
140 Part number 5132534, GAS VALVE GAS VALVE
Potterton part no. 5132534		 £117.38
147   OBSOLETE BOTTOM PANEL
Potterton part no. 5132554
151   CONTROL BOX COVER
Potterton part no. 5132186		 £11.24
152   PANEL - FACIA - WH50
Potterton part no. 5132546		 £16.19
152   PANEL - FACIA - WH60
Potterton part no. 5132547		 £16.83
152   PANEL - FACIA - WH70
Potterton part no. 5132548		 £16.19
153 Part number 248072, PANEL - ACCESS PANEL - ACCESS
Potterton part no. 248072		 £6.05
154 Part number 5132172, ELECTRONIC CARD ELECTRONIC CARD
Potterton part no. 5132172		 £219.95
156   PCB DISPLAY
Potterton part no. 5132176		 £105.17
157   COVER - CONTROL FACIA
Potterton part no. 5132550		 £16.49
166 Part number 247480, TERMINAL BLOCK TERMINAL BLOCK
Potterton part no. 247480		 £7.37
167 Part number 247481, FUSE HOLDER FUSE HOLDER
Potterton part no. 247481		 £4.71
168   FUSE 3, 15A 250V
Potterton part no. 5132156		 £2.06
169 Part number 248090, GAUGE PRESSURE C/W RETAINER GAUGE PRESSURE C/W RETAINER
Potterton part no. 248090		 £24.51
191 Part number 247744, SEALING WASHER G. 1/2 SEALING WASHER G. 1/2
Potterton part no. 247744		 £3.26
232   AGU 2.511 CLIP IN
Potterton part no. 5132171		 £123.89
242   FLUE SAFETY THERMOSTAT 75C
Potterton part no. 5132572
259   GAS PRESSURE SWITCH
Potterton part no. 5132201		 £92.93
264   GAS PRESSURE SWITCH
Potterton part no. 5132201		 £92.93
276   CAPTIVE NUT - LARGE
Potterton part no. 248692		 £2.78
285   TERMINAL BOARD COVER L.T
Potterton part no. 5132185		 £1.86
340 Part number 5114748, PRESSURE SWITCH PRESSURE SWITCH
Potterton part no. 5114748		 £20.39
341   AGU - CLIP PIN SUPPORT PLATE
Potterton part no. 5132511		 £2.58
365   LOWER SUPPORT
Potterton part no. 5132487		 £5.03
380   O-RING 4,47X1,78
Potterton part no. 5132508		 £1.82
381   CONTROLS BOX'S PIN D.8
Potterton part no. 5132497		 £1.63
382 Part number 5114749, FLAME SENSING CABLE FLAME SENSING CABLE
Potterton part no. 5114749		 £14.24
408   COMBUSTION CHAMBER UPPER COVER
Potterton part no. 5132503		 £31.59
409 Part number 5114751, BURNER GASKET BURNER GASKET
Potterton part no. 5114751		 £3.36
411 Part number 5114752, ELECTRODE GASKET ELECTRODE GASKET
Potterton part no. 5114752		 £3.36
415 Part number 5132544, CONDENSE DRAIN TAP ASSEMBLY CONDENSE DRAIN TAP ASSEMBLY
Potterton part no. 5132544		 £8.72
417 Part number 5118972, CONDENSE SIPHON PLUG ASSEMBLY CONDENSE SIPHON PLUG ASSEMBLY
Potterton part no. 5118972		 £11.49
419   FLANGE BURNER GASKET
Baxi part no. 721907500		 £10.93
419 Part number 5132182, NOW USE 721907500 Flange burner gasket NOW USE 721907500 FLANGE BURNER GASKET
Potterton part no. 5132182
425 Part number 5114758, FAN GASKET FAN GASKET
Potterton part no. 5114758		 £6.05
428 Part number 5114759, GASKET GASKET
Potterton part no. 5114759		 £5.16
432   FLUE SPIGOT GASKET
Potterton part no. 5132519		 £21.41
434   FLUE SEPARATOR ELEMENT
Potterton part no. 5132513		 £12.65
435   AIR IN-TAKE GASKET D.125
Potterton part no. 5132520		 £26.25
443 Part number 5112396, SUPPORT-OVERHEAT FLUE STAT SUPPORT-OVERHEAT FLUE STAT
Potterton part no. 5112396		 £3.39
445   RUBBER PIPE L = 100
Potterton part no. 5132517		 £9.86
459 Part number 5114763, FLEXIBLE DISCHARGE PIPE SIPHON FLEXIBLE DISCHARGE PIPE SIPHON
Potterton part no. 5114763		 £12.31
525   SPARK GENERATOR
Potterton part no. 5132153		 £27.05
601 Part number 5113314, O RING O RING
Potterton part no. 5113314		 £3.26
631   AIR VENT PIPE ASSEMBLY
Potterton part no. 5132528		 £13.39
647 Part number 5122330, AUTO AIR VENT AUTO AIR VENT
Potterton part no. 5122330		 £39.79
673   PVC PIPE 15 X 23
Potterton part no. 5132518		 £11.12
675   PRIMARY EXCHANGER FIXING CLIPS
Potterton part no. 5118364		 £4.79
678   AIR/GAS COVER ASSEMBLY
Potterton part no. 5132541		 £30.64
680 Part number 5114771, GROMMET GROMMET
Potterton part no. 5114771		 £3.36
681   FLAME INSPECTION GLASS ASSY
Potterton part no. 7809943		 £6.97
681   NOW USE 7809943 FLAME INSPECTION GLASS
Potterton part no. 5132190
682   FLAME INSPECTION GLASS ASSY
Potterton part no. 7809943		 £6.97
682   NOW USE 7809943 FLAME INSPECTION GLASS
Potterton part no. 5132190
695   FLUE SEPARATOR GASKET
Potterton part no. 5132515		 £1.82
696   AIR COLLECTOR
Potterton part no. 5132514		 £6.93
699   INLET ELEMENT
Potterton part no. 5132499		 £47.80
700   OUTLET ELEMENT
Potterton part no. 5132500		 £45.11
701 Part number 5132189, Gasket D6 GASKET D6
Potterton part no. 5132189		 £3.17
702   AIR COLLECTOR GASKET - D.70
Potterton part no. 5132512		 £3.06
