REMEHA-COMMERCIAL
QUINTA ACE 90KW - (Exploded View)
Appliance Code: 90KW

Appliance Diagram


Exploded View diagram for Remeha-Commercial Quinta Ace 90kWClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1001 Part number 7699574, CASING FRONT PANEL CASING FRONT PANEL
Remeha-Broag part no. 7699574
£88.14
1002 Part number 7699595, COVER DROP DOWN REMEHA COVER DROP DOWN REMEHA
Remeha-Broag part no. 7699595
£72.39
1003 Part number S101517, Wall Bracket WALL BRACKET
Remeha-Commercial part no. S101517
£17.74
1004 Part number 7699574, CASING FRONT PANEL CASING FRONT PANEL
Remeha-Broag part no. 7699574
£88.14
1005 Part number S101403, Stud Quarter Retain STUD QUARTER RETAIN
Remeha-Commercial part no. S101403
£22.33
1006   BOILER LIGHT 24V
Remeha-Broag part no. 7702357
£61.75
2001 Part number 7699614, HEAT EXCHANGER 90-115 KW HEAT EXCHANGER 90-115 KW
Remeha-Broag part no. 7699614
£1,703.21
2002 Part number S101564, Quinta Pro Heat Exchanger Front Plate QUINTA PRO HEAT EXCHANGER FRONT PLATE
Remeha-Commercial part no. S101564
£256.90
2003 Part number S57477, Burner Furigas Q85/115 c/w gasket BURNER FURIGAS Q85/115 C/W GASKET
Remeha-Commercial part no. S57477
£747.99
2004   ELECTRODE - IGNITION/IONISATION
Remeha-Broag part no. 7702138
£24.13
2005 Part number S53489, Gasket for ignition electrode (Pack of 10) GASKET FOR IGNITION ELECTRODE (PACK OF 10)
Remeha-Commercial part no. S53489
£28.39
2006 Part number S59118, GLASS INSPECTION SET GLASS INSPECTION SET
Remeha-Commercial part no. S59118
£44.14
2007 Part number S54731, Insulation front plate heat exchanger INSULATION FRONT PLATE HEAT EXCHANGER
Remeha-Commercial part no. S54731
£76.64
2008 Part number S57241, Gasket front plate Quinta 45/65/85/115 (Red Seal) GASKET FRONT PLATE QUINTA 45/65/85/115 (RED SEAL)
Remeha-Commercial part no. S57241
£20.58
2009 Part number S54755, FLANGE NUT M6 FLANGE NUT M6
Remeha-Commercial part no. S54755
£25.55
2010 Part number s100052, Screw Burner (20 pcs) SCREW BURNER (20 PCS)
Remeha-Broag part no. s100052
£11.58
2015 Part number S48950, Screw M4x10 (50 pcs.) SCREW M4X10 (50 PCS.)
Remeha-Commercial part no. S48950
£17.74
2016   FLUE GAS PIPE 100 MM
Remeha-Broag part no. 7700499
£39.74
2017   SEALING RING - FLUE 100 (5 PCS)
Remeha-Broag part no. 7701752
£25.55
2019 Part number S101627, 100/150 concentric flue Adapter for Quinta Pro boiler 100/150 CONCENTRIC FLUE ADAPTER FOR QUINTA PRO BOILER
Remeha-Commercial part no. S101627
£28.39
2020 Part number S62233, CAP CAP
Remeha-Commercial part no. S62233
£28.98
2021 Part number S62232, Screw cap flue gas measure point (5 pcs) Quinta PRO SCREW CAP FLUE GAS MEASURE POINT (5 PCS) QUINTA PRO
Remeha-Commercial part no. S62232
£36.90
2022 Part number S101643, Sealing Ring 100 (5 Pcs) SEALING RING 100 (5 PCS)
Remeha-Commercial part no. S101643
£35.49
2024 Part number S100901, Fixing Strip Heat Exchanger FIXING STRIP HEAT EXCHANGER
Remeha-Commercial part no. S100901
£42.71
2025 Part number S62288, Sampling Point Bung Quinta/310 Pro (For 210 PRO use S100850) SAMPLING POINT BUNG QUINTA/310 PRO (FOR 210 PRO USE S100850)
Remeha-Commercial part no. S62288
£7.11
2026   FLOW PIPE ASSEMBLY
Remeha-Commercial part no. S101572
£261.16
2028 Part number 7669770, AIR VENT AIR VENT
Remeha-Broag part no. 7669770
£7.06
2029 Part number S100737, Sealing Ring 44x32x4mm (5pcs) SEALING RING 44X32X4MM (5PCS)
Remeha-Commercial part no. S100737
£19.16
2030   WIRE CLAMP 28-35 (5 PCS)
Remeha-Commercial part no. S101576
£12.86
2031 Part number 7605371, S Clip Hairpin 9.4 (Pk5) S CLIP HAIRPIN 9.4 (PK5)
Remeha-Commercial part no. 7605371
£6.03
2033 Part number S101570, Hose silicone 8x2x740 mm HOSE SILICONE 8X2X740 MM
Remeha-Commercial part no. S101570
£26.96
2037 Part number S101558, Siphon Body QP (Includes Upper Seal & Screws, NO CUP) SIPHON BODY QP (INCLUDES UPPER SEAL & SCREWS, NO CUP)
Remeha-Commercial part no. S101558
£17.74
2038 Part number S14254, Sheet-metal screw 4,2x9,5 (20 pcs.) SHEET-METAL SCREW 4,2X9,5 (20 PCS.)
Remeha-Commercial part no. S14254
£11.05
2039 Part number S101580, Sealing Ring 60mm SEALING RING 60MM
Remeha-Commercial part no. S101580
£14.76
2040 Part number S101559, Siphon Cup SIPHON CUP
Remeha-Commercial part no. S101559
£31.23
2041 Part number S101606, Syphon Hose (Quinta Pro) SYPHON HOSE (QUINTA PRO)
Remeha-Commercial part no. S101606
£22.71
2042 Part number S101581, Sealing Ring Syphon SEALING RING SYPHON
Remeha-Commercial part no. S101581
£29.81
2044   CAP BLIND SCU
Remeha-Commercial part no. S101298
£26.96
2045 Part number S62727, GROMMET 20mm GROMMET 20MM
Remeha-Commercial part no. S62727
£41.50
2046   GROMMET (5 PCS)
Remeha-Commercial part no. S101607
£19.16
2047   SEALANT RETURN CENTRAL HEATING
Remeha-Commercial part no. S101605
£31.23
2048   SEALING RING - FLUE 100 (5 PCS)
Remeha-Broag part no. 7701753
£22.71
3001 Part number S101726, Fan Q65/85 QP65/90 G110-65kw (65/85/90kw) FAN Q65/85 QP65/90 G110-65KW (65/85/90KW)
Remeha-Commercial part no. S101726
£408.78

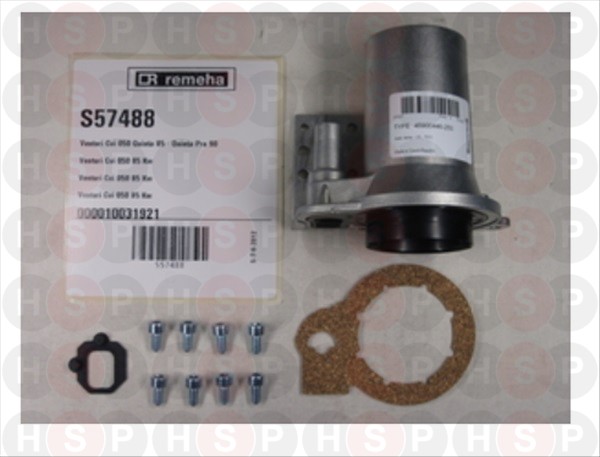

3002 Part number S57488, Venturi Q85 VENTURI Q85
Remeha-Commercial part no. S57488
£95.53
3003   AIR INLET TUBE C/W DAMPER
Remeha-Commercial part no. S101520
£11.88
3005   GAS SUPPY PIPE 3/4"
Remeha-Commercial part no. S101573
£88.14
3006 Part number 7606393, Quinta 90 Pro LPG Gas Valve QUINTA 90 PRO LPG GAS VALVE
Remeha-Commercial part no. 7606393
£600.39
3006 Part number S101597, Gas Combi-Block (QP 90kW) VK4115VB GAS COMBI-BLOCK (QP 90KW) VK4115VB
Remeha-Commercial part no. S101597
£225.68
3007 Part number S101565, Seal 83mm complete with non-return valve - Quinta Pro SEAL 83MM COMPLETE WITH NON-RETURN VALVE - QUINTA PRO
Remeha-Commercial part no. S101565
£10.50
3008 Part number S54777, Sealing for Venturi - (pack of 5) SEALING FOR VENTURI - (PACK OF 5)
Remeha-Commercial part no. S54777
£28.39
3009 Part number S48512, Screw M5X10 (10 Pcs) SCREW M5X10 (10 PCS)
Remeha-Commercial part no. S48512
£19.16
3010 Part number S101592, Gasket set 90kW GASKET SET 90KW
Remeha-Commercial part no. S101592
£52.94
3011 Part number S56155, Gasket 23.8 x 17.2 (20pc) GASKET 23.8 X 17.2 (20PC)
Remeha-Commercial part no. S56155
£29.81
3012   WIRE CLAMP (5 PCS)
Remeha-Commercial part no. S101519
£12.86
3013 Part number S54755, FLANGE NUT M6 FLANGE NUT M6
Remeha-Commercial part no. S54755
£25.55
3014 Part number S100055, Nut M5 (Pack of 20) NUT M5 (PACK OF 20)
Remeha-Commercial part no. S100055
£17.74
3015   FLANGE FOR GAS COMBI-BLOCK
Remeha-Commercial part no. S57827
£36.90
3016 Part number S57828, O-ring Gas Pipe 26, 8 x 22 x 2, (5 pcs) O-RING GAS PIPE 26, 8 X 22 X 2, (5 PCS)
Remeha-Commercial part no. S57828
£8.80
4001 Part number 7726804, PCB GH08 PCB GH08
Remeha-Broag part no. 7726804
£146.19
4002 Part number 7665228, PCB CB-03 PCB CB-03
Remeha-Broag part no. 7665228
£42.71
4004 Part number 7665229, CONTROL BOX CONTROL BOX
Remeha-Broag part no. 7665229
£156.13
4005 Part number 7701771, FUSE GLASS 2.5 AMP (5PCS) FUSE GLASS 2.5 AMP (5PCS)
Remeha-Broag part no. 7701771
£8.18
4006 Part number 7665230, SWITCH ON/OFF SWITCH ON/OFF
Remeha-Broag part no. 7665230
£22.71
4007 Part number 7665231, SERVICE CONNECTOR SERVICE CONNECTOR
Remeha-Broag part no. 7665231
£14.49
4008 Part number 7633327, Configuration Storage Unit CSU-01 CONFIGURATION STORAGE UNIT CSU-01
Remeha-Commercial part no. 7633327
£32.65
4009 Part number S101554, Cable for Pump PCU - Terminal X8 Internal to PCB CABLE FOR PUMP PCU - TERMINAL X8 INTERNAL TO PCB
Remeha-Commercial part no. S101554
£14.34
4010 Part number 7701705, CABLE SET ELV CABLE SET ELV
Remeha-Broag part no. 7701705
£24.13
4011   CABLE SET 230V (30-90KW)
Remeha-Broag part no. 7701699
£22.71
4012   POWER CABLE X1 (L = 1500 MM)
Remeha-Commercial part no. S100845
£35.49
4014   CONTROL PANEL MK3 SW 1.28 (BLACK)
Remeha-Broag part no. 7712174
£228.51
4015 Part number 7665234, CABLE SET (CONTROL BOX INTERNAL) CABLE SET (CONTROL BOX INTERNAL)
Remeha-Broag part no. 7665234
£66.71
4017 Part number S101514, Door clamp (2 pieces) DOOR CLAMP (2 PIECES)
Remeha-Commercial part no. S101514
£20.58
4027 Part number S100763, Print Interface 0-10V (If-01) Quinta Pro PRINT INTERFACE 0-10V (IF-01) QUINTA PRO
Remeha-Commercial part no. S100763
£190.19
4028 Part number 7701709, CABLE IF01 CABLE IF01
Remeha-Broag part no. 7701709
£11.28
4030 Part number S101509, Screw 7985 M4X8 (5 Pcs) SCREW 7985 M4X8 (5 PCS)
Remeha-Commercial part no. S101509
£13.39
4031 Part number 7624619, Transformer Ignition TRANSFORMER IGNITION
Remeha-Commercial part no. 7624619
£16.19
4032 Part number S101632, Water Pressure Sensor (Quinta Pro) WATER PRESSURE SENSOR (QUINTA PRO)
Remeha-Commercial part no. S101632
£42.71
4033 Part number 7623837, Sensors Set Double NTC 10k (1x) and NTC SENSORS SET DOUBLE NTC 10K (1X) AND NTC
Remeha-Commercial part no. 7623837
£16.19
