VAILLANT
ECOTEC VU GB 466/4-5 H - (04 Burner)

Appliance Diagram


04 Burner diagram for Vaillant Ecotec VU GB 466/4-5 HClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

01 Part number 050430, Burner BURNER
Vaillant part no. 050430
£82.58
02 Part number 981103, Gasket burner GASKET BURNER
Vaillant part no. 981103
£5.62
03 Part number 105900, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 105900
£5.32
04 Part number 0020026537, Nut, M6 (PK5) NUT, M6 (PK5)
Vaillant part no. 0020026537
£5.32
05 Part number 161245, inspection glass INSPECTION GLASS
Vaillant part no. 161245
£5.32
06 Part number 090709, Electrode ELECTRODE
Vaillant part no. 090709
£17.92
07 Part number 981330, gasket electrode GASKET ELECTRODE
Vaillant part no. 981330
£4.96
08 Part number 0010027341, SCREW, (X10) ISO 7045 SCREW, (X10) ISO 7045
Vaillant part no. 0010027341
£4.81
09 Part number 0020075412, Plug (Ignition) PLUG (IGNITION)
Vaillant part no. 0020075412
£5.15
09 Part number 193590, ignition cable IGNITION CABLE
Vaillant part no. 193590
£17.36
10   COVER PLATE (FAN)
Vaillant part no. 0020105684
£27.37
10 Part number 190248, Fan FAN
Vaillant part no. 190248
£417.00
11 Part number 981104, Gasket GASKET
Vaillant part no. 981104
£6.32
12 Part number 981045, Gasket GASKET
Vaillant part no. 981045
£5.32
13 Part number 0020110999, Gas section GAS SECTION
Vaillant part no. 0020110999
£159.86
13 Part number 081697, Connection piece CONNECTION PIECE
Vaillant part no. 081697
£21.31
14 Part number 981142, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981142
£5.62
15 Part number 123434, Gas connection tube GAS CONNECTION TUBE
Vaillant part no. 123434
£36.96
16 Part number 0020039719, Wiring harness, fan WIRING HARNESS, FAN
Vaillant part no. 0020039719
£48.93
16 Part number 0020045928, Wiring Harness WIRING HARNESS
Vaillant part no. 0020045928
£27.90
17 Part number 210734, insulation INSULATION
Vaillant part no. 210734
£22.33
18 Part number 116688, Air gas mixing tube AIR GAS MIXING TUBE
Vaillant part no. 116688
£39.34
19 Part number 981333, seal heat exchanger door / mixing arm SEAL HEAT EXCHANGER DOOR / MIXING ARM
Vaillant part no. 981333
£5.32
20 Part number 105836, Cylinder screw, (kit 2 x 4) CYLINDER SCREW, (KIT 2 X 4)
Vaillant part no. 105836
£5.32

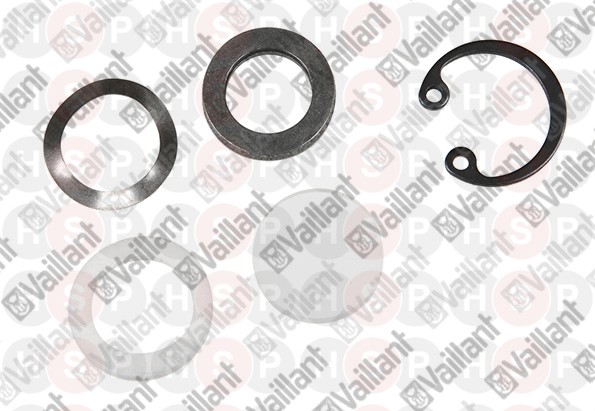

21 Part number 0020038679, Gasket kit GASKET KIT
Vaillant part no. 0020038679
£15.24
22 Part number 0020038679, Gasket kit GASKET KIT
Vaillant part no. 0020038679
£15.24
23 Part number 139247, screw SCREW
Vaillant part no. 139247
£5.32
24 Part number 118882, Flat head screw FLAT HEAD SCREW
Vaillant part no. 118882
£5.13
25 Part number 145877, Air inlet duct AIR INLET DUCT
Vaillant part no. 145877
£24.08
26 Part number 981111, Gasket GASKET
Vaillant part no. 981111
£5.32
28 Part number 087195, Bracket, Air Inlet Pipe BRACKET, AIR INLET PIPE
Vaillant part no. 087195
£12.46
29 Part number 0020133833, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020133833
£5.32
31 Part number 088134, flange FLANGE
Vaillant part no. 088134
£77.53
32 Part number 0020012126, Compression Fitting COMPRESSION FITTING
Vaillant part no. 0020012126
£10.04

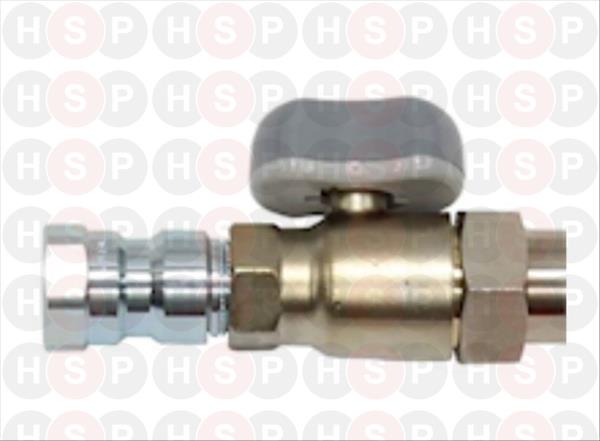

33 Part number 009299, OBSOLETE GAS COCK STRAIGHT 1INCH OBSOLETE GAS COCK STRAIGHT 1INCH
Vaillant part no. 009299
