VAILLANT
ECOTEC PLUS VU GB 606/5-5 H - (12 Control Panel)
Appliance Code: 41-694-29

Appliance Diagram

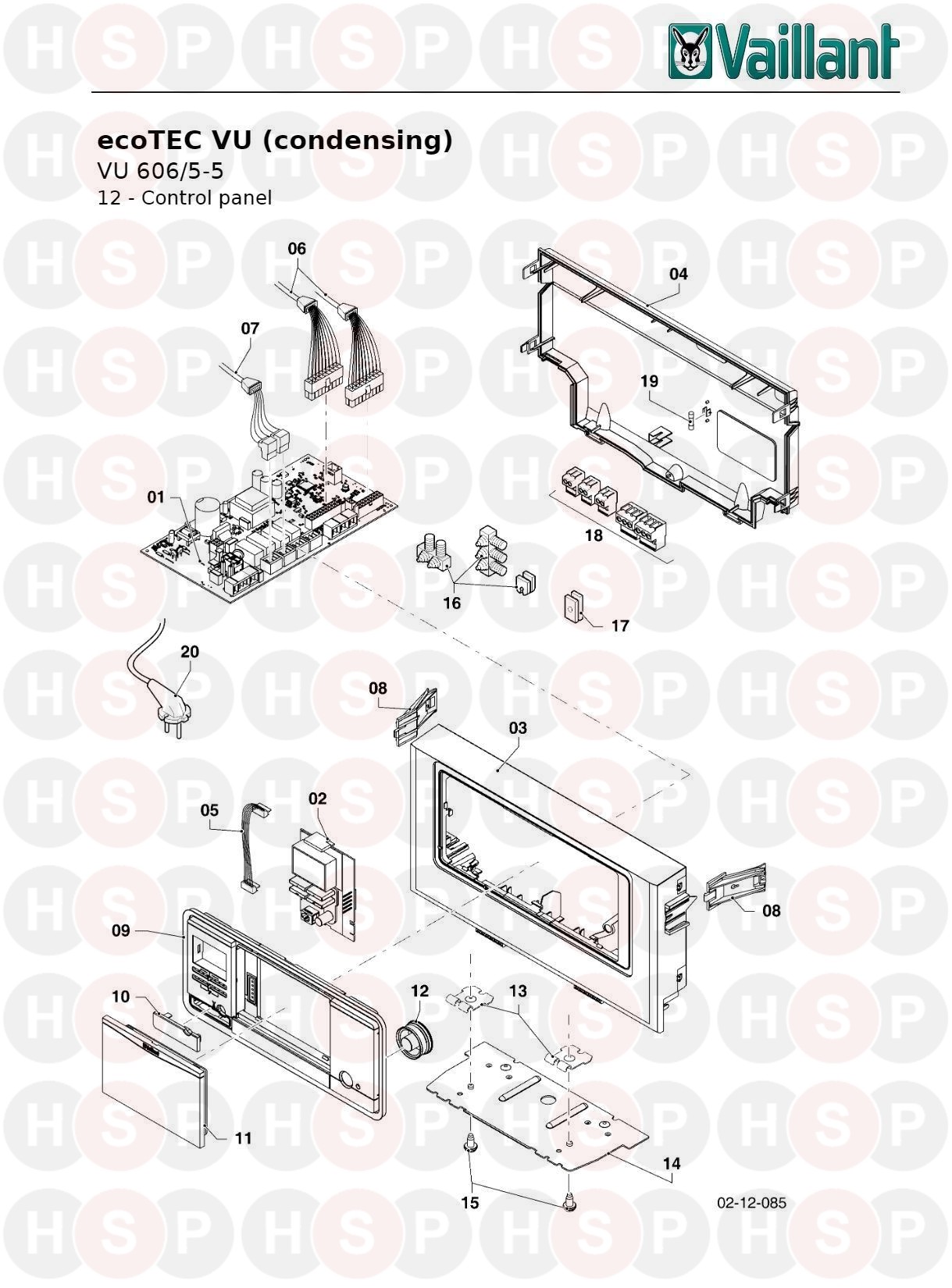

12 Control Panel diagram for Vaillant Ecotec Plus VU GB 606/5-5 HClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

01 Part number 0020280590, PCB PCB
Vaillant part no. 0020280590
£158.83
02 Part number 0020244430, DISPLAY DISPLAY
Vaillant part no. 0020244430
£51.41
03 Part number 0020136631, Casing, front (plus) CASING, FRONT (PLUS)
Vaillant part no. 0020136631
£41.37
04 Part number 0020141346, Casing, back CASING, BACK
Vaillant part no. 0020141346
£7.41
05 Part number 0020136630, Cable, display CABLE, DISPLAY
Vaillant part no. 0020136630
£6.28
06 Part number 0020268769, WIRING HARNESS 24V WIRING HARNESS 24V
Vaillant part no. 0020268769
£56.46
07 Part number 0020268771, WIRING HARNESS 230V WIRING HARNESS 230V
Vaillant part no. 0020268771
£23.58
08 Part number 0020233898, Spacer, (PK2) SPACER, (PK2)
Vaillant part no. 0020233898
£6.03
09   PRICE ON APPLICATION
Vaillant part no. 0000

10 Part number 0020136640, COVER DIAGNOSTIC CONNECTOR COVER DIAGNOSTIC CONNECTOR
Vaillant part no. 0020136640
£6.28
11 Part number 0020136633, Cover control (plus) COVER CONTROL (PLUS)
Vaillant part no. 0020136633
£8.47
12 Part number 0020136642, Button power switch (plus) BUTTON POWER SWITCH (PLUS)
Vaillant part no. 0020136642
£6.79
13 Part number 0020144611, Support, control box (PK2) SUPPORT, CONTROL BOX (PK2)
Vaillant part no. 0020144611
£6.28
14 Part number 0020233899, Support (extension) SUPPORT (EXTENSION)
Vaillant part no. 0020233899
£19.65
15 Part number 0020136643, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020136643
£6.28
16 Part number 078533, cable fixation CABLE FIXATION
Vaillant part no. 078533
£7.84
17 Part number 0020210117, PLUG PLUG
Vaillant part no. 0020210117
£5.86
18 Part number 0020136646, Connector ProE (Set) CONNECTOR PROE (SET)
Vaillant part no. 0020136646
£15.71
19 Part number 251957, Fuse T4H (PK10) FUSE T4H (PK10)
Vaillant part no. 251957
£6.65
