VOKERA
VISION 25C ERP REV 13 (09/2019) - (Burner Air Box)
Appliance Code: 47-364-25 REV 13

Appliance Diagram

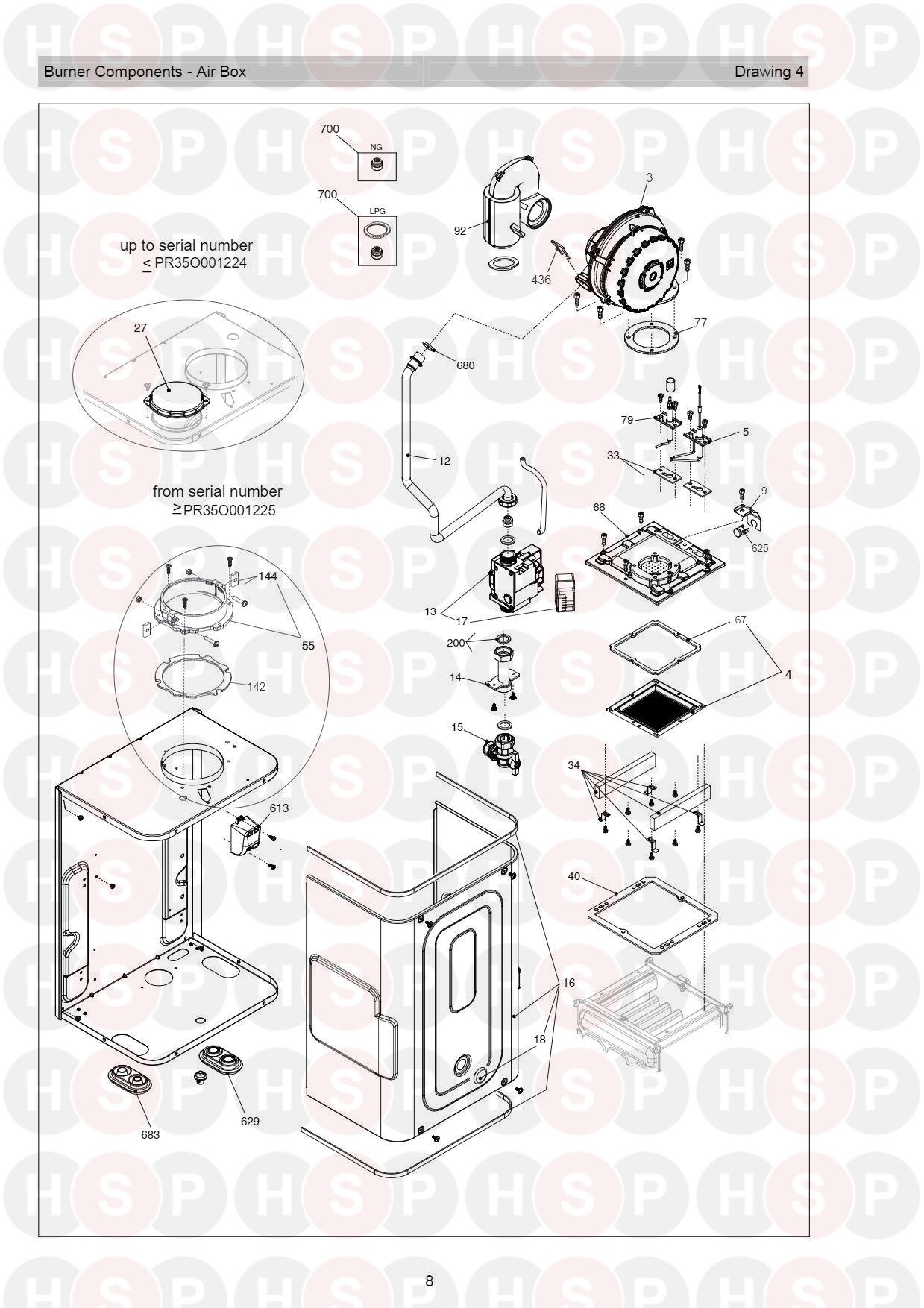

Burner Air Box diagram for Vokera Vision 25C ERP Rev 13 (09/2019)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

3 Part number 20081316, Fan Assembly with Built in Mixer FAN ASSEMBLY WITH BUILT IN MIXER
Vokera part no. 20081316
£255.71
4 Part number 20044892, Burner 25 kw (Ceramat) and top gasket (20116624) BURNER 25 KW (CERAMAT) AND TOP GASKET (20116624)
Vokera part no. 20044892
£117.57
5 Part number 20025737, Ignition electrode with Lead IGNITION ELECTRODE WITH LEAD
Vokera part no. 20025737
£19.98
9   CLIP FOR HIGH LIMIT STAT ONTO HEAT EXCHANGER
Vokera part no. 20093799
£5.68
12   PIPE
Vokera part no. 20025745
£29.07
13 Part number 20039202, Gas valve Rep 10028538 & 10027187 & 20025752 GAS VALVE REP 10028538 & 10027187 & 20025752
Vokera part no. 20039202
£170.04
14   GAS PIPE
Vokera part no. 20005553
£24.62
15 Part number 10020897, Gas Cock GAS COCK
Vokera part no. 10020897
£26.04
16   COMBUSTION CHAMBER COVER
Vokera part no. 20005594
£36.08
17 Part number 20040675, Gas Valve Solenoid (Fits 20039202/20035533) GAS VALVE SOLENOID (FITS 20039202/20035533)
Vokera part no. 20040675
£79.58
18   PLUG
Vokera part no. 20005550
£1.14
27   PLASTIC HOLE COVER
Vokera part no. 20005586
£1.65
33 Part number 20025740, Seal for Ignition electrode SEAL FOR IGNITION ELECTRODE
Vokera part no. 20025740
£1.04
34 Part number 20044890, Lateral insulation panel LATERAL INSULATION PANEL
Vokera part no. 20044890
£13.61
40   NOW USE 20044894 HEAT EXCHANGER GASKET 25KW
Vokera part no. 20160018

40 Part number 20044894, BURNER GASKET BURNER GASKET
Vokera part no. 20044894
£11.89
55   FUMES FLANGE KIT (UP TO SERIAL NO. 20127447N3859999)
Vokera part no. 20157135
£14.96
55   NOW USE 20157135 FUMES FLANGE (FROM SERIAL NO. 20099226O1150289)
Vokera part no. 20157132

67   NOW USE 20116624 BURNER SEAL 25KW
Vokera part no. 20160017

67 Part number 20116624, Gasket for top of 25kw burner (20044892) GASKET FOR TOP OF 25KW BURNER (20044892)
Vokera part no. 20116624
£7.46
68   EXCHANGER COVER
Vokera part no. 20044895
£34.07
77 Part number 20025753, WASHER WASHER
Vokera part no. 20025753
£3.68
79 Part number 20043523, IONISATION ELECTRODE IONISATION ELECTRODE
Vokera part no. 20043523
£13.87
92 Part number 20025760, SUCTION PIPE SUCTION PIPE
Vokera part no. 20025760
£5.94
142   FLANGE GASKET (FROM SERIAL NO. 20099226O1150289)
Vokera part no. 20157133
£1.73
144   FLANGE GASKET (FROM SERIAL NO. 200992601150289)
Vokera part no. 20123098
£0.66
200 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023
£0.43
436 Part number 10025062, Locking Pin LOCKING PIN
Vokera part no. 10025062
£2.26
613 Part number 20001563, NOW USE 20002969 IGNITION TRANSFORMER NOW USE 20002969 IGNITION TRANSFORMER
Vokera part no. 20001563

613 Part number 20002969, Ignition transformer with wires Rep 10026237 & 20001563 IGNITION TRANSFORMER WITH WIRES REP 10026237 & 20001563
Vokera part no. 20002969
£42.16
625 Part number 20005585, HIGH LIMIT STAT HIGH LIMIT STAT
Vokera part no. 20005585
£3.08
629   SEALING GASKET
Vokera part no. 20166929
£1.46
680 Part number 20024869, O RING O RING
Vokera part no. 20024869
£0.72
683   SEALING GASKET
Vokera part no. 20166930
£1.56
700   LPG TO NG CONVERSION KIT (FROM SERIAL NO. 20071534K0550073)
Vokera part no. 20082915
£15.65
700 Part number 20082917, NG to LPG conversion kit (FROM SERIAL NO. 20071534K0550073) NG TO LPG CONVERSION KIT (FROM SERIAL NO. 20071534K0550073)
Vokera part no. 20082917
£15.28
