VOKERA
VISION PLUS 25C REV 2 (04/2021) - (Hydraulics 1)
Appliance Code: 47-364-52 REV 2

Appliance Diagram

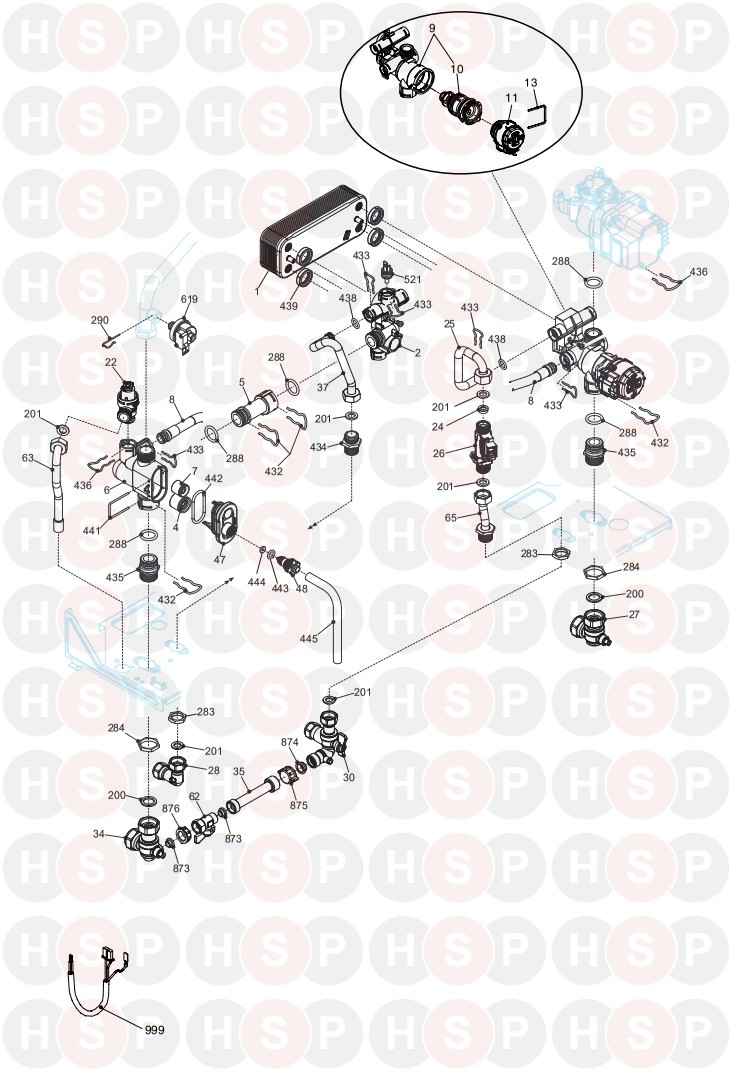

Hydraulics 1 diagram for Vokera Vision Plus 25c Rev 2 (04/2021)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   HEAT EXCHANGER
Vokera part no. 20157769
£168.70
2   FITTING / UNION REPLACED 10026194
Vokera part no. 20092620
£5.33
4 Part number 10025056, Non return valve NON RETURN VALVE
Vokera part no. 10025056
£5.11
5   CONNECTION
Vokera part no. 10024647
£3.93
6   BYPASS BODY
Vokera part no. 10024642
£12.07
7 Part number 1552, Valve For DHW Bypass VALVE FOR DHW BYPASS
Vokera part no. 1552
£7.77
8   PIPE
Vokera part no. 10025057
£10.93
9   3 WAY MANIFOLD & CARTRIDGE
Vokera part no. 20021497
£70.57
10 Part number 20043594, 3 way valve cartridge Rep 20017597 3 WAY VALVE CARTRIDGE REP 20017597
Vokera part no. 20043594
£44.96
11 Part number 20017594, Actuator/Motorised valve ACTUATOR/MOTORISED VALVE
Vokera part no. 20017594
£59.42
13 Part number 20017598, Square Locking Pin (COMPACT VERSION) SQUARE LOCKING PIN (COMPACT VERSION)
Vokera part no. 20017598
£1.44
22 Part number 20044364, Safety valve Rep 10025055 & 20034917 & 20043820 SAFETY VALVE REP 10025055 & 20034917 & 20043820
Vokera part no. 20044364
£22.49
24 Part number 10026043, Flow governor 8 Litres Per Min (White) FLOW GOVERNOR 8 LITRES PER MIN (WHITE)
Vokera part no. 10026043
£6.24
25 Part number 20044364, Safety valve Rep 10025055 & 20034917 & 20043820 SAFETY VALVE REP 10025055 & 20034917 & 20043820
Vokera part no. 20044364
£22.49
26 Part number 20069786, DHW Actuator DHW ACTUATOR
Vokera part no. 20069786
£16.92
27   HEAT WATER COCK
Vokera part no. 20132653
£19.26
28   ANGLE PIPE
Vokera part no. 20132654
£9.55
30   FILLING LOOP 3-WAY VALVE/COLD WATER FILLING VALVE
Vokera part no. 20180001
£33.95
34   FLOW ISOLATION VALVE
Vokera part no. 20180000
£23.34
35   PIPE
Vokera part no. 20179997
£9.62
37   PIPE
Vokera part no. 20013140
£12.21
47   COVER FOR BY-PASS ASSEMBLY (ONE HOLE)
Vokera part no. 20133375
£11.15
48 Part number 10024646, Discharge Valve with O ring (10025064) & Washer (10025066) DISCHARGE VALVE WITH O RING (10025064) & WASHER (10025066)
Vokera part no. 10024646
£7.85
62   FILLING COCK
Vokera part no. 20132655
£8.18
63   PIPE
Vokera part no. 20036120
£10.53
65   PIPE
Vokera part no. 10024983
£10.61
70 Part number 2216, Manifold Plug MANIFOLD PLUG
Vokera part no. 2216
£3.01
200 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023
£0.43
201 Part number 5026, 1/2" Fibre Washer 1/2" FIBRE WASHER
Vokera part no. 5026
£0.39
283   LOCK NUT
Vokera part no. 4274

284 Part number 4026, 3/4" BSP Locknut 3/4" BSP LOCKNUT
Vokera part no. 4026
£1.38
288 Part number 6898, O Ring O RING
Vokera part no. 6898
£1.03
290 Part number 10027757, Locking Pin LOCKING PIN
Vokera part no. 10027757
£0.77
290 Part number 2165, NOW USE 10027757 LOCKING PIN NOW USE 10027757 LOCKING PIN
Vokera part no. 2165

432 Part number 10024958, Locking Pin LOCKING PIN
Vokera part no. 10024958
£0.98
433 Part number 10024986, Locking Pin LOCKING PIN
Vokera part no. 10024986
£0.98
434 Part number 10024985, Nipple NIPPLE
Vokera part no. 10024985
£11.88
435 Part number 10025059, Connection CONNECTION
Vokera part no. 10025059
£11.53
436 Part number 10025062, Locking Pin LOCKING PIN
Vokera part no. 10025062
£2.26
438 Part number 10024988, O ring O RING
Vokera part no. 10024988
£0.81
439 Part number 10025067, O ring O RING
Vokera part no. 10025067
£2.61
441 Part number 10025063, Locking Pin LOCKING PIN
Vokera part no. 10025063
£0.98
442 Part number 10025065, O ring O RING
Vokera part no. 10025065
£1.91
443 Part number 10025064, O ring O RING
Vokera part no. 10025064
£5.30
444 Part number 10025066, Washer WASHER
Vokera part no. 10025066
£3.27
445   SILICONE TUBE
Vokera part no. 10025068
£2.59
521 Part number 10027351, Thermistor/NTC Sensor THERMISTOR/NTC SENSOR
Vokera part no. 10027351
£7.96
619 Part number 20024559, Pressure Transductor PRESSURE TRANSDUCTOR
Vokera part no. 20024559
£32.68
873   WASHER
Vokera part no. 20133197
£1.79
874   WASHER
Vokera part no. 20133198
£2.26
875   CAP NUT
Vokera part no. 20133199
£1.18
876   CAP NUT
Vokera part no. 20133200
£1.06
999   PRESSURE TRANSDUCER WIRING
Vokera part no. 20167261
£6.80
