CD50 - (Casing)
Appliance Code: 47-532-24

Appliance Diagram


Casing diagram for Alpha CD50Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

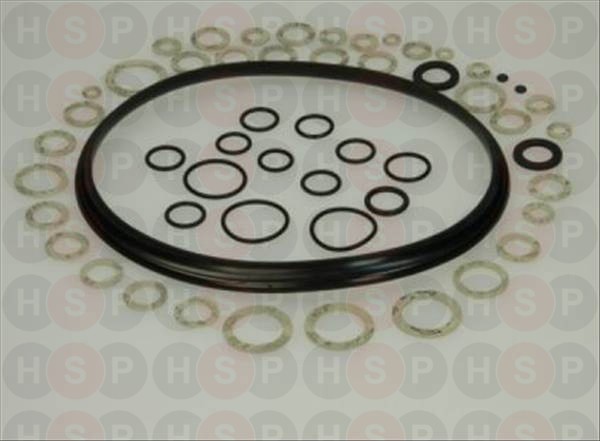

1 Part number 3.014750, SEAL KIT - FLUE OUTLET CONN (CD24C/S) SEAL KIT - FLUE OUTLET CONN (CD24C/S)
Alpha part no. 3.014750
£49.54
2 Part number 1.010371, CLIP (HEAT EXCHR. TUBE) CLIP (HEAT EXCHR. TUBE)
Alpha part no. 1.010371
£2.75
3 Part number 1.010430, CAP (SAMPLING POINT) CAP (SAMPLING POINT)
Alpha part no. 1.010430
£2.75
4 Part number 1.019144, PIPE- CONDENSATION DISCHARGE PIPE- CONDENSATION DISCHARGE
Alpha part no. 1.019144
£11.76
5 Part number 1.019293, FLAME SENSING ELECTRODE CD32C FLAME SENSING ELECTRODE CD32C
Alpha part no. 1.019293
£28.53
6 Part number 1.010771, AUTOMATIC AIR VENT (CB/CD/SY) (240/280/500) AUTOMATIC AIR VENT (CB/CD/SY) (240/280/500)
Alpha part no. 1.010771
£23.47
7 Part number 3.014689, SEAL KIT-PUMP/PRI HT EXCH/ 3-WAY VALVE (CB50) SEAL KIT-PUMP/PRI HT EXCH/ 3-WAY VALVE (CB50)
Alpha part no. 3.014689
£12.25
8   NOW USE 1.021483 FLUE ADAPTER 60MM SEAL CD BLR
Alpha part no. 1.020365

8 Part number 1.021483, FLUE ADAPTER 60MM SEAL CD BLR FLUE ADAPTER 60MM SEAL CD BLR
Alpha part no. 1.021483
£3.39
9 Part number 3.013388, SEAL KIT- ISOL.VALVES & CONNS (CB24/28/SY)(CD24C/S) SEAL KIT- ISOL.VALVES & CONNS (CB24/28/SY)(CD24C/S)
Alpha part no. 3.013388
£11.75
10 Part number 1.021762, TEMPERATURE SENSOR (NTC) (240/280/500/CB/CD/SY) TEMPERATURE SENSOR (NTC) (240/280/500/CB/CD/SY)
Alpha part no. 1.021762
£14.92
11 Part number 3.013392, SEAL KIT A.A.V/N.T.C/P/GGE/EXP (CB24/28/SY)(CD24C/S) SEAL KIT A.A.V/N.T.C/P/GGE/EXP (CB24/28/SY)(CD24C/S)
Alpha part no. 3.013392
£5.70
12   INJECTOR (NG) (CD32C)
Alpha part no. 1.019247
£14.56
12   INJECTOR (LPG) (CD32C)
Alpha part no. 1.018202
£17.11
14   SEAL KIT FAN/FLUE (CB50)
Alpha part no. 3.014731
£17.84
15 Part number 1.2363, SILICONE TUBE (CB50) SILICONE TUBE (CB50)
Alpha part no. 1.2363
£7.22
16   PIPE CLAMP(SILICONE)
Alpha part no. 1.010500
£1.35
17 Part number 1.018320, NOW USE 3.014379 PRIMARY PRESSURE SWITCH NOW USE 3.014379 PRIMARY PRESSURE SWITCH
Alpha part no. 1.018320

17 Part number 3.014379, BRASS PRESSURE SWITCH/WASHER BRASS PRESSURE SWITCH/WASHER
Alpha part no. 3.014379
£31.65
20   SEAL KIT AAV/NTC/PPS/EXP VESS/ PRESS GAUGE (CB50)
Alpha part no. 3.014732
£7.37
20   NOW USE SEAL KIT 3.014732
Alpha part no. 1.015244

21   REPLACED BY 1.023979 REPLACED BY 1.023979
Alpha part no. 1.018956
£94.98
22   GAS MANIFOLD (CD24S/C)
Alpha part no. 1.010589
£89.52
23 Part number 1.014655, HEATING EXPANSION VESSEL (CB50 HEATING EXPANSION VESSEL (CB50
Alpha part no. 1.014655
£114.52
24   PIPE-HEATING EXPANSION VESSEL (CB50)
Alpha part no. 1.017758
£15.77
29 Part number 1.011132, CORD PACKAGING (CD24S/C) CORD PACKAGING (CD24S/C)
Alpha part no. 1.011132
£21.46
31   PIPE-VALVE OUTLET CONN (CB50)
Alpha part no. 1.018682
£12.81
32   D.12 PIPE GROMMET (CD24S/C)
Alpha part no. 1.011362
£3.81
33 Part number 1.015421, ISOLATING VALVE 1/2 ISOLATING VALVE 1/2
Alpha part no. 1.015421
£15.53
34   PIPE-WALL GAS CONN (CB50)
Alpha part no. 1.017755
£9.83
35   WALL PLUG & SCREW PACK
Alpha part no. 1.015423
£8.36
36   FLANGE-PIPE FIXING FAN CD24S/C
Alpha part no. 1.011752
£16.19
37 Part number 3.014749, SEAL KIT - PRI HEAT EXCH/FAN/ CONDENSATE TRAP (CD24C/S) SEAL KIT - PRI HEAT EXCH/FAN/ CONDENSATE TRAP (CD24C/S)
Alpha part no. 3.014749
£61.40
38   PIPE-HEATING FLOW CONN (CB50)
Alpha part no. 1.017753
£10.09
39   GAS COCK (CB50)
Alpha part no. 1.018129
£25.98
40 Part number 1.015610, PUMP-GRUNDFOS 15/60 (240/280/CB/CD/SY) PUMP-GRUNDFOS 15/60 (240/280/CB/CD/SY)
Alpha part no. 1.015610
£141.31
41   PIPE-COLD INLET CONN (CB50)
Alpha part no. 1.017754
£8.36
44   FLUE OUTLET/AIR INLET MOULDING
Alpha part no. 1.013217
£45.65
46 Part number 1.012067, 100DEG THERMOSTAT (CD24S/C) 100DEG THERMOSTAT (CD24S/C)
Alpha part no. 1.012067
£12.48
47 Part number 1.021206, NOW USE 1.029719 FAN ASSEMBLY (CD) NOW USE 1.029719 FAN ASSEMBLY (CD)
Alpha part no. 1.021206

47 Part number 1.029719, FAN ASSEMBLY FAN ASSEMBLY
Alpha part no. 1.029719
£214.03
48   NUT (D15 PIPE)
Alpha part no. 1.016152
£4.47
49   OLIVE (D15 PIPE)
Alpha part no. 1.016153
£1.87
51 Part number 1.012477, TRANSFORMER (CD24S/C) TRANSFORMER (CD24S/C)
Alpha part no. 1.012477
£85.47
52 Part number 1.013154, SEAL (ROOM SEALED CHAMBER) SEAL (ROOM SEALED CHAMBER)
Alpha part no. 1.013154
£8.24
54   SIGHT GLASS D.40 (CD24S/C)
Alpha part no. 1.013368
£14.35
57   BRASS NUT (SHORTENED) 1/2
Alpha part no. 1.1269
£1.30
58 Part number 1.014732, FIBRE PANEL COVER (CD24S/C) FIBRE PANEL COVER (CD24S/C)
Alpha part no. 1.014732
£9.24
60 Part number 3.014688, SEAL KIT-DHW CYLINDER (CB50) SEAL KIT-DHW CYLINDER (CB50)
Alpha part no. 3.014688
£32.38
61 Part number 1.014785, GAS MANIFOLD SEAL (CDD24S/C) GAS MANIFOLD SEAL (CDD24S/C)
Alpha part no. 1.014785
£12.48
63 Part number 3.013626, IGNITOR-TWIN ROW (CD24S/C) IGNITOR-TWIN ROW (CD24S/C)
Alpha part no. 3.013626
£39.14
64 Part number 1.019654, L.600 HOSE (CD24S/C) L.600 HOSE (CD24S/C)
Alpha part no. 1.019654
£16.27
65   GROMMET (ELECTRODES)
Alpha part no. 1.5780
£1.29
68 Part number 1.016779, IGNITION ELECTRODE (CD) IGNITION ELECTRODE (CD)
Alpha part no. 1.016779
£6.08
69   FILTER
Alpha part no. 1.8403
£2.13
70   COVER PLATE D80
Alpha part no. 2.010055
£1.29
74   PRIMARY HEAT EXCHANGER (CD50)
Alpha part no. 1.017410
£457.55
77   VENTURI (CD32C)
Alpha part no. 1.017750
£39.84
82 Part number 1.018162, SPARK GENERATOR (CD24S/C) SPARK GENERATOR (CD24S/C)
Alpha part no. 1.018162
£36.49
83 Part number 1.018192, NOW USE 3.021397 CONDENSATE DRAIN TRAP NOW USE 3.021397 CONDENSATE DRAIN TRAP
Alpha part no. 1.018192

83 Part number 3.021397, CONDENSATE DRAIN TRAP WITH CAP CONDENSATE DRAIN TRAP WITH CAP
Alpha part no. 3.021397
£54.65
85   FRONT CASING PANEL (CB50)
Alpha part no. 2.011933
£112.54
86   R/H SIDE CASING PANEL (CB50)
Alpha part no. 2.011931
£50.25
87   L/H SIDE CASING PANEL (CB50)
Alpha part no. 2.011932
£50.25
88   EARTH CABLE FOR SPARK GENERATOR (CB24S/C)
Alpha part no. 1.018532
£3.81
90 Part number 3.012705, GLASS (WITH GROMMET) GLASS (WITH GROMMET)
Alpha part no. 3.012705
£4.32
92   PIPE D.18 CYCLONE TO BYPASS CD50
Alpha part no. 1.020376
£17.96
95   GLASS FOR L.E.D.
Alpha part no. 1.010365
£1.69
96   CAP (P C B ACCESS HOLE)
Alpha part no. 1.011968
£0.71
97 Part number 1.013340, DHW AND C.H CONTROL KNOB DHW AND C.H CONTROL KNOB
Alpha part no. 1.013340
£1.95
98 Part number 1.014054, SELECTOR SWITCH KNOB SELECTOR SWITCH KNOB
Alpha part no. 1.014054

99 Part number 3.017246, G/VLV PLUG & LEAD ONLY CB/HE/CD (NOT CDR) G/VLV PLUG & LEAD ONLY CB/HE/CD (NOT CDR)
Alpha part no. 3.017246
£30.46
105   CONTROL PANEL CD50
Alpha part no. 1.020184
£50.23
106   CONTROL PANEL REAR COVER (CB50)
Alpha part no. 1.017673
£21.79
107 Part number 1.015404, COVER (TERMINAL BLOCK) COVER (TERMINAL BLOCK)
Alpha part no. 1.015404

108 Part number 1.020182, PCB (CD50) PCB (CD50)
Alpha part no. 1.020182
£197.32
109   COVER (CLOCK CONNECTIONS)
Alpha part no. 1.015406
£3.81
110   I D CARD (TERMINAL BLOCK)
Alpha part no. 1.015621
£5.18
111 Part number 1.015753, CLOCK BLANKING PLATE CLOCK BLANKING PLATE
Alpha part no. 1.015753
£2.47
112 Part number 1.016151, PRESSURE GAUGE (CB/SY/CD) PRESSURE GAUGE (CB/SY/CD)
Alpha part no. 1.016151
£39.66
113 Part number 1.4005, TERMINAL BLOCK & FUSE HOLDER TERMINAL BLOCK & FUSE HOLDER
Alpha part no. 1.4005

114   CABLE CLAMP
Alpha part no. 1.4072
£0.70
115   SCREW 3.9 X 13 SELF TAPPING
Alpha part no. 1.4139
£0.99
116 Part number 1.6098, FUSE 2AMP (240/280/CB/SY/CD) FUSE 2AMP (240/280/CB/SY/CD)
Alpha part no. 1.6098
£1.35
117   CABLE CLAMP (CB50)
Alpha part no. 1.7908
£1.01
118   SCREW 3.5 X 19 SELF TAPPING
Alpha part no. 1.7967
£1.12
119   WALL TEMPLATE CD50
Alpha part no. 1.021214
£36.66
120   WALL MOUNTING BRACKET (CB50)
Alpha part no. 2.011833
£16.72
122 Part number 1.6600, GROMMET (PRIMARY PIPES)(CB/SY) GROMMET (PRIMARY PIPES)(CB/SY)
Alpha part no. 1.6600
£3.85
125   FLANGE-SIGHT GLASS (CD24S/C)
Alpha part no. 2.010177
£3.27
128 Part number 1.011846, GAS VALVE-VK4115 (CD24S/C) GAS VALVE-VK4115 (CD24S/C)
Alpha part no. 1.011846
£167.87
129   PIPE ISOL.VALVE/GAS VALVE
Alpha part no. 3.013115
£22.37
135   BRACKET-SPARK GENERATOR MOUNT (CB24S/C)
Alpha part no. 2.011923
£9.70
137 Part number 3.014018, NOW USE 3.019689 DIVERTER VALVE & MOTOR (CB50)(CD50) NOW USE 3.019689 DIVERTER VALVE & MOTOR (CB50)(CD50)
Alpha part no. 3.014018

137 Part number 3.019689, DIVERTER VALVE & MOTOR (BOXED) DIVERTER VALVE & MOTOR (BOXED)
Alpha part no. 3.019689
£130.47
138 Part number 1.017759, OUTLET MANIFOLD HOUSING CB50 OUTLET MANIFOLD HOUSING CB50
Alpha part no. 1.017759
£49.94
139 Part number 1.011126, PRESSURE RELIEF VALVE - 3 BAR (CB/CD/SY) PRESSURE RELIEF VALVE - 3 BAR (CB/CD/SY)
Alpha part no. 1.011126
£24.74
140   RETAINING SCREW (P R V )
Alpha part no. 1.016169
£1.32
142   FLANGE-GAS VALVE (CD24S/C)
Alpha part no. 1.2311

145 Part number 3.013371, CYCLONE ASSY.(AFTER S/NO.B110) CYCLONE ASSY.(AFTER S/NO.B110)
Alpha part no. 3.013371
£127.58
147   FLUE OUTLET ASSY (CD50)
Alpha part no. 3.015657
£88.87
153   NOW USE 2.013334 SEAL RING
Alpha part no. 2.010792

153 Part number 2.013334, SEAL RING CD25/28/35C SEAL RING CD25/28/35C
Alpha part no. 2.013334
£17.23
156   GAS MANIFOLD COVER (CD24S/C)
Alpha part no. 1.010662
£42.42
165   SCREW M5 X 8
Alpha part no. 1.1176
£1.51
166   RING M4
Alpha part no. 1.4246
£0.99
169   SCREW SELF TAPPING 4.2 X 9.5
Alpha part no. 1.4557
£0.99
171   NOW USE 1.7030 SCREW SELF TAPPING M4 X 8
Alpha part no. 1.016246

171   SCREW SWAGEFORM M4 X 10
Alpha part no. 1.7030
£1.00
174   SILICONE CAP(CONT.PANEL COVER)
Alpha part no. 1.012641
£1.06
175   CONTROL PANEL HINGED COVER (CB50)
Alpha part no. 1.012784
£36.84
177 Part number 3.014936, BY PASS VALVE BY PASS VALVE
Alpha part no. 3.014936
£66.26
179 Part number 3.015850, FILLING LOOP 15MM (X,CB50,CD50 FILLING LOOP 15MM (X,CB50,CD50
Alpha part no. 3.015850
£56.52
208 Part number 1.017936, PRV 2.5BAR (CB50) PRV 2.5BAR (CB50)
Alpha part no. 1.017936
£89.62
210   18 D. PIPE CLIP (CB50)
Alpha part no. 1.010362
£1.29
212   3 WAY VALVE MOTOR JOINT (CB50)
Alpha part no. 1.013059
£9.68
213   R/H DRAW PULL CATCH CLAW PLATE (CB50)
Alpha part no. 2.4271
£3.02
213   L/H DRAW PULL CATCH CLAW PLATE (CB50)
Alpha part no. 2.4272
£3.02
217   G 3/8" LOCK NUT (CB50)
Alpha part no. 1.014894
£7.58
218 Part number 1.018837, DHW EXPANSION VESSEL (CB50) DHW EXPANSION VESSEL (CB50)
Alpha part no. 1.018837
£123.55
221   D.60-100 FLANGE INLET-OUTLET CD24C/S
Alpha part no. 1.017911
£9.70
225   SCREW M4 X 16 (CB50)
Alpha part no. 1.6985
£0.31
226   SCREW 3.9 X 9.5 SELF TAPPING (CB50)
Alpha part no. 1.011114
£0.28
229   DRAW PULL CATCH (CB50)
Alpha part no. 1.2446
£7.28
231   BRACKET - SEALED CHAMBER COVER (CB50)
Alpha part no. 2.4261
£2.52
234   SCREW 4.2 X 6.5 SELF TAPPING (CB50)
Alpha part no. 1.013219
£1.27
237   SCREW 2.9 X 9.5 SELF TAPPING (CB50)
Alpha part no. 1.013013
£7.43
238   SCREW 2.2 X 6.5 SELF TAPPING
Alpha part no. 1.013014
£1.18
239   SCREW M3 X 20 SELF TAPPING (CB50)
Alpha part no. 1.013015

240   CYLINDRICAL PIN 3 X 16 (CB50)
Alpha part no. 1.013016

241   M3 X 35 SCREW-CROSS HEAD (CB50)
Alpha part no. 1.6269
£0.25
243   PIN-COUPLING FOR 3 WAY VALVE (CB50)
Alpha part no. 3.013303
£10.41
244   PIN CB50
Alpha part no. 1.012640
£3.02
245   DOOR SUPPORT CB50
Alpha part no. 1.012639
£3.40
246   DOOR SPRING CB50
Alpha part no. 1.013967
£5.59
250   CYLINDER BRACKET (CB50)
Alpha part no. 2.010452
£7.96
251   CYLINDER ANGLE BRACKET (CB50)
Alpha part no. 2.010453
£1.23
255   CROSS MEMBER - LEFT & RIGHT SIDE PANELS (CB50)
Alpha part no. 2.010759
£9.48
256   CENTRAL FRAME UPRIGHT (CB50)
Alpha part no. 2.011032
£3.85
257   DHW EXPANSION VESSEL SUPPORT BRACKET (CB50)
Alpha part no. 2.011443
£14.09
258   TUNDISH CB50
Alpha part no. 1.018148
£40.64
262 Part number 1.018091, 6 BAR SAFETY VALVE (CB50) 6 BAR SAFETY VALVE (CB50)
Alpha part no. 1.018091
£32.38
269   ANGLE BRACKET FOAM STRIP (CB50)
Alpha part no. 2.4270
£0.52
284   DHW STORAGE CYLINDER (CD50)
Alpha part no. 3.015327
£457.55
286   CYLINDER TEMPERATURE SENSOR FITTING (CB50)
Alpha part no. 1.012668
£8.98
287   G 1/2" VALVE (CB50)
Alpha part no. 1.013387
£17.43
289   3/4"F NUT FOR COUPLER, BRASS (CB50)
Alpha part no. 1.8407
£3.46
290   3/4" FITTING SAFETY VALVE
Alpha part no. 1.021159
£5.30
291   FITTING SAFETY VALVE ASSY
Alpha part no. 3.015852
£5.67
292   DRAIN TAP (CB50/500E/C'MAX) (BS2879 73.09.020)
Alpha part no. 1.018062
£18.66
293 Part number 1.7012, NOW USE SEAL KIT 3.014688 DHW NOW USE SEAL KIT 3.014688 DHW
Alpha part no. 1.7012

294 Part number 1.011057, PRESSURE TEST POINT SCREW (CB50) PRESSURE TEST POINT SCREW (CB50)
Alpha part no. 1.011057
£0.74
295   SCREW M8 X22 - HEX HD (CD50)
Alpha part no. 1.1760
£0.84
297   CYLINDER COVER (CB50)
Alpha part no. 2.4212
£53.24
298   STORAGE TANK BRACKET(CB50)
Alpha part no. 2.010611
£1.23
299   3/4" NUT (CB50)
Alpha part no. 2.3123
£2.10
300   CYLINDER COIL (CB50)
Alpha part no. 3.011207
£171.22
301   CYLINDER PROBE PIPE (CB50)
Alpha part no. 1.018058

302   HOT WATER OUTLET FITTING CB50
Alpha part no. 1.2370
£9.83
310   FILLER ASSEMBLY (CB50)
Alpha part no. 3.014189
£88.27
311 Part number 3.014687, SEAL KIT-VALVES/UNIONS (CB50) SEAL KIT-VALVES/UNIONS (CB50)
Alpha part no. 3.014687
£16.55
313   CHECK VALVE (CB50)
Alpha part no. 1.8251
£15.77
337   AUTO FLOW VALVE KIT
Alpha part no. 3.014852

337   AUTO FLOW VALVE KIT (CB50) (REPLACES 3.014190)
Alpha part no. 3.015108

501 Part number 6.5630140, 40mm CLAMP/SCREWS (FLUE BEND) 40MM CLAMP/SCREWS (FLUE BEND)
Alpha part no. 6.5630140

502 Part number 6.5404950, 40mm SEALING BAND (FLUE BEND) 40MM SEALING BAND (FLUE BEND)
Alpha part no. 6.5404950
£9.88
504 Part number 6.5630130, 75mm CLAMP/SCREWS (OUTER FLUE) 75MM CLAMP/SCREWS (OUTER FLUE)
Alpha part no. 6.5630130
£38.00
505 Part number 6.5472202, FLUE SEAL 60MM (CD) FLUE SEAL 60MM (CD)
Alpha part no. 6.5472202
£3.57
508 Part number 6.5472201, FLUE TERMINAL (CD) FLUE TERMINAL (CD)
Alpha part no. 6.5472201
£17.84
999   CABLE-PRI PRESS SWITCH (CB50)
Alpha part no. 3.014698
£5.59
999 Part number 3.014685, SEAL KIT-WATER COMPLETE (CB50) SEAL KIT-WATER COMPLETE (CB50)
Alpha part no. 3.014685
£24.59
999   CABLE - TERM BLOCK (CB24/28/SY)
Alpha part no. 3.013457
£15.39



Heating spares made simple this website is secured by Geotrust
