ARISTON

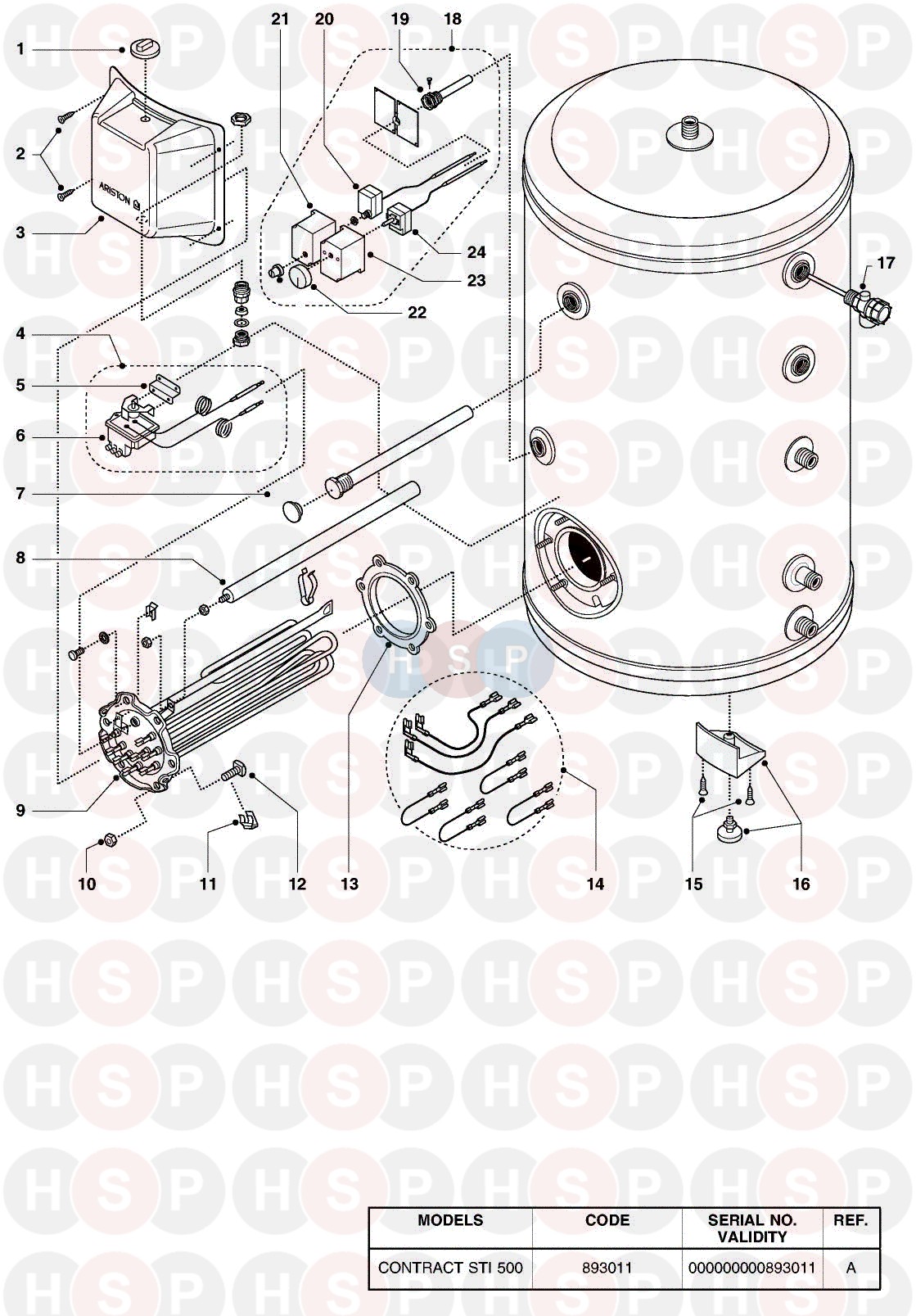

500 STI UK EDITION2 - (Exploded View)
Appliance Code: 500 STI UK EDITION2

Appliance Diagram


Exploded View diagram for Ariston 500 STI UK EDITION2Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 926068, KNOB (REGULATION) KNOB (REGULATION)
Ariston part no. 926068
£6.18
2 Part number 918036, SCREW (3.9X19) SCREW (3.9X19)
Ariston part no. 918036
£2.67
3   PLASTIC COVER
Ariston part no. 926048
£60.52
3   PLASTIC COVER
Ariston part no. 926159
£60.52
4 Part number 925252, WIRED THERMOSTAT GROUP WIRED THERMOSTAT GROUP
Ariston part no. 925252
£139.64
5   THERMOSTAT BRACKET
Ariston part no. 925197
£16.87
6   NOW USE 921001 THERMOSTAT
Ariston part no. 921044

6 Part number 921001, THERMOSTAT 30A THERMOSTAT 30A
Ariston part no. 921001
£183.07
7 Part number 919049, NOW USE 60002188-01 ANODE D:26 L:600 NOW USE 60002188-01 ANODE D:26 L:600
Ariston part no. 919049

7 Part number 60002188-01, ANODE D:26 L:600 PTFE ANODE D:26 L:600 PTFE
Ariston part no. 60002188-01
£39.33
8   OBSOLETE ANODE D 21.3 X 400 X M8
Ariston part no. 919037

8 Part number 919027, BOUCHON 3/4 MAL + ANODE 400 BOUCHON 3/4 MAL + ANODE 400
Ariston part no. 919027
£12.47
9 Part number 816518, HEATING ELEMENT 6000W 230V HEATING ELEMENT 6000W 230V
Ariston part no. 816518
£143.31
10 Part number 918041, NUT M10 NUT M10
Ariston part no. 918041
£3.11
11 Part number 918005, FIXING SPRING FIXING SPRING
Ariston part no. 918005
£5.92
12 Part number 918061, SCREW M10X32 SCREW M10X32
Ariston part no. 918061
£5.71
13 Part number 924002, NOW USE 60003319 FLANGE GASKET WITH 6 HOLES NOW USE 60003319 FLANGE GASKET WITH 6 HOLES
Ariston part no. 924002

13   FLANGE GASKET WITH 6 HOLES
Ariston part no. 60003319
£14.13
14 Part number 935044, WIRING (ELEMENT) WIRING (ELEMENT)
Ariston part no. 935044
£16.96
14 Part number 935196, WIRING KIT WIRING KIT
Ariston part no. 935196
£45.59
15   NOW USE 61005324 SCREW 3.9X22
Ariston part no. 918113

15   SELF-DRILLING SCREW
Ariston part no. 61005324
£0.96
16 Part number 926168, FOOT (COMPLETE) FOOT (COMPLETE)
Ariston part no. 926168
£9.50
17 Part number 969046, TEMPERATURE+PRESSURE RELIEF VALVE (FROM 04/08) TEMPERATURE+PRESSURE RELIEF VALVE (FROM 04/08)
Ariston part no. 969046
£76.84
18 Part number 60001652, INDIRECT THERMOSTAT KIT + DUCT 70- INDIRECT THERMOSTAT KIT + DUCT 70-
Ariston part no. 60001652
£56.56
18 Part number 921046, NOW USE 60001652 INDIRECT THERMOSTAT KIT + DUCT NOW USE 60001652 INDIRECT THERMOSTAT KIT + DUCT
Ariston part no. 921046

19 Part number 935183, SHEATH 1/2" L.110 SHEATH 1/2" L.110
Ariston part no. 935183
£23.92
20 Part number 935185, CUT-OUT THERMOSTAT INDIRECT CUT-OUT THERMOSTAT INDIRECT
Ariston part no. 935185
£36.21
21   COVER CUT-OUT STAT
Ariston part no. 935187
£2.42
22 Part number 935188, REGULATION KNOB (THERMOSTAT) REGULATION KNOB (THERMOSTAT)
Ariston part no. 935188
£5.78
23   COVER (REGULATION THERMOSTAT)
Ariston part no. 935186
£17.59
24 Part number 935184, REGULATION THERMOSTAT INDIRECT REGULATION THERMOSTAT INDIRECT
Ariston part no. 935184
£32.79
