BAXI
COMBI INSTANT 105 E - (Hydraulics)
Appliance Code: 47-075-09

Appliance Diagram


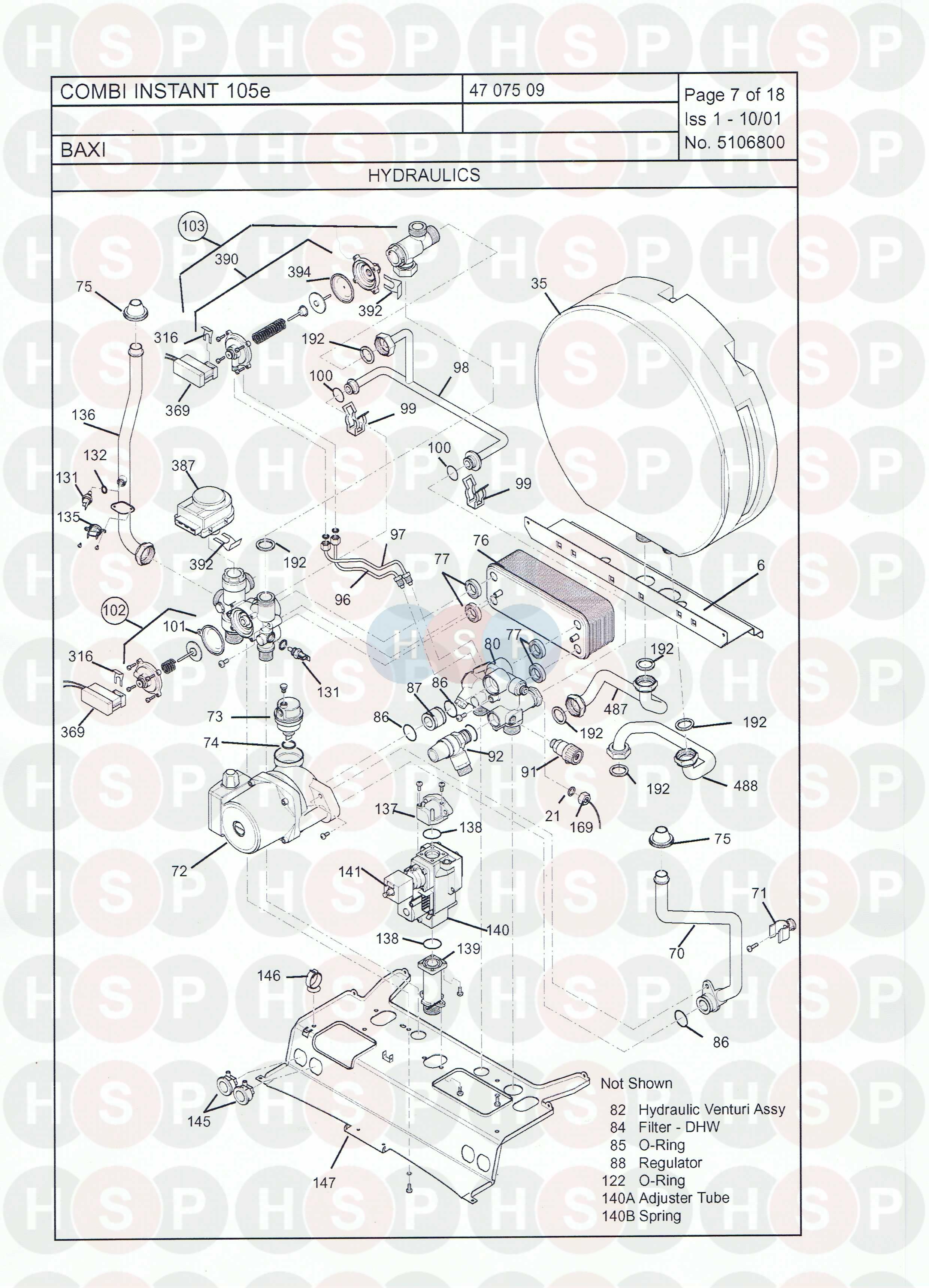

Hydraulics diagram for Baxi Combi Instant 105 EClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

21 Part number 248000, WASHER - SEALING WASHER - SEALING
Baxi part no. 248000		 £3.26
35 Part number 248722, VESSEL-EXPANSION WITH STORAGE VESSEL-EXPANSION WITH STORAGE
Baxi part no. 248722		 £127.26
70 Part number 248040, PIPE ASSEMBLY - RETURN - 105 PIPE ASSEMBLY - RETURN - 105
Baxi part no. 248040		 £15.14
71 Part number 248193, CLIP - PLASTIC CLIP - PLASTIC
Baxi part no. 248193		 £3.36
72 Part number 7722642, PUMP 15-60 105 PUMP 15-60 105
Baxi part no. 7722642		 £261.90
72 Part number 248042, NOW USE 7722642 PUMP (15-60) - 105 NOW USE 7722642 PUMP (15-60) - 105
Baxi part no. 248042
73 Part number 248043, AIR VENT - AUTOMATIC AIR VENT - AUTOMATIC
Baxi part no. 248043		 £12.87
74 Part number 248044, O-RING - AIR VENT O-RING - AIR VENT
Baxi part no. 248044		 £3.26
75 Part number 248045, GROMMET - PIPE ASSEMBLY GROMMET - PIPE ASSEMBLY
Baxi part no. 248045		 £6.05
76 Part number 7223558, PLATE HEAT EX 20 PLATES KIT PLATE HEAT EX 20 PLATES KIT
Baxi part no. 7223558		 £141.68
77 Part number 248049, GASKET - PLATE HEAT EXCHANGER GASKET - PLATE HEAT EXCHANGER
Baxi part no. 248049		 £5.96
80 Part number 248246, HYDRAULIC INLET ASSEMBLY - 105 HYDRAULIC INLET ASSEMBLY - 105
Baxi part no. 248246		 £119.92
82 Part number 248051, HYDRAULIC VENTURI ASSEMBLY HYDRAULIC VENTURI ASSEMBLY
Baxi part no. 248051		 £15.43
84 Part number 248052, FILTER - DHW FILTER - DHW
Baxi part no. 248052		 £6.05
85 Part number 248053, O RING VENTURI ASSEMBLY O RING VENTURI ASSEMBLY
Baxi part no. 248053		 £4.71
87 Part number 248054, PUMP CONNECTION ELEMENT PUMP CONNECTION ELEMENT
Baxi part no. 248054		 £6.49
91 Part number 248055, DRAIN TAP DRAIN TAP
Baxi part no. 248055		 £10.17
92 Part number 248056, SAFETY VALVE - 3 BAR (FEMALE) SAFETY VALVE - 3 BAR (FEMALE)
Baxi part no. 248056		 £15.21
96 Part number 248724, PIPE-POSITIVE PRESSURE PIPE-POSITIVE PRESSURE
Baxi part no. 248724		 £10.32
97 Part number 248725, PIPE-NEGATIVE PRESSURE PIPE-NEGATIVE PRESSURE
Baxi part no. 248725		 £10.32
98 Part number 248726, PIPE ASSEMBLY-BYPASS PIPE ASSEMBLY-BYPASS
Baxi part no. 248726		 £25.20
99 Part number 248060, CLIP FIXING - BYPASS CLIP FIXING - BYPASS
Baxi part no. 248060		 £6.05
100 Part number 248018, O RING O RING
Baxi part no. 248018		 £3.29
102 Part number 248727, VALVE-3 WAY ASSEMBLY VALVE-3 WAY ASSEMBLY
Baxi part no. 248727		 £142.77
103 Part number 248728, PRESSURE DIFFERENTIAL ASSEMBLY PRESSURE DIFFERENTIAL ASSEMBLY
Baxi part no. 248728		 £94.20
122 Part number 248019, O RING O RING
Baxi part no. 248019		 £4.71
132 Part number 248069, GASKET GASKET
Baxi part no. 248069		 £3.44
135 Part number 248079, THERMOSTAT - LIMIT THERMOSTAT - LIMIT
Baxi part no. 248079		 £12.56
136 Part number 248729, PIPE-FLOW-INSTANT PIPE-FLOW-INSTANT
Baxi part no. 248729		 £19.05
137 Part number 248082, ELBOW - GAS FLOW OUTLET ELBOW - GAS FLOW OUTLET
Baxi part no. 248082		 £7.16
139 Part number 248083, CONNECTOR - GAS VALVE INLET CONNECTOR - GAS VALVE INLET
Baxi part no. 248083		 £9.80
140 Part number 5107339, GAS VALVE ASSY INC O-RINGS GAS VALVE ASSY INC O-RINGS
Baxi part no. 5107339		 £178.59
140 Part number 248085, NOW USE 5107339 GAS VALVE NOW USE 5107339 GAS VALVE
Baxi part no. 248085
141 Part number 248086, MODULATION COIL AND SPRING MODULATION COIL AND SPRING
Baxi part no. 248086		 £12.92
145 Part number 247776, CLAMP - INPUT CABLE CLAMP - INPUT CABLE
Baxi part no. 247776		 £4.51
147 Part number 248087, PANEL - HYDRAULICS MOUNTING PANEL - HYDRAULICS MOUNTING
Baxi part no. 248087		 £12.62
192 Part number 247745, SEALING WASHER G. 3/4 SEALING WASHER G. 3/4
Baxi part no. 247745		 £3.26
316 Part number 247757, CLIP-MICROSWITCH RETAINING CLIP-MICROSWITCH RETAINING
Baxi part no. 247757		 £3.36
369 Part number 248732, CABLE-LOW VOLTAGE CABLE-LOW VOLTAGE
Baxi part no. 248732		 £26.65
387 Part number 7216534, MOTOR BLACK/WHITE INC CLIP MOTOR BLACK/WHITE INC CLIP
Baxi part no. 7216534		 £48.07
387 Part number 248733, NOW USE 7216534 MOTOR-3 WAY VALVE NOW USE 7216534 MOTOR-3 WAY VALVE
Baxi part no. 248733
387 Part number 5132452, NOW USE 7216534 MOTOR 3 WAY VALVE ( FROM SERIAL NO DPF0802) NOW USE 7216534 MOTOR 3 WAY VALVE ( FROM SERIAL NO DPF0802)
Baxi part no. 5132452
390 Part number 248734, VALVE-DIFFERENTIAL-DHW VALVE-DIFFERENTIAL-DHW
Baxi part no. 248734		 £74.93
391 Part number 248735, WASHER-SEALING-4x8x1.5 WASHER-SEALING-4X8X1.5
Baxi part no. 248735		 £3.36
392 Part number 248736, CLIP-RETAINING CLIP-RETAINING
Baxi part no. 248736		 £4.71
393 Part number 248737, CABLE-3 WAY VALVE MOTOR CABLE-3 WAY VALVE MOTOR
Baxi part no. 248737
394 Part number 248838, DIAPHRAGM-DHW/DIFF-INSTANT DIAPHRAGM-DHW/DIFF-INSTANT
Baxi part no. 248838		 £10.84
487 Part number 248738, PIPE-EXPANSION VESSEL INLET PIPE-EXPANSION VESSEL INLET
Baxi part no. 248738		 £12.31
488 Part number 248739, PIPE-EXPANSION VESSEL OUTLET PIPE-EXPANSION VESSEL OUTLET
Baxi part no. 248739
