FERROLI
DOMINA 80 E MF03 - (Water Line)
Appliance Code: 47-267-23B

Appliance Diagram

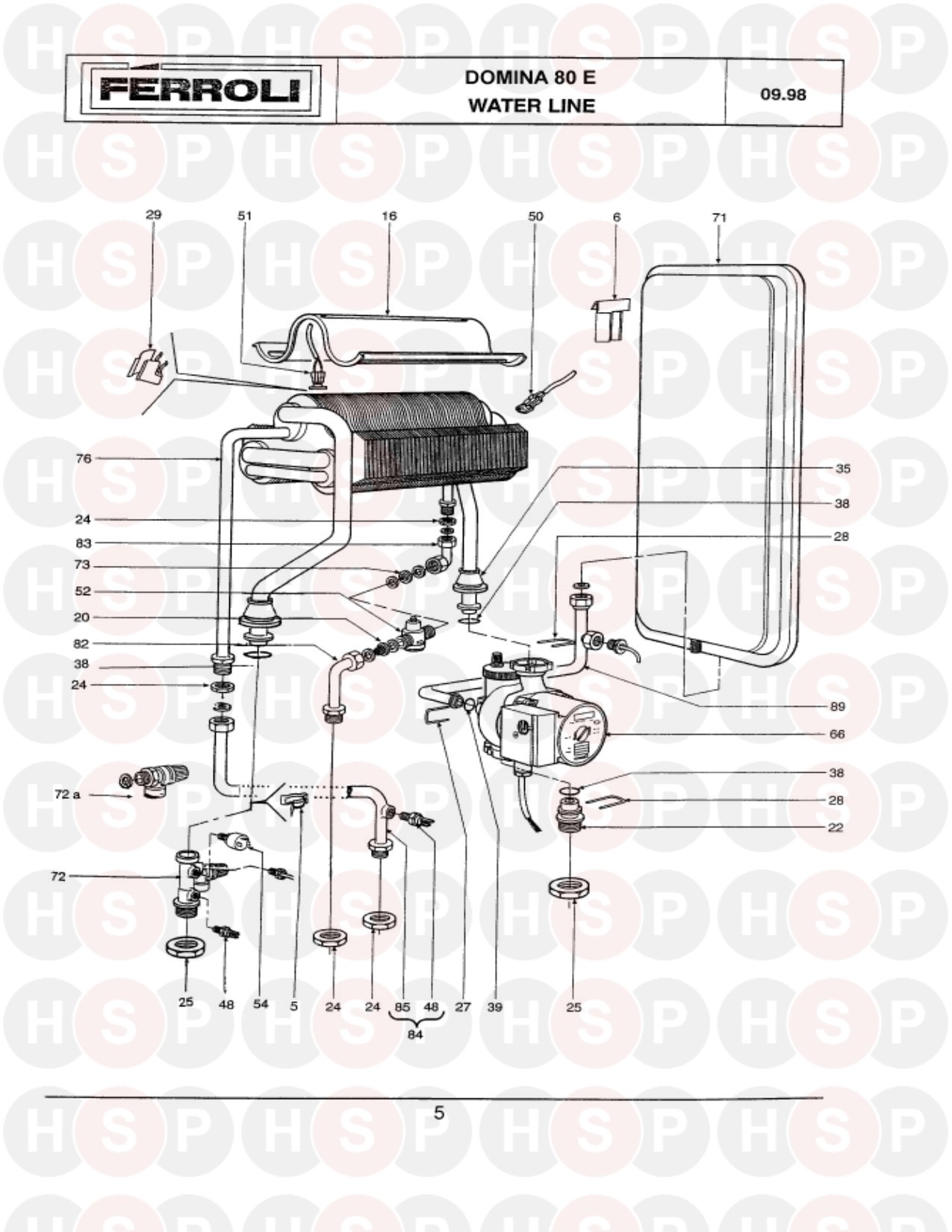

Water Line diagram for Ferroli Domina 80 E MF03Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

5 Part number 34300460, SPRING - HEAT EXCHANGER SPRING - HEAT EXCHANGER
Ferroli part no. 34300460		 £24.60
16   FLUE GAS BAFFLE MODENA/DOMINA (806302)
Ferroli part no. 32913020		 £1.76
20 Part number 39800240, FILTER - DHW FLOW SWITCH FILTER - DHW FLOW SWITCH
Ferroli part no. 39800240		 £8.65
22 Part number 34011410, COUPLER - PUMP COUPLER - PUMP
Ferroli part no. 34011410		 £2.07
24 Part number 34007880, NUT - 1/2" JIG VALVE NUT - 1/2" JIG VALVE
Ferroli part no. 34007880		 £2.52
25 Part number 34007430, NUT - 3/4" JIG VALVE NUT - 3/4" JIG VALVE
Ferroli part no. 34007430		 £1.62
27   CLIP - 14MM EXP:PIPE
Ferroli part no. 34300370		 £0.90
28 Part number 34300380, NOW USE 39807240 CLIP - 18MM PUMP NOW USE 39807240 CLIP - 18MM PUMP
Ferroli part no. 34300380		 £1.01
29 Part number 34300392, NOW USE 39805640 SPRING - THERMOSTAT NOW USE 39805640 SPRING - THERMOSTAT
Ferroli part no. 34300392
29 Part number 39805640, SPRING - THERMOSTAT SPRING - THERMOSTAT
Ferroli part no. 39805640		 £5.89
35 Part number 35100970, GASKET - CONICAL RUBBER INSERT LEFT E50 GASKET - CONICAL RUBBER INSERT LEFT E50
Ferroli part no. 35100970		 £1.28
38 Part number 39807230, O-RING KIT- (10) PUMP ASSEMBLY (17mm) O-RING KIT- (10) PUMP ASSEMBLY (17MM)
Ferroli part no. 39807230		 £8.19
39 Part number 35101130, O-RING - EXPANSION VESSEL 13mm O-RING - EXPANSION VESSEL 13MM
Ferroli part no. 35101130		 £0.98
48 Part number 39805620, SENSOR - 10K NTC PAIR (WET) SENSOR - 10K NTC PAIR (WET)
Ferroli part no. 39805620		 £21.97
50 Part number 39800160, THERMOSTAT - 88 DEG CH LIMIT THERMOSTAT - 88 DEG CH LIMIT
Ferroli part no. 39800160		 £7.38
51 Part number 39800170, THERMOSTAT - 100C LIMIT THERMOSTAT - 100C LIMIT
Ferroli part no. 39800170		 £8.13
52 Part number 39805910, FLOW METER - ANGLED FLOW METER - ANGLED
Ferroli part no. 39805910		 £51.19
54 Part number 39806180, SENSOR - LOW WATER PRESSURE KIT SENSOR - LOW WATER PRESSURE KIT
Ferroli part no. 39806180		 £25.08
66 Part number 39808300, PUMP ASSEMBLY - C/H ( UNIVERSAL KIT ) PUMP ASSEMBLY - C/H ( UNIVERSAL KIT )
Ferroli part no. 39808300		 £250.71
71 Part number 39804890, EXPANSION VESSEL - ( 8 LITRE ) EXPANSION VESSEL - ( 8 LITRE )
Ferroli part no. 39804890		 £117.44
72 Part number 39805920, SAFETY VALVE - C/W MANIFOLD SAFETY VALVE - C/W MANIFOLD
Ferroli part no. 39805920		 £67.09
73 Part number 39801250, RESTRICTOR - FLOW ( 7/LPM) RESTRICTOR - FLOW ( 7/LPM)
Ferroli part no. 39801250		 £5.91
76 Part number 39804800, HEAT EXCHANGER - MF03 VERSION 24 Kw HEAT EXCHANGER - MF03 VERSION 24 KW
Ferroli part no. 39804800
76 Part number 39807480, HEAT EXCHANGER HEAT EXCHANGER
Ferroli part no. 39807480
83   PIPE - FLOW METER TO HX
Ferroli part no. 38409030		 £4.56
85 Part number 38408080, PIPE - FLOW DHW PIPE - FLOW DHW
Ferroli part no. 38408080		 £20.13
89   OBSOLETE PIPE - EXPANSION VESSEL
Ferroli part no. 38407760
