GLOWWORM
XTRAMAX - (07 Reversing Valve)
Appliance Code: 47-047-15

Appliance Diagram

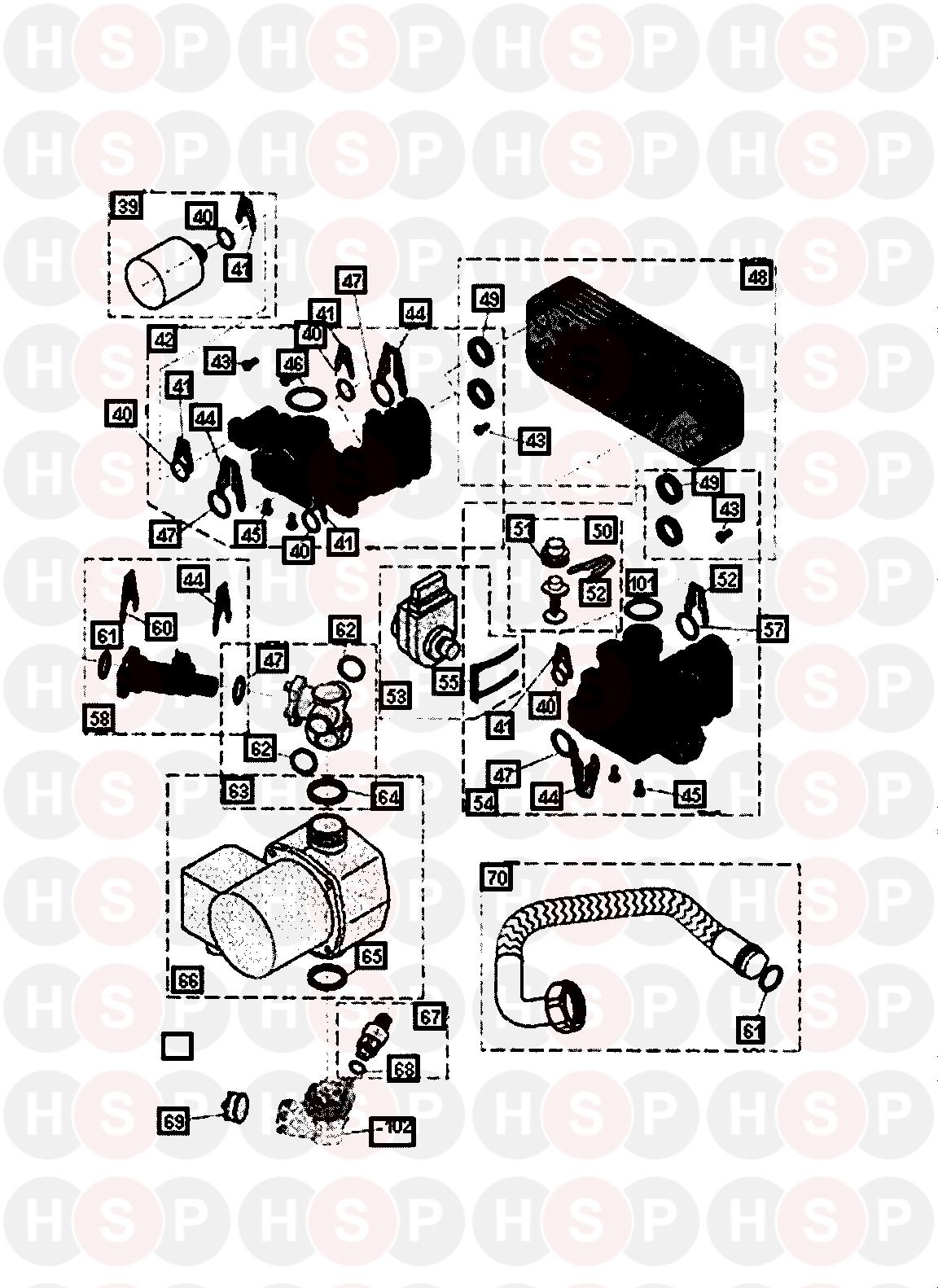

07 Reversing Valve diagram for Glowworm XtramaxClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

39 Part number S5720500, Pressure Sensor PRESSURE SENSOR
Glowworm part no. S5720500		 £25.49
40 Part number 2000801950, O-ring for pipe (PK20) O-RING FOR PIPE (PK20)
Glowworm part no. 2000801950		 £10.22
40 Part number S5466100, NOW USE 2000801950 O Ring NOW USE 2000801950 O RING
Glowworm part no. S5466100
41   NOW USE S5466200 TUBE CLIP (PK 10)-ISOFAST F28E
Glowworm part no. 05466200
41 Part number S5466200, Clip 10mm (PK10) CLIP 10MM (PK10)
Glowworm part no. S5466200		 £9.12
42 Part number 05720900, Group hydraulic pump GROUP HYDRAULIC PUMP
Glowworm part no. 05720900		 £66.03
43 Part number 05465900, Screw (PK50) SCREW (PK50)
Glowworm part no. 05465900		 £8.98
44 Part number 05465700, NOW USE S54657000 TUBE CLIP (PK 10)-ISOFAST F28E NOW USE S54657000 TUBE CLIP (PK 10)-ISOFAST F28E
Glowworm part no. 05465700
44 Part number S5465700, Clip 18mm (PK10) CLIP 18MM (PK10)
Glowworm part no. S5465700		 £10.20
45 Part number 05422100, Screw (PK50) SCREW (PK50)
Glowworm part no. 05422100		 £16.08
46 Part number 05491500, O-Ring (PK10) O-RING (PK10)
Glowworm part no. 05491500		 £16.08
47 Part number 2000801948, O-ring, (PK20) O-RING, (PK20)
Glowworm part no. 2000801948		 £11.37
47 Part number S5465800, NOW USE 2000801948 O Ring (pk 20) NOW USE 2000801948 O RING (PK 20)
Glowworm part no. S5465800
48 Part number 05733000, Heat exchanger-domestic hot water HEAT EXCHANGER-DOMESTIC HOT WATER
Glowworm part no. 05733000
49 Part number S5466000, Gasket (PK20) GASKET (PK20)
Glowworm part no. S5466000		 £20.11
50 Part number S5261700, Bypass BYPASS
Glowworm part no. S5261700		 £8.17
51   NOW USE S5421500 RING PACK (PK25)
Glowworm part no. 05421500
51 Part number 2000801943, O-ring bypass (PK25) O-RING BYPASS (PK25)
Glowworm part no. 2000801943		 £25.13
51 Part number S5421500, O ring (pk25) O RING (PK25)
Glowworm part no. S5421500		 £14.31
52 Part number 05490900, OBSOLETE CLIP PACK (PK15) OBSOLETE CLIP PACK (PK15)
Glowworm part no. 05490900
52 Part number S5490900, OBSOLETE Clip 13.5mm (PK15) OBSOLETE CLIP 13.5MM (PK15)
Glowworm part no. S5490900		 £12.58
53 Part number S5720600, Motor diverter valve MOTOR DIVERTER VALVE
Glowworm part no. S5720600		 £43.87
54 Part number 05720800, 3 way valve 3 WAY VALVE
Glowworm part no. 05720800		 £121.94
55 Part number S5466300, Clip (PK10) CLIP (PK10)
Glowworm part no. S5466300		 £19.04
57 Part number 05466400, NOW USE S5466400 O Ring NOW USE S5466400 O RING
Glowworm part no. 05466400
57 Part number S5466400, O-Ring (PK20) O-RING (PK20)
Glowworm part no. S5466400		 £16.51
58 Part number 05720200, NOW USE S5720200 Domestic hot water sensor NOW USE S5720200 DOMESTIC HOT WATER SENSOR
Glowworm part no. 05720200
58 Part number S5720200, Flow sensor FLOW SENSOR
Glowworm part no. S5720200		 £38.75
60 Part number 05455000, NOW USE S5455000 CLIP PACK (PK10) NOW USE S5455000 CLIP PACK (PK10)
Glowworm part no. 05455000
60 Part number S5455000, Clip 20mm (PK10) CLIP 20MM (PK10)
Glowworm part no. S5455000		 £7.32
61 Part number 05484000, NOW USE 2000801956 O Ring NOW USE 2000801956 O RING
Glowworm part no. 05484000
61 Part number 2000801956, O-ring (PK10) O-RING (PK10)
Glowworm part no. 2000801956		 £8.94
61 Part number S5484000, NOW USE 2000801956 O Ring NOW USE 2000801956 O RING
Glowworm part no. S5484000
62 Part number 05459300, O-Ring (PK20) O-RING (PK20)
Glowworm part no. 05459300		 £11.00
64 Part number 05459100, OBSOLETE Washer OBSOLETE WASHER
Glowworm part no. 05459100
65 Part number 05459200, OBSOLETE PUMP O RING (PACK 20) OBSOLETE PUMP O RING (PACK 20)
Glowworm part no. 05459200
66 Part number 05738300, DOMESTIC WATER PUMP DOMESTIC WATER PUMP
Glowworm part no. 05738300
67 Part number 05605600, Drain piece tap DRAIN PIECE TAP
Glowworm part no. 05605600		 £61.18

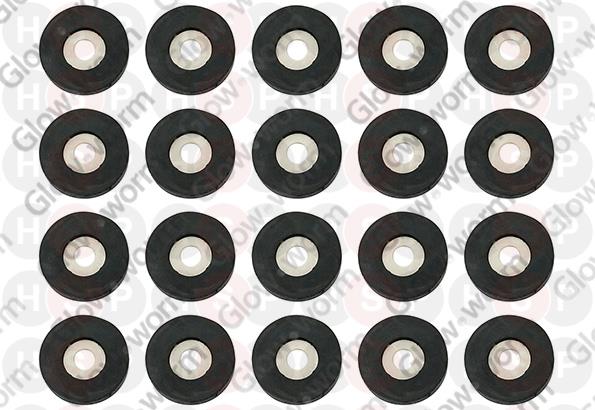

68 Part number S5650600, Sealing ring (PK50) SEALING RING (PK50)
Glowworm part no. S5650600		 £23.45
69 Part number 05738400, Non-return valve NON-RETURN VALVE
Glowworm part no. 05738400		 £9.62
70   OBSOLETE DOMESTIC COLD WATER PIPE
Glowworm part no. 05739900
