MEXICO 2 B.E.D.SUPER RS 125 - (Appliance Overview)
Appliance Code: 41-349-60

Appliance Diagram


Appliance Overview diagram for Ideal Mexico 2 B.E.D.Super RS 125Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

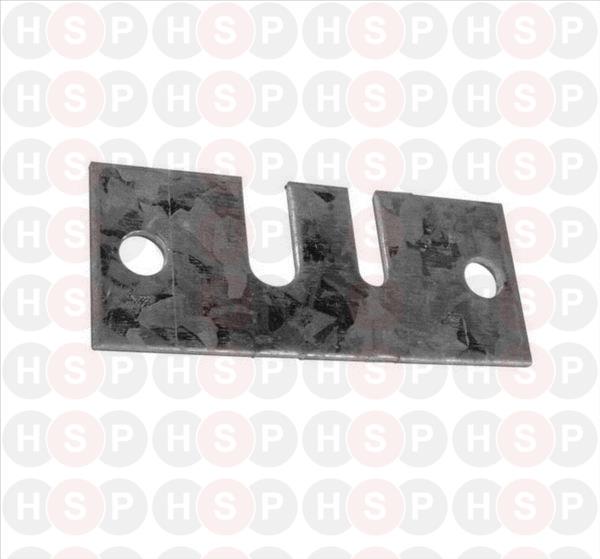

0   HT SHIELD-BASE PLATE MX3 125
Ideal part no. 150839		 £3.95
1   OBSOLETE HT EXCH ASS MX 3 RS125
Ideal part no. 150744		 £796.18
2   OBSOLETE END SCTN C/W O RINGS:MX2 BED
Ideal part no. 075275
3   OBSOLETE MIDDLE SCTN C/W O RING:MX2 BED
Ideal part no. 075277
4   OBSOLETE SET OF 4 O RINGS AND ALIGN RINGS
Ideal part no. 078277
5   OBSOLETE BACK SCTN C/W O RINGS:MX2 BED
Ideal part no. 075276
6 Part number 055865, T/STAT POCKET ASS 6339004 T/STAT POCKET ASS 6339004
Ideal part no. 055865		 £23.91
7   OBSOLETE DIST TUBE ASS MEX RS125
Ideal part no. 059706
7   28MM COMP OLIVE
Ideal part no. 013094		 £1.32
7   28MM COMPRESSION NUT
Ideal part no. 013095		 £1.98
8   OBSOLETE C/CHBR WITH INSL/SEALS:MX2BED RS125
Ideal part no. 075282
9 Part number 075286, OBSOLETE C/CHBR SD INSL+FTTG:MX2BED 125 OBSOLETE C/CHBR SD INSL+FTTG:MX2BED 125
Ideal part no. 075286
10 Part number 075287, OBSOLETE C/CHBR FRT INS+FTTGS:MX2BED OBSOLETE C/CHBR FRT INS+FTTGS:MX2BED
Ideal part no. 075287
11 Part number 075288, OBSOLETE C/CHBR REAR INS AND FTTGS:MX2BED OBSOLETE C/CHBR REAR INS AND FTTGS:MX2BED
Ideal part no. 075288
12   OBSOLETE COLL HD ASS MX 3 RS125
Ideal part no. 150753
13   OBSOLETE CLEANOUT CVR ASS MX 3 100-140
Ideal part no. 150778
14   OBSOLETE FRONT PLATE & GAS LINE KIT SUPER RS3/125
Ideal part no. 075705
15 Part number 079334, OBSOLETE SIGHT GLASS ASSEMBLY OBSOLETE SIGHT GLASS ASSEMBLY
Ideal part no. 079334
17   BNR MFLD ASS PTD MX CF100 UP
Ideal part no. 135620		 £33.16
18   OBSOLETE PILOT PIPE+FTTGS:MX2 BED RS125
Ideal part no. 075290
19   OBSOLETE RH MAIN BURNER AC19/123298
Ideal part no. 150865
19   OBSOLETE LH MAIN BURNER AC19/123297
Ideal part no. 150864
20   INJECTOR BNR BRAY CAT 103 SIZE 1700
Ideal part no. 150986		 £3.17
21 Part number 079355, PILOT BNR ASSY Q385A-1020 PILOT BNR ASSY Q385A-1020
Ideal part no. 079355		 £39.96
22 Part number 003825, INJECTOR PILOT HONEYWELL 45900421-029 INJECTOR PILOT HONEYWELL 45900421-029
Ideal part no. 003825		 £5.35
23 Part number 079756, GAS VALVE ASS MX2 V4600 A1130 GAS VALVE ASS MX2 V4600 A1130
Ideal part no. 079756		 £215.69
23 Part number 100603, GAS VALVE V4600 E1016 MEXICO GAS VALVE V4600 E1016 MEXICO
Ideal part no. 100603
23 Part number 075736, GAS VALVE ASS MX2 PROP V4600 E1016 GAS VALVE ASS MX2 PROP V4600 E1016
Ideal part no. 075736
24 Part number 003939, SPARK GENERATOR 60080/002 SPARK GENERATOR 60080/002
Ideal part no. 003939
26 Part number 030032, THERMOCOUPLE 900MM Q309A 2754B THERMOCOUPLE 900MM Q309A 2754B
Ideal part no. 030032		 £25.73
27 Part number 013580, OBSOLETE 1/2INR/ANGLED GAS COCK F/F OBSOLETE 1/2INR/ANGLED GAS COCK F/F
Ideal part no. 013580		 £37.80
28   OBSOLETE UPPER FRT PNL ASS MX2 RS BED
Ideal part no. 150999
30 Part number 075293, OBSOLETE T/STAT+FTTGS:MX2 BED OBSOLETE T/STAT+FTTGS:MX2 BED
Ideal part no. 075293
31 Part number 110541, OBSOLETE T/STAT K36 REF P1317 MEX 2 OBSOLETE T/STAT K36 REF P1317 MEX 2
Ideal part no. 110541
32 Part number 013909, OBSOLETE CONTROL KNOB ASS T/STAT MX2 SUP OBSOLETE CONTROL KNOB ASS T/STAT MX2 SUP
Ideal part no. 013909
33   OBSOLETE JACKET COMPL:MX2 BED RS125
Ideal part no. 075295
35   OBSOLETE SD PNL RH PTD MEX 2 RS/CF 125
Ideal part no. 134598
35   OBSOLETE SD PNL LH PTD MEX 2 RS/CF 125
Ideal part no. 134597
36   OBSOLETE TOP PNL ASS MX2 RS125
Ideal part no. 134932
37   OBSOLETE LOWER GRILL ASSY MEX 100-140
Ideal part no. 075234
38   OBSOLETE CTRL PNL CVR PTD MEX 2
Ideal part no. 134207
39   OBSOLETE CONTROL PANEL FXGS (PAIR)
Ideal part no. 079363
40   OBSOLETE JACKET FRONT PANEL W/FXGS
Ideal part no. 075232
41   OBSOLETE PROGRAMMER RWB 4 STELRAD
Ideal part no. 012698
42   OBSOLETE AIR/FLUE DUCT ASS MX RS100/125
Ideal part no. 057205
43   OBSOLETE BLR BASE PLATE MX RS/CF125
Ideal part no. 134237
44   OBSOLETE H/WARE PK MEX RS/CF125
Ideal part no. 013919
45   OBSOLETE MAGNETIC STRIP S/ADH 438X6.5MM
Ideal part no. 113011
46   OBSOLETE FLUEWAY BAFFLE MEXICO
Ideal part no. 135770
47   THERMO PHIAL BRKT MEX
Ideal part no. 057454
48 Part number 003147, SPLIT PIN 1/16 X 1 BRASS SPLIT PIN 1/16 X 1 BRASS
Ideal part no. 003147		 £2.59
49   OBSOLETE H/WARE PK JKT MEX
Ideal part no. 078249
50 Part number 013311, SEALING GASKET MEX RS SEALING GASKET MEX RS
Ideal part no. 013311
51 Part number 053596, OBSOLETE SEALING PLT MEX RS 40-125 OBSOLETE SEALING PLT MEX RS 40-125
Ideal part no. 053596
52 Part number 3106, S TYPE EDGE CLIP FT22970 S TYPE EDGE CLIP FT22970
Ideal part no. 3106		 £2.06
