JOHNSON STARLEY
HISPEC J40 - (Gas Appliance)
Appliance Code: 42-451-09

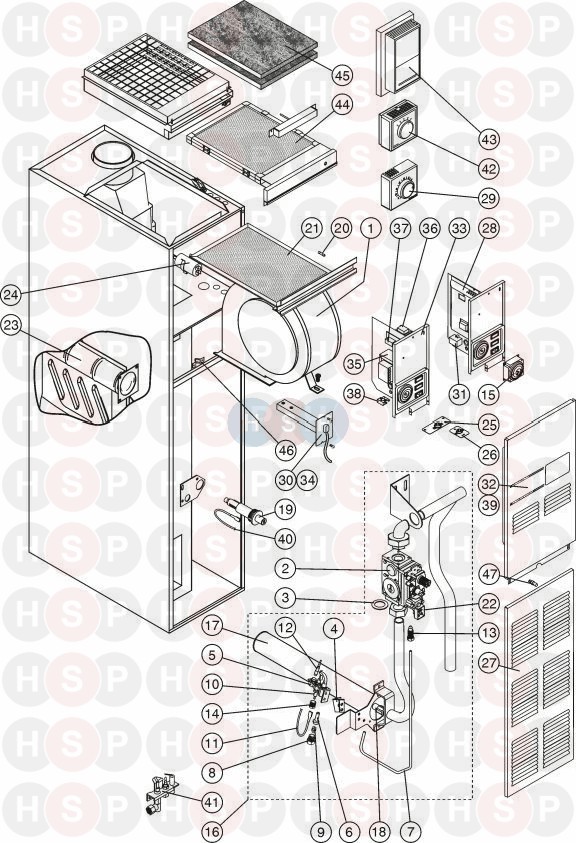

Appliance Diagram


Gas Appliance diagram for Johnson Starley Hispec J40Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   SWITCH:2-POS CHANGE/OVER
Johnson Starley part no. 1000-0514770		 £4.41
0 Part number 1000-0514830, SWITCH:3-POS CHANGE OVER SWITCH:3-POS CHANGE OVER
Johnson Starley part no. 1000-0514830		 £5.42
0   HARNESS SYSTEM `E-T'
Johnson Starley part no. 1000-0515710		 £88.62
0   3-SWITCH CLOCK ASSEMBLY
Johnson Starley part no. 1000-0516050		 £102.36
0   GASKET
Johnson Starley part no. BOS01460		 £1.79
0   H/EX CLEANOUT COVER & GASKET
Johnson Starley part no. S01400		 £5.82
1 Part number 1000-0516585, REPLACEMENT FAN PACKED REPLACEMENT FAN PACKED
Johnson Starley part no. 1000-0516585
2   OBSOLETE GAS CONTROL VALVE S.I.T.
Johnson Starley part no. 1000-0701140
5 Part number 1000-0704810, PILOT BURNER PILOT BURNER
Johnson Starley part no. 1000-0704810		 £23.33
6   PILOT INJ SITREF 0977091 NO36
Johnson Starley part no. 1000-0705140		 £10.97
7   S/CEDED BY -0709930 FEED PIPE
Johnson Starley part no. 1000-0705110		 £4.20
8   HOOK NUT 4MM
Johnson Starley part no. 1000-0701800		 £4.56
8   SHEAR OFF 4MM
Johnson Starley part no. 1000-0701810		 £3.97
9   HOOK OLIVE 4MM
Johnson Starley part no. 1000-0701790		 £2.96
10 Part number BOS01970, ELECTRODE ELECTRODE
Johnson Starley part no. BOS01970		 £11.19
11 Part number BOS02394, PTFE LEAD SPADE/SPADE PTFE LEAD SPADE/SPADE
Johnson Starley part no. BOS02394		 £15.00
12 Part number 1000-0704830, THERMOCOUPLE THERMOCOUPLE
Johnson Starley part no. 1000-0704830		 £31.71
15   7 DAY TIMER:CLOCK MECH.
Johnson Starley part no. 1000-0519250		 £101.39
15 Part number BOS02031, CLOCK MECHANISM CLOCK MECHANISM
Johnson Starley part no. BOS02031		 £82.34
16   B & GAS CONTR.ASSY-J40 NAT
Johnson Starley part no. A432-0760000		 £418.07
17   BURNER ARM ASSY
Johnson Starley part no. A4300/0751		 £143.84
18   INJECTOR CAT 23/1050
Johnson Starley part no. 1000-0700270		 £10.41
19 Part number 1000-0700570, IGNITER HIGH ENERGY IGNITER HIGH ENERGY
Johnson Starley part no. 1000-0700570		 £13.94
21   FILTER ASSEMBLY
Johnson Starley part no. A432-0182000		 £57.42
22   SOLENOID(SIT NOVA)
Johnson Starley part no. S00832		 £104.15
23   R'MENT HEAT EXCHANGER J40
Johnson Starley part no. S00961		 £567.51
24   CAPACITOR 20MF
Johnson Starley part no. 1000-0516570		 £35.61
25   TTB SWITCH ASSEMBLY
Johnson Starley part no. 1000-0516010		 £29.17
26   TTB SWITCH ASSY
Johnson Starley part no. 1000-0521880		 £19.58
27   BURNER DOOR ASSY J40
Johnson Starley part no. A432-0161000		 £73.13

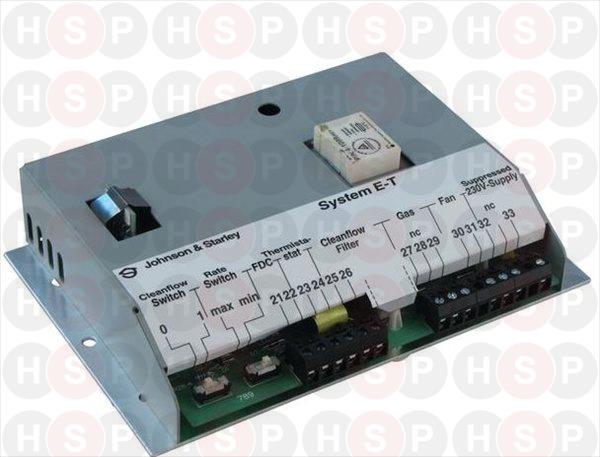

28 Part number ET004, E-T-CONTROL MODULE H40 E-T-CONTROL MODULE H40
Johnson Starley part no. ET004		 £364.72
29 Part number 1000-0515620, THERMISTOR'STAT SYSTEM E-T THERMISTOR'STAT SYSTEM E-T
Johnson Starley part no. 1000-0515620		 £90.51
29   THERMISTOR'T-ET BRITISH GAS
Johnson Starley part no. 1000-0519310		 £100.83
30 Part number 1000-0516375, FAN & LIMIT STAT J40 ET FAN & LIMIT STAT J40 ET
Johnson Starley part no. 1000-0516375		 £88.68
31   MAINS FILTER
Johnson Starley part no. 1000-0515090		 £55.46
32   FAN DOOR ASSY:HISP.J40 BASIC
Johnson Starley part no. A432-0156000		 £62.15
32   FAN DOOR ASSY:HISP.J40 E-T
Johnson Starley part no. A432-0157000		 £62.15
32   DOOR ASY ET:BRITISH GAS
Johnson Starley part no. CA432-0157000		 £39.78
33   ELEC.PANEL ASSY J40 BASIC
Johnson Starley part no. A432-0501000		 £511.13
34 Part number 1000-0516360, FDC< SWITCH J40 BASIC MODEL FDC< SWITCH J40 BASIC MODEL
Johnson Starley part no. 1000-0516360		 £96.92
35   AUTO TRANSFORMER:H40 BASIC
Johnson Starley part no. 1000-0516540		 £93.14
36 Part number 1000-0515730, TRANSFORMER : 24 VOLTS TRANSFORMER : 24 VOLTS
Johnson Starley part no. 1000-0515730		 £23.62
37 Part number 1000-0511760, RELAY MODULE RELAY MODULE
Johnson Starley part no. 1000-0511760		 £87.82
38 Part number 1000-0513820, FUSE ANTI SURGE T 3.15(A) FUSE ANTI SURGE T 3.15(A)
Johnson Starley part no. 1000-0513820		 £2.36
41   REPLACEMENT ASD PILOT & GAUZE
Johnson Starley part no. 1000-0704255		 £57.21
42   SUNVIC ROOM STAT 24V
Johnson Starley part no. TLX2251
43   DANFOSS ROOM STAT 24V
Johnson Starley part no. S01653		 £104.38
43 Part number 1000-0516325, NOW USE S01653 WALL THERMOSTAT LV NOW USE S01653 WALL THERMOSTAT LV
Johnson Starley part no. 1000-0516325
44   HISPEC-ELECTRONIC AIR CLEANER
Johnson Starley part no. EC43H		 £426.15
45   MEDIA KIT C400 JA33/43
Johnson Starley part no. A0348X0230		 £41.14
46   STRIKE 263-00000-600N
Johnson Starley part no. 1000-3001320		 £0.90
47 Part number 1000-3001310, LATCH 138-008200-02N LATCH 138-008200-02N
Johnson Starley part no. 1000-3001310		 £2.89
