NU-WAY
CH6 - (Burner 1)
Appliance Code: CH6

Appliance Diagram


Burner 1 diagram for Nu-Way CH6Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number U90419W, HT LEADS (PAIR) (300mm) CONN TRAN C04-002H HT LEADS (PAIR) (300MM) CONN TRAN C04-002H
Nu-Way part no. U90419W		 £36.47
0   OBSOLETE (KF8808 LAC1/2/5 TO LAL)
Nu-Way part no. C21124P
1   CH5-6-7 INNER ASS TO SPEC
Nu-Way part no. U90044Z		 £1,137.31
3   DIFFUSER 6.0 X2.0 XS8879 IT5
Nu-Way part no. L04115W		 £17.93
3 Part number L04118H, DIFFUSER PLATE 7.0 X2.5 XS8879 IT8 DIFFUSER PLATE 7.0 X2.5 XS8879 IT8
Nu-Way part no. L04118H		 £48.49
5 Part number G05005E, O RING BS110 NITRILE MANIFOLD BLOCK O RING BS110 NITRILE MANIFOLD BLOCK
Nu-Way part no. G05005E		 £1.74
6 Part number U90318G, NUWAY ELECTRODES FOR CH4 ON/OFF PAIR NUWAY ELECTRODES FOR CH4 ON/OFF PAIR
Nu-Way part no. U90318G		 £134.05
6 Part number U90319H, NUWAY ELECTRODE TWIN FOR C5-6-7 A1-2 NUWAY ELECTRODE TWIN FOR C5-6-7 A1-2
Nu-Way part no. U90319H		 £102.71
7 Part number G05017Z, NUWAY PISTON CUT OFF O RING BS 012 VITON NUWAY PISTON CUT OFF O RING BS 012 VITON
Nu-Way part no. G05017Z		 £3.12
8   OUTER UNION BLK 3 PIPE A2-2350
Nu-Way part no. Z04512N		 £38.20
9 Part number G04005D, P/GAUGE 50mm DIA X .125BSP 0-600 PSI GLYCERINE FILLED P/GAUGE 50MM DIA X .125BSP 0-600 PSI GLYCERINE FILLED
Nu-Way part no. G04005D		 £15.22
10 Part number E02005T, SUNTEC OIL PUMP E6 ND 1001 6P SUNTEC OIL PUMP E6 ND 1001 6P
Nu-Way part no. E02005T		 £223.82
10 Part number E02006U, SUNTEC OIL PUMP E7 NC 1001 5P SUNTEC OIL PUMP E7 NC 1001 5P
Nu-Way part no. E02006U		 £205.71
11   OBSOLETE
Nu-Way part no. E09100J
12 Part number G03017X, NUWAY COUPLING RUBBER STAR XS 8738/8 NUWAY COUPLING RUBBER STAR XS 8738/8
Nu-Way part no. G03017X		 £3.98
13 Part number E19001X, NUWAY HYDRAULIC RAM NUWAY HYDRAULIC RAM
Nu-Way part no. E19001X		 £86.16
15   ELECTRODYN TRANSFORMER 50 MA INTERMITTENT 240V (P76476)
Nu-Way part no. T97705U		 £170.86
15 Part number C04002H, NOW USE T97705U ELECTRODYN TRANSFORMER 50 MA INTERMITTENT 240V (P76476) NOW USE T97705U ELECTRODYN TRANSFORMER 50 MA INTERMITTENT 240V (P76476)
Nu-Way part no. C04002H
16 Part number G20001C, NGK PLUG COVER TYPE SB05E NGK PLUG COVER TYPE SB05E
Nu-Way part no. G20001C		 £6.42
17 Part number A13004K, BURNER MOTOR 2.2KW 380-420/3/50 2850RPM FL TEFC IE3 BURNER MOTOR 2.2KW 380-420/3/50 2850RPM FL TEFC IE3
Nu-Way part no. A13004K		 £544.04
17 Part number A14001R, IE3 BURNER MOTOR 3KW 220/415-3-50 2850 RPM FL TEFC IE3 BURNER MOTOR 3KW 220/415-3-50 2850 RPM FL TEFC
Nu-Way part no. A14001R		 £345.88
17 Part number A16001K, IE3 BURNER MOTOR 4KW 5.5HP 380-420/3/50 2850RPM TEFC IE3 BURNER MOTOR 4KW 5.5HP 380-420/3/50 2850RPM TEFC
Nu-Way part no. A16001K		 £468.51

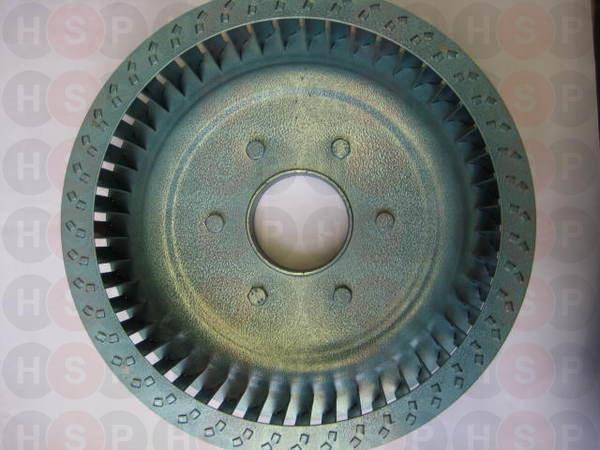

18 Part number D11004N, FAN IMPELLER 279X76X70 TO A2-950 IT5 FAN IMPELLER 279X76X70 TO A2-950 IT5
Nu-Way part no. D11004N		 £140.09
18 Part number D11006Q, FAN IMPELLER 279X102X60 TO A2-950 IT4 FAN IMPELLER 279X102X60 TO A2-950 IT4
Nu-Way part no. D11006Q		 £106.82
18 Part number D13002N, FAN IMPELLER 337X64X70 TO A2-950 IT2 FAN IMPELLER 337X64X70 TO A2-950 IT2
Nu-Way part no. D13002N		 £124.53
18 Part number D13003P, FAN IMPELLER 337X76X60 TO A2-950 IT8 FAN IMPELLER 337X76X60 TO A2-950 IT8
Nu-Way part no. D13003P		 £124.53
18 Part number D13005R, FAN IMPELLER 337X89X60 TO A2-950 IT1 FAN IMPELLER 337X89X60 TO A2-950 IT1
Nu-Way part no. D13005R		 £124.53
19 Part number C21106W, SIEMENS CONTROL BOX LAL1.25E OIL 220/240V SIEMENS CONTROL BOX LAL1.25E OIL 220/240V
Nu-Way part no. C21106W		 £301.12
19 Part number C21107X, SIEMENS CONTROL BOX LAL2.25-110V WITHOUT BASE SIEMENS CONTROL BOX LAL2.25-110V WITHOUT BASE
Nu-Way part no. C21107X		 £865.86
19 Part number C21066Y, SATRONIC CONTROL BOX TMO 720/4 MOD 35/08001U SATRONIC CONTROL BOX TMO 720/4 MOD 35/08001U
Nu-Way part no. C21066Y
19   OBSOLETE TMO 720/4 MOD 35 CNTRL 110V 40-60HZ 08021U
Nu-Way part no. C21109H
20 Part number U90602E, COUPLING PACKAGE.C6.7&8 (INCL GRUB SCREWS) COUPLING PACKAGE.C6.7&8 (INCL GRUB SCREWS)
Nu-Way part no. U90602E		 £167.57
21 Part number G16007S, WINDOW 78X65X3 PVC BLUE WINDOW 78X65X3 PVC BLUE
Nu-Way part no. G16007S		 £4.46
22 Part number G09003Q, NUWAY GASKET CORK 78 X 65.5 X 1.5 E9888 NUWAY GASKET CORK 78 X 65.5 X 1.5 E9888
Nu-Way part no. G09003Q		 £3.05
23 Part number C31017R, SIEMENS PHOTO CELL QRB3(1) PHOTO-RESISTIVE CELL SIEMENS PHOTO CELL QRB3(1) PHOTO-RESISTIVE CELL
Nu-Way part no. C31017R
23   OBSOLETE SATR FZ711S (40001)+FLG(59074)
Nu-Way part no. C31043T
24 Part number C40028R, JOHNSON THERMOSTAT ACS E571 0 - 160C 5/16DIA STEM JOHNSON THERMOSTAT ACS E571 0 - 160C 5/16DIA STEM
Nu-Way part no. C40028R		 £249.00
24 Part number C40029J, JOHNSON THERMOSTAT ACS B516 20-120 C 11INSTEM JOHNSON THERMOSTAT ACS B516 20-120 C 11INSTEM
Nu-Way part no. C40029J		 £213.24
24 Part number C40031C, JOHNSON THERMOSTAT ACS C515 0/100 C 11IN STEM JOHNSON THERMOSTAT ACS C515 0/100 C 11IN STEM
Nu-Way part no. C40031C		 £208.01
24 Part number C40032D, JOHNSON THERMOSTAT ACS C587 70 -130 C JOHNSON THERMOSTAT ACS C587 70 -130 C
Nu-Way part no. C40032D		 £197.62
24 Part number C40033E, JOHNSON THERMOSTAT ACS B592 80 - 140C JOHNSON THERMOSTAT ACS B592 80 - 140C
Nu-Way part no. C40033E		 £286.00
25 Part number E03019Z, OIL FILTER FILTER ELEMENT A4-803 REF:F927 OIL FILTER FILTER ELEMENT A4-803 REF:F927
Nu-Way part no. E03019Z		 £67.20
26 Part number G24002V, THERMOCOUPLE 0-160DEG C/F 6.3mm DIA THERMOCOUPLE 0-160DEG C/F 6.3MM DIA
Nu-Way part no. G24002V		 £76.18
27 Part number G09018N, GASKET FOR 3-6KW HTR TANK A4-1014 GASKET FOR 3-6KW HTR TANK A4-1014
Nu-Way part no. G09018N		 £6.58
28 Part number E01003Y, LUCIFER SOLENOID VALVE 122-K-8363 NORMALLY OPEN LUCIFER SOLENOID VALVE 122-K-8363 NORMALLY OPEN
Nu-Way part no. E01003Y		 £183.07
28 Part number E01004Z, LUCIFER SOLENOID VALVE 121-K-63 N/C 1/4INCH 220V 50HZ LUCIFER SOLENOID VALVE 121-K-63 N/C 1/4INCH 220V 50HZ
Nu-Way part no. E01004Z		 £101.79
28 Part number E01022J, LUCIFER SOLENOID VALVE 322H75 NORMALLY OPEN 1/2IN 220V 50HZ LUCIFER SOLENOID VALVE 322H75 NORMALLY OPEN 1/2IN 220V 50HZ
Nu-Way part no. E01022J		 £402.61
29 Part number E03026Q, FILTER SELF CLEAN 1IN .012IN GA-V2100803 FILTER SELF CLEAN 1IN .012IN GA-V2100803
Nu-Way part no. E03026Q		 £213.02
30 Part number U90400G, HT LEADS FOR A, P, SB. PAIR (1200mm) HT LEADS FOR A, P, SB. PAIR (1200MM)
Nu-Way part no. U90400G		 £61.00
31   PRE-HEATER TANK BATTERY 3KW
Nu-Way part no. T99115V		 £1,235.73
31 Part number T99116W, PRE-HEATER TANK BATTERY 4.5KW PRE-HEATER TANK BATTERY 4.5KW
Nu-Way part no. T99116W		 £1,384.80
31 Part number T99117X, PRE-HEATER TANK BATTERY 6KW PRE-HEATER TANK BATTERY 6KW
Nu-Way part no. T99117X		 £1,246.36
31 Part number T99118G, PRE-HEATER TANK BATTERY 7.5KW PRE-HEATER TANK BATTERY 7.5KW
Nu-Way part no. T99118G		 £1,431.46
32 Part number E05004V, FLEXIBLE OIL LINE .75BOREX36INLONG .75BSP FLEXIBLE OIL LINE .75BOREX36INLONG .75BSP
Nu-Way part no. E05004V		 £24.91
33 Part number E05038W, FLEXIBLE OIL LINE .5BORE X 36IN .5BSP FLEXIBLE OIL LINE .5BORE X 36IN .5BSP
Nu-Way part no. E05038W		 £20.38
34   MANIFOLD BLOCK CH5.6&7 A2-876
Nu-Way part no. M04603D		 £356.25
35 Part number E04061U, CARTRIDGE HEATER 80W 240V 12mm DIA X 2.5IN LG CARTRIDGE HEATER 80W 240V 12MM DIA X 2.5IN LG
Nu-Way part no. E04061U		 £43.63
36 Part number G03019H, QUICK RELEASE COUPLING 3/8INBSP QUICK RELEASE COUPLING 3/8INBSP
Nu-Way part no. G03019H		 £23.28
37 Part number E05013M, FLEXIBLE OIL LINE .375BOREX27INLONG .375X.375 FLEXIBLE OIL LINE .375BOREX27INLONG .375X.375
Nu-Way part no. E05013M		 £67.69
38   UNION BLOCK.122A63 VALVEA2-831
Nu-Way part no. M02024R		 £26.90
39   PRESS.VALVE BDY. CH&CX A4-1208
Nu-Way part no. M05014J		 £103.48
40   OBSOLETE
Nu-Way part no. C50061L
42 Part number C40072M, OIL MANIFOLD THERMOSTAT OIL MANIFOLD THERMOSTAT
Nu-Way part no. C40072M		 £58.75
43   FULLY CLOSING DAMPER.C6-28E.
Nu-Way part no. U04802V		 £1,430.48
44   MICRO SWITCH MN6CTQMS
Nu-Way part no. B01015W		 £66.95
45   OBSOLETE TORQUE MOTOR G4-K70 220V-50/60
Nu-Way part no. A30006S
46 Part number B05002E, CAPACITOR TO SUIT MOTOR G4-K70 **NLA AFTER CURRENT STOCK** CAPACITOR TO SUIT MOTOR G4-K70 **NLA AFTER CURRENT STOCK**
Nu-Way part no. B05002E		 £22.17
47   RELAY 60.128230-0040 8PIN 230 AC VOLT 50HZ
Nu-Way part no. C51028G		 £17.44
48 Part number G03034Y, NUWAY COUPLING IN STEEL FOR CG/AG A4-1019 NUWAY COUPLING IN STEEL FOR CG/AG A4-1019
Nu-Way part no. G03034Y		 £298.17
49 Part number A30014R, BERGER LAHR DAMPER MOTOR STM6 Q3.51/8 58NL SHAFT D8 230V BERGER LAHR DAMPER MOTOR STM6 Q3.51/8 58NL SHAFT D8 230V
Nu-Way part no. A30014R		 £684.53
51 Part number A30018V, SIEMENS DAMPER MOTOR SQM10.16502 230V SIEMENS DAMPER MOTOR SQM10.16502 230V
Nu-Way part no. A30018V		 £911.47
52 Part number E11013A, HP SPILL VALVE 3/8 INCH 070H0138 HP SPILL VALVE 3/8 INCH 070H0138
Nu-Way part no. E11013A		 £651.44
54   ADJUSTING CAM SPRING STRIP A4-274
Nu-Way part no. P29007F		 £2.91
59   370W .220/240-380/420/3/50
Nu-Way part no. A07002U		 £180.33
59   750W 240/415/3/50 1425 4P FLGD TEFC
Nu-Way part no. A09004G		 £367.41
60 Part number E12002R, BURNER GUN TYPE HF 1140 200mm PROJECTION BURNER GUN TYPE HF 1140 200MM PROJECTION
Nu-Way part no. E12002R		 £1,045.99
60 Part number E12003J, BURNER GUN TYPE HF 350mm PRO BURNER GUN TYPE HF 350MM PRO
Nu-Way part no. E12003J		 £1,045.99
60   BURNER GUN TYPE 1140 560MM PRO
Nu-Way part no. E12004K		 £757.80
60   BURNER GUN TYPE 1140 280MM PRO
Nu-Way part no. E12005L		 £791.27
61 Part number G28025X, OPERATING CABLE TO A4-300 OPERATING CABLE TO A4-300
Nu-Way part no. G28025X		 £26.22
