RAVENHEAT
RSF 25/25ET LPG - (Exploded View)
Appliance Code: 47-581-16

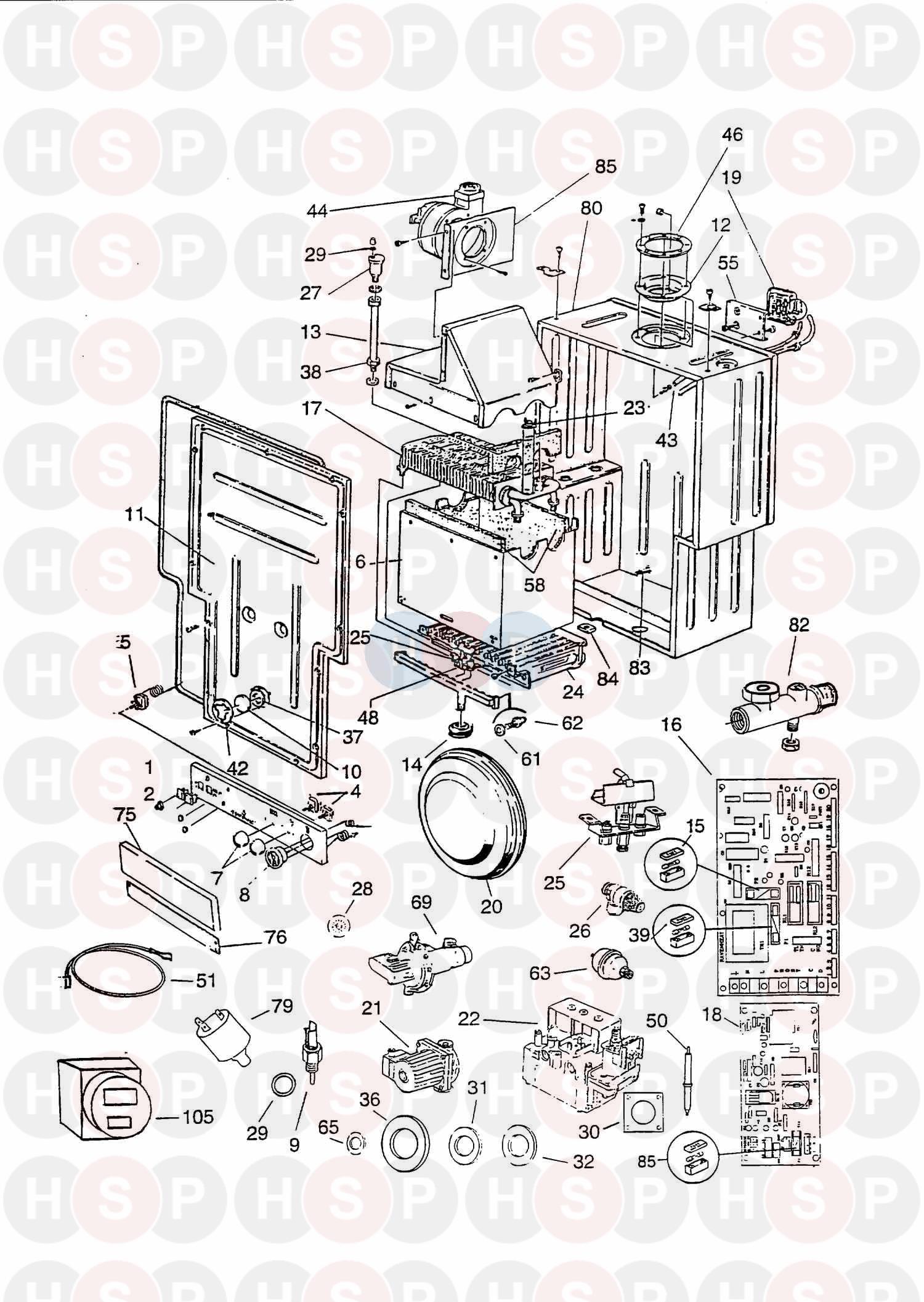

Appliance Diagram


Exploded View diagram for Ravenheat RSF 25/25ET LPGClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE
Ravenheat part no. 5001DIM0101/0

0   OBSOLETE
Ravenheat part no. 5001TEL01001/0

0   GAS COCK
Ravenheat part no. 50004
£16.12
0 Part number 50003, 22mm STRAIGHT BALLOFIX CH VALVE 22MM STRAIGHT BALLOFIX CH VALVE
Ravenheat part no. 50003
£9.21
0   GASKET 11 X 5.5 X 2 PRESSURE GAUGE WASH
Ravenheat part no. 0013GUA01005/0
£1.08
0 Part number 50002, 15mm STRAIGHT BALLOFIX DHW VALVE 15MM STRAIGHT BALLOFIX DHW VALVE
Ravenheat part no. 50002
£9.21
0 Part number 50001, VALVE PACK VALVE PACK
Ravenheat part no. 50001
£87.44
0   OBSOLETE
Ravenheat part no. 0016VIT01015/0

0   OBSOLETE
Ravenheat part no. 50005

0   GASKET - FLUE/BOILER RSF20/20
Ravenheat part no. 0014GUA01015/0
£4.76
0   15MM BENT COPPER TAIL DHW
Ravenheat part no. 0010TUB01060/0
£15.88
0   OBSOLETE
Ravenheat part no. 0011TAP01005/0

0   OBSOLETE SDP FLUE BLANK PLATE
Ravenheat part no. 50006

0   22MM BENT COPPER TAIL CH
Ravenheat part no. 0010TUB01065/0
£18.32
0   OBSOLETE
Ravenheat part no. 0018CON01005/0

0   OBSOLETE STRAIGHT FLUE HEADER
Ravenheat part no. 5094110A

0   OBSOLETE
Ravenheat part no. 5094110

1   OBSOLETE
Ravenheat part no. 0001PIN3010/0

2 Part number 5027025, MAIN SWITCH RSF 820/20 MAIN SWITCH RSF 820/20
Ravenheat part no. 5027025
£10.69
3 Part number 5027035, SUMMER/WINTER SWITCH RSF820/20 SUMMER/WINTER SWITCH RSF820/20
Ravenheat part no. 5027035
£8.34
4   POTENTIOMETER
Ravenheat part no. 0001POT03005/0

5 Part number 0007TER03010/0, OVERHEAT THERMOSTAT RSF82/84/100/ OVERHEAT THERMOSTAT RSF82/84/100/
Ravenheat part no. 0007TER03010/0
£29.20
6   DEPRESSION CHAMBER - RSF84
Ravenheat part no. 0001COM01005/0
£85.38
7 Part number 5024011, OBSOLETE THERMOSTAT KNOB OBSOLETE THERMOSTAT KNOB
Ravenheat part no. 5024011
£7.09
7   THERMO KNOB 20/20,25/20,25/25
Ravenheat part no. 0014POM03005/1
£7.09
8 Part number 5027055, WATER PRESSURE GAUGE RSF82,84/100 WATER PRESSURE GAUGE RSF82,84/100
Ravenheat part no. 5027055
£42.78
9 Part number 0007TER03005/0, DHW/CH SENSOR RSF20/20, 25/20 & 25 DHW/CH SENSOR RSF20/20, 25/20 & 25
Ravenheat part no. 0007TER03005/0
£19.02
10 Part number 0014VET01005/0, SIGHT GLASS SIGHT GLASS
Ravenheat part no. 0014VET01005/0
£7.79
11   CHAMBER COVER 25/20, 25/25 RSF100
Ravenheat part no. 0001COP03010/0
£46.31
12   FLUE RESTRICTION RING 77 MM
Ravenheat part no. 0001DIA03005/0
£9.75
13   FLUE GAS EXHAUST HOOD - RSF100
Ravenheat part no. 0001CAP3005/0
£45.85
14 Part number 5018001, DEPRESSION CHAMBER GAS PIPE SL DEPRESSION CHAMBER GAS PIPE SL
Ravenheat part no. 5018001
£4.49
15 Part number 5021103, 500 MIL. AMP FUSE 500 MIL. AMP FUSE
Ravenheat part no. 5021103
£0.89
16 Part number 0012CIR03010/0, PRINTED CONTROL BOARD RSF20/20 RANGE PRINTED CONTROL BOARD RSF20/20 RANGE
Ravenheat part no. 0012CIR03010/0
£185.14
17   HEAT EXCHANGER RSF25/20 & 25/25
Ravenheat part no. 0002SCA01010/0
£360.46
18 Part number 0012CIR03005/0, PRINTED IGN BOARD 20/20 25/25/ 20/25 PRINTED IGN BOARD 20/20 25/25/ 20/25
Ravenheat part no. 0012CIR03005/0
£193.83
19   OBSOLETE AIR PRESSURE SWITCH RSF20/20 RANGE
Ravenheat part no. 0005PRE03015/0

20   12 LT EXPANSION VESSEL
Ravenheat part no. 0004VAS0305/0
£81.39
21   OBSOLETE 6 METRE PUMP
Ravenheat part no. 0009CIR03005/0

22 Part number 0008VAL03005/0, GAS VALVE - SIT GAS VALVE - SIT
Ravenheat part no. 0008VAL03005/0
£199.12
23   OBSOLETE HIGH LIMIT THERMOSTAT
Ravenheat part no. 0007TER03015/0

24   MAIN BURNER
Ravenheat part no. 0003BRU03005/0
£105.23
24   BURNER COLLECTOR LPG 0.85 25/0
Ravenheat part no. 0003BRU03010/0
£92.46
25 Part number 0003PIL01005/0, PILOT BURNER ELECTRONIC LPG ASSEMBLY PILOT BURNER ELECTRONIC LPG ASSEMBLY
Ravenheat part no. 0003PIL01005/0
£16.58
25 Part number 5012114, PILOT BURNER ASSEMBLY NAT GAS PILOT BURNER ASSEMBLY NAT GAS
Ravenheat part no. 5012114

26 Part number 5015010, SAFETY RELIEF VALVE SCREW TO SCREW FIT SAFETY RELIEF VALVE SCREW TO SCREW FIT
Ravenheat part no. 5015010
£14.46
27 Part number 5015015, AIR PURGE VALVE AIR PURGE VALVE
Ravenheat part no. 5015015
£12.08
29 Part number 0013GUA03005/0, GASKET 10x16x2 THERMISTOR WASHER GASKET 10X16X2 THERMISTOR WASHER
Ravenheat part no. 0013GUA03005/0
£1.08
30 Part number 0013GUA03035/0, GAS VALVE GASKET 32X32X1.5 GAS VALVE GASKET 32X32X1.5
Ravenheat part no. 0013GUA03035/0
£1.08
31 Part number 5018025, GASKET 18.5 x 11.5 x 2 GASKET 18.5 X 11.5 X 2
Ravenheat part no. 5018025
£0.77
32 Part number 5018030, GASKET 24 x 15 x 2 GASKET 24 X 15 X 2
Ravenheat part no. 5018030
£0.77
36 Part number 5018046, CH FLOW WASHER - DIVERTER VALVE CH FLOW WASHER - DIVERTER VALVE
Ravenheat part no. 5018046
£0.77
37 Part number 0013GUA01045/0, FIBRE GASKET 48 X 42 (SIGHT GLASS WASHER) FIBRE GASKET 48 X 42 (SIGHT GLASS WASHER)
Ravenheat part no. 0013GUA01045/0
£2.12
38   PIPE TO AIR PURGE
Ravenheat part no. 0010TUB03050/0
£21.47
39 Part number 0012FUS01015/0, INTERNAL FUSE - 3A INTERNAL FUSE - 3A
Ravenheat part no. 0012FUS01015/0
£0.94
40 Part number 5021050, IGNITION ELECTRODE IGNITION ELECTRODE
Ravenheat part no. 5021050
£10.06
42   OBSOLETE WIRING HARNESS
Ravenheat part no. 00121MPO3005/0

43 Part number 5021312, NYLON TUBES FROM PRESS. SWITCH 0.5M NYLON TUBES FROM PRESS. SWITCH 0.5M
Ravenheat part no. 5021312
£6.82
44 Part number 0012VEN03005/0, RL108 FAN CSI 20/20 RSF84/100 58mm OUT RL108 FAN CSI 20/20 RSF84/100 58MM OUT
Ravenheat part no. 0012VEN03005/0
£190.91
46 Part number 0014GUA01020/0, FLUE GASKET (SUPPLIED WITH BOILER) FLUE GASKET (SUPPLIED WITH BOILER)
Ravenheat part no. 0014GUA01020/0
£4.76
48   PILOT INJECTOR NOZZLE FOR LPG GAS 0.22
Ravenheat part no. 0003UGE01005/0
£3.31
48 Part number 5012096, PILOT INJECTOR 0.27 NATURAL GAS PILOT INJECTOR 0.27 NATURAL GAS
Ravenheat part no. 5012096
£2.60
51 Part number 0012CAV03005/0, CABLE-ELECTRODE 20,25/20 25/25 5021048 CABLE-ELECTRODE 20,25/20 25/25 5021048
Ravenheat part no. 0012CAV03005/0

58 Part number 1015PAN03005/0, INS PAD SET RSF25/25 & RSF100ET INS PAD SET RSF25/25 & RSF100ET
Ravenheat part no. 1015PAN03005/0
£46.83
61 Part number 5012125, SEAL FOR NOZZLE SEAL FOR NOZZLE
Ravenheat part no. 5012125
£0.61
62 Part number 0003UGE03005/0, BURNER NOZZLE FOR NAT GAS 1.25 BURNER NOZZLE FOR NAT GAS 1.25
Ravenheat part no. 0003UGE03005/0
£2.59
62   NOZZLE LPG GAS 0.85MM (13/15 PER BOILER)
Ravenheat part no. 0003UGE01012/0
£2.59
64   NOWUSE 0013GUA01005/0
Ravenheat part no. 0013GUA01010/0

64   GASKET 11 X 5.5 X 2 PRESSURE GAUGE WASH
Ravenheat part no. 0013GUA01005/0
£1.08
65 Part number 5018015, GASKET 11x5x2 FOR PRESSURE GAUGE GASKET 11X5X2 FOR PRESSURE GAUGE
Ravenheat part no. 5018015
£0.77
69 Part number 0008VAL03010/0, 3 WAY VALVE WITH WASHERS RSF82,RSF84/100 3 WAY VALVE WITH WASHERS RSF82,RSF84/100
Ravenheat part no. 0008VAL03010/0
£147.77
75   PLASTIC COVER 20/20
Ravenheat part no. 0014SPO04005/0
£16.91
76   PLASTIC BRACKET
Ravenheat part no. 0014TRA03010/0
£12.97
77   BACK FRAME ASSYS RSF 25/25
Ravenheat part no. 0001TEL03005/0
£91.06
79 Part number 0005PRE03010/0, LOW WATER PRESSURE SWITCH LOW WATER PRESSURE SWITCH
Ravenheat part no. 0005PRE03010/0
£34.72
80   PLENUM CHAMBER
Ravenheat part no. 0001CAM03010/0
£79.52
82 Part number 5003283, OBSOLETE BRASS MANIFOLD WITH SAFETY RELIEF VALVE OBSOLETE BRASS MANIFOLD WITH SAFETY RELIEF VALVE
Ravenheat part no. 5003283

84 Part number 5023020, DEPRESSION CHAMBER PILOT SEAL DEPRESSION CHAMBER PILOT SEAL
Ravenheat part no. 5023020
£4.26
85   INTERNAL FUSE - 1A
Ravenheat part no. 0012FUS03020/0
£0.89
106   R.H SIDE PANEL 25/25
Ravenheat part no. 0001MAN03015/0
£50.41
107   L.H SIDE PANEL 25/25
Ravenheat part no. 0001MAN03020/0
£50.41
108   FRONT PANEL RSF25/25
Ravenheat part no. 0001MAN03010/0
£81.68
