VOKERA
MYNUTE 14-48 SE - (Assembly 1)

Appliance Diagram


Assembly 1 diagram for Vokera Mynute 14-48 SEClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   WIRING HARNESS 14-48/96 SE
Vokera part no. 8799

1 Part number 5905, Combustion Chamber seal (1 metre) COMBUSTION CHAMBER SEAL (1 METRE)
Vokera part no. 5905
£2.10
2   COMBUSTION CHAMBER SIDE PANELS
Vokera part no. 7831

3   SELF TAPPING HEX HEAD 3.9 X L0MM LONG STEEL
Vokera part no. 5180

4 Part number 5128, Edge Clip EDGE CLIP
Vokera part no. 5128
£0.18
5   COMBUSTION CHAMBER COVER
Vokera part no. 5957
£16.03
6   SCREW
Vokera part no. 5080
£0.18
7 Part number 5072, Fibre Washer FIBRE WASHER
Vokera part no. 5072
£0.56
8 Part number 3139, Sight Glass SIGHT GLASS
Vokera part no. 3139
£5.17
9 Part number 4007, Sight Glass Retaining Ring SIGHT GLASS RETAINING RING
Vokera part no. 4007
£0.67
10 Part number 5079, Screw SCREW
Vokera part no. 5079
£0.30
11   TUBE
Vokera part no. 8402

11   SILICONE TUBE
Vokera part no. 5971
£6.03
12   OBSOLETE COMBUSTION CHAMBER
Vokera part no. 7622

13   PRESSURE SWITCH PLATE
Vokera part no. 8196

13   OBSOLETE
Vokera part no. 5948

14 Part number 8195, NOW USE 01005272 PRESSURE SWITCH NOW USE 01005272 PRESSURE SWITCH
Vokera part no. 8195

14 Part number 5926, Pressure Switch PRESSURE SWITCH
Vokera part no. 5926
£57.04
15 Part number 5925, OBSOLETE Pressure Differential Switch Housing OBSOLETE PRESSURE DIFFERENTIAL SWITCH HOUSING
Vokera part no. 5925

15   PRESSURE SWITCH
Vokera part no. 0975
£51.32
16   RIVET
Vokera part no. 5094

17   AIR DEFLECTOR
Vokera part no. 5972

18   GROMMET FAN GASKET
Vokera part no. 5900

19   SEAL
Vokera part no. 5927
£3.97
20 Part number 7620, Expansion Vessel EXPANSION VESSEL
Vokera part no. 7620
£92.31
21   MAIN FRAME
Vokera part no. 7619

22   OBSOLETE BAR
Vokera part no. 5589
£17.15
23   CABLE CLAMP
Vokera part no. 5371

24   SCREW
Vokera part no. 5171

25 Part number 5917, NOW USE 7317 Seal For Maintenance Clip (small) NOW USE 7317 SEAL FOR MAINTENANCE CLIP (SMALL)
Vokera part no. 5917

25 Part number 7317, Washer WASHER
Vokera part no. 7317
£1.16
26   FAN UNION TUBE
Vokera part no. 5966

27 Part number 5916, NOW USE 7315 Maintenance Clip (small) NOW USE 7315 MAINTENANCE CLIP (SMALL)
Vokera part no. 5916

27 Part number 7315, Clamp CLAMP
Vokera part no. 7315
£1.42
28 Part number 7948, Venturi Rep 6984 (Negative) VENTURI REP 6984 (NEGATIVE)
Vokera part no. 7948
£9.52
28 Part number 6984, NOW USE 7948 VENTURI NOW USE 7948 VENTURI
Vokera part no. 6984

29 Part number 6985, Venturi (Positive) VENTURI (POSITIVE)
Vokera part no. 6985
£4.32
30   FAN OUTLET CONNECTOR
Vokera part no. 7779

31   SCREW
Vokera part no. 5176
£0.27
32 Part number 5963, Fan Assembly FAN ASSEMBLY
Vokera part no. 5963
£124.83
33 Part number 5964, Fan Washer FAN WASHER
Vokera part no. 5964

34 Part number 5958, Hood Assembly HOOD ASSEMBLY
Vokera part no. 5958

35 Part number 5962, Combustion Chamber Back Panel COMBUSTION CHAMBER BACK PANEL
Vokera part no. 5962
£12.22
36 Part number 5271, Side Insulation Panel for Combustion Chamber SIDE INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5271
£8.46
37 Part number 6026, Combustion Chamber Assembly COMBUSTION CHAMBER ASSEMBLY
Vokera part no. 6026
£18.42
38 Part number 5300, Metal Side Panel (L/H) METAL SIDE PANEL (L/H)
Vokera part no. 5300
£3.95
39   OBSOLETE METAL PANEL REAR
Vokera part no. 5959

40   METAL SIDE PANEL R/H
Vokera part no. 5299

41 Part number 5151, Edge Clip EDGE CLIP
Vokera part no. 5151
£0.17
42   SCREW
Vokera part no. 5081
£0.21
43 Part number 4807, Lock Nut LOCK NUT
Vokera part no. 4807
£0.39
44   OBSOLETE SELF-TAPPING SCREW 10MM L X 4MM 0
Vokera part no. 5165

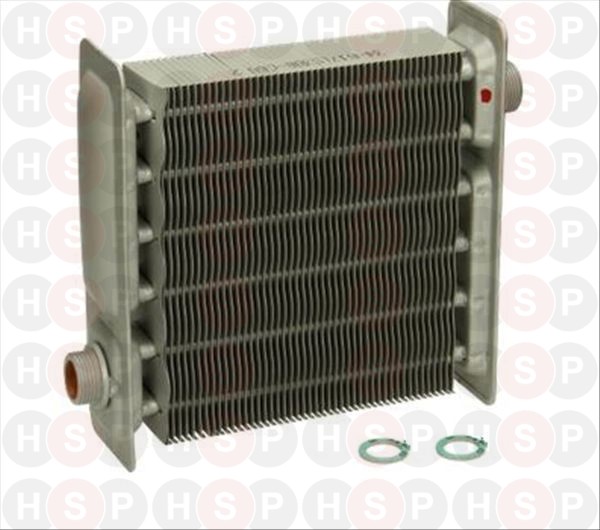

45 Part number 5388, Heat Exchanger with 2 x 5023 Washers HEAT EXCHANGER WITH 2 X 5023 WASHERS
Vokera part no. 5388
£145.44
45   ENGINEERS AND AGENTS ONLY MAIN HEAT EXCHANGER IN PLACE 5388 & 10021231
Vokera part no. 01005247
£112.03
46 Part number 5279, Gas Valve Support GAS VALVE SUPPORT
Vokera part no. 5279
£2.07
47 Part number 5961, Combustion Chamber Front Panel COMBUSTION CHAMBER FRONT PANEL
Vokera part no. 5961
£11.75
48 Part number 5960, NOW USE 2819 Front Plate for Combustion Chamber NOW USE 2819 FRONT PLATE FOR COMBUSTION CHAMBER
Vokera part no. 5960

48 Part number 2819, Combustion Cover COMBUSTION COVER
Vokera part no. 2819
£15.00
49   RIVET
Vokera part no. 5093

50   OBSOLETE CASE LOCATING CLIP L/H
Vokera part no. 5581

51   OUTER CASING
Vokera part no. 7793

52   CLIP SPECIAL
Vokera part no. 5588

53   OBSOLETE CASE LOCATING CLIP R/H
Vokera part no. 5580

54 Part number 4254, Automatic Air Vent AUTOMATIC AIR VENT
Vokera part no. 4254
£10.62
55 Part number 4302, Microswitch MICROSWITCH
Vokera part no. 4302
£15.38
56 Part number 6025, 15/50 excel complete pump assy 15/50 EXCEL COMPLETE PUMP ASSY
Vokera part no. 6025
£197.42
57   PUMP CABLE
Vokera part no. 7780
£6.49
58 Part number 7623, NG Burner NG BURNER
Vokera part no. 7623
£71.91
59 Part number 7778, Sense Electrode - Special SENSE ELECTRODE - SPECIAL
Vokera part no. 7778

59 Part number 5853, Electrode & Lead ELECTRODE & LEAD
Vokera part no. 5853
£13.96
60   GAS CONNECTING BARREL
Vokera part no. 7777

61 Part number 7625, Gas valve GAS VALVE
Vokera part no. 7625
£183.58
62   GAS CONNECTING BARREL
Vokera part no. 7776

64   SPARK ELECTRODE AND LEAD
Vokera part no. 7725

64 Part number 5640, Spark Electrode & Lead SPARK ELECTRODE & LEAD
Vokera part no. 5640
£13.96
65   SELF TAPPING SCREW
Vokera part no. 5169

66 Part number 5105, Machine Screw M4 x 10mm MACHINE SCREW M4 X 10MM
Vokera part no. 5105
£0.83
67 Part number 5863, Gas Valve Gasket GAS VALVE GASKET
Vokera part no. 5863
£0.55
68 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023
£0.39
69   PUMP RETURN TUBE
Vokera part no. 7782

70 Part number 6897, Pump Washer PUMP WASHER
Vokera part no. 6897
£0.65
71 Part number 4026, 3/4" BSP Locknut 3/4" BSP LOCKNUT
Vokera part no. 4026
£1.22
72   OBSOLETE 3/4'' INCH GAS NIPPLE
Vokera part no. 5975

73   HEAT EX. RETURN PIPE
Vokera part no. 7615
£14.84
74 Part number 7781, Pipe PIPE
Vokera part no. 7781

75   INSIDE EXCHANGER CONNECTION
Vokera part no. 5970

76 Part number 5441, High-limit Thermostat HIGH-LIMIT THERMOSTAT
Vokera part no. 5441
£6.48
77 Part number 5472, Thermostat Clip THERMOSTAT CLIP
Vokera part no. 5472
£1.19
78 Part number 4931, Pump Over-Run Thermostat PUMP OVER-RUN THERMOSTAT
Vokera part no. 4931

79   FLOW TUBE
Vokera part no. 7783

80   SCREW
Vokera part no. 5124
£0.27
81 Part number 7621, Heating Manifold HEATING MANIFOLD
Vokera part no. 7621
£184.24
82 Part number 4250, Safety Valve (Screw Fit) SAFETY VALVE (SCREW FIT)
Vokera part no. 4250
£11.84
83 Part number 5203, Plastic Washer PLASTIC WASHER
Vokera part no. 5203
£0.18
84 Part number 8214, Ignition Box (Brahma) IGNITION BOX (BRAHMA)
Vokera part no. 8214
£133.01
84 Part number 7791, Ignition Box (Ineco) IGNITION BOX (INECO)
Vokera part no. 7791
£150.73
85   SCREW
Vokera part no. 5077
£0.13
86   ELECTRONIC IGNITION MOUNTING PLATE
Vokera part no. 7786

87 Part number 3267, Heating Thermostat HEATING THERMOSTAT
Vokera part no. 3267
£18.99
88 Part number 3409, High Limit Stat HIGH LIMIT STAT
Vokera part no. 3409
£18.99
89 Part number 5592, Mode Selector Switch MODE SELECTOR SWITCH
Vokera part no. 5592
£2.83
90   BRACKET
Vokera part no. 7788

91   CONTROL PANEL
Vokera part no. 7784

91   CONTROL PANEL
Vokera part no. 8404

92   OBSOLETE SCREW C/S PHILLIPS 4MM X 12MML
Vokera part no. 5199

93   SCREW M4 X 8
Vokera part no. 5086

94   CONTROL PANEL BRACKET
Vokera part no. 7785

95   R/H CONTROL PANEL HINGE
Vokera part no. 7787

96   CLOCK BLANKING PLATE
Vokera part no. 7790

97 Part number 8377, Pressure Gauge PRESSURE GAUGE
Vokera part no. 8377
£17.70
97   PRESSURE GAUGE (CLAMP OR PUSH FIT)
Vokera part no. 4472

98   DECORATIVE LOGO STRIP
Vokera part no. 7792

99   CONTROL KNOB
Vokera part no. 7789

100 Part number 4174, Boiler Hanging Bracket BOILER HANGING BRACKET
Vokera part no. 4174

101 Part number 5070, Fibre Washer FIBRE WASHER
Vokera part no. 5070
£0.27
102   SINGLE MICRO SWITCH COVER
Vokera part no. 4332

103 Part number 7098, Gas Cock GAS COCK
Vokera part no. 7098
£22.64
107   OBSOLETE BY- PASS BOBBIN
Vokera part no. 0666
£0.14
108 Part number 0555, Spring SPRING
Vokera part no. 0555
£1.03
109 Part number 0556, By-pass Bearer Plate BY-PASS BEARER PLATE
Vokera part no. 0556
£3.90
110 Part number 0557, Diaphragm DIAPHRAGM
Vokera part no. 0557
£5.39
111   SCREWS FOR DOMESTIC MANIFOLD
Vokera part no. 0114

112 Part number 5041, Washer WASHER
Vokera part no. 5041
£0.17
113 Part number 0309, Front Seal FRONT SEAL
Vokera part no. 0309
£11.71
114   OBSOLETE NUT
Vokera part no. 0599

118   CONNECTOR SLEEVE
Vokera part no. 5455

119 Part number 7100, 3/4" Flow/Return Valve 90 Deg 3/4" FLOW/RETURN VALVE 90 DEG
Vokera part no. 7100
£24.50
119   NOW USE 9763 FLOW/RETURN VALVE
Vokera part no. 7835

119 Part number 9763, 3/4" Flow/Return Valve Straight 3/4" FLOW/RETURN VALVE STRAIGHT
Vokera part no. 9763
£27.33
120   FIBRE WASHER - SPECIAL
Vokera part no. 5067

123   R/H AIR DEFLECTOR
Vokera part no. 7814

124   L/H FAN BAFFLE
Vokera part no. 7815
£17.15
125   OBSOLETE TERMINAL BLOCK COVER PLATE
Vokera part no. 7918

126 Part number 7625, Gas valve GAS VALVE
Vokera part no. 7625
£183.58
126 Part number 0750, NOW USE 7625 Solenoid NOW USE 7625 SOLENOID
Vokera part no. 0750

127 Part number 6466, Reset Button RESET BUTTON
Vokera part no. 6466
£6.86
127   OBSOLETE BLANKING DISK
Vokera part no. 8151

128   OBSOLETE SCREW
Vokera part no. 5075

129   OBSOLETE NIPPLE
Vokera part no. 8096

130   TUBE
Vokera part no. 8098

131   CLIP
Vokera part no. 3412
£0.85
