WORCESTER
350 RSF - (Hydraulic/Pump)
Appliance Code: 47-311-13

Appliance Diagram


Hydraulic/Pump diagram for Worcester 350 RSFClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 87161408360, O-RING 12 X 4 I/D HIGH NITRILE O-RING 12 X 4 I/D HIGH NITRILE
Worcester part no. 87161408360
2 Part number 87161424410, OBSOLETE GAS VALVE OBSOLETE GAS VALVE
Worcester part no. 87161424410
2 Part number 87161567030, GAS_VALVE GAS_VALVE
Worcester part no. 87161567030
4   PRESSURE FEEDBACK NIPPLE
Worcester part no. 87161563160
6 Part number 87161410610, FLOW REGULATOR TYPE E-W 12 L/MIN RED FLOW REGULATOR TYPE E-W 12 L/MIN RED
Worcester part no. 87161410610		 £5.30
8 Part number 87161484010, GAUZE FILTER GAUZE FILTER
Worcester part no. 87161484010		 £4.11
9 Part number 87161208630, OBSOLETE REED PROXIMITY SWITCH OBSOLETE REED PROXIMITY SWITCH
Worcester part no. 87161208630
9 Part number 87161211290, HARNESS-PROX SWITCH ASSY HARNESS-PROX SWITCH ASSY
Worcester part no. 87161211290
10   SCREW M3 X 12 PAN HEAD POZI ZP
Worcester part no. 29144110250
12   WASHER 15MM (THICK)
Worcester part no. 87161409170		 £2.81
13 Part number 87161019760, PLATE HEAT EXCHANGER PLATE HEAT EXCHANGER
Worcester part no. 87161019760

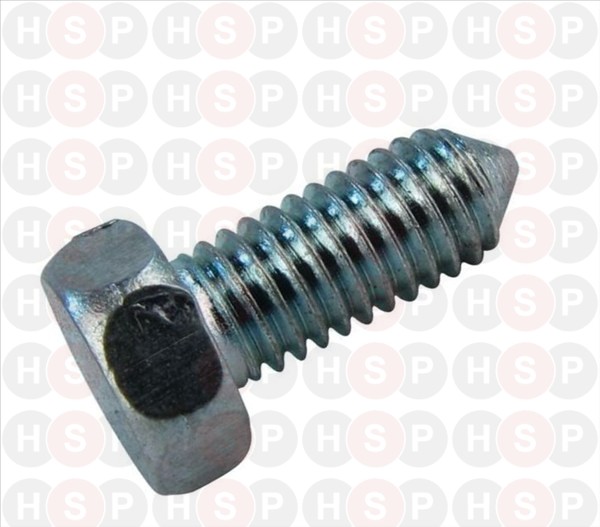

16 Part number 87161550130, M5X12 CONE POINTED HX HD SCREW M5X12 CONE POINTED HX HD SCREW
Worcester part no. 87161550130
17 Part number 87161408310, O-RING 18,64X3,53 O-RING 18,64X3,53
Worcester part no. 87161408310		 £2.66
19   SCREW M5X10MM HEX/SLOTTED HEAD
Worcester part no. 29111311520		 £1.90
21   KEEP PLATE LOCKING PLATE
Worcester part no. 87161004330
23 Part number 87161206300, PIPE - FLOW ASSEMBLY PIPE - FLOW ASSEMBLY
Worcester part no. 87161206300
25 Part number 87161424160, VALVE PR.REL.1/2 X15MM X 1/8 VALVE PR.REL.1/2 X15MM X 1/8
Worcester part no. 87161424160		 £12.57
27 Part number 87161483200, CLIP - RETAINING CLIP - RETAINING
Worcester part no. 87161483200
28 Part number 87161402070, DRAIN SCREW DRAIN SCREW
Worcester part no. 87161402070		 £3.07
29 Part number 87161431030, PUMP & O-RINGS (59876601) PUMP & O-RINGS (59876601)
Worcester part no. 87161431030
29 Part number 87161135940, NOW USE 8716120416 STANDARD 15/60 PUMP HEAD NOW USE 8716120416 STANDARD 15/60 PUMP HEAD
Worcester part no. 87161135940
29   PUMP HEAD UPMO 7M C/W INST PLUG
Worcester part no. 8716120416		 £180.32
30 Part number 87161483210, WIREFORM SPRING WIREFORM SPRING
Worcester part no. 87161483210		 £2.89
31 Part number 87161461370, OBSOLETE WATER PRESSURE SWITCH OBSOLETE WATER PRESSURE SWITCH
Worcester part no. 87161461370
32   EXPANSION VESSEL 10 LITRE C/O O-RINGS
Worcester part no. 87161425060
33 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450		 £2.81
33 Part number 87161156800, WASHER 18.6 X 13.5 X 1.5 (1X) WASHER 18.6 X 13.5 X 1.5 (1X)
Worcester part no. 87161156800		 £0.82
34   WASHER FIBRE 8.0 X 5.1 X 1.0
Worcester part no. 87161409110
35 Part number 87161409120, WASHER WASHER
Worcester part no. 87161409120		 £2.51
36 Part number 87161409140, WASHERS (SECI-SUD SENSORS) WASHERS (SECI-SUD SENSORS)
Worcester part no. 87161409140
37 Part number 87161423180, OBSOLETE T/STAT ELMWOOD OBSOLETE T/STAT ELMWOOD
Worcester part no. 87161423180
39 Part number 87161207700, FLOW SWITCH INLET ASSY FLOW SWITCH INLET ASSY
Worcester part no. 87161207700
