WORCESTER
GREENSTAR HE PLUS 28 - (Casing)
Appliance Code: 47-311-56

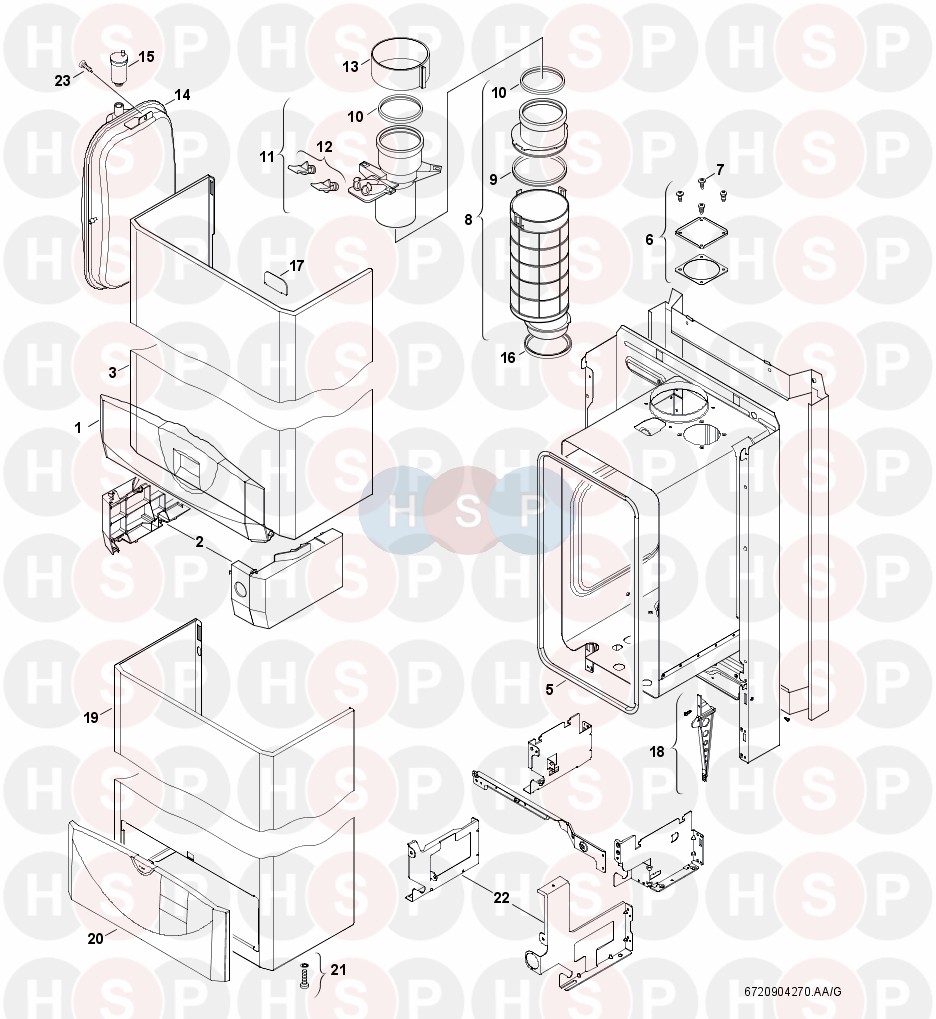

Appliance Diagram


Casing diagram for Worcester Greenstar HE Plus 28Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   COVER
Worcester part no. 87155065210
£57.60
2   SIDE SHIELD SET
Worcester part no. 87155064950
£42.19
3   FRONT SHELL
Worcester part no. 87154012770
£92.86
5 Part number 87107031820, SEAL-PLATE-COMBUSTION CHAMBER SEAL-PLATE-COMBUSTION CHAMBER
Worcester part no. 87107031820
£27.12
6 Part number 87110002190, COVER COVER
Worcester part no. 87110002190
£7.07
7 Part number 29106124320, NOW USE 87134030390 SCREW TAPPING NO10 X 13 PAN HEAD NOW USE 87134030390 SCREW TAPPING NO10 X 13 PAN HEAD
Worcester part no. 29106124320

7 Part number 87134030390, SCREW 4.8 X 30MM SET OF 3 SCREW 4.8 X 30MM SET OF 3
Worcester part no. 87134030390
£4.61
8 Part number 87107253730, FLUE GAS DUCT FLUE GAS DUCT
Worcester part no. 87107253730
£50.35
9 Part number 87110042780, SEAL SEAL
Worcester part no. 87110042780
£9.51
10 Part number 87110042320, WASHER 80MM WASHER 80MM
Worcester part no. 87110042320
£10.03
11 Part number 87107253740, CONNECTOR CONNECTOR
Worcester part no. 87107253740
£45.80
12 Part number 87105061990, GROMMET GROMMET
Worcester part no. 87105061990
£10.85
13 Part number 87113010840, CLIP CLIP
Worcester part no. 87113010840
£50.35
14 Part number 87154072300, EXPANSION VESSEL 18L EXPANSION VESSEL 18L
Worcester part no. 87154072300
£274.31
15 Part number 87185050140, AUTOMATIC PURGER AUTOMATIC PURGER
Worcester part no. 87185050140
£32.54
16 Part number 87229333300, FLUE PIPE SEAL + 87,5MM FLUE PIPE SEAL + 87,5MM
Worcester part no. 87229333300
£4.19
17   INSULATION PLATE
Worcester part no. 87110030560
£3.36
18 Part number 87105062100, MOUNTING HOLDER MOUNTING HOLDER
Worcester part no. 87105062100
£10.85
23 Part number 29123011540, SCREW M5X12 (10X) SCREW M5X12 (10X)
Worcester part no. 29123011540
£4.79
