ANDREWS
FASTFLO WH56 - (CASING)

Appliance Diagram

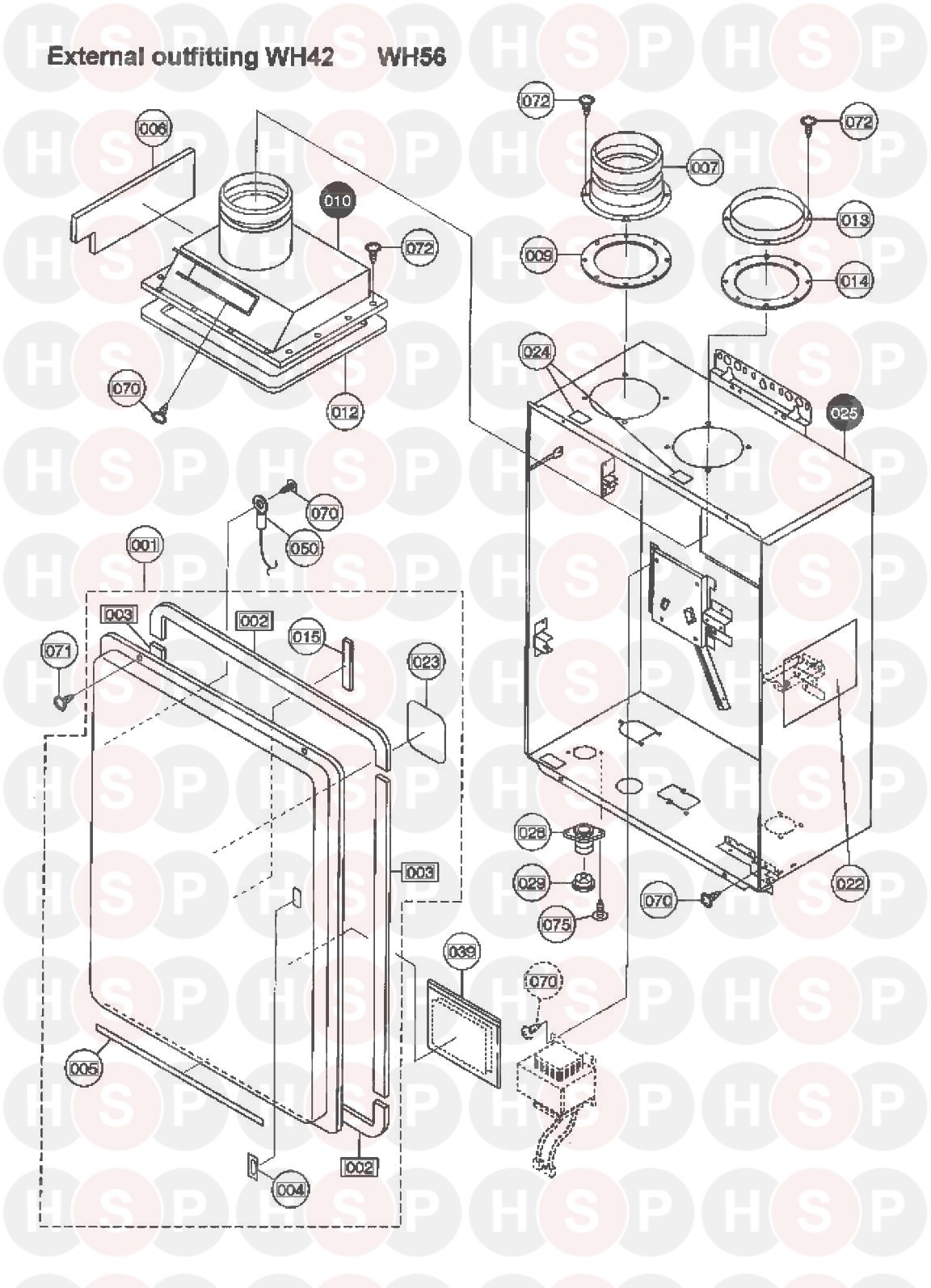

CASING diagram for Andrews FASTflo WH56Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number Z322, FRONT COVER ASSY FRONT COVER ASSY
Baxi part no. Z322
£45.28
2 Part number Z323, FRONT PACKING S AAP FRONT PACKING S AAP
Baxi part no. Z323
£7.44
3 Part number Z324, PACKING L AAP PACKING L AAP
Baxi part no. Z324
£3.63
4 Part number Z325, LAMP SEAL LAMP SEAL
Baxi part no. Z325
£18.41
5 Part number Z326, PIPING LABEL EDM PIPING LABEL EDM
Baxi part no. Z326
£8.51
6 Part number Z327, HEAT INSULATOR CZV HEAT INSULATOR CZV
Baxi part no. Z327
£17.75
7 Part number Z328, INTAKE PIPE ELE INTAKE PIPE ELE
Baxi part no. Z328
£53.93
9 Part number Z329, INTAKE PIPE PACKING EHK INTAKE PIPE PACKING EHK
Baxi part no. Z329
£10.28
10 Part number Z330, EXHAUST BOX FF CZV EXHAUST BOX FF CZV
Baxi part no. Z330
£198.11
12 Part number E767, EXHAUST CONNECTION PACKING EXHAUST CONNECTION PACKING
Baxi part no. E767
£14.37
13 Part number Z331, INTAKE FLANGE BCU INTAKE FLANGE BCU
Baxi part no. Z331
£12.12
14 Part number Z332, EXHAUST CYLINDER FLANGE (PKNG) EXHAUST CYLINDER FLANGE (PKNG)
Baxi part no. Z332
£13.20
15 Part number Z333, FRONT ACCOUSTIC FOAM FRONT ACCOUSTIC FOAM
Baxi part no. Z333
£14.49
22 Part number Z335, CAUTION LABEL FF AD CAUTION LABEL FF AD
Baxi part no. Z335
£12.41
23 Part number Z336, PLUG INSULATION SHEET PLUG INSULATION SHEET
Baxi part no. Z336
£4.35
25 Part number Z338, CASE FF AD CASE FF AD
Baxi part no. Z338
£159.90
28 Part number Z339, WIRING COUPLING BXK WIRING COUPLING BXK
Baxi part no. Z339
£4.35
29 Part number Z340, GROMMET ELE GROMMET ELE
Baxi part no. Z340
£8.51
39 Part number Z341, CONNECTION DIAGRAM LABEL AD CONNECTION DIAGRAM LABEL AD
Baxi part no. Z341
£9.19
50 Part number Z342, CONNECTING CORD 2 DMB CONNECTING CORD 2 DMB
Baxi part no. Z342
£13.01
70 Part number Z343, CROSS HEAD TAPPING COLLAR SCRW CROSS HEAD TAPPING COLLAR SCRW
Baxi part no. Z343
£1.51
71 Part number Z344, CROSS HEAD TRUSS TYPE SCREW CROSS HEAD TRUSS TYPE SCREW
Baxi part no. Z344
£1.51
72 Part number Z345, CROSS HEAD TAPPING CALLOR SCRW CROSS HEAD TAPPING CALLOR SCRW
Baxi part no. Z345
£1.51
75 Part number Z347, CROSS HEAD EVER-TIGHT SCREW CROSS HEAD EVER-TIGHT SCREW
Baxi part no. Z347
£1.51
