ARISTON
COMBI A 24 MFFI (28/06/2013),
COMBI A 24 MFFI (EDITION 5 - 04/12/2006),
COMBI A 24 MFFI (EDITION 9 - 23/09/2011) - (Hydraulics)
Appliance Code: 47-116-44 EDITION 9

Appliance Diagram


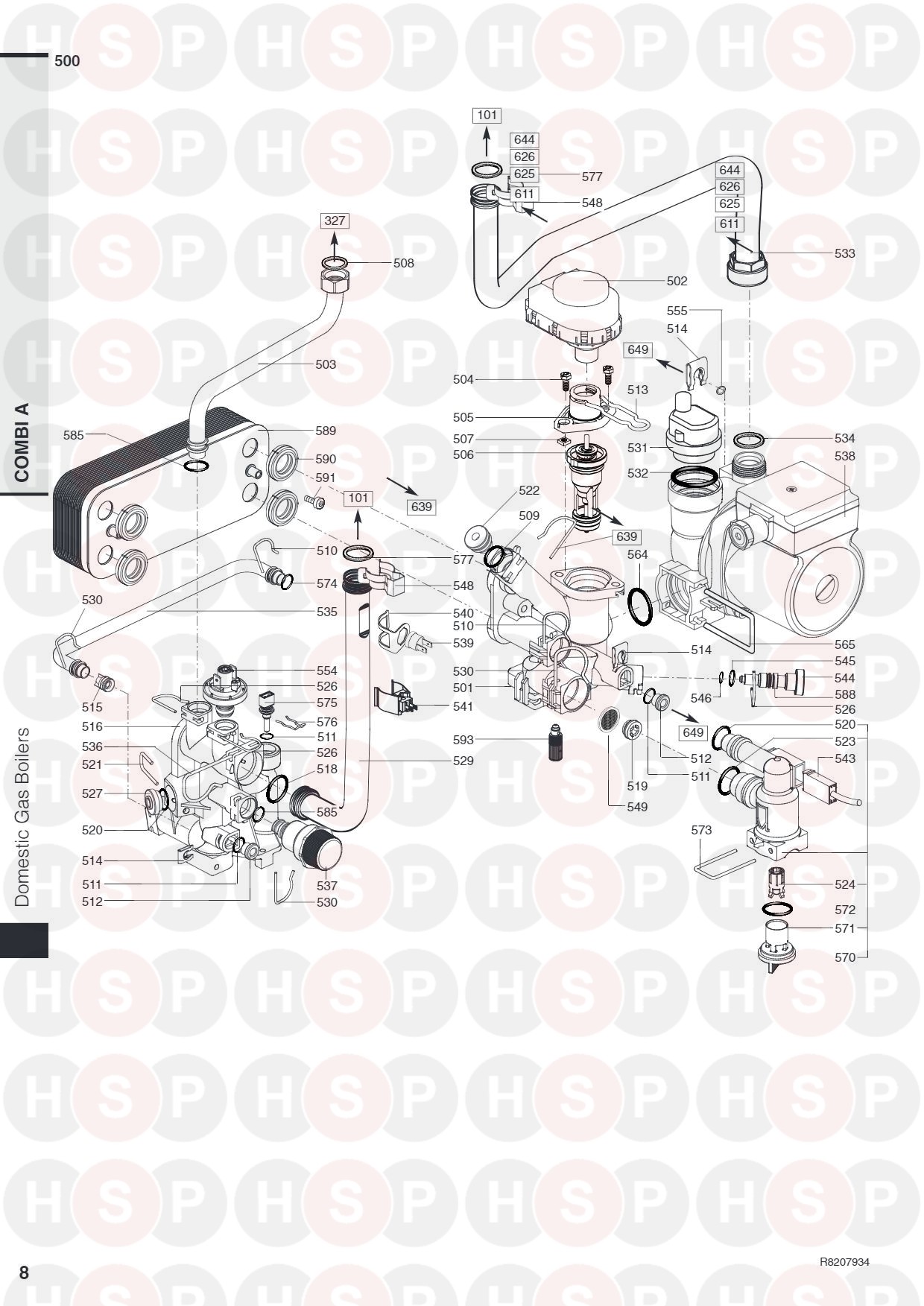

Hydraulics diagram for Ariston Combi A 24 MFFI (Edition 9 - 23/09/2011)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

501 Part number 61315546, RIGHT HAND BLOCK + V3V RIGHT HAND BLOCK + V3V
Ariston part no. 61315546		 £161.74
502 Part number 61302483-01, MOTOR (3-WAY VALVE) MOTOR (3-WAY VALVE)
Ariston part no. 61302483-01		 £57.82
503 Part number 61312602, TUBE (Expan vessel) TUBE (EXPAN VESSEL)
Ariston part no. 61312602		 £27.28
504   SCREW CHC M 5-12
Ariston part no. 61018365		 £0.98
505 Part number 61304003, INTERFACE INTERFACE
Ariston part no. 61304003		 £7.62
506 Part number 61311597, VALVE KIT VALVE KIT
Ariston part no. 61311597		 £60.53
507   NUT M 5
Ariston part no. 61016604		 £1.31
508 Part number 61308868, SHEET GASKET D: 12-6-2 SHEET GASKET D: 12-6-2
Ariston part no. 61308868		 £0.67
509 Part number 61009834-18, O-RING D: 13.6-2.7 O-RING D: 13.6-2.7
Ariston part no. 61009834-18		 £0.50
510 Part number 61010112, CLIP CLIP
Ariston part no. 61010112		 £1.96
511 Part number 60024164-10, O-RING D: 5.7-1.9 O-RING D: 5.7-1.9
Ariston part no. 60024164-10		 £0.44
512 Part number 61016752, PLUG PLUG
Ariston part no. 61016752		 £3.28
513 Part number 61304002, PIN PIN
Ariston part no. 61304002		 £7.24
514 Part number 61002406, CLIP CLIP
Ariston part no. 61002406		 £1.40
515 Part number 61316013, BY-PASS D:20 BY-PASS D:20
Ariston part no. 61316013		 £12.45
516 Part number 61315510, LEFT HAND HYDRAULIC BLOCK LEFT HAND HYDRAULIC BLOCK
Ariston part no. 61315510		 £37.58
518 Part number 60024164-51, O-RING D: 17-4 O-RING D: 17-4
Ariston part no. 60024164-51		 £1.18
519 Part number 61017288-08, FLOW REGULATORE 8L/MN (RED) FLOW REGULATORE 8L/MN (RED)
Ariston part no. 61017288-08		 £3.76
520 Part number 60024164-18, O-RING D: 13.6-2.7 O-RING D: 13.6-2.7
Ariston part no. 60024164-18		 £0.44
521 Part number 61012909-02, PIN PIN
Ariston part no. 61012909-02		 £1.18
522   PLUG
Ariston part no. 61313056		 £6.98
523 Part number 60024164-22, O-RING D: 18.4-2.7 O-RING D: 18.4-2.7
Ariston part no. 60024164-22		 £0.47
524 Part number 61311314, PISTON PISTON
Ariston part no. 61311314		 £14.00
526 Part number 61010005, CLIP CLIP
Ariston part no. 61010005		 £1.53
527 Part number 61002490, PLUG PLUG
Ariston part no. 61002490		 £1.21
529 Part number 60000302, HEATING FLOW BEND (FROM 04/06) HEATING FLOW BEND (FROM 04/06)
Ariston part no. 60000302		 £50.49
529 Part number 61314879, HEATING FLOW BEND (TO 03/06) HEATING FLOW BEND (TO 03/06)
Ariston part no. 61314879		 £12.18
530 Part number 61313953, CLIP CLIP
Ariston part no. 61313953		 £1.64
531 Part number 61304608, AIR SEPARATOR HEAD ASSEMBLY AIR SEPARATOR HEAD ASSEMBLY
Ariston part no. 61304608		 £23.62
532 Part number 61304618, GASKET KIT GASKET KIT
Ariston part no. 61304618		 £4.09
533 Part number 60000304, HEATING RETURN TUBE (FROM 04/06) HEATING RETURN TUBE (FROM 04/06)
Ariston part no. 60000304		 £121.86
533 Part number 61314880, HEATING RETURN TUBE (TO 03/06) HEATING RETURN TUBE (TO 03/06)
Ariston part no. 61314880		 £16.06
534 Part number 61009833-37, O-RING D: 16-1.9 O-RING D: 16-1.9
Ariston part no. 61009833-37		 £0.60
535   BYPASS TUBE D:15
Ariston part no. 61314383		 £30.02
536 Part number 61302332, PIN PIN
Ariston part no. 61302332		 £2.65
537 Part number 61312668, PRESSURE RELIEF VALVE (3 BAR) PRESSURE RELIEF VALVE (3 BAR)
Ariston part no. 61312668		 £26.17
538 Part number 61301964, NOW USE 65119656-01 PUMP + AIR SEPARATOR 15/50 NOW USE 65119656-01 PUMP + AIR SEPARATOR 15/50
Ariston part no. 61301964
538 Part number 61303461, PUMP + AIR SEPARATOR 15/60 PUMP + AIR SEPARATOR 15/60
Ariston part no. 61303461		 £273.54
538   PUMP HEAD UPMO 60PH
Ariston part no. 65119656-01		 £273.54
539 Part number 61010572, OVERHEAT THERMOSTAT 100C OVERHEAT THERMOSTAT 100C
Ariston part no. 61010572		 £6.87
540 Part number 61010050, CLIP CLIP
Ariston part no. 61010050		 £3.87
541 Part number 990686, NOW USE 990686-01 TEMPERATURE PROBE + CLIP NOW USE 990686-01 TEMPERATURE PROBE + CLIP
Ariston part no. 990686
541 Part number 990686-01, TEMPERATURE PROBE + CLIP KIT TEMPERATURE PROBE + CLIP KIT
Ariston part no. 990686-01		 £14.91
543 Part number 61311745, STOPPED WATER THROTTLE STOPPED WATER THROTTLE
Ariston part no. 61311745		 £41.02
548 Part number 60000309, CLIP (FROM 04/06) CLIP (FROM 04/06)
Ariston part no. 60000309		 £5.95
548 Part number 61307589, CLIP (TO 03/06) CLIP (TO 03/06)
Ariston part no. 61307589		 £2.72
549 Part number 61301924, WATER FILTER WATER FILTER
Ariston part no. 61301924		 £3.03
550 Part number 61000652-10, CAPACITOR CAPACITOR
Ariston part no. 61000652-10		 £23.72
554 Part number 61310364, PRESSURE SENSOR 0.8b PRESSURE SENSOR 0.8B
Ariston part no. 61310364		 £24.84
555 Part number 61009834-10, O-RING 5.7X1.9 O-RING 5.7X1.9
Ariston part no. 61009834-10		 £0.50
564 Part number 61009834-30, O-RING D: 24.6-3.6 O-RING D: 24.6-3.6
Ariston part no. 61009834-30		 £0.90
565   PIN
Ariston part no. 61305185		 £2.99
570 Part number 60000668, STOPPED WATER THROTTLE BODY STOPPED WATER THROTTLE BODY
Ariston part no. 60000668		 £32.72
571 Part number 61314175, PLUG PLUG
Ariston part no. 61314175		 £2.13
572 Part number 60024164-32, O-RING D: 25-2.4 O-RING D: 25-2.4
Ariston part no. 60024164-32		 £0.65
573 Part number 61016206-02, PIN PIN
Ariston part no. 61016206-02		 £5.40
574 Part number 61315715, GASKET D: 15-3 GASKET D: 15-3
Ariston part no. 61315715		 £2.05
575 Part number 61314955, THERMISTOR TEMP. SENSOR THERMISTOR TEMP. SENSOR
Ariston part no. 61314955		 £25.69
576 Part number 61002083, TEMPERATURE SENSOR CLIP TEMPERATURE SENSOR CLIP
Ariston part no. 61002083		 £1.08
577 Part number 61308091, O-RING 17.86X2.62 O-RING 17.86X2.62
Ariston part no. 61308091		 £1.31
585 Part number 61009834-14, O-RING 8.9X2.7 O-RING 8.9X2.7
Ariston part no. 61009834-14		 £0.50
589 Part number 61302409-01, SANITARY HEAT EXCHANGER (16 P.) SANITARY HEAT EXCHANGER (16 P.)
Ariston part no. 61302409-01		 £112.94
590 Part number 65104334, EXCHANGER GASKET EXCHANGER GASKET
Ariston part no. 65104334		 £3.46
593 Part number 60081904, DRAIN SCREW ASSY DRAIN SCREW ASSY
Ariston part no. 60081904		 £6.23
