ARISTON

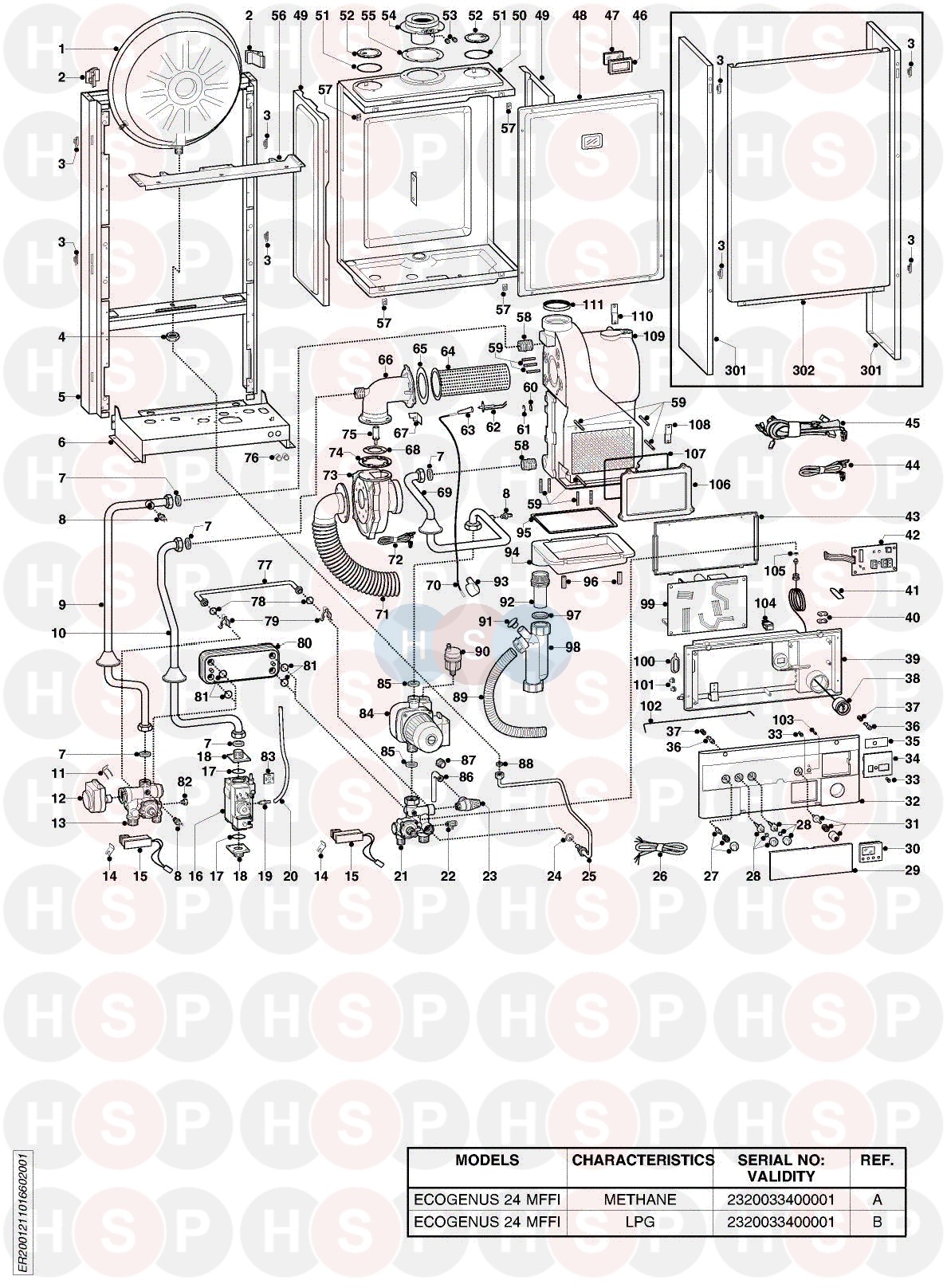

ECOGENUS 24 MFFI EDITION2 - (EXPLODED VIEW)

Appliance Diagram



EXPLODED VIEW diagram for Ariston ECOGENUS 24 MFFI EDITION2Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 573294, EXPANSION VESSEL EXPANSION VESSEL
Ariston part no. 573294
£39.04
2 Part number 999679, EXPANSION VESSEL INSERT EXPANSION VESSEL INSERT
Ariston part no. 999679
£1.79
3 Part number 574302, CASING SUPPORT BRACKET (PLASTIC) (QTY 4) CASING SUPPORT BRACKET (PLASTIC) (QTY 4)
Ariston part no. 574302
£4.49
4 Part number 573244, LOCK NUT 3/8" LOCK NUT 3/8"
Ariston part no. 573244
£5.30
7 Part number 573520, GASKET 3/4" GASKET 3/4"
Ariston part no. 573520
£0.96
8 Part number 998458, TEMPERATURE PROBE TEMPERATURE PROBE
Ariston part no. 998458
£4.43
8 Part number 569236, NOW USE 998458 Temp Probe NOW USE 998458 TEMP PROBE
Ariston part no. 569236

9 Part number 998655, PIPE (C.H. RETURN) PIPE (C.H. RETURN)
Ariston part no. 998655
£13.27
10 Part number 998656, PIPE (GAS VALVE/BURNER JET) PIPE (GAS VALVE/BURNER JET)
Ariston part no. 998656
£12.45
11 Part number 997077, FIXING CLIP (MOTOR) FIXING CLIP (MOTOR)
Ariston part no. 997077
£1.07
12 Part number 997147, MOTOR (3-WAY VALVE) MOTOR (3-WAY VALVE)
Ariston part no. 997147
£27.00
13 Part number 998127, FLOW GROUP FLOW GROUP
Ariston part no. 998127
£53.13
14 Part number 573824, BRACKET (M/FLOW MICROSWITCH) BRACKET (M/FLOW MICROSWITCH)
Ariston part no. 573824
£0.98
15 Part number 995296, WIRED MICROSWITCH WIRED MICROSWITCH
Ariston part no. 995296
£10.95
16 Part number 571438, NOW USE 65070867 GAS VALVE NOW USE 65070867 GAS VALVE
Ariston part no. 571438

16 Part number 65070867, GAS VALVE GAS VALVE
Ariston part no. 65070867
£156.69
17 Part number 565048, O-RING GASKET (GAS VALVE) O-RING GASKET (GAS VALVE)
Ariston part no. 565048
£0.82
18 Part number 999536, UNION (GAS VALVE) UNION (GAS VALVE)
Ariston part no. 999536
£5.69
19 Part number 573793, OBSOLETE Intake (pressure - control valve) OBSOLETE INTAKE (PRESSURE - CONTROL VALVE)
Ariston part no. 573793

20 Part number 573576, COMPENSATION TUBE COMPENSATION TUBE
Ariston part no. 573576
£4.67
21 Part number 998144, RETURN GROUP RETURN GROUP
Ariston part no. 998144
£86.92
22 Part number 573727, DRAIN VALVE DRAIN VALVE
Ariston part no. 573727
£3.56
23 Part number 573172, PRESSURE RELIEF VALVE (1/2"  3 BAR) PRESSURE RELIEF VALVE (1/2" 3 BAR)
Ariston part no. 573172
£9.94
24 Part number 573528, GASKET 1/2" GASKET 1/2"
Ariston part no. 573528
£0.98
25 Part number 573311, PIPE (EXPANSION VESSEL) PIPE (EXPANSION VESSEL)
Ariston part no. 573311
£7.77
26 Part number 999424, WIRING (POWER SUPPLY) WIRING (POWER SUPPLY)
Ariston part no. 999424
£8.36
27 Part number 573302, SUMMER/WINTER SELECTOR KIT SUMMER/WINTER SELECTOR KIT
Ariston part no. 573302
£4.49
28 Part number 998747, CONTROL KNOB KIT CONTROL KNOB KIT
Ariston part no. 998747
£7.11
29 Part number 998661, DOOR (INSTRUCTION/TIME CLOCK) DOOR (INSTRUCTION/TIME CLOCK)
Ariston part no. 998661
£3.25
30 Part number 997207, TIME CLOCK TIME CLOCK
Ariston part no. 997207
£75.35
31 Part number 998772, ON/OFF PUSH BUTTON KIT ON/OFF PUSH BUTTON KIT
Ariston part no. 998772
£7.42
32 Part number 998778, OBSOLETE CONTROL PANEL OBSOLETE CONTROL PANEL
Ariston part no. 998778

33 Part number 998751, BUTTON (RESET) BUTTON (RESET)
Ariston part no. 998751
£0.61
34 Part number 999073, COVER (DISPLAY) COVER (DISPLAY)
Ariston part no. 999073
£2.49
35 Part number 998766, FILM (DISPLAY) FILM (DISPLAY)
Ariston part no. 998766
£3.52
36 Part number 998381, PIN (FRONT COVER) PIN (FRONT COVER)
Ariston part no. 998381
£0.87
37 Part number 998739, FIXING SPRING (FRONT COVER) FIXING SPRING (FRONT COVER)
Ariston part no. 998739
£2.64
38 Part number 571649, PRESSURE GAUGE PRESSURE GAUGE
Ariston part no. 571649
£10.74
40 Part number 571562, CABLE CLAMP CABLE CLAMP
Ariston part no. 571562
£1.81
41 Part number 999993, FIXING SPRING (CONTROL PANEL) FIXING SPRING (CONTROL PANEL)
Ariston part no. 999993
£2.42
42 Part number 998765, NOW USE 990693 PRINTED CIRCUIT BOARD (DISPLAY) NOW USE 990693 PRINTED CIRCUIT BOARD (DISPLAY)
Ariston part no. 998765

42 Part number 990693, PRINTED CIRCUIT BOARD (DISPLAY) PRINTED CIRCUIT BOARD (DISPLAY)
Ariston part no. 990693
£39.82
44 Part number 999426, LOW VOLTAGE WIRING LOW VOLTAGE WIRING
Ariston part no. 999426
£41.37
45 Part number 998676, NOW USE 65103107 HIGH VOLTAGE WIRING NOW USE 65103107 HIGH VOLTAGE WIRING
Ariston part no. 998676

45 Part number 65103107, HIGH VOLTAGE WIRING HIGH VOLTAGE WIRING
Ariston part no. 65103107
£34.17
46 Part number 65105371, SIGHT GLASS - GASKET SIGHT GLASS - GASKET
Ariston part no. 65105371
£3.96
46 Part number 998076, NOW USE 65105371 GASKET (SIGHT GLASS) NOW USE 65105371 GASKET (SIGHT GLASS)
Ariston part no. 998076

47 Part number 998075, NOW USE 65105371 SIGHT GLASS NOW USE 65105371 SIGHT GLASS
Ariston part no. 998075

47 Part number 65105371, SIGHT GLASS - GASKET SIGHT GLASS - GASKET
Ariston part no. 65105371
£3.96
48 Part number 574104, PANEL (SEALED CHAMBER - FRONT) PANEL (SEALED CHAMBER - FRONT)
Ariston part no. 574104
£20.62
49 Part number 573247, PANEL (COMBUSTION CHAMBER - SIDE) PANEL (COMBUSTION CHAMBER - SIDE)
Ariston part no. 573247
£10.74
51 Part number 573865, NOW USE 65101484 FLUE GASKET NOW USE 65101484 FLUE GASKET
Ariston part no. 573865

51 Part number 65101484, FLUE GASKET FLUE GASKET
Ariston part no. 65101484
£5.04
52 Part number 573330, COVER PLATE COVER PLATE
Ariston part no. 573330
£4.04
53 Part number 573326, FLUE INTAKE PLUG FLUE INTAKE PLUG
Ariston part no. 573326
£1.97
54 Part number 999400, FLUE (EXHAUST MANIFOLD / HEADER) FLUE (EXHAUST MANIFOLD / HEADER)
Ariston part no. 999400
£20.19
55 Part number 573337, GASKET (FLUE MANIFOLD) GASKET (FLUE MANIFOLD)
Ariston part no. 573337
£4.29
56 Part number 572984, CASING SUPPORT BRACKET CASING SUPPORT BRACKET
Ariston part no. 572984
£1.76
57 Part number 570717, SPRING (FASTENING) SPRING (FASTENING)
Ariston part no. 570717
£3.99
58 Part number 998666, NIPPLE (GAS - 3/4  M/M) NIPPLE (GAS - 3/4 M/M)
Ariston part no. 998666
£3.56
59 Part number 999523, DOWEL (M6X35) DOWEL (M6X35)
Ariston part no. 999523
£3.12
60 Part number 998782, SIGHT GLASS (BURNER) SIGHT GLASS (BURNER)
Ariston part no. 998782
£5.88
61 Part number 999227, RETAINING RING (D=16MM) RETAINING RING (D=16MM)
Ariston part no. 999227
£4.12
62 Part number 998672, ELECTRODE (IGNITION/DETECTION) ELECTRODE (IGNITION/DETECTION)
Ariston part no. 998672
£22.42
63 Part number 998767, CAP (ELECTRODES) CAP (ELECTRODES)
Ariston part no. 998767
£0.98
64 Part number 998668, BURNER BURNER
Ariston part no. 998668
£46.75
65 Part number 998680, GASKET (BURNER) GASKET (BURNER)
Ariston part no. 998680
£3.33
66 Part number 998788, ELBOW (FAN) ELBOW (FAN)
Ariston part no. 998788
£27.84
68 Part number 998786, DIAPHRAGM (FAN ELBOW) DIAPHRAGM (FAN ELBOW)
Ariston part no. 998786
£3.89
69 Part number 998654, PIPE (C.H. FLOW) PIPE (C.H. FLOW)
Ariston part no. 998654
£11.56
70 Part number 998459, ELECTRODE CABLE (RESISTIVE) ELECTRODE CABLE (RESISTIVE)
Ariston part no. 998459
£8.04
71 Part number 996131, OBSOLETE PIPE (FAN SUCTION SILENCER) OBSOLETE PIPE (FAN SUCTION SILENCER)
Ariston part no. 996131

71 Part number 999071, OBSOLETE PIPE (FAN SUCTION SILENCER) OBSOLETE PIPE (FAN SUCTION SILENCER)
Ariston part no. 999071
£64.70
72 Part number 998889, FAN CABLE & SENSOR FAN CABLE & SENSOR
Ariston part no. 998889
£9.00
73 Part number 998888, FAN FAN
Ariston part no. 998888
£212.71
74 Part number 998681, GASKET (FAN) GASKET (FAN)
Ariston part no. 998681
£1.19
75 Part number 998651, INJECTOR (G20) INJECTOR (G20)
Ariston part no. 998651
£3.25
75 Part number 999946, INJECTOR (G30) INJECTOR (G30)
Ariston part no. 999946
£3.39
76 Part number 570772, CABLE HOLDER CABLE HOLDER
Ariston part no. 570772
£0.74
77 Part number 998065, BY-PASS PIPE BY-PASS PIPE
Ariston part no. 998065
£5.50
78 Part number 998077, O-RING O-RING
Ariston part no. 998077
£0.98
79 Part number 998064, SPRING (BY-PASS PIPE) SPRING (BY-PASS PIPE)
Ariston part no. 998064
£1.93
80 Part number 998483, DHW HEAT EXCHANGER DHW HEAT EXCHANGER
Ariston part no. 998483
£44.13
80 Part number 573295, NOW USE 998483 SECONDARY EXCHANGER (P-TYPE 27KW) NOW USE 998483 SECONDARY EXCHANGER (P-TYPE 27KW)
Ariston part no. 573295

81 Part number 573825, O-RING 4075 3,53 X 18,64 O-RING 4075 3,53 X 18,64
Ariston part no. 573825
£2.59
82 Part number 570615, 1/8"  BRASS PLUG 1/8" BRASS PLUG
Ariston part no. 570615
£4.00
83 Part number 573022, CLAMP CLAMP
Ariston part no. 573022
£1.36
84 Part number 996613, KIT FOR VERT. 1  PUMP ATTACHMENTS+JOLLY KIT FOR VERT. 1 PUMP ATTACHMENTS+JOLLY
Ariston part no. 996613
£133.39
84 Part number 997151, NOW USE 996613 PUMP (GOLD 60-V-CLF-H3) NOW USE 996613 PUMP (GOLD 60-V-CLF-H3)
Ariston part no. 997151

85 Part number 569387, GASKET 1 GASKET 1
Ariston part no. 569387
£4.03
86 Part number 999524, OBSOLETE PIPE (SAFETY VALVE) OBSOLETE PIPE (SAFETY VALVE)
Ariston part no. 999524

87 Part number 998567, NUT NUT
Ariston part no. 998567
£0.93
88 Part number 573521, GASKET 3/8" GASKET 3/8"
Ariston part no. 573521
£0.98
89 Part number 998413, PIPE (CONDENSATE - PLASTIC) PIPE (CONDENSATE - PLASTIC)
Ariston part no. 998413
£3.50
90 Part number 564254, NOW USE 571639 AUTO AIR VENT NOW USE 571639 AUTO AIR VENT
Ariston part no. 564254

90 Part number 571639, AUTOMATIC AIR RELEASE VALVE AUTOMATIC AIR RELEASE VALVE
Ariston part no. 571639
£8.38
91 Part number 998792, OBSOLETE CAP (SIPHON FILLING) OBSOLETE CAP (SIPHON FILLING)
Ariston part no. 998792

92 Part number 998412, PLASTIC PIPE FOR CONDENSATE DRAINAGE PLASTIC PIPE FOR CONDENSATE DRAINAGE
Ariston part no. 998412
£2.00
93 Part number 999951, CAP (SPARK GENERATOR) CAP (SPARK GENERATOR)
Ariston part no. 999951
£1.44
94 Part number 998787, CONDENSATE TRAY (ALUMINIUM) CONDENSATE TRAY (ALUMINIUM)
Ariston part no. 998787
£78.57
95 Part number 998808, GASKET (ADHESIVE - 10X5 MM) GASKET (ADHESIVE - 10X5 MM)
Ariston part no. 998808
£3.03
96 Part number 998784, OBSOLETE BACK TRAY NUT OBSOLETE BACK TRAY NUT
Ariston part no. 998784

97 Part number 573768, GASKET (AIRTIGHT - CONDENSATE TRAP) GASKET (AIRTIGHT - CONDENSATE TRAP)
Ariston part no. 573768
£4.06
98 Part number 998791, TRAP TRAP
Ariston part no. 998791
£19.64
99 Part number 998801, NOW USE 65101482 P.C.B. (MAIN) NOW USE 65101482 P.C.B. (MAIN)
Ariston part no. 998801

99 Part number 65101482, SCHEDA ECOSMART (CONFEZIONE) SCHEDA ECOSMART (CONFEZIONE)
Ariston part no. 65101482
£431.82
100 Part number 998382, GROMMET (REGULATION ACCESS) GROMMET (REGULATION ACCESS)
Ariston part no. 998382
£2.26
101 Part number 569720, BLIND GROMMET BLIND GROMMET
Ariston part no. 569720
£1.65
102 Part number 999992, FIXING SPRING (CONTROL PANEL) FIXING SPRING (CONTROL PANEL)
Ariston part no. 999992
£2.42
103 Part number 998653, L.E.D. LENS L.E.D. LENS
Ariston part no. 998653
£2.95
104 Part number 569424, ON/OFF NEON SWITCH ON/OFF NEON SWITCH
Ariston part no. 569424
£2.70
105 Part number 569390, GASKET 1/4 GASKET 1/4
Ariston part no. 569390
£0.98
106 Part number 998777, ALUMINIUM INSPECTION LID ALUMINIUM INSPECTION LID
Ariston part no. 998777
£25.91
107 Part number 573766, FRONT COVER GASKET FRONT COVER GASKET
Ariston part no. 573766
£2.62
109 Part number 998670, MAIN EXCHANGER (ALUMINIUM) MAIN EXCHANGER (ALUMINIUM)
Ariston part no. 998670
£435.35
111 Part number 998423, LIP GASKET LIP GASKET
Ariston part no. 998423
£4.01
301 Part number 998414, NOW USE 997267 CASE PANEL (SIDE) NOW USE 997267 CASE PANEL (SIDE)
Ariston part no. 998414

301 Part number 997267, CASE PANEL - SIDE CASE PANEL - SIDE
Ariston part no. 997267
£25.06
302 Part number 998478, CASE PANEL (FRONT) CASE PANEL (FRONT)
Ariston part no. 998478
£17.37
311 Part number 65109110, OUTSIDE HEAT SENSOR OUTSIDE HEAT SENSOR
Ariston part no. 65109110
£22.28
311 Part number 999133, NOW USE 65109110 OUTDOOR SENSOR NOW USE 65109110 OUTDOOR SENSOR
Ariston part no. 999133






TRACK YOU DELIVERY



Heating spares made simple this website is secured by Geotrust
