ARISTON
ECOGENUS 24 MFFI EDITION3 - (Exploded View)
Appliance Code: 47-116-17 EDITION 3

Appliance Diagram


Exploded View diagram for Ariston Ecogenus 24 MFFI EDITION3Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 573294, EXPANSION VESSEL EXPANSION VESSEL
Ariston part no. 573294		 £63.13
2   EXPANSION VESSEL INSERT
Ariston part no. 999679		 £2.58
3 Part number 574302, CASING SUPPORT BRACKET (PLASTIC) (QTY 4) CASING SUPPORT BRACKET (PLASTIC) (QTY 4)
Ariston part no. 574302		 £7.39

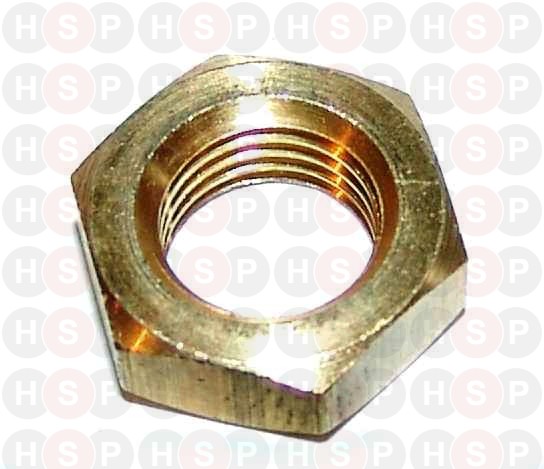

4 Part number 573244, LOCK NUT 3/8" LOCK NUT 3/8"
Ariston part no. 573244		 £6.00

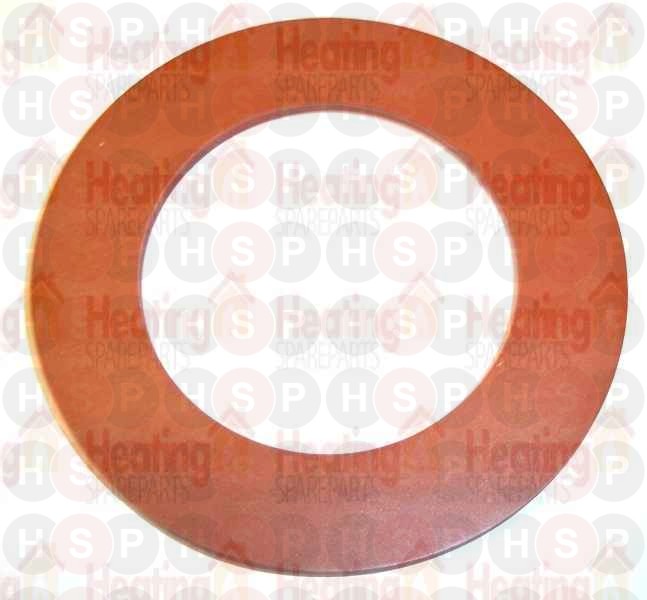

7 Part number 573520, GASKET 3/4" GASKET 3/4"
Ariston part no. 573520		 £0.94
8 Part number 998458, NOW USE 998458-01 TEMPERATURE PROBE NOW USE 998458-01 TEMPERATURE PROBE
Ariston part no. 998458
8   TEMPERATURE PROBE
Ariston part no. 998458-01		 £7.34
9   PIPE (C.H. RETURN)
Ariston part no. 998655		 £13.27
10   PIPE (GAS VALVE/BURNER JET)
Ariston part no. 998656		 £15.98
11 Part number 997077, FIXING CLIP (MOTOR) FIXING CLIP (MOTOR)
Ariston part no. 997077		 £1.54
12 Part number 997147, MOTOR (3-WAY VALVE) MOTOR (3-WAY VALVE)
Ariston part no. 997147		 £35.27

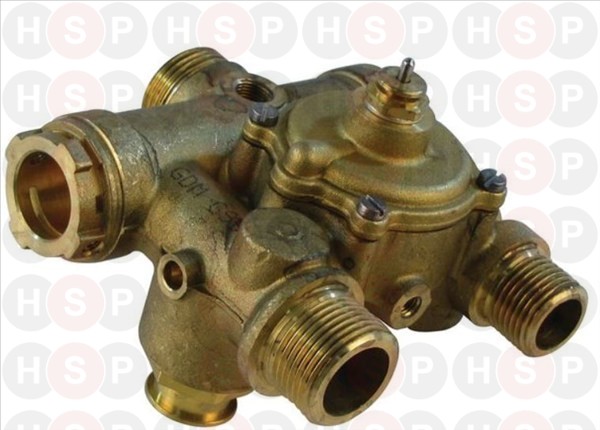

13 Part number 998127, FLOW GROUP FLOW GROUP
Ariston part no. 998127		 £53.13
14 Part number 573824, BRACKET (M/FLOW MICROSWITCH) BRACKET (M/FLOW MICROSWITCH)
Ariston part no. 573824		 £1.32
15 Part number 995296, WIRED MICROSWITCH WIRED MICROSWITCH
Ariston part no. 995296		 £19.43

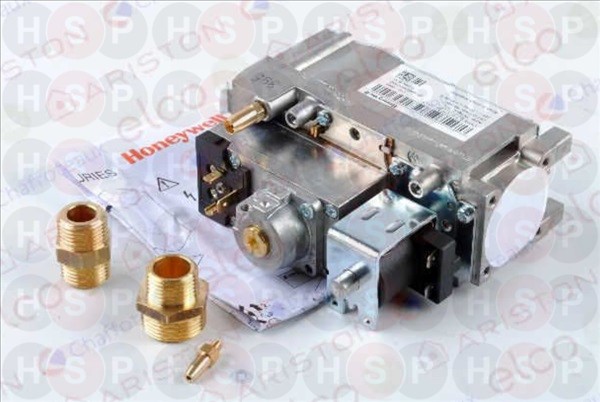

16 Part number 65070867, GAS VALVE GAS VALVE
Ariston part no. 65070867		 £197.09
16 Part number 571438, NOW USE 65070867 GAS VALVE NOW USE 65070867 GAS VALVE
Ariston part no. 571438
17 Part number 565048, O-RING GASKET (GAS VALVE) O-RING GASKET (GAS VALVE)
Ariston part no. 565048		 £1.25
18   UNION (GAS VALVE)
Ariston part no. 999536		 £5.69
19   OBSOLETE INTAKE (PRESSURE - CONTROL VALVE)
Ariston part no. 573793
20 Part number 573576, COMPENSATION TUBE COMPENSATION TUBE
Ariston part no. 573576		 £7.22
21   RETURN GROUP
Ariston part no. 998144		 £96.84
22 Part number 573727, DRAIN VALVE DRAIN VALVE
Ariston part no. 573727		 £7.39
23 Part number 573172, PRESSURE RELIEF VALVE (1/2" 3 BAR) PRESSURE RELIEF VALVE (1/2" 3 BAR)
Ariston part no. 573172		 £18.28
24 Part number 573528, GASKET 1/2" GASKET 1/2"
Ariston part no. 573528		 £1.13
25   PIPE (EXPANSION VESSEL)
Ariston part no. 573311		 £12.55
26   WIRING (POWER SUPPLY)
Ariston part no. 999424		 £8.36
27 Part number 573302, SUMMER/WINTER SELECTOR KIT SUMMER/WINTER SELECTOR KIT
Ariston part no. 573302		 £6.54
28   CONTROL KNOB KIT
Ariston part no. 998747		 £11.36
29   DOOR (INSTRUCTION/TIME CLOCK)
Ariston part no. 998661		 £3.25
30 Part number 997207, TIME CLOCK TIME CLOCK
Ariston part no. 997207		 £100.90
31 Part number 998772, ON/OFF PUSH BUTTON KIT ON/OFF PUSH BUTTON KIT
Ariston part no. 998772		 £9.62
32   NOW USE 65102141 CONNECTION CABLE (TIME CLOCK)
Ariston part no. 995366
32   CONNECTION CABLE (TIME CLOCK)
Ariston part no. 65102141		 £9.86
33   BUTTON (RESET)
Ariston part no. 998751		 £0.61
34   COVER (DISPLAY)
Ariston part no. 999073		 £2.49
35   FILM (DISPLAY)
Ariston part no. 998766		 £5.45
36   PIN (FRONT COVER)
Ariston part no. 998381		 £1.50
37   FIXING SPRING (FRONT COVER)
Ariston part no. 998739		 £5.42
38 Part number 571649, PRESSURE GAUGE PRESSURE GAUGE
Ariston part no. 571649		 £16.59
40   FIXING SPRING (CONTROL PANEL)
Ariston part no. 999993		 £2.42
41 Part number 571562, CABLE CLAMP CABLE CLAMP
Ariston part no. 571562		 £2.67

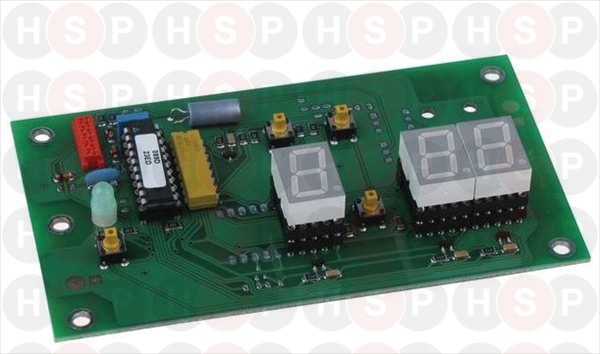

42 Part number 990693, PRINTED CIRCUIT BOARD (DISPLAY) PRINTED CIRCUIT BOARD (DISPLAY)
Ariston part no. 990693		 £69.26
42 Part number 998765, NOW USE 990693 PRINTED CIRCUIT BOARD (DISPLAY) NOW USE 990693 PRINTED CIRCUIT BOARD (DISPLAY)
Ariston part no. 998765

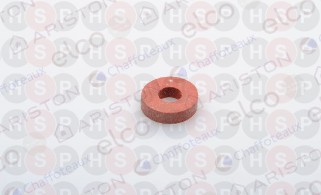

43 Part number 569390, GASKET 1/4 GASKET 1/4
Ariston part no. 569390		 £1.16
45   ALUMINIUM INSPECTION LID
Ariston part no. 998777		 £36.90
46   LOW VOLTAGE WIRING
Ariston part no. 999426		 £46.67
47   HIGH VOLTAGE WIRING
Ariston part no. 65103107		 £48.99
47   NOW USE 65103107 HIGH VOLTAGE WIRING
Ariston part no. 998676

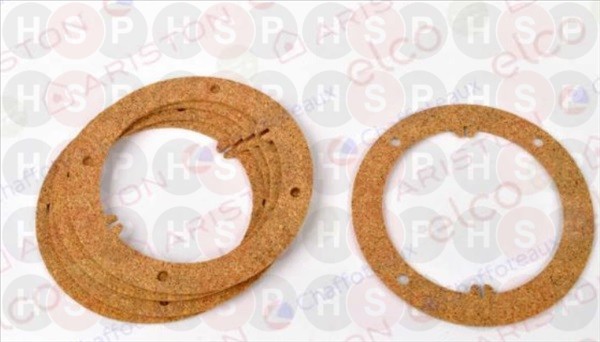

48 Part number 65105371, SIGHT GLASS - GASKET SIGHT GLASS - GASKET
Ariston part no. 65105371		 £6.02
48 Part number 998076, NOW USE 65105371 GASKET (SIGHT GLASS) NOW USE 65105371 GASKET (SIGHT GLASS)
Ariston part no. 998076
49 Part number 998075, NOW USE 65105371 SIGHT GLASS NOW USE 65105371 SIGHT GLASS
Ariston part no. 998075
49 Part number 65105371, SIGHT GLASS - GASKET SIGHT GLASS - GASKET
Ariston part no. 65105371		 £6.02
50   PANEL (SEALED CHAMBER - FRONT)
Ariston part no. 574104		 £20.62
51   PANEL (COMBUSTION CHAMBER - SIDE)
Ariston part no. 573247		 £15.50
53 Part number 65101484, FLUE GASKET FLUE GASKET
Ariston part no. 65101484		 £10.68
53 Part number 573865, NOW USE 65101484 FLUE GASKET NOW USE 65101484 FLUE GASKET
Ariston part no. 573865
54   COVER PLATE
Ariston part no. 573330		 £6.54
55 Part number 573326, FLUE INTAKE PLUG FLUE INTAKE PLUG
Ariston part no. 573326		 £2.53
56   FLUE (EXHAUST MANIFOLD / HEADER)
Ariston part no. 999400		 £25.36
57 Part number 573337, GASKET (FLUE MANIFOLD) GASKET (FLUE MANIFOLD)
Ariston part no. 573337		 £4.82
58   CASING SUPPORT BRACKET
Ariston part no. 572984		 £1.76
59 Part number 570717, SPRING (FASTENING) SPRING (FASTENING)
Ariston part no. 570717		 £4.21
60   NIPPLE (GAS - 3/4 M/M)
Ariston part no. 998666		 £5.15
61   DOWEL (M6X35)
Ariston part no. 999523		 £3.12
62 Part number 998782, SIGHT GLASS (BURNER) SIGHT GLASS (BURNER)
Ariston part no. 998782		 £8.58
63 Part number 999227, RETAINING RING (D=16MM) RETAINING RING (D=16MM)
Ariston part no. 999227		 £5.76
64   ELECTRODE CABLE (RESISTIVE)
Ariston part no. 998459		 £9.07
65 Part number 998672, ELECTRODE (IGNITION/DETECTION) ELECTRODE (IGNITION/DETECTION)
Ariston part no. 998672		 £19.89
66 Part number 998769, GASKET (ELECTRODE INSULATION) GASKET (ELECTRODE INSULATION)
Ariston part no. 998769		 £3.69
67   BURNER
Ariston part no. 998668		 £60.86
68 Part number 998680, GASKET (BURNER) GASKET (BURNER)
Ariston part no. 998680		 £4.90
69   ELBOW (FAN)
Ariston part no. 998788		 £27.84
71   DIAPHRAGM (FAN ELBOW)
Ariston part no. 998786		 £3.89
72   PIPE (C.H. FLOW)
Ariston part no. 998654		 £11.56
73   FAN CABLE & SENSOR
Ariston part no. 998889		 £10.15

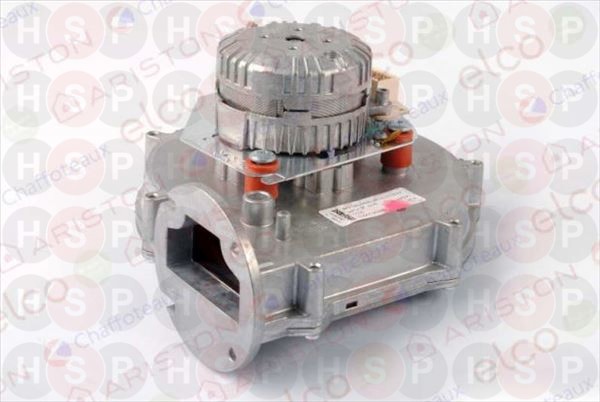

74 Part number 998888, FAN FAN
Ariston part no. 998888		 £329.80
75   GASKET (FAN)
Ariston part no. 998681		 £1.19
76   INJECTOR (G20)
Ariston part no. 998651		 £3.25
76   INJECTOR (G30)
Ariston part no. 999946		 £6.75
77 Part number 570772, CABLE HOLDER CABLE HOLDER
Ariston part no. 570772		 £1.16
78 Part number 998065, BY-PASS PIPE BY-PASS PIPE
Ariston part no. 998065		 £8.47
79 Part number 998077, O-RING O-RING
Ariston part no. 998077		 £1.53
80 Part number 998064, SPRING (BY-PASS PIPE) SPRING (BY-PASS PIPE)
Ariston part no. 998064		 £3.20
81   OBSOLETE PIPE (FAN SUCTION SILENCER)
Ariston part no. 999071		 £68.11
81   OBSOLETE PIPE (FAN SUCTION SILENCER)
Ariston part no. 996131
82 Part number 998483, DHW HEAT EXCHANGER DHW HEAT EXCHANGER
Ariston part no. 998483		 £82.30
82 Part number 573295, NOW USE 998483 SECONDARY EXCHANGER (P-TYPE 27KW) NOW USE 998483 SECONDARY EXCHANGER (P-TYPE 27KW)
Ariston part no. 573295
83 Part number 573825, O-RING 4075 3,53 X 18,64 O-RING 4075 3,53 X 18,64
Ariston part no. 573825		 £2.97
84 Part number 570615, 1/8" BRASS PLUG 1/8" BRASS PLUG
Ariston part no. 570615		 £4.00
85   CLAMP
Ariston part no. 573022		 £1.43
86 Part number 996613, KIT FOR VERT. 1 PUMP ATTACHMENTS+JOLLY KIT FOR VERT. 1 PUMP ATTACHMENTS+JOLLY
Ariston part no. 996613		 £273.54
86 Part number 997151, NOW USE 996613 PUMP (GOLD 60-V-CLF-H3) NOW USE 996613 PUMP (GOLD 60-V-CLF-H3)
Ariston part no. 997151
87 Part number 569387, GASKET 1 GASKET 1
Ariston part no. 569387		 £3.18
88   NUT
Ariston part no. 998567		 £1.54
89   OBSOLETE PIPE (SAFETY VALVE)
Ariston part no. 999524
90 Part number 573521, GASKET 3/8" GASKET 3/8"
Ariston part no. 573521		 £0.94
91   PIPE (CONDENSATE - PLASTIC)
Ariston part no. 998413		 £5.66
92   OBSOLETE NAME BADGE
Ariston part no. 997824
93   OBSOLETE CONTROL PANEL
Ariston part no. 998778
94   L.E.D. LENS
Ariston part no. 998653		 £2.95
95   FIXING SPRING (CONTROL PANEL)
Ariston part no. 999992		 £2.42
96 Part number 569720, BLIND GROMMET BLIND GROMMET
Ariston part no. 569720		 £2.44
97 Part number 998382, GROMMET (REGULATION ACCESS) GROMMET (REGULATION ACCESS)
Ariston part no. 998382		 £4.68
98 Part number 569424, ON/OFF NEON SWITCH ON/OFF NEON SWITCH
Ariston part no. 569424		 £4.52

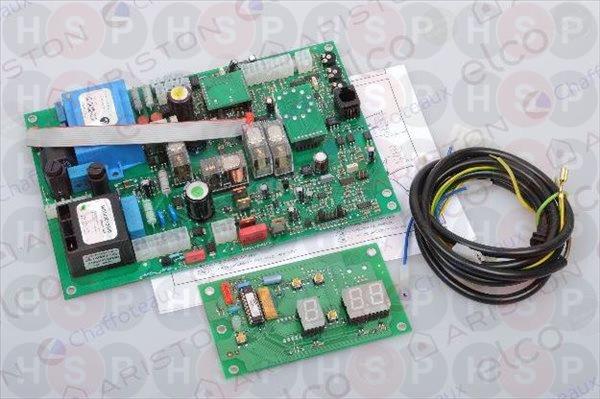

99 Part number 65101482, SCHEDA ECOSMART (CONFEZIONE) SCHEDA ECOSMART (CONFEZIONE)
Ariston part no. 65101482		 £564.69
99 Part number 998801, NOW USE 65101482 P.C.B. (MAIN) NOW USE 65101482 P.C.B. (MAIN)
Ariston part no. 998801
100   TRAP
Ariston part no. 998791		 £23.02
101   OBSOLETE CAP (SIPHON FILLING)
Ariston part no. 998792
102 Part number 564254, NOW USE 571639 AUTO AIR VENT NOW USE 571639 AUTO AIR VENT
Ariston part no. 564254
102 Part number 571639, AUTOMATIC AIR RELEASE VALVE AUTOMATIC AIR RELEASE VALVE
Ariston part no. 571639		 £11.91
103   PIPE (DRAIN - PLASTIC)
Ariston part no. 999452		 £2.39
103   PLASTIC PIPE FOR CONDENSATE DRAINAGE
Ariston part no. 998412		 £3.23
104   OBSOLETE GASKET (AIR TIGHT - CONDENSATE TRAP)
Ariston part no. 995294
104   GASKET (AIR TIGHT - CONDENSATE TRAP)
Ariston part no. 573768		 £6.77
105   OBSOLETE RING NUT 1" 1/4 (CONDENSE DRAIN)
Ariston part no. 999991
106   CONDENSATE TRAY (ALUMINIUM)
Ariston part no. 998787		 £92.11
106   CONDENSATE TRAY
Ariston part no. 999455		 £40.87
107   OBSOLETE BACK TRAY NUT
Ariston part no. 998784
107   SUPPORT (CONDENSATE TRAY)
Ariston part no. 999999		 £7.31
108   FRONT COVER GASKET
Ariston part no. 573766		 £4.39
108   GASKET (ADHESIVE - 10X5 MM)
Ariston part no. 998808		 £4.91
108 Part number 999497, SEAL(SIL.-INSPECTION.COVER/COND.TRAY) SEAL(SIL.-INSPECTION.COVER/COND.TRAY)
Ariston part no. 999497		 £9.59
110   MAIN EXCHANGER (ALUMINIUM)
Ariston part no. 998670		 £435.35
110   MAIN EXCHANGER (ALUMINIUM)
Ariston part no. 999675		 £220.49
112   LIP GASKET
Ariston part no. 998423		 £5.14
301   NOW USE 997267 CASE PANEL (SIDE)
Ariston part no. 998414
301   CASE PANEL - SIDE
Ariston part no. 997267		 £31.62
302   CASE PANEL (FRONT)
Ariston part no. 998478		 £17.37
311 Part number 65109110, OUTSIDE HEAT SENSOR OUTSIDE HEAT SENSOR
Ariston part no. 65109110		 £34.33
311 Part number 999133, NOW USE 65109110 OUTDOOR SENSOR NOW USE 65109110 OUTDOOR SENSOR
Ariston part no. 999133
