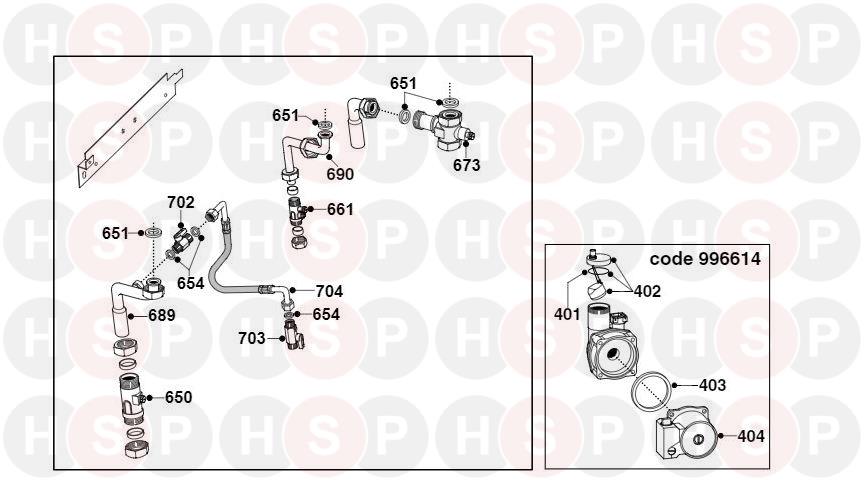

-5%20connection%20pipes/111/20051210045239632 "Connections diagram for Ariston Microsystem 15 RFFI Edition 3 (From Serial No 2320403600001)")
You can then pinch & zoom to adjust the size.
| 401 |  |
O-RING (PUMP) Ariston part no. 998644 |
£4.79 | |
| 402 |  |
AUTO AIR VENT + O-RING Ariston part no. 998643 |
£18.41 | |
| 403 |  |
GASKET (PUMP HEAD) Ariston part no. 998738 |
£3.94 | |
| 404 |  |
KIT (MOTOR PUMP) Ariston part no. 996615 |
£256.70 | |
| 650 |  |
ISOLATING VALVE - 3/4" FLOW Ariston part no. 570744 |
£21.65 | |
| 651 |  |
GASKET 3/4" Ariston part no. 573520 |
£0.94 | |
| 654 |  |
GASKET 3/8" Ariston part no. 573521 |
£0.94 | |
| 661 |  |
ISOLATING VALVE - GAS INLET Ariston part no. 571000 |
£16.29 | |
| 673 |  |
ISOLATING VALVE (3/4 RETURN) Ariston part no. 999582 |
£20.30 | |
| 689 |  |
PIPE (C.H. FLOW) Ariston part no. 999702 |
£15.46 | |
| 690 | PIPE (GAS INLET) Ariston part no. 991909 |
£4.64 | ||
| 702 |  |
TAP (M-M 3/8 ) Ariston part no. 573543 |
£10.80 | |
| 702 |  |
NOW USE 573543 TAP (M/M 3/8 - C.H. FLOW) Ariston part no. 990742 |
||
| 703 |  |
NOW USE 65102016 TAP M/M 3/8 Ariston part no. 65101287 |
||
| 703 |  |
TAP (M/M 3/8 ) Ariston part no. 65102016 |
£22.21 | |
| 704 |  |
FILLING LOOP PIPE Ariston part no. 990737 |
£10.71 | |
