ARISTON

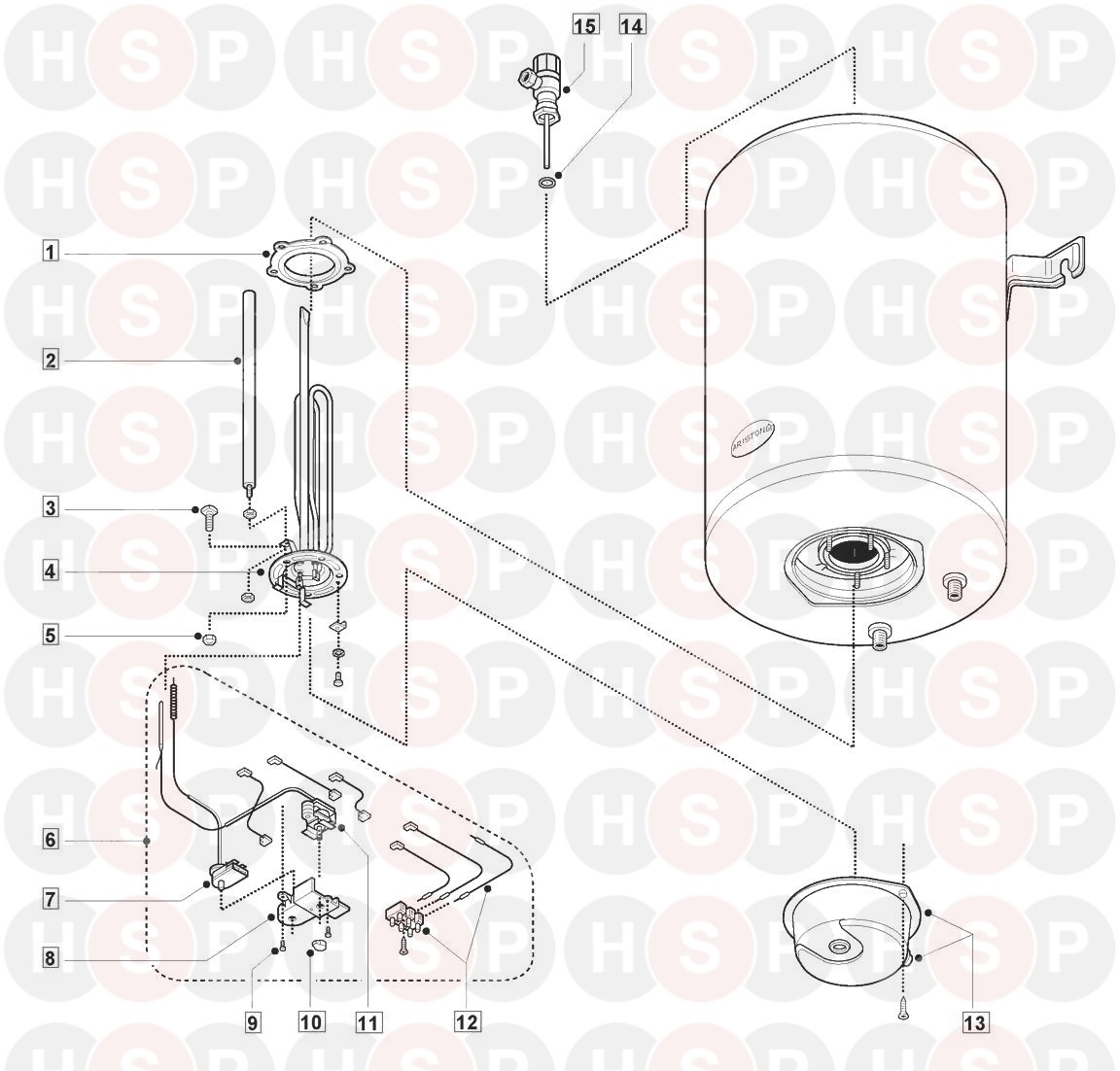

ST 75 LITRE FROM SERIAL NO. 020000000890308 - (Exploded View)
Appliance Code: 020000000890308

Appliance Diagram


Exploded View diagram for Ariston ST 75 Litre From Serial No. 020000000890308Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 924001, NOW USE 60003308 FLANGE GASKET WITH 5 HOLES NOW USE 60003308 FLANGE GASKET WITH 5 HOLES
Ariston part no. 924001

1   FLANGE GASKET WITH 5 HOLES
Ariston part no. 60003308
£8.27
2 Part number 570408, NOW USE 61316488-01 ANODE (D.21 L:248 M8) NOW USE 61316488-01 ANODE (D.21 L:248 M8)
Ariston part no. 570408

2 Part number 61316488-01, ANODE D:21,3 L:275 M5-M8 ANODE D:21,3 L:275 M5-M8
Ariston part no. 61316488-01
£14.41
3 Part number 918001, SCREW M8X25 SCREW M8X25
Ariston part no. 918001
£1.50
3 Part number 918064, SCREW M8X20 SCREW M8X20
Ariston part no. 918064
£1.42
4 Part number 816523, ELEMENT (3X1000W 240V) ELEMENT (3X1000W 240V)
Ariston part no. 816523
£64.33
5 Part number 469062, NUT M8 NUT M8
Ariston part no. 469062
£1.33
6 Part number 935049, THERMOSTAT KIT + WIRING THERMOSTAT KIT + WIRING
Ariston part no. 935049
£164.91
7 Part number 921024, THERMOSTAT (SAFETY) THERMOSTAT (SAFETY)
Ariston part no. 921024
£26.59
8   THERMOSTAT SUPPORT
Ariston part no. 570109
£2.85
9   SCREW (M4X10)
Ariston part no. 918017
£0.87
10 Part number 570029, CAP (REGULATION) CAP (REGULATION)
Ariston part no. 570029
£4.98
11 Part number 921023, THERMOSTAT (REGULATION) THERMOSTAT (REGULATION)
Ariston part no. 921023
£90.82
12   WIRING KIT
Ariston part no. 935174
£11.10
13 Part number 65101452, NOW USE 926041 COVER NOW USE 926041 COVER
Ariston part no. 65101452

13 Part number 926041, COVER COVER
Ariston part no. 926041
£16.06
15 Part number 969048, TEMPERATURE+PRESSURE RELIEF VALVE (3/4 ) TEMPERATURE+PRESSURE RELIEF VALVE (3/4 )
Ariston part no. 969048
£170.83
