BERMUDA 551 BOILER ONLY - (Appliance Overview)
Appliance Code: 44-077-48

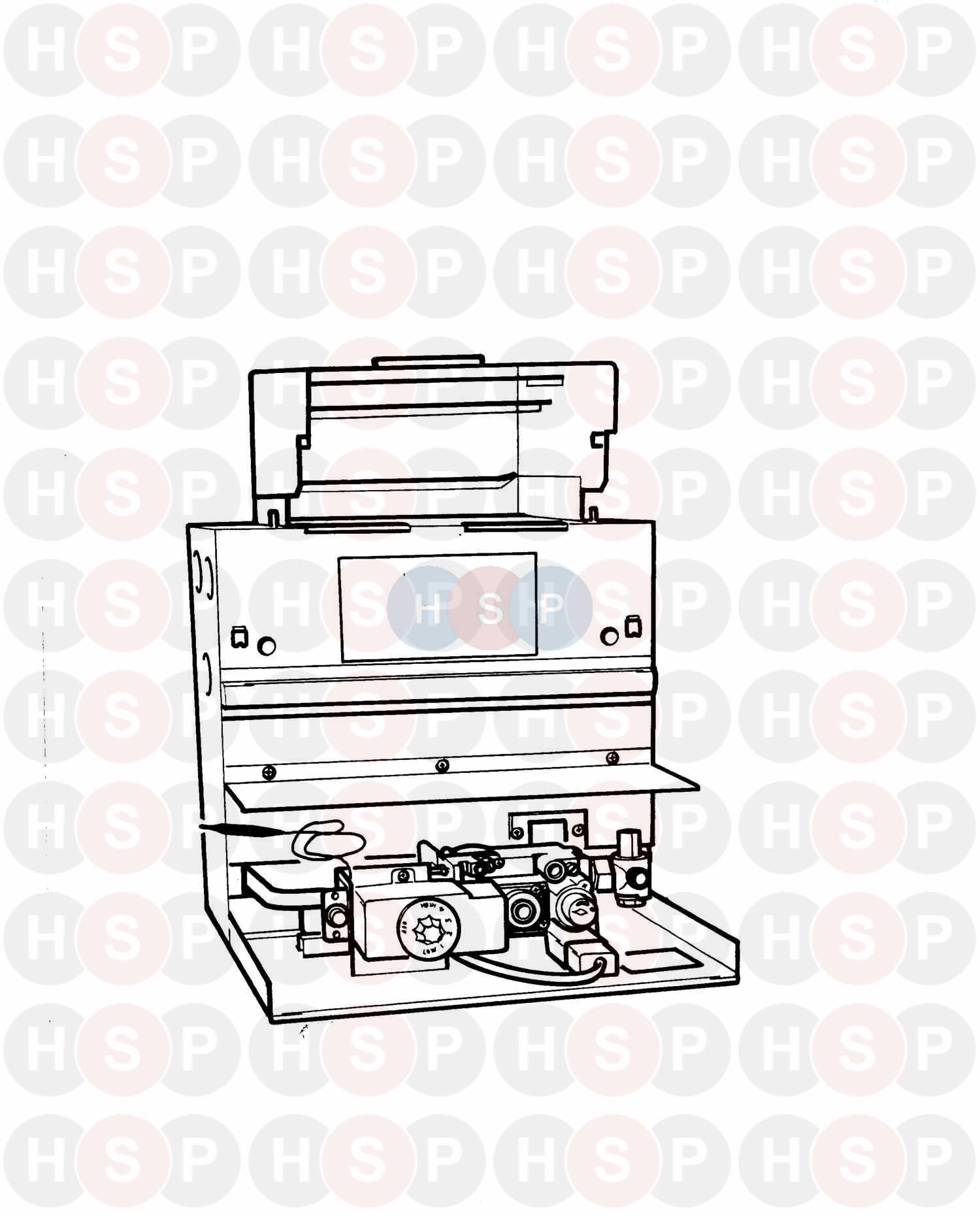

Appliance Diagram


Appliance Overview diagram for Baxi Bermuda 551 Boiler OnlyClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE ASSY BOX-COMBUSTION B551
Baxi part no. 040829
4 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Baxi part no. 062532		 £2.93
5   OBSOLETE SUPPORT-HEAT-EXCH-WM-551-OF
Baxi part no. 100053
6   OBSOLETE BAFFLE-ANGLE-COMB BOX-WM551 OF
Baxi part no. 100069
7   OBSOLETE SCR-SET-M5 X 16MM-CH HD ZNPD
Baxi part no. 062435
8   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440		 £2.93
9 Part number 062452, WASHER SHAKEPROOF INT-M5-ZN PD WASHER SHAKEPROOF INT-M5-ZN PD
Baxi part no. 062452		 £3.03
10   OBSOLETE SCR-SET-M5 X 6MM-CH HD ZNPD
Baxi part no. 062434
12   OBSOLETE WASHER RETAINING SPECIAL
Baxi part no. 100012
13 Part number 062583, SCR-TF-M5x10MM PN HD PZ S ZNPD SCR-TF-M5X10MM PN HD PZ S ZNPD
Baxi part no. 062583		 £3.03
14   OBSOLETE INSULATION-REAR-BTM-COMB BOX
Baxi part no. 042822
15   OBSOLETE PANEL-FRONT-COMB BOX-BERM 551
Baxi part no. 040830
16   CLIP-CABLE-F/E-T/CARR 23790-11
Baxi part no. 062539
17 Part number 082109, OBSOLETE WINDOW-VIEWING OBSOLETE WINDOW-VIEWING
Baxi part no. 082109
18   OBSOLETE HOUSING-WINDOW-VIEWING
Baxi part no. 080193
19 Part number 042824, INSULATION-FRONT PANEL. INSULATION-FRONT PANEL.
Baxi part no. 042824
20   OBSOLETE SCR-SET-M5 X 12MM-CH HD ZNPD
Baxi part no. 062416
20 Part number 062531, SCR-TF-M5x8MM-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531		 £3.03
21   OBSOLETE SHIELD-CONTROL-ASSY-551
Baxi part no. 040831
24 Part number 040664, DIVERTER DRAUGHT HOOD COMB BOX DIVERTER DRAUGHT HOOD COMB BOX
Baxi part no. 040664
24 Part number 238132BAX, FLUE HOOD DIVERTER ASD FLUE HOOD DIVERTER ASD
Baxi part no. 238132BAX
25 Part number 062431, SCR-SET-M5 x 8MM-HEX HD ZNPD SCR-SET-M5 X 8MM-HEX HD ZNPD
Baxi part no. 062431		 £3.07
26 Part number 040665, OBSOLETE BAFFLE-HEAT EXCH-COMB BOX OBSOLETE BAFFLE-HEAT EXCH-COMB BOX
Baxi part no. 040665
27 Part number 226841, OBSOLETE Plate Blanking OBSOLETE PLATE BLANKING
Baxi part no. 226841
29   SCR-NO.8X1.5IN RD HD BLK JAP
Baxi part no. 062319
30 Part number 226216, OBSOLETE KIT-BOILER REPLACEMENT-LARGE OBSOLETE KIT-BOILER REPLACEMENT-LARGE
Baxi part no. 226216
32 Part number 042889, OBSOLETE POCKET-THERMOSTAT 1/4in BSP OBSOLETE POCKET-THERMOSTAT 1/4IN BSP
Baxi part no. 042889
32 Part number 042889BAX, OBSOLETE POCKET-THERMOSTAT 1/4in BSP OBSOLETE POCKET-THERMOSTAT 1/4IN BSP
Baxi part no. 042889BAX
33 Part number 102029BAX, OBSOLETE GASKET-BOILER(Blue) OBSOLETE GASKET-BOILER(BLUE)
Baxi part no. 102029BAX
33 Part number 102029, OBSOLETE GASKET-BOILER OBSOLETE GASKET-BOILER
Baxi part no. 102029
35 Part number 062597, NUT-HEX-M8-PASS-ZNPD NUT-HEX-M8-PASS-ZNPD
Baxi part no. 062597		 £3.03
37 Part number 060016, NOW USE 102037 SEAL RING BOILER END.(SET 3) NOW USE 102037 SEAL RING BOILER END.(SET 3)
Baxi part no. 060016
37 Part number 102037, SEAL-RING-BOILER. SEAL-RING-BOILER.
Baxi part no. 102037		 £6.95
38   KIT-DRAW BAR-BOILER SECURING
Baxi part no. 040890
39   OBSOLETE PLATE-BLR CLAMPING.WM-532RS
Baxi part no. 100113
40   WASHER-PLAIN-5MM ZINC PLTD
Baxi part no. 062447		 £2.30
43 Part number 060058, KIT-INJECTOR-TEE-REPLACEMENT KIT-INJECTOR-TEE-REPLACEMENT
Baxi part no. 060058		 £93.05
44   OBSOLETE DISC-BLANKING-INJECTOR TEE
Baxi part no. 062625
45 Part number 062621, SPREADER-WATER-PLASTIC SPREADER-WATER-PLASTIC
Baxi part no. 062621		 £7.29
46 Part number 040812, KIT-TAP SERVICE-3 WAY KIT-TAP SERVICE-3 WAY
Baxi part no. 040812		 £105.55
47 Part number 062623, NOW USE V4600C1086 VALVE-CONT-MULTI-H/WELL NOW USE V4600C1086 VALVE-CONT-MULTI-H/WELL
Baxi part no. 062623
47 Part number V4600C1029, NOW USE V4600C1086 HONEYWELL GAS VALVE NOW USE V4600C1086 HONEYWELL GAS VALVE
Baxi part no. V4600C1029
47 Part number V4600C1086, GAS VALVE TRADELINE GAS VALVE TRADELINE
Baxi part no. V4600C1086		 £177.26
48   OBSOLETE SHIELD-HEAT CONTROL VALVE B551
Baxi part no. 040836
50   OBSOLETE BRKT-THERMOSTAT HOUSING.551
Baxi part no. 040838
51   OBSOLETE HOUSING-THERMOSTAT-551
Baxi part no. 040841
52 Part number 062560, SCR-TF-M4 x 6mm PAN POZI ZN P SCR-TF-M4 X 6MM PAN POZI ZN P
Baxi part no. 062560		 £3.03
53 Part number 042818, THERMOSTAT-BOILER-RANCO-K36. THERMOSTAT-BOILER-RANCO-K36.
Baxi part no. 042818
54 Part number 042717, KNOB-CONTROL BOILER THERMOSTAT KNOB-CONTROL BOILER THERMOSTAT
Baxi part no. 042717
55 Part number 040884, KIT-TV INTERFERENCE SUPP-72 KIT-TV INTERFERENCE SUPP-72
Baxi part no. 040884		 £14.28
58 Part number 040456, KIT-PIEZO IGN-BERM 552 KIT-PIEZO IGN-BERM 552
Baxi part no. 040456
59   OBSOLETE SCR-ST-NO8X3/8-PN POZI ZNPD
Baxi part no. 062626
61   OBSOLETE GRIP CABLE-HEYCO SR 6P 4
Baxi part no. 102007
62 Part number 060053, OBSOLETE PLUG-ELECTR.HOUSING PLAS OBSOLETE PLUG-ELECTR.HOUSING PLAS
Baxi part no. 060053
63   OBSOLETE PIPE-PILOT FEED (N&O) B551
Baxi part no. 040833
63   OBSOLETE PIPE-LE PILOT FEED N&O 551
Baxi part no. 040894
64   OBSOLETE RESTRICTOR-PILOT-675 BLR&CON
Baxi part no. 042799
65   OBSOLETE BRACKET - PILOT SUPPORT
Baxi part no. 100019
65   OBSOLETE BRKT-L E PILOT SUPPORT-551
Baxi part no. 040893
66 Part number 102006, OBSOLETE BURNER-PILOT-H/WELL OBSOLETE BURNER-PILOT-H/WELL
Baxi part no. 102006
66 Part number 062638, OBSOLETE BURNER PILOT OBSOLETE BURNER PILOT
Baxi part no. 062638
67 Part number 102041, INJECTOR PILOT.NG.BCR-18 INJECTOR PILOT.NG.BCR-18
Baxi part no. 102041
70   NUT-FULL HEX-4MM-ZINC PLTD
Baxi part no. 062439		 £2.93
71   OBSOLETE WASHER SHAKEPROOF.INT-M4 ZN PD
Baxi part no. 062451
72   OBSOLETE KIT 0F PARTS - LOW ENERGY PILOT (INCLUDES
Baxi part no. 400895
72 Part number 102024, ELECTRODE-PILOT-IGNITION ELECTRODE-PILOT-IGNITION
Baxi part no. 102024		 £6.83
73 Part number 042740, LEAD-ELECTRODE-675 LEAD-ELECTRODE-675
Baxi part no. 042740
74   OBSOLETE SLEEVE-SIL RUBBER-37MM GREEN
Baxi part no. 040576
75 Part number 102005, THERM-18/24HWELL-Q309A2721 STD THERM-18/24HWELL-Q309A2721 STD
Baxi part no. 102005		 £18.61
76   OBSOLETE BRKT-BURNER SUPPORT 551
Baxi part no. 040840
77   OBSOLETE PIPE-BRNR FEED (N&O) 551
Baxi part no. 040847
78 Part number 042768, OBSOLETE BURNER-BOILER OBSOLETE BURNER-BOILER
Baxi part no. 042768
79   OBSOLETE GASKET - BOILER BURNER
Baxi part no. 100031
80 Part number 040799, OBSOLETE LINT ARRESTER-ASSY-FIRE OBSOLETE LINT ARRESTER-ASSY-FIRE
Baxi part no. 040799
80 Part number 040800, OBSOLETE LINT ARRESTER-ASSY-FIRE OBSOLETE LINT ARRESTER-ASSY-FIRE
Baxi part no. 040800
81   OBSOLETE ADAPTER-MALE 1/2 BSP 12MM TUBE
Baxi part no. 042712
82   OBSOLETE BAFFLE-BURNER-AIR FLOW
Baxi part no. 040684
83   OBSOLETE INJECTOR BNR-NG-CAT 39-1500
Baxi part no. 042710
84 Part number 100062, OBSOLETE KIT-WIRES-WM-551-OF OBSOLETE KIT-WIRES-WM-551-OF
Baxi part no. 100062
