BERMUDA 675 S CAT 2 TN - (Appliance Overview)
Appliance Code: 44-077-44

Appliance Diagram


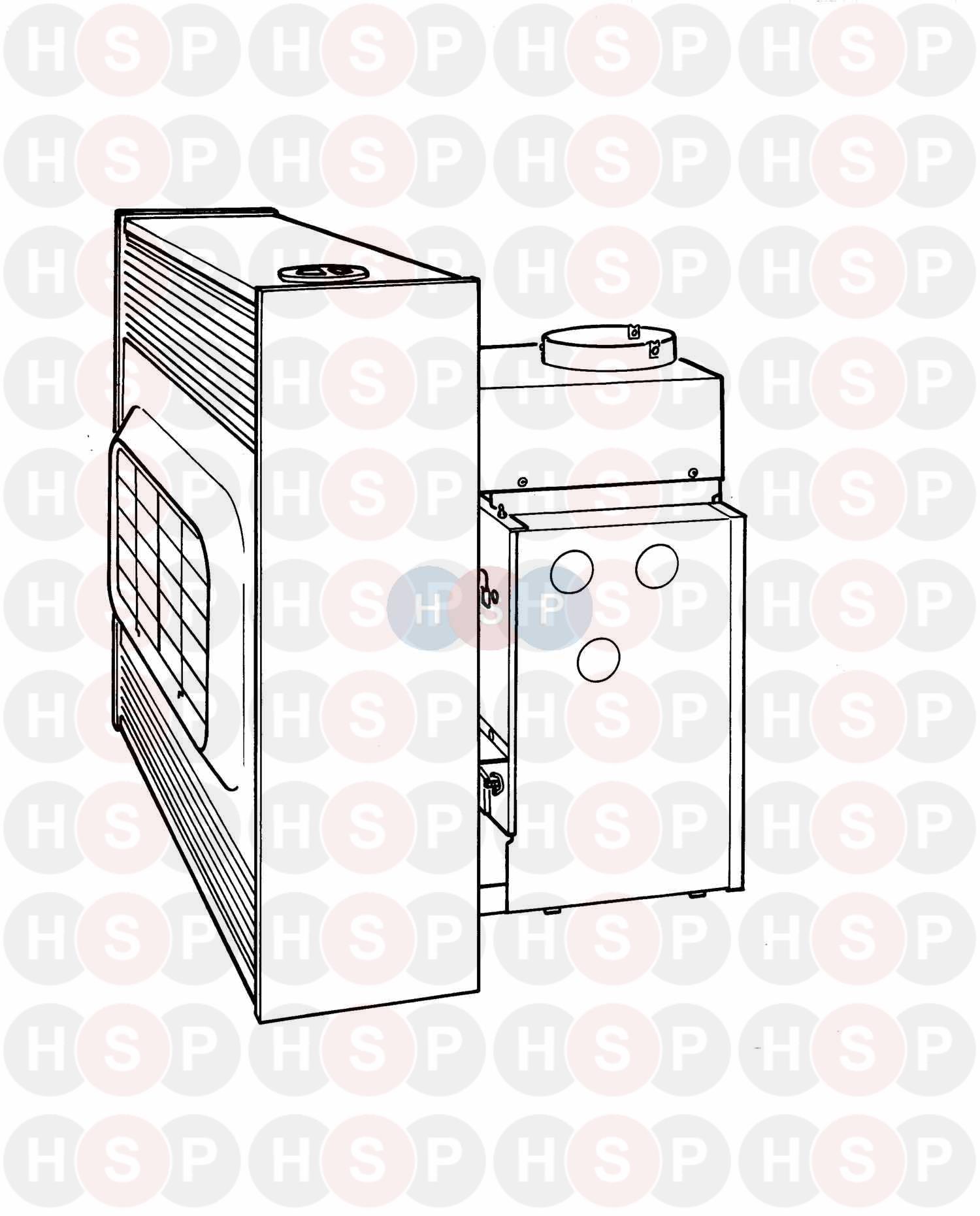

Appliance Overview diagram for Baxi Bermuda 675 S CAT 2 TNClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE ASSY BOX-COM/PANEL FRONT 675
Baxi part no. 040823

3   OBSOLETE INSULATION-REAR-BTM-COMB BOX
Baxi part no. 042822

4   OBSOLETE WASHER RETAINING SPECIAL
Baxi part no. 100012

5 Part number 062583, SCR-TF-M5x10MM PN HD PZ S ZNPD SCR-TF-M5X10MM PN HD PZ S ZNPD
Baxi part no. 062583
£3.12
6   OBSOLETE ASSY PANEL FRONT BOX-COMB 675
Baxi part no. 040661

7   OBSOLETE HOUSING-WINDOW-VIEWING
Baxi part no. 080193

7 Part number 082109, OBSOLETE WINDOW-VIEWING OBSOLETE WINDOW-VIEWING
Baxi part no. 082109

8 Part number 042824, INSULATION-FRONT PANEL. INSULATION-FRONT PANEL.
Baxi part no. 042824

9   OBSOLETE SCR-SET-M5 X 12MM-CH HD ZNPD
Baxi part no. 062416

10 Part number 062452, WASHER SHAKEPROOF INT-M5-ZN PD WASHER SHAKEPROOF INT-M5-ZN PD
Baxi part no. 062452
£3.12
11   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440
£3.01
13   OBSOLETE SHIELD-CONTROLS-75 SERIES
Baxi part no. 040663

14 Part number 062531, SCR-TF-M5x8MM-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531
£3.12
15 Part number 040664, DIVERTER DRAUGHT HOOD COMB BOX DIVERTER DRAUGHT HOOD COMB BOX
Baxi part no. 040664

15 Part number 238132BAX, FLUE HOOD DIVERTER ASD FLUE HOOD DIVERTER ASD
Baxi part no. 238132BAX

16 Part number 062431, SCR-SET-M5 x 8MM-HEX HD ZNPD SCR-SET-M5 X 8MM-HEX HD ZNPD
Baxi part no. 062431
£3.16
17 Part number 040665, OBSOLETE BAFFLE-HEAT EXCH-COMB BOX OBSOLETE BAFFLE-HEAT EXCH-COMB BOX
Baxi part no. 040665

19   OBSOLETE SOCKET ASSEMBLY - ELECTRICAL HOUSING
Baxi part no. 100013

21   SCR-NO.8X1.5IN RD HD BLK JAP
Baxi part no. 062319

22 Part number 226216, OBSOLETE KIT-BOILER REPLACEMENT-LARGE OBSOLETE KIT-BOILER REPLACEMENT-LARGE
Baxi part no. 226216

23 Part number 042889, OBSOLETE POCKET-THERMOSTAT 1/4in BSP OBSOLETE POCKET-THERMOSTAT 1/4IN BSP
Baxi part no. 042889

23 Part number 042889BAX, OBSOLETE POCKET-THERMOSTAT 1/4in BSP OBSOLETE POCKET-THERMOSTAT 1/4IN BSP
Baxi part no. 042889BAX

24 Part number 102029BAX, OBSOLETE GASKET-BOILER(Blue) OBSOLETE GASKET-BOILER(BLUE)
Baxi part no. 102029BAX

24 Part number 102029, OBSOLETE GASKET-BOILER OBSOLETE GASKET-BOILER
Baxi part no. 102029

24   OBSOLETE SPREADER - WATER
Baxi part no. 100043

26 Part number 062597, NUT-HEX-M8-PASS-ZNPD NUT-HEX-M8-PASS-ZNPD
Baxi part no. 062597
£3.12
28 Part number 060016, NOW USE 102037 SEAL RING BOILER END.(SET 3) NOW USE 102037 SEAL RING BOILER END.(SET 3)
Baxi part no. 060016

28 Part number 102037, SEAL-RING-BOILER. SEAL-RING-BOILER.
Baxi part no. 102037
£7.15
29   OBSOLETE WASHER-PLAIN-4MM-ZINC. PLTD
Baxi part no. 062446

29   WASHER-PLAIN-5MM ZINC PLTD
Baxi part no. 062447
£2.36
30   OBSOLETE PLATE-BLR CLAMPING.WM-532RS
Baxi part no. 100113

31   KIT-DRAW BAR-BOILER SECURING
Baxi part no. 040890

32 Part number 060058, KIT-INJECTOR-TEE-REPLACEMENT KIT-INJECTOR-TEE-REPLACEMENT
Baxi part no. 060058
£93.05
34   OBSOLETE PLUG 1IN BSP RECESSED - MALLEABLE IRON 102
Baxi part no. 102002

36   OBSOLETE SHIELD-HEAT-75 SERIES
Baxi part no. 040676

37 Part number 040800, OBSOLETE LINT ARRESTER-ASSY-FIRE OBSOLETE LINT ARRESTER-ASSY-FIRE
Baxi part no. 040800

37 Part number 040799, OBSOLETE LINT ARRESTER-ASSY-FIRE OBSOLETE LINT ARRESTER-ASSY-FIRE
Baxi part no. 040799

38 Part number 042768, OBSOLETE BURNER-BOILER OBSOLETE BURNER-BOILER
Baxi part no. 042768

39   OBSOLETE GASKET - BOILER BURNER
Baxi part no. 100031

40   OBSOLETE ADAPTER-MALE 1/2 BSP 12MM TUBE
Baxi part no. 042712

41   OBSOLETE BAFFLE-BURNER-AIR FLOW
Baxi part no. 040684

43   OBSOLETE INJECTOR BNR-NG-CAT 39-1500
Baxi part no. 042710

45 Part number 102004, OBSOLETE VALVE-CNT-H/WELL OBSOLETE VALVE-CNT-H/WELL
Baxi part no. 102004

46 Part number 062240, OBSOLETE NIPPLE PRES TEST OBSOLETE NIPPLE PRES TEST
Baxi part no. 062240

47   OBSOLETE GRIP CABLE-HEYCO SR 6P 4
Baxi part no. 102007

49   OBSOLETE SCR-SET-M5 X 6MM-CH HD ZNPD
Baxi part no. 062434

50 Part number 102005, THERM-18/24HWELL-Q309A2721 STD THERM-18/24HWELL-Q309A2721 STD
Baxi part no. 102005
£19.17
51 Part number 040812, KIT-TAP SERVICE-3 WAY KIT-TAP SERVICE-3 WAY
Baxi part no. 040812
£108.71
52 Part number 102006, OBSOLETE BURNER-PILOT-H/WELL OBSOLETE BURNER-PILOT-H/WELL
Baxi part no. 102006

54   NUT-FULL HEX-4MM-ZINC PLTD
Baxi part no. 062439
£3.01
55   OBSOLETE WASHER SHAKEPROOF.INT-M4 ZN PD
Baxi part no. 062451

56   OBSOLETE BRACKET - PILOT SUPPORT
Baxi part no. 100019

58 Part number 102041, INJECTOR PILOT.NG.BCR-18 INJECTOR PILOT.NG.BCR-18
Baxi part no. 102041

59   OBSOLETE PILOT PIPE
Baxi part no. 040673

59   OBSOLETE RESTRICTOR-PILOT-675 BLR&CON
Baxi part no. 042799

60   OBSOLETE SLEEVE-SIL RUBBER-37MM GREEN
Baxi part no. 040576

60 Part number 042740, LEAD-ELECTRODE-675 LEAD-ELECTRODE-675
Baxi part no. 042740

61 Part number 102024, ELECTRODE-PILOT-IGNITION ELECTRODE-PILOT-IGNITION
Baxi part no. 102024
£7.03
62   OBSOLETE HOUSING-THERMOSTAT-675 SERIES
Baxi part no. 040669

63 Part number 042818, THERMOSTAT-BOILER-RANCO-K36. THERMOSTAT-BOILER-RANCO-K36.
Baxi part no. 042818

64   OBSOLETE SLIDE - THERMOSTAT LOCATING
Baxi part no. 100022

67 Part number 062560, SCR-TF-M4 x 6mm PAN POZI ZN P SCR-TF-M4 X 6MM PAN POZI ZN P
Baxi part no. 062560
£3.12
68 Part number 042717, KNOB-CONTROL BOILER THERMOSTAT KNOB-CONTROL BOILER THERMOSTAT
Baxi part no. 042717

69 Part number 040456, KIT-PIEZO IGN-BERM 552 KIT-PIEZO IGN-BERM 552
Baxi part no. 040456

70   OBSOLETE PLUG ASSEMBLY - ELECTRICAL HOUSING
Baxi part no. 100023

71 Part number 062325, CLIP-CABLE-GT CLIP-CABLE-GT
Baxi part no. 062325

72   OBSOLETE KIT-TV INTERFERENCE SUPP-72
Baxi part no. 040883

74   OBSOLETE KIT-WIRES-BOILER CONT-WM 551RS
Baxi part no. 040670

76 Part number 062595, BUTTON-INDIC-UTD.CARR 70270-06 BUTTON-INDIC-UTD.CARR 70270-06
Baxi part no. 062595

77   OBSOLETE SPACER-WOOD SURROUND
Baxi part no. 040722

80   OBSOLETE BRACKET FIXING SURROUND
Baxi part no. 040709

84   OBSOLETE CLIP-FEMALE-TERRY 487-606
Baxi part no. 062594

88   OBSOLETE LOUVRE-TOP-ASSY-675 S
Baxi part no. 040711

92   OBSOLETE REFLECTOR-SURROUND-675 S
Baxi part no. 042748

93   OBSOLETE REFLECTOR-SIDE-RH
Baxi part no. 042750

94   OBSOLETE REFLECTOR-SIDE-LH
Baxi part no. 042749

97   OBSOLETE COVER-CANOPY 675S
Baxi part no. 042808

98 Part number 062593, OBSOLETE CLIP-MALE-TERRY 487-605 OBSOLETE CLIP-MALE-TERRY 487-605
Baxi part no. 062593

98   OBSOLETE COVER-CONTROL ASSY-BERM.675 S
Baxi part no. 040712

99   OBSOLETE SUPPORT-WALL FIXING
Baxi part no. 040685

100 Part number 040687, Bracket Support Wall Fixing BRACKET SUPPORT WALL FIXING
Baxi part no. 040687
£3.21
101   OBSOLETE COVER-LEVELLING SCREW 675S & W
Baxi part no. 040782

101   OBSOLETE CLIP-EDGE-S TYPE-SPR STEEL
Baxi part no. 062589

101   SCR-SET-M5X10-SLOT CHEESE
Baxi part no. 062415
£2.44
103 Part number 102012, NUT-CAPT-U-TYPE-No8 ZNPD CHRM NUT-CAPT-U-TYPE-NO8 ZNPD CHRM
Baxi part no. 102012
£3.12
105   OBSOLETE BRACKET LOCATION OUTER CASE
Baxi part no. 040688

106   OBSOLETE BRKT-CONTROL SHAFT-675S
Baxi part no. 040702

107   OBSOLETE BUSH-CONTROL SHAFT
Baxi part no. 042752

108   OBSOLETE SUPPORT-FOOT
Baxi part no. 040643

109   OBSOLETE FOOT-ADJUSTABLE.
Baxi part no. 042658

110 Part number 062441, NUT-FULL HEX-6MM ZINC PLTD NUT-FULL HEX-6MM ZINC PLTD
Baxi part no. 062441
£3.01
111   OBSOLETE BRKT-FIRE SECURING.675 S/W
Baxi part no. 040703

113   OBSOLETE RAIL SUPPORT
Baxi part no. 040648

114   OBSOLETE BRKT-HEAT EXCH POSITIONING
Baxi part no. 040649

117 Part number 042708, RADIANT (4 RADIANT CONVECTOR) RADIANT (4 RADIANT CONVECTOR)
Baxi part no. 042708
£18.96
118   OBSOLETE KNOB-CONTROL-675 S
Baxi part no. 040217

119   OBSOLETE SHAFT-CONTROL
Baxi part no. 042720

121 Part number 042662, OBSOLETE TAP-FIRE CONT-DUPLEX OBSOLETE TAP-FIRE CONT-DUPLEX
Baxi part no. 042662

122   OBSOLETE GOVERNOR 1/4IN-1/8IN BSP
Baxi part no. 042663

124   OBSOLETE PILOT-TAP
Baxi part no. 042664

125   OBSOLETE NUT-LOCK-1/8IN BSP-ZNPD
Baxi part no. 082159

126   OBSOLETE PILOT-FILTER
Baxi part no. 042675

127 Part number 040707, OBSOLETE BURNER PILOT ASSY(INC N/O)675S OBSOLETE BURNER PILOT ASSY(INC N/O)675S
Baxi part no. 040707

129 Part number 040675, OBSOLETE PIPE-FIRE SUPP WITH N&O OBSOLETE PIPE-FIRE SUPP WITH N&O
Baxi part no. 040675

130 Part number 042659, OBSOLETE BURNER-DUPLEX-675 OBSOLETE BURNER-DUPLEX-675
Baxi part no. 042659

134 Part number 042724, INJECTOR-NG.18/240 INJECTOR-NG.18/240
Baxi part no. 042724

135 Part number 040706, OBSOLETE KIT-PIPE-FIRE-BNR FEED-675S OBSOLETE KIT-PIPE-FIRE-BNR FEED-675S
Baxi part no. 040706
