BAXI
BRAZILIA 8000 C CAT 1N - (Heat Exchanger)
Appliance Code: 35-077-12

Appliance Diagram

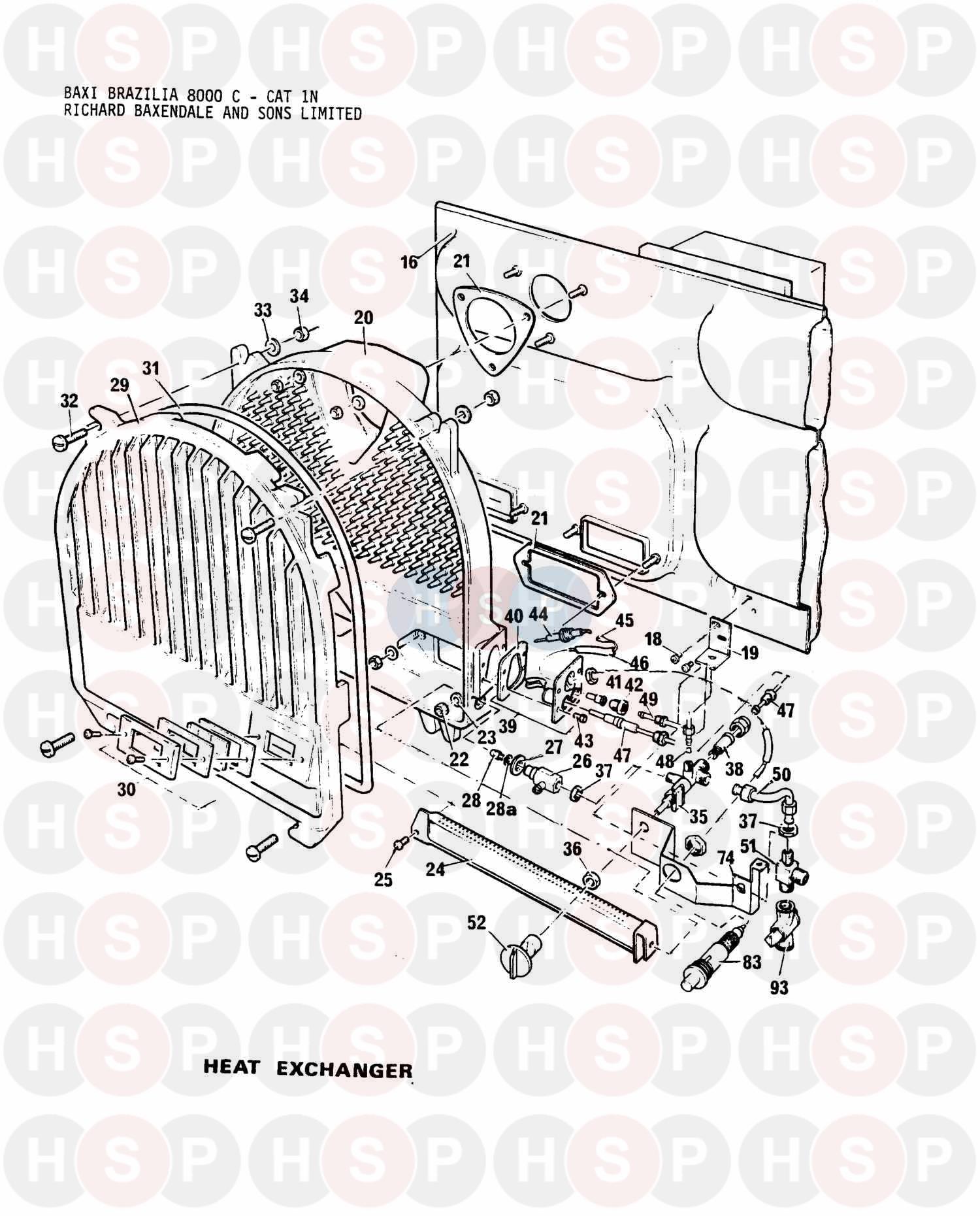

Heat Exchanger diagram for Baxi Brazilia 8000 C CAT 1NClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE OUTER CASE-BRAZILIA 8000 C
Baxi part no. 080436
2 Part number 080423, OBSOLETE SIDE CHEEK-ASSY-LH-8000C OBSOLETE SIDE CHEEK-ASSY-LH-8000C
Baxi part no. 080423
3   OBSOLETE SIDE CHEEK-ASSY-RH-8000C
Baxi part no. 080424
4   OBSOLETE KIT - PANELS
Baxi part no. 080437
4   OBSOLETE KIT - SHIELD - HEAT - OUTER CASE
Baxi part no. 080480
5   OBSOLETE CATCH-MAG DOOR-WM532-381RS
Baxi part no. 102104
6   SCR-NO 8X14TPIX1/2 HARDTWIN-WD
Baxi part no. 042244		 £2,18
7   OBSOLETE LOCATING BRACKET RIGHT HAND - OUTER CASE
Baxi part no. 080428
8   OBSOLETE LOCATING BRACKET LEFT HAND - OUTER CASE
Baxi part no. 080470
9   OBSOLETE SHIELD - WALL
Baxi part no. 080486
10   OBSOLETE SHIELD - HEAT/PIPE COVER
Baxi part no. 080426
11 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548		 £3,11
12   OBSOLETE FACIA PANEL KIT - INCLUDES KEY NO 13
Baxi part no. 080472
13   CLIP-EDGE-SPR.STEEL
Baxi part no. 102010		 £2,04
14   OBSOLETE CASE FIXING BRACKET - OUTER CASE
Baxi part no. 080432
15   OBSOLETE SHIELD RADIATION KIT - INCLUDES KEY NO 13
Baxi part no. 080431
16 Part number 062549, SCR-ST-No8x1/2 POZI FLANGE SCR-ST-NO8X1/2 POZI FLANGE
Baxi part no. 062549		 £3,22
16   OBSOLETE AIR BOX-ASSY. BRAZILIA 8000 C
Baxi part no. 080438
16   OBSOLETE FLUE SEAL
Baxi part no. 080483
17   OBSOLETE CASE FIXING BRACKET - AIR BOX
Baxi part no. 080429
18   SCR-ST-NO8X3/8-FL.HD POZ B
Baxi part no. 062648		 £2,86
19   OBSOLETE BRACKET - ADAPTER TO INLET TEE
Baxi part no. 080430
20   OBSOLETE HEAT EXCHANGER SECTION - REAR
Baxi part no. 081016
21   OBSOLETE KIT-GAS-H/EX-A/BOX-SEAL-B8000I
Baxi part no. 080297
22 Part number 062441, NUT-FULL HEX-6mm ZINC PLTD NUT-FULL HEX-6MM ZINC PLTD
Baxi part no. 062441		 £3,11
23   OBSOLETE WASHER PLAIN-6MM ID-ZINC PL
Baxi part no. 062463
24   OBSOLETE BURNER-AEROMATIC BRAZ 8000 ST
Baxi part no. 082374
25 Part number 062531, SCR-TF-M5x8mm-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531		 £3,22
26   OBSOLETE ADAPTER-INJ-PRESS-TEST-POINT
Baxi part no. 082401
27   OBSOLETE WASHER - FIBRE -1/4IN B.S.P
Baxi part no. 082422
28 Part number 7211908, WASHER COPPER SEALING WASHER COPPER SEALING
Baxi part no. 7211908		 £3,24
28 Part number 062695, NOW USE 7211908 WASHER COPPER INJECTOR SEALING NOW USE 7211908 WASHER COPPER INJECTOR SEALING
Baxi part no. 062695
28   OBSOLETE INJECTOR-8000C CONVECTOR
Baxi part no. 082423
29   OBSOLETE HEAT EXCH.SECT.FRONT-BRAZ.8000
Baxi part no. 081014
30 Part number 100017, OBSOLETE KIT-SIGHT-WINDOW OBSOLETE KIT-SIGHT-WINDOW
Baxi part no. 100017
31   OBSOLETE SEAL-HEAT EXCHANGER-10MM X 1210MM
Baxi part no. 082231
32   OBSOLETE SCR-SET-M8X35MM-PH SLTD ZNPD
Baxi part no. 062644
33 Part number 082252, OBSOLETE WASHER.5/16 IDx7/8 OD MS ZN PD OBSOLETE WASHER.5/16 IDX7/8 OD MS ZN PD
Baxi part no. 082252
34 Part number 062597, NUT-HEX-M8-PASS-ZNPD NUT-HEX-M8-PASS-ZNPD
Baxi part no. 062597		 £3,22
35   OBSOLETE FFD/GAS TAP-CONVECTION
Baxi part no. 082395
36   OBSOLETE LOCKNUT - 1/4IN B.S.P.
Baxi part no. 062712
37   OBSOLETE NUT-LOCK-1/8IN BSP-ZNPD
Baxi part no. 082159
38 Part number 082462, MAGNETIC UNIT-BRAZILIA 8000 C MAGNETIC UNIT-BRAZILIA 8000 C
Baxi part no. 082462
39   OBSOLETE KIT-BURNER-PILOT-FS-BOILERS
Baxi part no. 110028
41 Part number 112011, OBSOLETE INJECTOR-PILOT H/WELL-.38/.36A OBSOLETE INJECTOR-PILOT H/WELL-.38/.36A
Baxi part no. 112011
41 Part number 402560, OBSOLETE PILOT INJECTOR (STD) OBSOLETE PILOT INJECTOR (STD)
Baxi part no. 402560
42 Part number 102050, CONNECTOR REDUCING.6mm-4mm CONNECTOR REDUCING.6MM-4MM
Baxi part no. 102050
43 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Baxi part no. 062532		 £3,11
43   OBSOLETE SCR-SET-M4 X 8MM HEX.HD-ZNPD
Baxi part no. 062620
44   OBSOLETE KIT-ELECTRODE-CONVECTOR-8000C
Baxi part no. 080492
45   OBSOLETE LEAD-ELECTRODE BRAZILIA C
Baxi part no. 082424
46   OBSOLETE SLEEVE - 6MM - GLASS FIBRE X 240 MM LONG
Baxi part no. 080475
47 Part number 102005, THERM-18/24HWELL-Q309A2721 STD THERM-18/24HWELL-Q309A2721 STD
Baxi part no. 102005		 £19,74
48 Part number 082412, OBSOLETE FILTER PILOT OBSOLETE FILTER PILOT
Baxi part no. 082412
49   OBSOLETE PIPE-PILOT FEED CONVECTOR N/O
Baxi part no. 080439
50   OBSOLETE PIPE-INLET/FFD CONVECTOR & N/O
Baxi part no. 080440
51   OBSOLETE ADAPTER - INLET TEE
Baxi part no. 082402
52   OBSOLETE KNOB-CONTROL-ASSY-CONVECTOR
Baxi part no. 082397
53   OBSOLETE ASSY BOX COMBUSTION 8000C
Baxi part no. 080441
54 Part number 102012, NUT-CAPT-U-TYPE-No8 ZNPD CHRM NUT-CAPT-U-TYPE-NO8 ZNPD CHRM
Baxi part no. 102012		 £3,22
55   OBSOLETE KIT-GASKETS-COMB BOX-AIR BOX
Baxi part no. 080455
55   OBSOLETE BAFFLE - AIR INLET
Baxi part no. 080484
56   OBSOLETE ADAPTER - INJECTOR
Baxi part no. 082447
57   OBSOLETE INJECTOR-8000C CIRCULATOR-SECT
Baxi part no. 082427
58   OBSOLETE BURNER-CIRCULATION SECTION
Baxi part no. 082428
59   OBSOLETE TAPTITE SCREW NO. 10-24UNC X 3/8IN.
Baxi part no. 062714
60   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440		 £3,11
61   WASHER-PLAIN-5MM ZINC PLTD
Baxi part no. 062447		 £2,44
62   OBSOLETE KIT - HEAT EXCHANGER
Baxi part no. 080442
63   OBSOLETE POCKET-THERMOSTAT-PHIAL-BRAZ C
Baxi part no. 082439
64   OBSOLETE GASKET-HEAT EXCHANGER
Baxi part no. 082418
65   OBSOLETE LOCKNUT - HEX 7/8IN BSP BRASS
Baxi part no. 082405
66 Part number 062583, SCR-TF-M5x10mm PN HD PZ S ZNPD SCR-TF-M5X10MM PN HD PZ S ZNPD
Baxi part no. 062583		 £3,22
67   OBSOLETE PIPE-FLOW-NUTS-OLIVES B 8000 C
Baxi part no. 080473
68   OBSOLETE PIPE-RETURN-NUTS-OLIVES B8000C
Baxi part no. 080474
69   OBSOLETE KIT - INSULATION COMBUSTION BOX
Baxi part no. 080443
70 Part number 112066, CLIP-RETAIN-BRIERLY-SPRG-11157 CLIP-RETAIN-BRIERLY-SPRG-11157
Baxi part no. 112066		 £11,80
71   OBSOLETE KIT-BNR-PILOT-CIRCUL-B8000 C
Baxi part no. 080444
71   OBSOLETE PILOT SHIELD
Baxi part no. 080485
71   OBSOLETE CLIP-EDGE-HARD-TEM CAR STL 1/2
Baxi part no. 082097
72   OBSOLETE GASKET-PIL-BRK-75MM X 23MM-FOIL
Baxi part no. 082419
73 Part number 082430, OBSOLETE ELECTRODE-PILOT-IGN-CIRCULATOR OBSOLETE ELECTRODE-PILOT-IGN-CIRCULATOR
Baxi part no. 082430
74   OBSOLETE BRACKET - GAS TAP TO IGNITER
Baxi part no. 080433
75   OBSOLETE FFD/GAS TAP
Baxi part no. 082396
76   OBSOLETE THERMOSTAT-TEDDINGTON-BRAZ C
Baxi part no. 082431
77   OBSOLETE TEE-OUTLET-BRAZILIA C
Baxi part no. 082403
78   OBSOLETE NIPPLE-PRESSURE TEST-1/8IN-FEM
Baxi part no. 052013
79   OBSOLETE PIPE-PILOT FEED CIRCULATOR & NO
Baxi part no. 080445
80   OBSOLETE PIPE-INLET ADAPT/FFD CIRC(N/O)
Baxi part no. 080446
81   OBSOLETE PIPE-OUTLET-TEE-ADAP-INJ-BRAZC
Baxi part no. 082435
82   OBSOLETE KNOB-CONTROL-ASSY-CIRCULATOR
Baxi part no. 082398
83   OBSOLETE IGNITOR-PIEZO/LOCKNUT BRAZ C
Baxi part no. 082436
84   OBSOLETE DOOR COMBUSTION BOX
Baxi part no. 080447
85   OBSOLETE INSULATION-DOOR-CER-246X154MM
Baxi part no. 082416
86   WASHER-RETAINING-SPECIAL-ST/S
Baxi part no. 110011		 £15,01
87   SCR-SET-M4 X 16MM-CH.HD-ZNPD
Baxi part no. 062411		 £1,61
88   NUT-FULL HEX-4MM-ZINC PLTD
Baxi part no. 062439		 £3,11
89   OBSOLETE SEAL-DOOR PANEL
Baxi part no. 082417
90 Part number 062679, SCR-ST-No8x5/8-FL HD POZ ZNPD SCR-ST-NO8X5/8-FL HD POZ ZNPD
Baxi part no. 062679		 £3,11
91   OBSOLETE TERMINAL-FLUE-STANDARD-B8000 C
Baxi part no. 080449
92   OBSOLETE ELBOW - 22MM COPPER
Baxi part no. 082463
92   OBSOLETE CLIP - PIPE - 22MM - PLASTIC
Baxi part no. 082465
93   OBSOLETE TAP-SERVICE-1/4IN-STRAIGHT
Baxi part no. 082464
94   OBSOLETE KIT-BRACKET-WALL FIXING-8000C
Baxi part no. 080435
95   OBSOLETE KIT-TRIM-FLUE BRAZ 8000C
Baxi part no. 080450
96   OBSOLETE KIT-FLUE-TERMINAL LONG-B 8000C
Baxi part no. 080451
97   OBSOLETE FLUE LINER KIT - COMBUSTIBLE WALL
Baxi part no. 080452
98   OBSOLETE GUARD - FLUE TERMINAL - TOWER FLUES 102127
Baxi part no. 102127
