BAXI
COMBI INSTANT 80E - (Outer Case)
Appliance Code: 47-075-13

Appliance Diagram

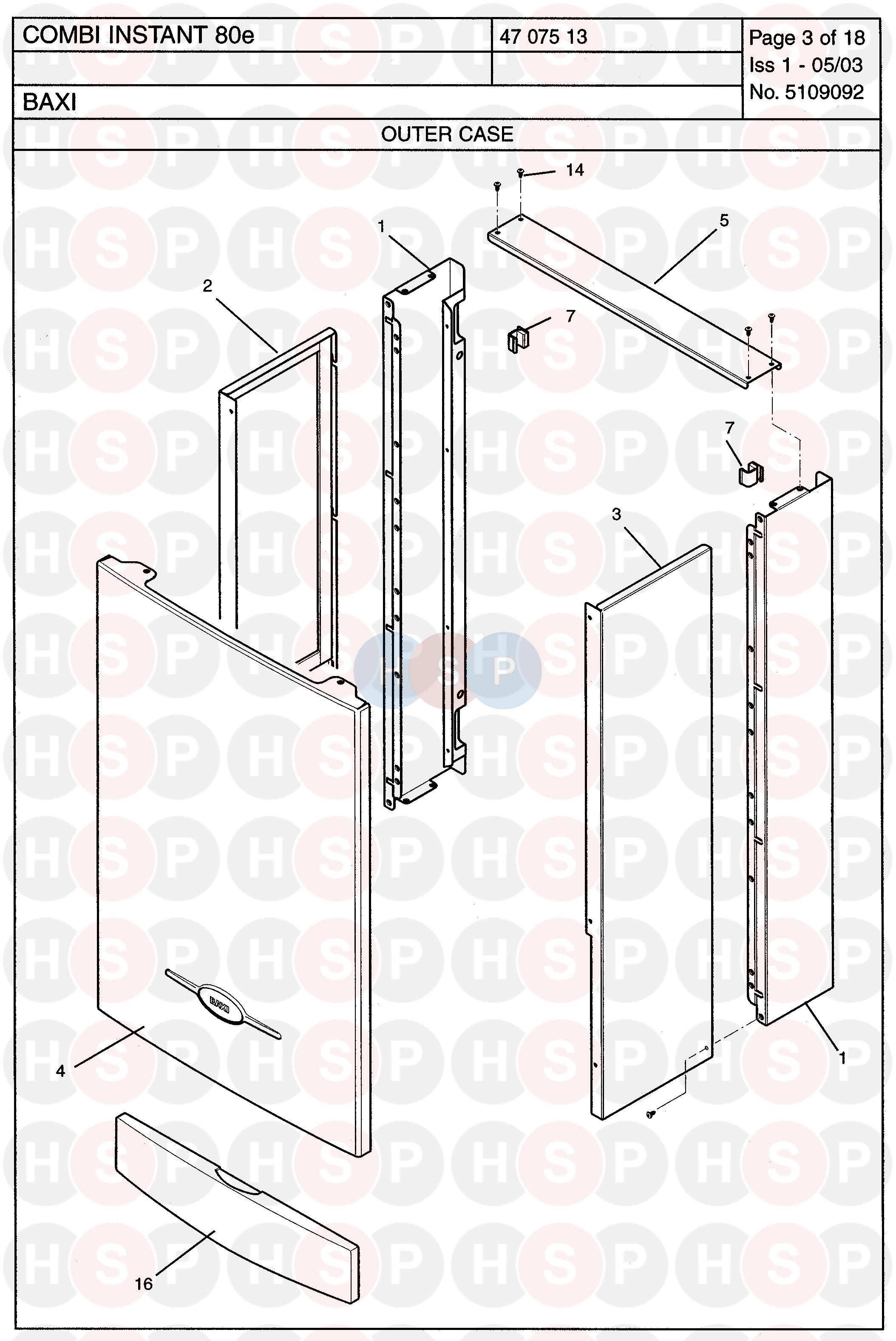

Outer Case diagram for Baxi Combi Instant 80EClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 247990, REAR SUPPORT - OUTER CASE REAR SUPPORT - OUTER CASE
Baxi part no. 247990
£16.20
2 Part number 247991, PANEL ASSEMBLY - LEFT PANEL ASSEMBLY - LEFT
Baxi part no. 247991
£18.31
3 Part number 247992, PANEL ASSEMBLY - RIGHT PANEL ASSEMBLY - RIGHT
Baxi part no. 247992
£19.05
4 Part number 247993, PANEL ASSEMBLY-FRONT-80e/105e PANEL ASSEMBLY-FRONT-80E/105E
Baxi part no. 247993
£33.26
5 Part number 247994, NOW USE 5138642 BRACKET - UPPER SUPPORT NOW USE 5138642 BRACKET - UPPER SUPPORT
Baxi part no. 247994

5   BRACKET-UPPER SUPPORT
Baxi part no. 5138642
£4.87
7   FIXING SUPPORT CLIP
Baxi part no. 5108271
£2.42
14 Part number 613437, NOW USE 062617 SCREW NO8B X 13MM NOW USE 062617 SCREW NO8B X 13MM
Baxi part no. 613437

14 Part number 062617, SCR-ST-No8x1/2 PAN POZ.TYPE B SCR-ST-NO8X1/2 PAN POZ.TYPE B
Baxi part no. 062617
£3.16
16 Part number 248077, COVER - CONTROL FACIA COVER - CONTROL FACIA
Baxi part no. 248077
£7.15
