BAXI
SYSTEM 32 - (Hydraulics)
Appliance Code: 41-470-01

Appliance Diagram


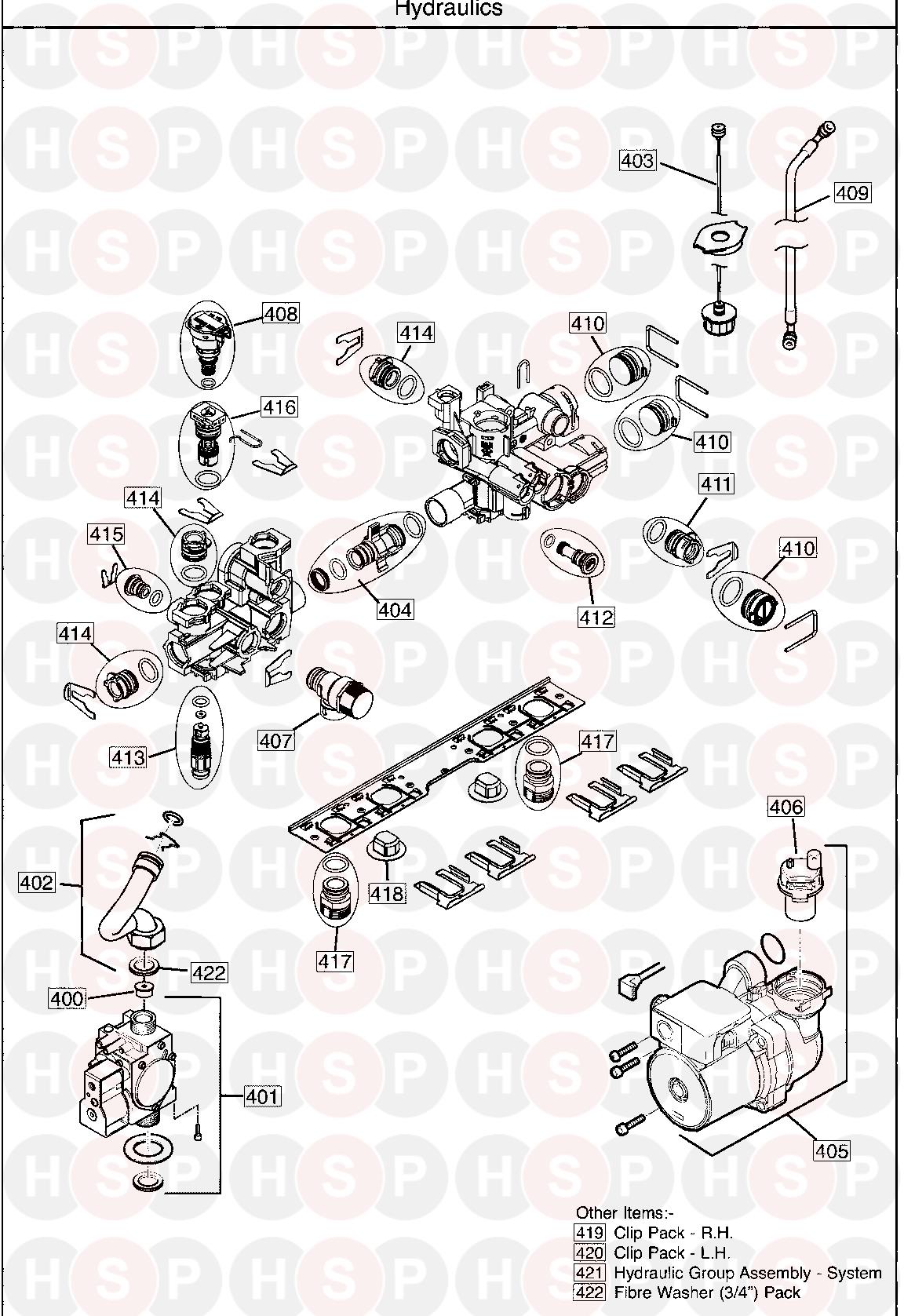

Hydraulics diagram for Baxi System 32Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

400   NOZZLE GAS 6.6 KIT
Baxi part no. 7211864
£11.67
401 Part number 7214341, GAS VALVE ECOBLUE GAS VALVE ECOBLUE
Baxi part no. 7214341
£97.68
402   TUBE GAS-40KW
Baxi part no. 720787001
£37.72
403 Part number 7212896, KIT PRESSURE GAUGE KIT PRESSURE GAUGE
Baxi part no. 7212896
£35.00
404   BY-PASS CONNECTION ASSY
Baxi part no. 720777201
£13.19
405 Part number 710109701, O RING 22 x 3 EPDM O RING 22 X 3 EPDM
Baxi part no. 710109701
£2.55
405 Part number 720777401, PUMP PUMP
Baxi part no. 720777401
£126.17
406 Part number 720777601, AIR VENT VALVE AIR VENT VALVE
Baxi part no. 720777601
£31.80
407 Part number 720777801, SAFE VALVE 3 BAR SAFE VALVE 3 BAR
Baxi part no. 720777801
£26.77
408 Part number 720778001, PRESSURE SENSOR PRESSURE SENSOR
Baxi part no. 720778001
£76.90
410   CAP 29 & O RING
Baxi part no. 720872601
£5.25
411   CAP 23 OPEN & O RING
Baxi part no. 720872801
£5.25
412   PLUGS CARTRIDGE
Baxi part no. 720872301
£5.25
413   DISCHARGE CAP CONNECTION
Baxi part no. 720873401
£5.35
414   CAP 23 CLOSED AND O RING
Baxi part no. 720873601
£5.25
415   CAP 13.7 & O RING
Baxi part no. 720873801
£5.25
416   BYPASS CARTRIDGE
Baxi part no. 720874001
£15.79
417   CH BRASS ADAPTER G3/4 & O RING
Baxi part no. 720874201
£17.12
418   SYSTEM PLUG
Baxi part no. 720874601
£17.12
419   RH HYDROBLOCK CLIP PACK
Baxi part no. 720874801
£26.77
420   LH HYDROBLOCK CLIP PACK
Baxi part no. 720875001
£22.54
421 Part number 720820901, HYDRAULIC ASSY 12-32KW HYDRAULIC ASSY 12-32KW
Baxi part no. 720820901
£380.64
422   G3/4 FIBRE WASHER
Baxi part no. 720910201
£15.79
