BAXI
SYSTEM 60/100 - (Hydraulics)
Appliance Code: 41-075-19

Appliance Diagram

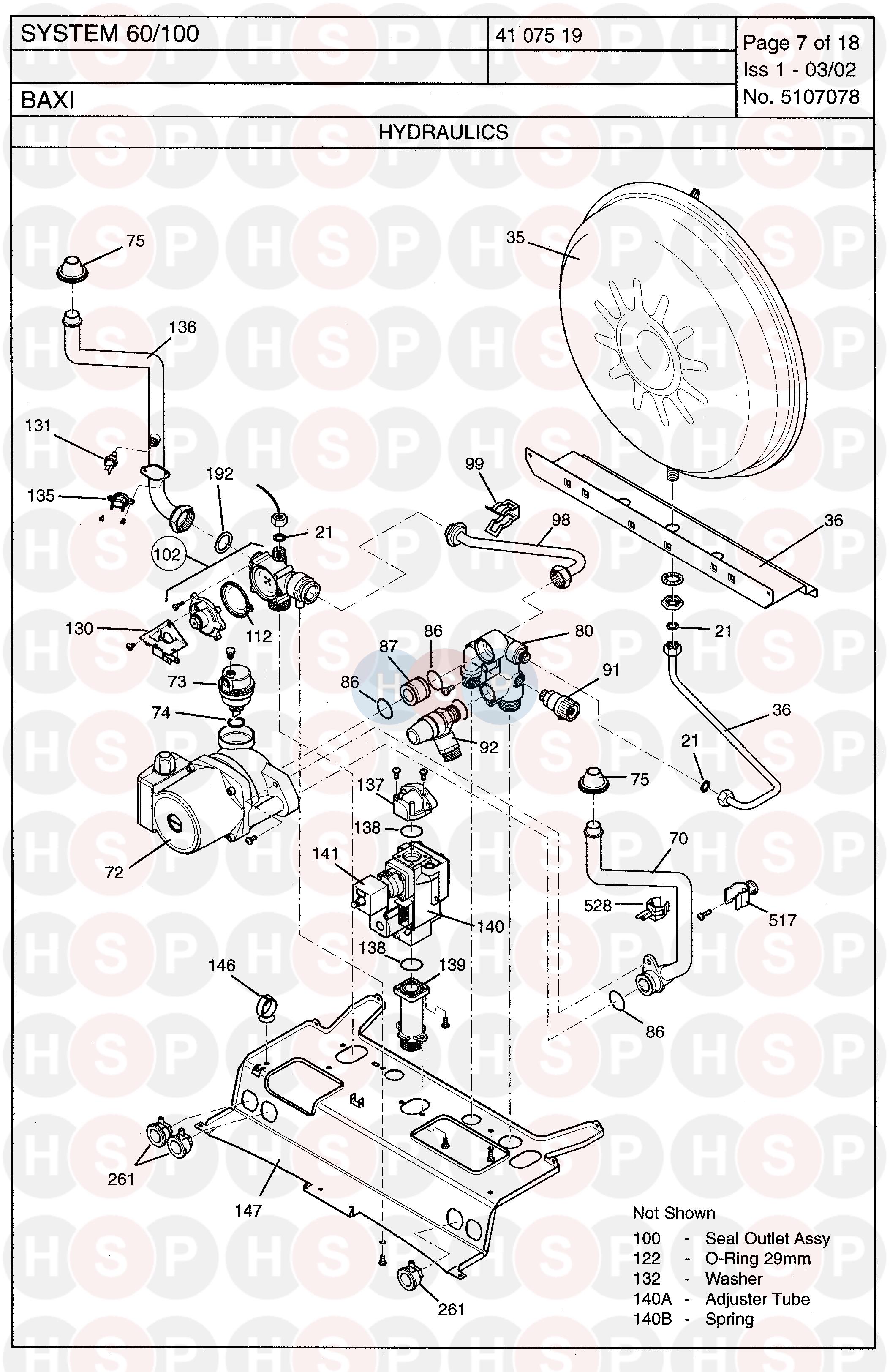

Hydraulics diagram for Baxi System 60/100Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

21 Part number 248000, WASHER - SEALING WASHER - SEALING
Baxi part no. 248000		 £3.16
35 Part number 248024, VESSEL - EXPANSION - 8L VESSEL - EXPANSION - 8L
Baxi part no. 248024		 £83.19
36 Part number 248025, PIPE - EXPANSION VESSEL PIPE - EXPANSION VESSEL
Baxi part no. 248025		 £9.51
70 Part number 248040, PIPE ASSEMBLY - RETURN - 105 PIPE ASSEMBLY - RETURN - 105
Baxi part no. 248040		 £14.70
72 Part number 248042, NOW USE 7722642 PUMP (15-60) - 105 NOW USE 7722642 PUMP (15-60) - 105
Baxi part no. 248042
72 Part number 26009031, SCREW M6 X 25MM SCREW M6 X 25MM
Baxi part no. 26009031		 £3.26
72 Part number 7722642, PUMP 15-60 105 PUMP 15-60 105
Baxi part no. 7722642		 £254.27
73 Part number 248043, AIR VENT - AUTOMATIC AIR VENT - AUTOMATIC
Baxi part no. 248043		 £12.50
74 Part number 248044, O-RING - AIR VENT O-RING - AIR VENT
Baxi part no. 248044		 £3.16
75 Part number 248045, GROMMET - PIPE ASSEMBLY GROMMET - PIPE ASSEMBLY
Baxi part no. 248045		 £5.88
80 Part number 248488, HYDRAULIC INLET ASSY - SYSTEM HYDRAULIC INLET ASSY - SYSTEM
Baxi part no. 248488		 £61.13
86 Part number 247429, O RING 22 x 3 O RING 22 X 3
Baxi part no. 247429		 £3.16
87 Part number 248054, PUMP CONNECTION ELEMENT PUMP CONNECTION ELEMENT
Baxi part no. 248054		 £6.31
91 Part number 248055, DRAIN TAP DRAIN TAP
Baxi part no. 248055		 £9.88
92 Part number 248056, SAFETY VALVE - 3 BAR (FEMALE) SAFETY VALVE - 3 BAR (FEMALE)
Baxi part no. 248056		 £14.76
98 Part number 248489, PIPE - BYPASS - SYSTEM PIPE - BYPASS - SYSTEM
Baxi part no. 248489		 £11.95
98 Part number 5114756, O-RING O-RING
Baxi part no. 5114756		 £3.16
99 Part number 248060, CLIP FIXING - BYPASS CLIP FIXING - BYPASS
Baxi part no. 248060		 £5.88
100 Part number 248018, O RING O RING
Baxi part no. 248018		 £3.20

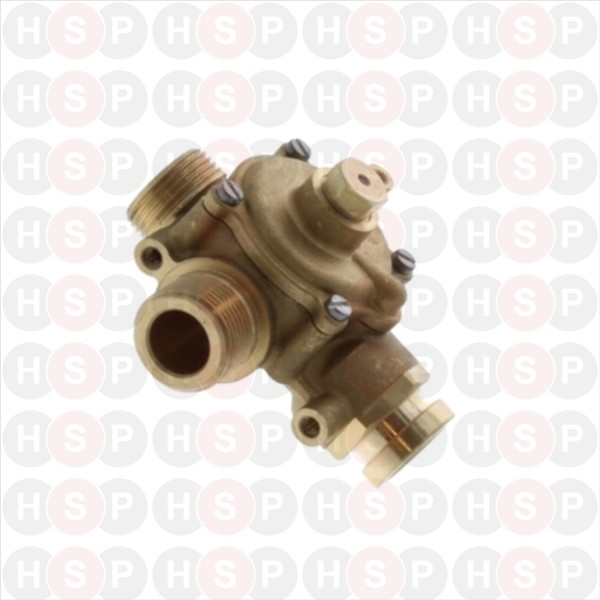

102 Part number 248490, HYDRAULIC OUTLET ASSY - SYSTEM HYDRAULIC OUTLET ASSY - SYSTEM
Baxi part no. 248490		 £85.58
112 Part number 248619, DIAPHRAGM-PRESSURE-STAT DIAPHRAGM-PRESSURE-STAT
Baxi part no. 248619		 £10.78
122 Part number 248019, O RING O RING
Baxi part no. 248019		 £4.57
130 Part number 248067, MICROSWITCH ASSEMBLY MICROSWITCH ASSEMBLY
Baxi part no. 248067		 £7.15
131 Part number 247394, NOW USE 5108265 TEMPERATURE SENSOR NOW USE 5108265 TEMPERATURE SENSOR
Baxi part no. 247394
131 Part number 5108265, TEMPERATURE SENSOR TEMPERATURE SENSOR
Baxi part no. 5108265		 £20.07
132 Part number 248069, GASKET GASKET
Baxi part no. 248069		 £3.34
135 Part number 248079, THERMOSTAT - LIMIT THERMOSTAT - LIMIT
Baxi part no. 248079		 £12.56
136   OBSOLETE PIPE - FLOW - 60/100
Baxi part no. 248492
137 Part number 248082, ELBOW - GAS FLOW OUTLET ELBOW - GAS FLOW OUTLET
Baxi part no. 248082		 £6.96
138 Part number 247741, O RING 22.22 x 2.62 O RING 22.22 X 2.62
Baxi part no. 247741		 £3.16
139 Part number 248083, CONNECTOR - GAS VALVE INLET CONNECTOR - GAS VALVE INLET
Baxi part no. 248083		 £9.51
140 Part number 248085, NOW USE 5107339 GAS VALVE NOW USE 5107339 GAS VALVE
Baxi part no. 248085
140 Part number 5107339, GAS VALVE ASSY INC O-RINGS GAS VALVE ASSY INC O-RINGS
Baxi part no. 5107339		 £173.39
140   ADJUSTER TUBE & CONICAL SPRING
Baxi part no. 248946		 £6.17
140   NOW USE 248946 ADJUSTER TUBE & CONICAL SPRING
Baxi part no. 248948
140   ADJUSTER TUBE & CONICAL SPRING
Baxi part no. 248946		 £6.17
141 Part number 248086, MODULATION COIL AND SPRING MODULATION COIL AND SPRING
Baxi part no. 248086		 £12.55
147 Part number 248087, PANEL - HYDRAULICS MOUNTING PANEL - HYDRAULICS MOUNTING
Baxi part no. 248087		 £12.25
192 Part number 247745, SEALING WASHER G. 3/4 SEALING WASHER G. 3/4
Baxi part no. 247745		 £3.16
261 Part number 247776, CLAMP - INPUT CABLE CLAMP - INPUT CABLE
Baxi part no. 247776		 £4.38
517 Part number 248193, CLIP - PLASTIC CLIP - PLASTIC
Baxi part no. 248193		 £3.26
528 Part number 248497, SENSOR - RETURN TEMPERATURE SENSOR - RETURN TEMPERATURE
Baxi part no. 248497		 £12.30
