You can then pinch & zoom to adjust the size.

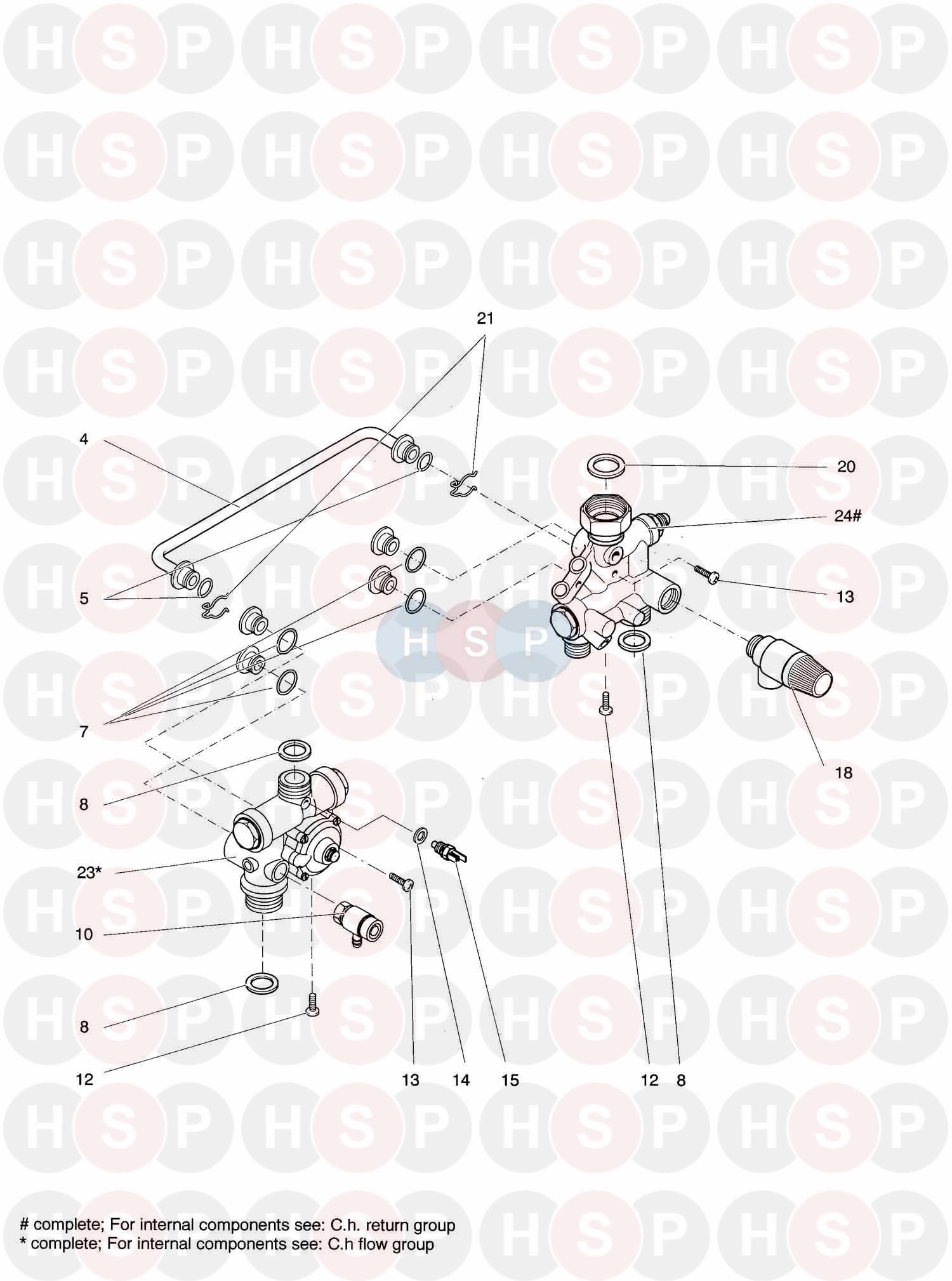

| 4 |  |
BY-PASS PIPE Biasi part no. BI1001103 |
£14,60 | |
| 5 |  |
BYPASS GASKET 1.78 X 12.42 Biasi part no. BI1001115 |
£0,63 | |
| 7 |  |
O-RING 18.64 X 3.53 Biasi part no. KI1043144 |
£0,71 | |
| 8 |  |
FLAT GASKET 3/4" Biasi part no. BI1001108 |
£0,48 | |
| 10 |  |
DRAINAGE VALVE 1/4" Biasi part no. BI1011104 |
£8,16 | |
| 11 |  |
FLAT GASKET 1/2" Biasi part no. BI1001106 |
£0,48 | |
| 12 | M 6 X 8 SCREW Biasi part no. BI1001123 |
£0,77 | ||
| 13 |  |
SCREW M5X16 HEXAGON SOCKET CAP Biasi part no. BI1001125 |
£0,43 | |
| 14 |  |
GASKET 3/8" FOR NTC PROBE Biasi part no. BI1001109 |
£0,48 | |
| 15 |  |
NTC TEMPERATURE PROBE Biasi part no. BI1001117 |
£23,64 | |
| 18 |  |
3 BAR SAFETY VALVE / PRV Biasi part no. BI1001112 |
£16,66 | |
| 20 |  |
FLAT GASKET 1" Biasi part no. BI1001105 |
£0,48 | |
| 21 |  |
BY-PASS PIPE FIXING FORK Biasi part no. BI1001111 |
£7,54 | |
| 23 |  |
CH FLOW GROUP KIT SER Biasi part no. BI1011506 |
£151,57 | |
| 24 | CH/RETURN GROUP KIT (SER) Biasi part no. BI1001508 |
£100,80 | ||
| 25 | O-RING 1.78 X 20.35 Biasi part no. BI1001128 |
£0,63 | ||
| 26 |  |
O-RING 1.78 X 14 Biasi part no. BI1001129 |
£0,63 | |
| 28 |  |
O-RING 2.62 X 20.63 Biasi part no. BI1001130 |
£0,68 | |
| 31 |  |
O-RING 1.78 X 15.6 Biasi part no. BI1001131 |
£0,63 | |
| 34 |  |
2.62 X 23.47 O-RING Biasi part no. BI1011107 |
£1,49 | |
| 35 |  |
MICROSWITCH GUIDE BUSH Biasi part no. BI1011502 |
£13,00 | |
| 36 | M 2.9 X 13 SCREW Biasi part no. BI1011108 |
£0,77 | ||
| 37 |  |
MICROSWITCH BOX FIXING CLIP Biasi part no. BI1011105 |
£1,49 | |
| 38 |  |
MICROSWITCH KIT Biasi part no. BI1011505 |
£17,28 | |
| 39 | SCREW M4 X 12MM S/S Biasi part no. BI1011109 |
£0,77 | ||
| 40 |  |
CH PRESSURE SWITCH SPRING Biasi part no. BI1011110 |
£7,21 | |
| 41 |  |
CH PRESSURE SWITCH DISC Biasi part no. BI1011111 |
£8,24 | |
| 42 |  |
CH PRESSURE SWITCH MEMBRANE Biasi part no. BI1011103 |
£7,18 | |
| 43 |  |
BY-PASS KIT Biasi part no. BI1011501 |
£7,63 | |
| 47 |  |
EXPANSION VESSEL PRISMA/GAIA/RIVA Biasi part no. BI1002110 |
£75,91 | |
| 48 |  |
OBSOLETE MAIN EXCHANGER 24KW Biasi part no. BI1002102 |
||
| 49 |  |
MAIN EXCH. 24KW OUTLET PIPE Biasi part no. BI1002106 |
£29,58 | |
| 50 |  |
THERM.BULB FIXING CLAMP Biasi part no. BI1105108 |
£0,60 | |
| 51 |  |
EXPANSION VESSEL PIPE Biasi part no. BI1002109 |
£14,32 | |
| 52 |  |
GROMMET SEAL MFS Biasi part no. BI1002113 |
£3,91 | |
| 53 |  |
PUMP FOR PRISMA/GAIA/RIVA Biasi part no. BI1002101 |
£162,75 | |
| 53 |  |
HIGH HEAD PUMP Biasi part no. BI1901104 |
£248,71 | |
| 55 |  |
MAIN EXCH. 24KW INLET PIPE Biasi part no. BI1002104 |
£27,31 | |
| 56 |  |
AIR DRAINAGE VALVE PIPE Biasi part no. BI1002108 |
£15,30 | |
| 57 |  |
AIR PURGER VALVE (AAV) Biasi part no. BI1002111 |
£19,20 | |
| 58 |  |
GROMMET SEAL Biasi part no. BI1002115 |
£1,79 | |
| 60 | GAS MANIFOLD + INJECTORS 125NG Biasi part no. BI1013501 |
£40,86 | ||
| 61 |  |
LPG CONVERSION KIT Biasi part no. BI1003509 |
£19,35 | |
| 61 | NATURAL GAS CONVERSION KIT Biasi part no. BI1003510 |
£17,96 | ||
| 62 | M 4 X 8 SCREW Biasi part no. BI1013111 |
£0,41 | ||
| 66 |  |
GASKET FOR GAS VALVE VK4105 Biasi part no. BI1013101 |
£1,86 | |
| 67 |  |
GAS VALVE VK105 HONEYWELL Biasi part no. BI1013108 |
£191,34 | |
| 68 |  |
GAS VALVE INLET PIPE Biasi part no. BI1013106 |
£28,82 | |
| 70 | OBSOLETE AIR GRID 24KW Biasi part no. BI1003112 |
|||
| 72 |  |

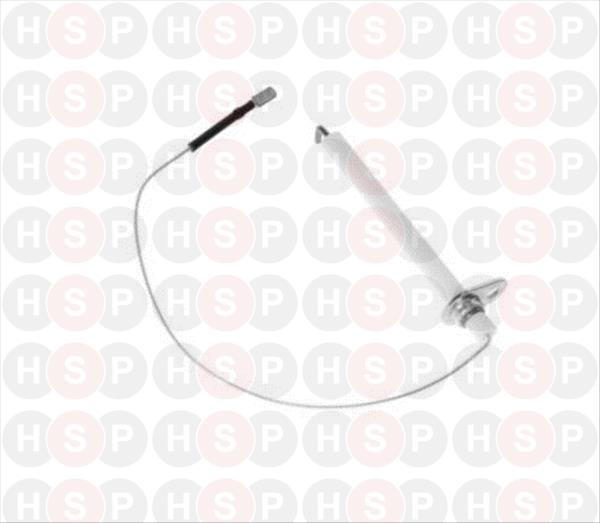

IGNITION ELECTRODE LEFT Biasi part no. BI1013104 |
£12,41 | |
| 73 |  |
IGNITION ELECTRODE RIGHT Biasi part no. BI1013103 |
£12,83 | |
| 74 |  |
DETECTION ELECTRODE Biasi part no. BI1013102 |
£11,62 | |
| 75 |  |
13 RAMPS 24KW BURNER Biasi part no. BI1003101 |
£81,38 | |
| 78 | CH + GAS PIPE (FLOW & RETURN) Biasi part no. BI1004109 |
£11,96 | ||
| 79 | CH + GAS PIPE Biasi part no. BI1004110 |
£11,39 | ||
| 80 | OBSOLETE 1/2 FITTING Biasi part no. BI1004104 |
|||
| 83 |  |
3/4" COCK WITHOUT LEVER Biasi part no. BI1014108 |
£23,75 | |
| 84 | GAS PIPE Biasi part no. BI1014111 |
£9,64 | ||
| 87 |  |
MR.RR PIPE Biasi part no. BI1014112 |
£8,15 | |
| 90 |  |
3/4" SQUARE GAS COCK Biasi part no. BI1014103 |
£24,62 | |
| 91 |  |
IGNITION BOARD KIT Biasi part no. BI1015501 |
£143,53 | |
| 97 | SE CARD HOLDER PANEL Biasi part no. BI1015104 |
£24,09 | ||
| 98 |  |
NOW USE MAIN PCB BI1045133 Biasi part no. BG1015108 |
||
| 98 |  |
NOW USE BI1045133 MAIN PCB Biasi part no. KG1166101 |
||
| 98 |  |
MAIN PCB PRISMA/ RIVA /GAIA Biasi part no. BI1045133 |
£159,39 | |
| 99 |  |
DRIVE SHAFT Biasi part no. KI1066111 |
£3,78 | |
| 101 | AER-SER CONTROL PANEL Biasi part no. BI1015106 |
£14,61 | ||
| 103 |  |
KNOB PRISMA (DARK GREY) Biasi part no. BI1005502 |
£2,84 | |
| 104 | OBSOLETE BOTTOM FRONT PANEL Biasi part no. BI1015102 |
|||
| 105 |  |
250V-1.6A DELAYED FUSE Biasi part no. BI1005105 |
£1,00 | |
| 106 | LOCKOUT LAMP Biasi part no. KI1066157 |
£6,25 | ||
| 108 | OBSOLETE THERMO-MANOMETER GUAGE KIT Biasi part no. BG1005501 |
|||
| 108 |  |
TEMPERATURE PRESSURE GAUGE Biasi part no. BI1105500 |
||
| 109 |  |
GASKET 1/4" FOR GAUGE Biasi part no. BI1001107 |
£0,48 | |
| 110 | CABLE GROMMET Biasi part no. BI1005108 |
£0,77 | ||
| 111 |  |
PROTECTIVE CAP Biasi part no. BI1015120 |
£1,16 | |
| 114 |  |
PROTECTIVE CAP Biasi part no. BI1015122 |
£1,22 | |
| 115 |  |
OVERHEAT THERMOSTAT Biasi part no. KI1066104 |
£28,87 | |
| 116 | OBSOLETE MULTI-PLUG CABLE RESET GAS PUMP Biasi part no. BG1035104 |
|||
| 117 | R SENSORS WIRING Biasi part no. BI1035106 |
£12,88 | ||
| 121 | OBSOLETE EARTH WIRING Biasi part no. BG1035102 |
|||
| 122 | OBSOLETE POWER SUPPLY CABLE Biasi part no. BG1035108 |
|||
| 124 |  |
FLUE KIT GASKET (BLACK) Biasi part no. BI1016104 |
£12,67 | |
| 125 |  |
AIR INTAKE TWIN KIT GASKETS Biasi part no. BI1016101 |
£9,03 | |
| 126 |  |
24KW AIR PRESSURE SWITCH Biasi part no. BI1036102 |
£46,98 | |
| 126 |  |
AIR PRESSURE SWITCH 24KW Biasi part no. BI1016106 |
£46,98 | |
| 127 | AIR PRESSURE SWITCH BRACKET Biasi part no. BI1016110 |
£2,25 | ||
| 128 | OBSOLETE M 3.5 X 6.5 SCREW Biasi part no. BI1013116 |
|||
| 130 | FLUE HOOD 24KW Biasi part no. BI1016501 |
£64,64 | ||
| 131 |  |
INSULATION PANEL KIT 24KW Biasi part no. BI1006501 |
£38,21 | |
| 132 | SIDE PANEL (UP TO 03/00) Biasi part no. BI1006112 |
£40,55 | ||
| 133 | MAGNET Biasi part no. BI1006105 |
£7,24 | ||
| 134 |  |
FRONT COMBUSTION CHAMB PANEL 24KW Biasi part no. BI1016102 |
£34,65 | |
| 135 | OBSOLETE GRID 24KW Biasi part no. BI1006117 |
|||
| 139 | OBSOLETE MAGNETIC CATCH Biasi part no. BI1006111 |
|||
| 140 | OBSOLETE FRONT HINGED PANEL 24KW Biasi part no. BI1006115 |
|||
| 143 | FRONT PANEL 24KW Biasi part no. BI1006113 |
£71,85 | ||
| 144 |  |
FAN 24KW PRISMA/ RIVA /GAIA Biasi part no. BI1016108 |
£143,53 | |
