GLOWWORM
100 EC 1995-2000 - (Exploded View)
Appliance Code: 47-920-33

Appliance Diagram


Exploded View diagram for Glowworm 100 EC 1995-2000Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE MAIN FRAME
Glowworm part no. S99800789
7   OBSOLETE MANUAL
Glowworm part no. S99800781
13   OBSOLETE LABEL
Glowworm part no. S99800804
14 Part number 0020027631, Auto ignition control AUTO IGNITION CONTROL
Glowworm part no. 0020027631		 £130.87
18 Part number 0020034753, OBSOLETE JAG/PRO/ICON SEAL OBSOLETE JAG/PRO/ICON SEAL
Glowworm part no. 0020034753
19   OBSOLETE BRACKET
Glowworm part no. S99700672
22 Part number 0020033921, Limiting pin 70004250 LIMITING PIN 70004250
Glowworm part no. 0020033921		 £4.17
26 Part number 0020027550, Expansion vessel 7L 3/8 EXPANSION VESSEL 7L 3/8
Glowworm part no. 0020027550		 £72.72
28   BURNER
Glowworm part no. 0020035510		 £90.09
32 Part number 0020025278, OBSOLETE JAG/PRO/ICON 3 WAY VALVE MOTOR OBSOLETE JAG/PRO/ICON 3 WAY VALVE MOTOR
Glowworm part no. 0020025278
33 Part number 0020034654, Seal. tape self-stick 5x218x15 SEAL. TAPE SELF-STICK 5X218X15
Glowworm part no. 0020034654		 £6.32
34   OBSOLETE SEAL TAPE-SELF STICK 3X540X15
Glowworm part no. S99801005
35 Part number 0020027534, Diff. pressure switch DIFF. PRESSURE SWITCH
Glowworm part no. 0020027534
39   OBSOLETE EXTENSION TUBE PROTHERM 80E
Glowworm part no. S91382035
42 Part number 0020033885, Insulation SK 204x340 INSULATION SK 204X340
Glowworm part no. 0020033885
43 Part number 0020033887, Insulation SK 204x360 INSULATION SK 204X360
Glowworm part no. 0020033887
45 Part number 0020043215, Heat exchanger 105369 HEAT EXCHANGER 105369
Glowworm part no. 0020043215		 £230.01
50 Part number 0020027509, OBSOLETE JAG/PRO/ICON SEAL - FAN OBSOLETE JAG/PRO/ICON SEAL - FAN
Glowworm part no. 0020027509
52 Part number 0020025213, Fan FAN
Glowworm part no. 0020025213		 £78.73
53   OBSOLETE FAN PLATE
Glowworm part no. S99800186
55 Part number 0020034155, WIRE WIRE
Glowworm part no. 0020034155		 £4.17
56 Part number 0020027595, Block KXV15-outlet BLOCK KXV15-OUTLET
Glowworm part no. 0020027595		 £126.11
58 Part number 0020025256, Heat exchanger d.h.w. E6N/16 HEAT EXCHANGER D.H.W. E6N/16
Glowworm part no. 0020025256		 £64.05
59   OBSOLETE 3 WAY VALVE CLIP
Glowworm part no. S93448110
65 Part number 0020033467, O-Ring 18x3,5 (PK10) O-RING 18X3,5 (PK10)
Glowworm part no. 0020033467		 £6.03
67 Part number 0020023216, Pressure sensor HW PRESSURE SENSOR HW
Glowworm part no. 0020023216		 £32.03
68 Part number 0020027597, OBSOLETE Flow sensor CW OBSOLETE FLOW SENSOR CW
Glowworm part no. 0020027597
70 Part number 0020034122, Pressure sensor clip PRESSURE SENSOR CLIP
Glowworm part no. 0020034122
71 Part number 0020023220, GAS VALVE GAS VALVE
Glowworm part no. 0020023220		 £90.09
72 Part number 0020034114, O-Ring 14x9,5x2,5 (PK10) O-RING 14X9,5X2,5 (PK10)
Glowworm part no. 0020034114		 £6.03
73 Part number 0020034120, Clip - Pump CLIP - PUMP
Glowworm part no. 0020034120		 £4.17
74   OBSOLETE GAS PIPE
Glowworm part no. S99800787
75 Part number 0020034088, Clip - Pump CLIP - PUMP
Glowworm part no. 0020034088		 £4.17
77 Part number 0020025311, Pump PUMP
Glowworm part no. 0020025311		 £121.53
86 Part number 0020033344, Clip for exchanger CLIP FOR EXCHANGER
Glowworm part no. 0020033344		 £4.17
87 Part number 0020034104, Hose arm. 3/8-3/8-elbow 30cm HOSE ARM. 3/8-3/8-ELBOW 30CM
Glowworm part no. 0020034104
88 Part number 0020033473, Gasket 15x8x2 (PK10) GASKET 15X8X2 (PK10)
Glowworm part no. 0020033473
93 Part number 0020027598, Time clock analogue TIME CLOCK ANALOGUE
Glowworm part no. 0020027598		 £40.57
97   OBSOLETE FOIL
Glowworm part no. S99800761

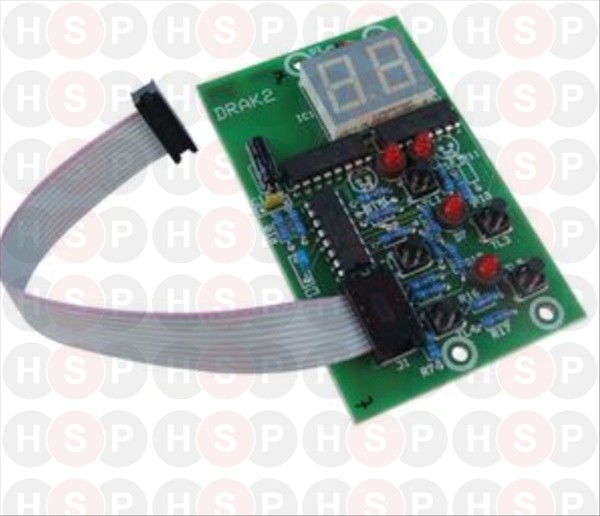

98 Part number 0020027604, Display board TC DISPLAY BOARD TC
Glowworm part no. 0020027604		 £40.57
99 Part number 0020025307, Printed circuit 80E TC PRINTED CIRCUIT 80E TC
Glowworm part no. 0020025307
104   OBSOLETE CABLE
Glowworm part no. S99800584
105   OBSOLETE CABLE
Glowworm part no. S99800768
115   OBSOLETE SIDE COVER L 100EC
Glowworm part no. S99800784
117   FRONT COVER - TURBO 100EC
Glowworm part no. 0020034646		 £32.49
124   OBSOLETE FRONT COVER
Glowworm part no. S99800782
125   OBSOLETE LABEL-DIAGRAM
Glowworm part no. S99800764
127   OBSOLETE DOOR SUPPORT
Glowworm part no. S99800766
149 Part number 0020033433, Seal OR 2050 (PK10) SEAL OR 2050 (PK10)
Glowworm part no. 0020033433		 £4.17
