GLOWWORM
XTRAMAX HE - (09 3 Way Valve)
Appliance Code: 47-047-29

Appliance Diagram

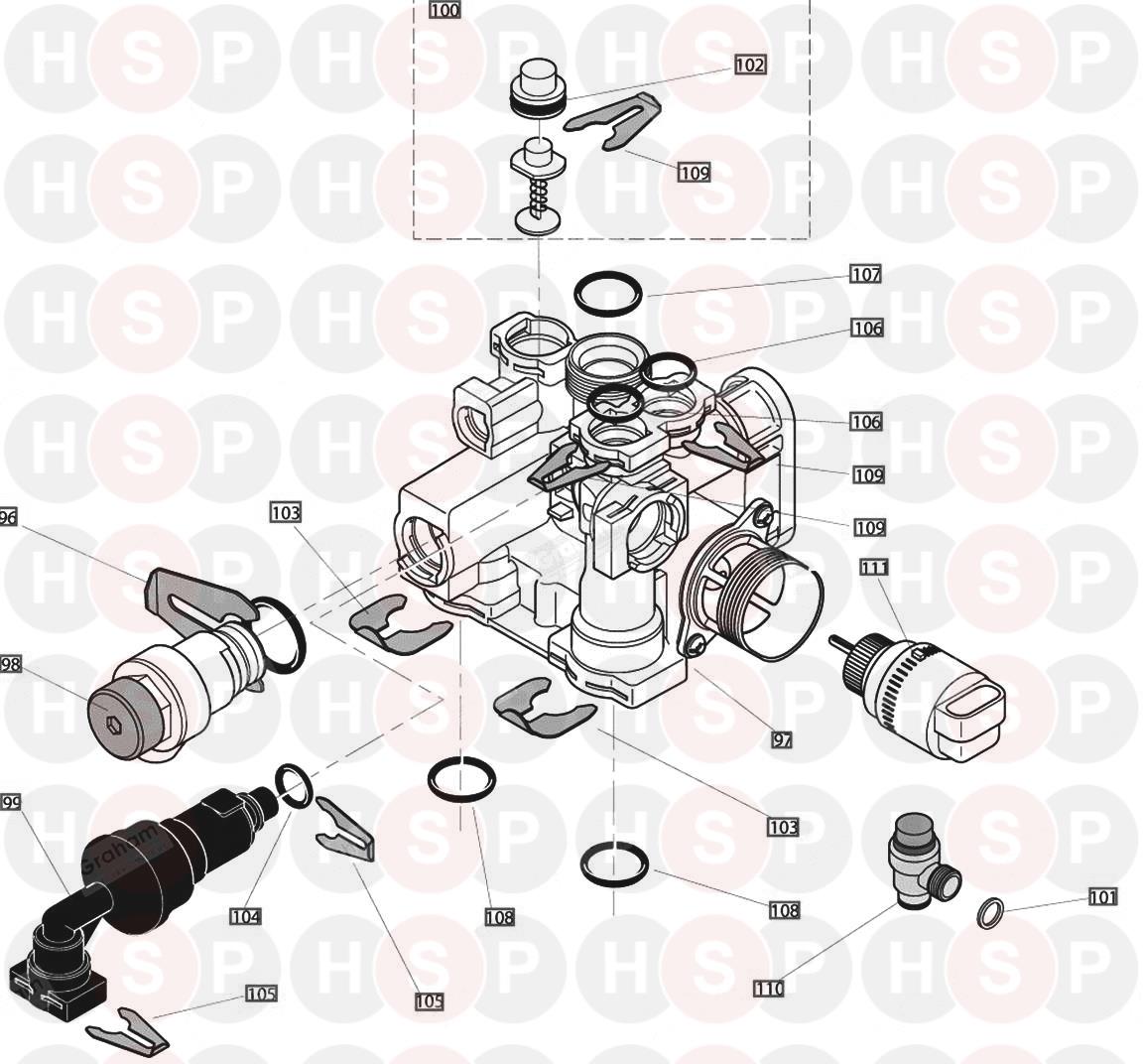

09 3 Way Valve diagram for Glowworm Xtramax HEClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

96 Part number 2000801947, NOW USE S5465700 clip pressure relief valve NOW USE S5465700 CLIP PRESSURE RELIEF VALVE
Glowworm part no. 2000801947
96 Part number 801947, NOW USE S5465700 clip pressure relief valve NOW USE S5465700 CLIP PRESSURE RELIEF VALVE
Glowworm part no. 801947
96 Part number S5465700, Clip 18mm (PK10) CLIP 18MM (PK10)
Glowworm part no. S5465700		 £10.20

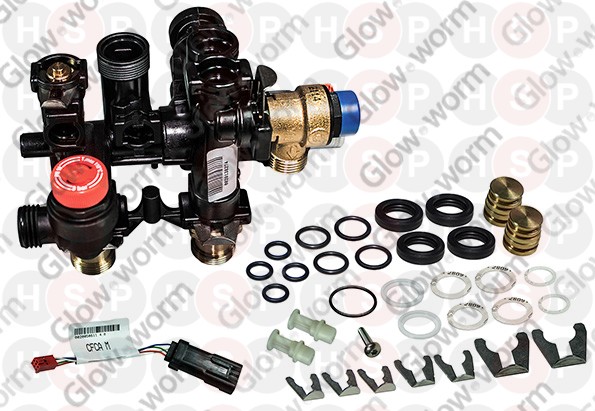

97 Part number 0020018574, 3-way valve assembly 3-WAY VALVE ASSEMBLY
Glowworm part no. 0020018574		 £221.65
98 Part number 0020014173, NOW USE 0020047005 pressure relief valve(3 bar) NOW USE 0020047005 PRESSURE RELIEF VALVE(3 BAR)
Glowworm part no. 0020014173
98 Part number 0020047005, Pressure relief valve, 3 bar PRESSURE RELIEF VALVE, 3 BAR
Glowworm part no. 0020047005		 £14.14
99 Part number 2000802600, Filling loop FILLING LOOP
Saunier Duval part no. 2000802600		 £68.76
99 Part number 2000801908, NOW USE 2000802600 DISCONNECTOR NOW USE 2000802600 DISCONNECTOR
Glowworm part no. 2000801908
99 Part number 2000802600, Filling loop FILLING LOOP
Glowworm part no. 2000802600		 £68.76
99 Part number 801673, NOW USE 2000802600 DISCONNECTOR NOW USE 2000802600 DISCONNECTOR
Glowworm part no. 801673
100 Part number 2000801909, NOW USE S5261700 by-pass NOW USE S5261700 BY-PASS
Glowworm part no. 2000801909
100 Part number S5261700, Bypass BYPASS
Glowworm part no. S5261700		 £8.17
101 Part number 2000801942, NOW USE S5418200 SANITARY WASHER (PK100) NOW USE S5418200 SANITARY WASHER (PK100)
Glowworm part no. 2000801942
101 Part number S5418200, Sealing ring (PK100) SEALING RING (PK100)
Glowworm part no. S5418200		 £12.91
102 Part number 2000801943, O-ring bypass (PK25) O-RING BYPASS (PK25)
Glowworm part no. 2000801943		 £25.13
103 Part number 2000801945, NOW USE S5455000 clip cv-filter (set of 10) NOW USE S5455000 CLIP CV-FILTER (SET OF 10)
Glowworm part no. 2000801945
103 Part number S5455000, Clip 20mm (PK10) CLIP 20MM (PK10)
Glowworm part no. S5455000		 £7.32
104 Part number 2000801950, O-ring for pipe (PK20) O-RING FOR PIPE (PK20)
Glowworm part no. 2000801950		 £10.22
105 Part number 2000801951, NOW USE S5466200clip 10mm NOW USE S5466200CLIP 10MM
Glowworm part no. 2000801951
105 Part number S5466200, Clip 10mm (PK10) CLIP 10MM (PK10)
Glowworm part no. S5466200		 £9.12
106 Part number 2000801953, NOW USE S5466400 o-ring 13mm cv-filter (20 pieces) NOW USE S5466400 O-RING 13MM CV-FILTER (20 PIECES)
Glowworm part no. 2000801953

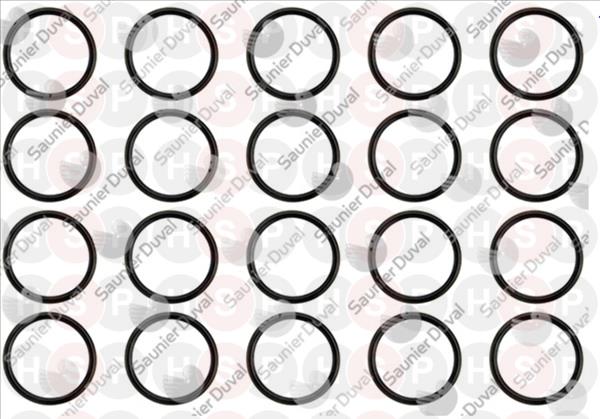

106 Part number S5466400, O-Ring (PK20) O-RING (PK20)
Glowworm part no. S5466400		 £16.51
107 Part number 2000801954, NOW USE S5466500 o-ring (20 pieces) NOW USE S5466500 O-RING (20 PIECES)
Glowworm part no. 2000801954
107 Part number S5466500, O-ring (PK20) O-RING (PK20)
Glowworm part no. S5466500		 £14.93
108 Part number 2000801956, O-ring (PK10) O-RING (PK10)
Glowworm part no. 2000801956		 £8.94
109   CLIP FOR BYPASS
Glowworm part no. 2000801961		 £8.80
109 Part number S5490900, OBSOLETE Clip 13.5mm (PK15) OBSOLETE CLIP 13.5MM (PK15)
Glowworm part no. S5490900		 £12.58
110 Part number 2000802748, SAN. SAFETY VALVE 10B FEMALE SAN. SAFETY VALVE 10B FEMALE
Glowworm part no. 2000802748		 £14.49
111 Part number A000035133, motor 3-way valve TM3HR MOTOR 3-WAY VALVE TM3HR
Glowworm part no. A000035133		 £94.82
