COMBITEK F23E - (NO Diagram)
Appliance Code: COMBI MKII

Appliance Diagram


Sorry, a diagram could not be found for this appliance.

1   BOILER ON NEON (GREEN)
Grant Oil part no. MPCBS45
£9.03
2 Part number MPCBS46, Overheat Cut-Out Thermostat Neon (Red) OVERHEAT CUT-OUT THERMOSTAT NEON (RED)
Grant Oil part no. MPCBS46
£9.03
3 Part number TPBS33, HIGH LIMIT THERMOSTAT HIGH LIMIT THERMOSTAT
Grant Oil part no. TPBS33
£45.00
4 Part number TPBS34, Boiler (Heating) Thermostat BOILER (HEATING) THERMOSTAT
Grant Oil part no. TPBS34
£45.00

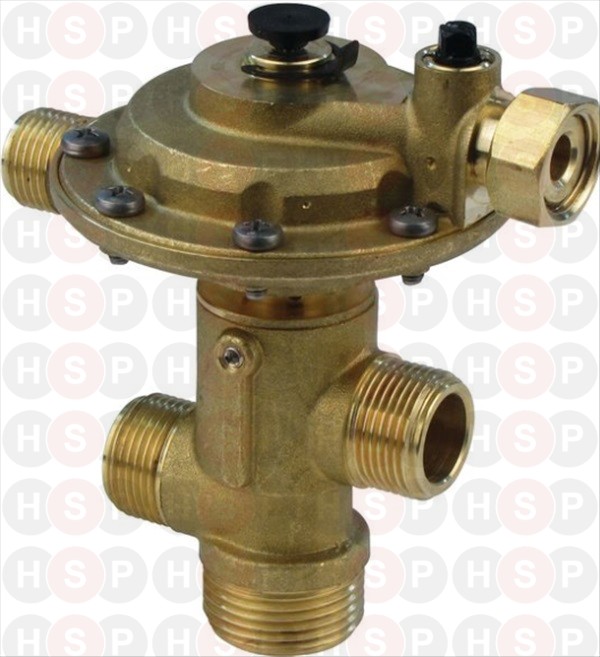

5 Part number MPCBS20, DIVERTER VALVE DIVERTER VALVE
Grant Oil part no. MPCBS20
£189.83

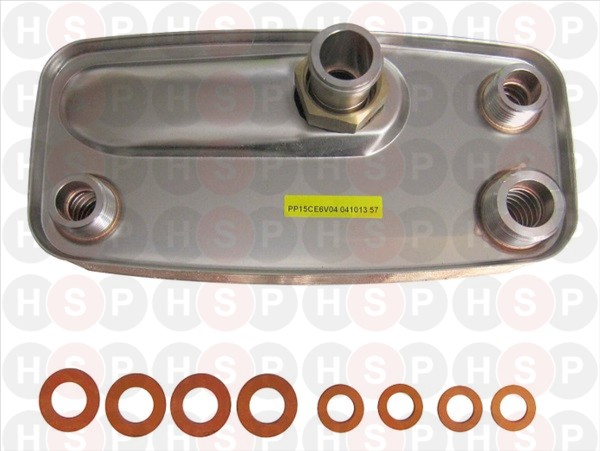

6 Part number MPCBS21, 15 PLATE HEAT EXCHANGER 15 PLATE HEAT EXCHANGER
Grant Oil part no. MPCBS21
£148.77
7   LOW PRESSURE SWITCH UPGRADE KIT
Grant Oil part no. MPCBS62
£49.67
8   LOW PRESSURE SWITCH
Grant Oil part no. MPCBS63
£61.22
9 Part number MPCBS22, THERMOSTATIC MIXING VALVE THERMOSTATIC MIXING VALVE
Grant Oil part no. MPCBS22
£63.60

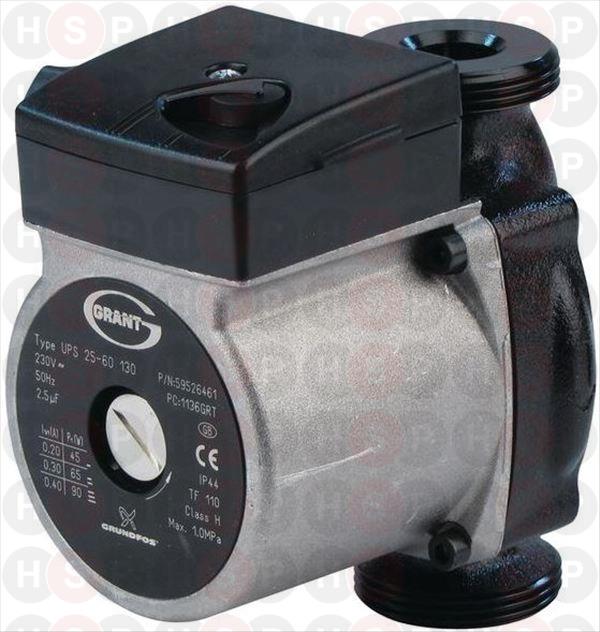

10 Part number MPCBS23, CIRCULATING PUMP CIRCULATING PUMP
Grant Oil part no. MPCBS23

11 Part number MPCBS24, Water pressure Gauge WATER PRESSURE GAUGE
Grant Oil part no. MPCBS24
£20.86
12 Part number MPSS02, WATER PRESSURE GAUGE WATER PRESSURE GAUGE
Grant Oil part no. MPSS02
£23.05
13 Part number MPCBS25, PRIMARY STORE THERMOSTAT PRIMARY STORE THERMOSTAT
Grant Oil part no. MPCBS25
£27.09
14 Part number MPCBS28, 2.5 bar pressure Relief Valve 2.5 BAR PRESSURE RELIEF VALVE
Grant Oil part no. MPCBS28
£36.84
15 Part number MPCBS47, 2.5 bar pressure Relief Valve 2.5 BAR PRESSURE RELIEF VALVE
Grant Oil part no. MPCBS47
£25.71
16 Part number MPCBS29, AUTOMATIC AIR VENT AUTOMATIC AIR VENT
Grant Oil part no. MPCBS29
£15.58
17 Part number MPCBS31, EXPANSION VESSEL FLEXI HOSE EXPANSION VESSEL FLEXI HOSE
Grant Oil part no. MPCBS31
£20.86
18 Part number MPCBS33, DIAPHRAGM KIT DIAPHRAGM KIT
Grant Oil part no. MPCBS33
£50.82

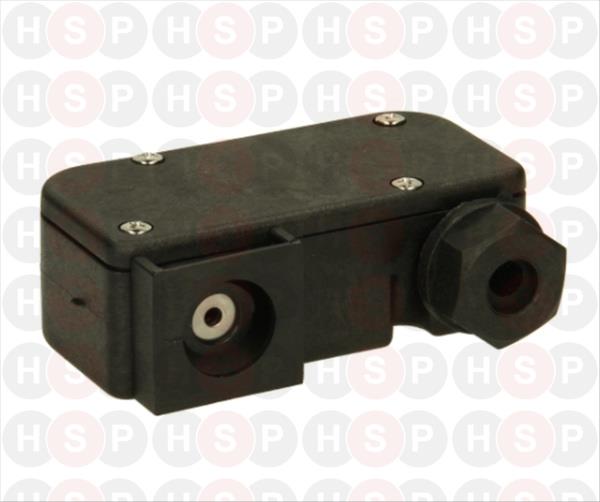

19 Part number MPCBS41, MICROSWITCH ASSEMBLY MICROSWITCH ASSEMBLY
Grant Oil part no. MPCBS41
£25.41
20 Part number MPSS01, 12 LITRE EXPANSION VESSEL 12 LITRE EXPANSION VESSEL
Grant Oil part no. MPSS01
£74.95
21   ELECTRONIC TEMPERATURE CONTROL UPGRADE KIT
Grant Oil part no. MPCBS60
£92.73
22 Part number EFBS21, Boiler On/Off Switch BOILER ON/OFF SWITCH
Grant Oil part no. EFBS21
£10.97
23 Part number EFBS22, Heating/Rocker Switch (W24 x H32 mm) HEATING/ROCKER SWITCH (W24 X H32 MM)
Grant Oil part no. EFBS22
£10.97
24 Part number EFBS10, THERMOSTAT POCKET THERMOSTAT POCKET
Grant Oil part no. EFBS10
£20.62
25 Part number MPCBS26, Non-Return Check Valve (22mm) NON-RETURN CHECK VALVE (22MM)
Grant Oil part no. MPCBS26
£19.16
26 Part number MPCBS30, FILLING LOOP KIT WITH VALVES FILLING LOOP KIT WITH VALVES
Grant Oil part no. MPCBS30
£48.64
27 Part number EFBS14, Nut and Washer Set Cleaning Door NUT AND WASHER SET CLEANING DOOR
Grant Oil part no. EFBS14
£6.93
28   ACCESS/COMBUSTION DOOR
Grant Oil part no. EFBS18X
£103.57
29 Part number EFBS20X, Access/Combustion Door ACCESS/COMBUSTION DOOR
Grant Oil part no. EFBS20X

30 Part number TPBS23, ACCESS DOOR GASKET 40/90 ACCESS DOOR GASKET 40/90
Grant Oil part no. TPBS23
£49.53
31 Part number EFBS19, On/Off Double Pole Switch (Neon, 4 Terminal) ON/OFF DOUBLE POLE SWITCH (NEON, 4 TERMINAL)
Grant Oil part no. EFBS19
£15.59
32 Part number EFBS30, Complete Baffle Set COMPLETE BAFFLE SET
Grant Oil part no. EFBS30
£132.83
33 Part number MPBS13, Complete Baffle Set COMPLETE BAFFLE SET
Grant Oil part no. MPBS13
£145.53
34   BOTTOM BAFFLE SET ONLY (COMBI 90 MK II)
Grant Oil part no. MPBS1 3X
£143.45

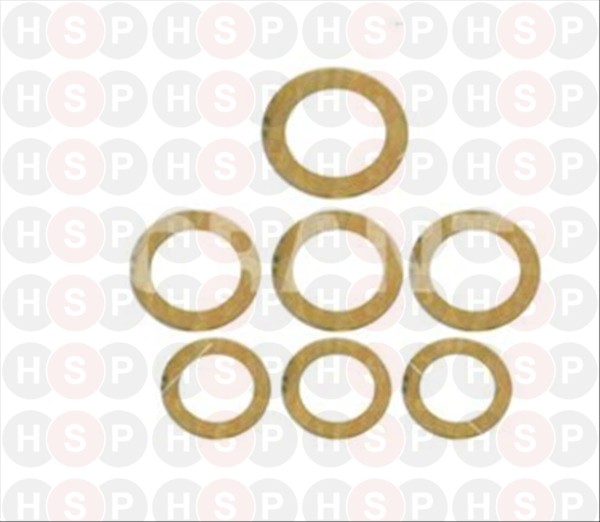

35 Part number MPCBS34, Fibre Washer Set FIBRE WASHER SET
Grant Oil part no. MPCBS34
£2.27
36 Part number MPCBS36, PUMP VALVE ISOLATION SET PUMP VALVE ISOLATION SET
Grant Oil part no. MPCBS36
£46.21
37 Part number MPCBS39, Flow Restrictor FLOW RESTRICTOR
Grant Oil part no. MPCBS39
£3.53
