HALSTEAD
BUCKINGHAM 4 BFF115 - (Service Fault Finding 1)
Appliance Code: 41-333-93

Appliance Diagram

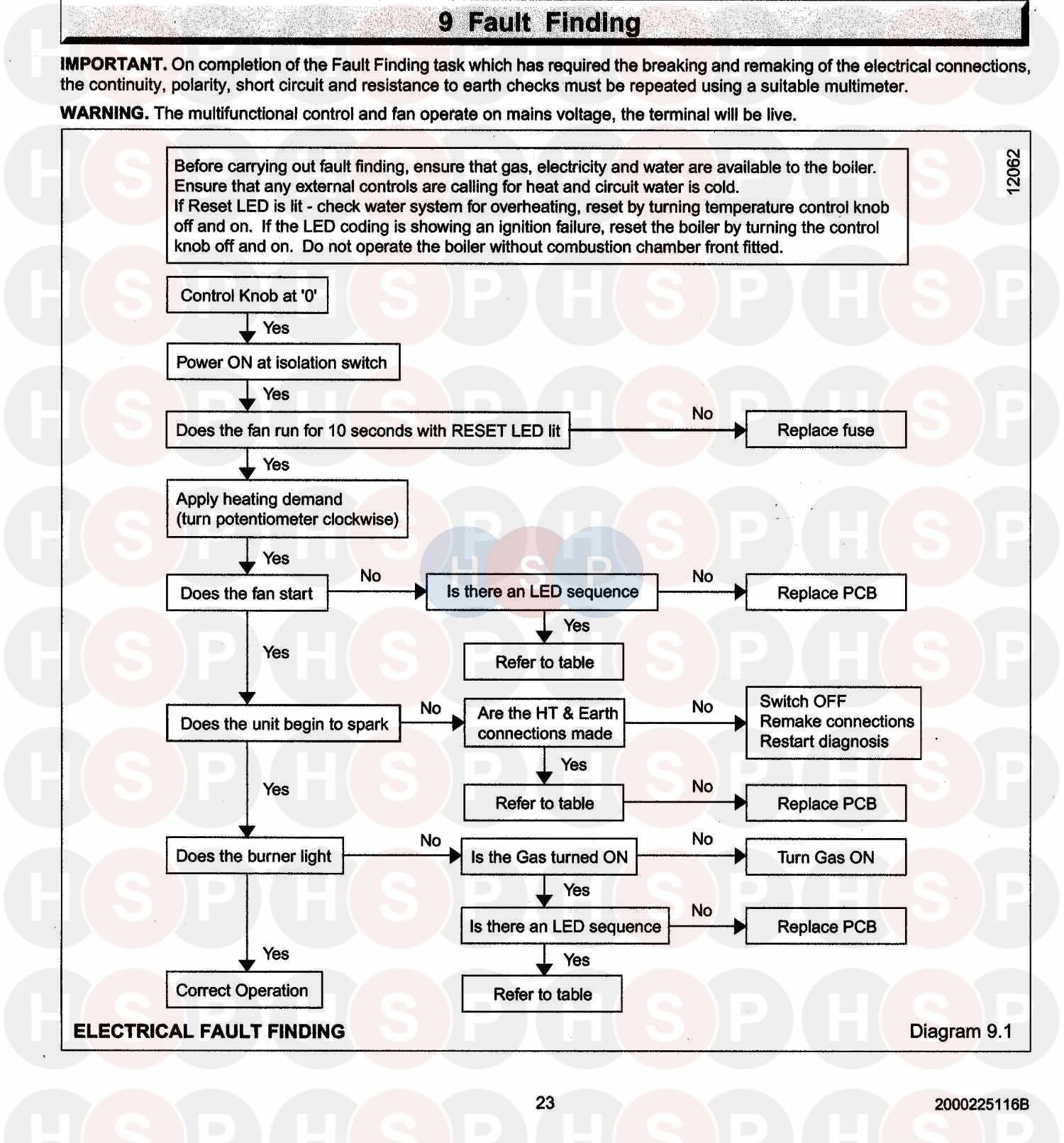

Service Fault Finding 1 diagram for Halstead Buckingham 4 BFF115Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   NUT-SPIRE CAPT N08
Halstead part no. BKSK8112		 £11.30
0   SCREW-M5X12MM MS PN REC
Halstead part no. BKSK9419		 £9.98
0   IGNITION LEAD
Halstead part no. BKSWX5506		 £27.13
0   EARTH LEAD BFF40/50/60/80/100/115
Halstead part no. BKSWY0101		 £10.41
0   SCREW-M5 MS H3 (WASHED
Halstead part no. BKSK8209		 £10.71
0   SCREW-M5X14MM+5DG MS PN
Halstead part no. BKS208294		 £10.71
0   DOOR STUD-FOREST SBV 38471406
Halstead part no. BKS208368		 £7.33
0   GROMMET 3MM I.D. X 22MM O.D.
Halstead part no. BKS205912		 £7.35
0   END TIP- 10427
Halstead part no. BKS205897		 £11.30
0   OBSOLETE G/FIBRE ROPE-1 OX790MM LOOP
Halstead part no. BKS208096
0   GAS SAMPLING POINT
Halstead part no. BKS205926		 £0.67
0   O RING-H/WELL 22.0 X 2.5
Halstead part no. BKS208040		 £11.30
0   INSUL-6MM C/C SIDE
Halstead part no. BKS210058		 £14.64
0   G/FIBRE ROPE-10X1138MM LOOP BFF100/115
Halstead part no. BKS212025		 £22.07
0   WASHER-SEALING 150DX71DX2MM
Halstead part no. BKS212128		 £11.30
0   G/FIBRE ROPE-1 OX968MM LOOP BFF80
Halstead part no. BKS212013		 £21.15
0   SCREW-M4 X 8MM MS HX REC BZP
Halstead part no. BKS208661		 £10.71
0   SILICONE TUBE-220MM CLEAR
Halstead part no. BKS208716		 £10.71
0   SILICONE TUBE-320MM RED SA160
Halstead part no. BKS208605		 £10.71
0   SCREW M5 X 25
Halstead part no. BKS208554		 £10.71
0   SILICONE TUBE-300MM CLEAR SA160
Halstead part no. BKS208589		 £10.71
0   OBSOLETE SIDE PANEL RH BFF40/50/60/80/100/115
Halstead part no. BK801608
0   EDGE CLIP BFF40/50/60/80/100/115
Halstead part no. BK801609		 £7.35
0   P CLIP BFF40/50/60/80/10/115
Halstead part no. BK801610		 £7.35
0   SEALING STRIP - CORNER BFF40/50/60/80/100/115
Halstead part no. BK801604		 £10.71
0   OBSOLETE H/E SIDE BAFFLE BFF40/50/60/80/100/115
Halstead part no. BK801607
0   SEALING STRIP-FLUE HOOD SIDE BFF40/50/60/80/10
Halstead part no. BK801605		 £10.71
0   SEAL STRIP-FLUE HOOD FRNT/REAR BFF40/50/60
Halstead part no. BK801606		 £11.30
0   FLUE HOOD ASSEMBLY BFF60
Halstead part no. BK801748		 £220.05
0   GAS MANIFOLD ASSY BFF40/50/60
Halstead part no. BK801750		 £351.66
0   H/E BAFFLE ASSY-CENTRE BFF40/50/60
Halstead part no. BK801753		 £174.74
0   CONTROL BOX HINGE SUPPORT BFF40/50/60/80/100/1
Halstead part no. BK801752		 £23.66
0   SIDE PANEL EXTENSION BFF40/50/60/80/100/115
Halstead part no. BK801612		 £50.46
0   SIDE PANEL LH BFF40/50/60/80/100/115
Halstead part no. BK801611		 £103.90
0   REAR OUTLET FLUE CONNECTOR BFF40/50/60/80/100/
Halstead part no. BK801697		 £15.11
0   F/PANEL SECURING BRACKET - PTD BFF100/115
Halstead part no. BK801802		 £28.78
0   TOP PANEL - PNTD BFF100/115
Halstead part no. BK801800		 £250.34
0   FAN/APS HARNESS BFF40/50/60/80/100/115
Halstead part no. BK801822		 £57.63
0   OVERHEAT LINK
Halstead part no. BK801824		 £4.58
0   MAINS HARNESS
Halstead part no. BK801823		 £18.19
0   GAS VALVE LEAD BFF40/50/60/80
Halstead part no. BK801821		 £60.69
0   FLUE HOOD ASSY BFF40
Halstead part no. BK801819		 £222.78
0   BOILER ACCESS DOOR BFF100/115
Halstead part no. BK801806		 £103.22
0   FITTINGS KIT BFF100/115
Halstead part no. BK801803		 £56.53
0   FLUE HOOD ASSY BFF100/115
Halstead part no. BK801805		 £222.61
0   SEALING STRIP - FRONT/BACK BFF100/115
Halstead part no. BK801808		 £10.71
0   HEAT SHIELD BFF100/115
Halstead part no. BK801799		 £101.01
0   COMB. CHAMB SIDE BAFFLE BFF80/100/115
Halstead part no. BK801820		 £14.84
0   H/E BAFFLE ASSEMBLY - CENTRE BFF80/100/115
Halstead part no. BK801782		 £107.97
0   BOILER ACCESS DOOR BFF80
Halstead part no. BK801783		 £160.67
0   SEALING STRIP FRONT/BACK BFF80
Halstead part no. BK801784		 £10.71
0   TERMINAL BOX BRACKET BFF40/50/60/80/100/115
Halstead part no. BK801759		 £11.30
0   STRAIN RELIEF BRACKET BFF40/50/60/80/100/115
Halstead part no. BK801760		 £11.30
0   F/PANEL SECURING BRACKET PNTD BFF40/50/60
Halstead part no. BK801755		 £53.27
0   STAND OFF HARNESS CLIP BFF40/50/60/80/100/115
Halstead part no. BK801754		 £11.30
0   CONTROL BOX LID BFF40/50/60/80/100/115
Halstead part no. BK801756		 £47.95
0   CONTROL BOX CHASSIS BFF40/50/60/80/100/115
Halstead part no. BK801757		 £122.47
0   HEAT SHIELD BFF80
Halstead part no. BK801770		 £70.42
0   SCREW-M3X6MM REC BZP PNMST
Halstead part no. BKSK7959		 £10.71
0   COMB. CHAMB. ACCESS DOOR BFF80
Halstead part no. BK801775		 £78.02
0   OBSOLETE INSUL. COMB. CHAMBER REAR BFF80
Halstead part no. BK801774
0   CAPTIVE NUT NO.8
Halstead part no. BKS226047		 £11.30
0   NUT-WING M5 ZP
Halstead part no. BKS403215		 £11.30
0   SILICONE TUB -380MM RED SA160 BFF80
Halstead part no. BKS230333		 £10.71
0   SILICONE TUBE-255MM CLEARSA160
Halstead part no. BKS230248		 £10.71
0   SILICONE TUBE-430MM RED SA160 BFF100/115
Halstead part no. BKS230335		 £12.52
0   PUSH-ON FIX FASTENER
Halstead part no. BKS213057		 £11.30
0   SCREW-M4 X 30MM REC PAN HD
Halstead part no. BKS213011		 £10.71
0 Part number BK802507, PCB KIT 80 BFF CFF PCB KIT 80 BFF CFF
Halstead part no. BK802507		 £427.38
0   NOW USE EDS12780 SCREW-M4X12MM MS PN REC
Halstead part no. BKS12780
0   CORD GRIP-ELKAY 743
Halstead part no. BKS204239		 £11.30
0   LOCKNUT-ELKAY CAT 92
Halstead part no. BKS204240		 £11.30
0   BUSH-RELIEF SR6N34
Halstead part no. BKS204228		 £11.30
0   BUSH-CORD GRIP-ELKAY 744
Halstead part no. BKS204259		 £11.30
0   PCB POST BFF40/50/60/80/100/115
Halstead part no. BK801761		 £15.83
0   GAS VALVE ELBOW-ALTERNATIVES
Halstead part no. BKS900816		 £14.98
0   DIPTUBE ASSY BFF100/115
Halstead part no. BKS442104		 £52.03
0   LOCKNUT-ELKAY 93
Halstead part no. BKS204260		 £11.30
0   OBSOLETE PHIAL POCKET RANCO
Halstead part no. BKS204315
0   GAS COCK-1/2" BSP M/F-GASCON
Halstead part no. BKS203604		 £46.71
0   GAS VALVE SCREW
Halstead part no. BKS203356		 £10.71
0   GN ELBOW-H/W 45 900 400-007B
Halstead part no. BKS203320		 £33.42
0   INSULATION C/CHAMBER SIDE
Halstead part no. BK802014		 £9.98
0   SCREW-NO.8 X 1/2INCHREC
Halstead part no. BKS12993		 £10.71
0   BUCKINGHAM 4 PCB
Halstead part no. BK802506		 £389.63
0   SCREW-NO8 X 5/8INCHREC/SLT
Halstead part no. BKSK5877		 £10.71
0   SCREW-NO8 X 3/8INCHREC ZP
Halstead part no. BKSK2330		 £10.71
0   WASHER-M5 ZP EXT TEETH
Halstead part no. BKSK6262		 £11.30
0   NUT-M5 HEX FULL ZP
Halstead part no. BKSK6219		 £11.30
0   DRIVE FASTENER-BLK
Halstead part no. BKSFF2288		 £7.35
0   TOP PANEL BFF80
Halstead part no. BK801781		 £526.64
0   FAN/FLUE HOOD ASSY BFF80
Halstead part no. BK801776		 £54.94
0   F/PANEL SECURING BRACKET BFF80
Halstead part no. BK801779		 £61.03
0   SEALING STRIP FRONT/BACK BFF80
Halstead part no. BK801777		 £10.71
0   FITTINGS PACK BFF80
Halstead part no. BK801778		 £245.10
0   BUCKINGHAM 4 PCB
Halstead part no. BK802503		 £214.47
0   PCB KIT BUCK 50 BFF
Halstead part no. BK802504		 £359.75
0   GAS MANIFOLD ASSY BFF100/115
Halstead part no. BK801792		 £122.88
0   COMB. CHAMBER DOOR ASSY
Halstead part no. BK801589		 £53.74
0   FAN SEALING O RING
Halstead part no. BK801592		 £10.33
0   GAS MANIFOLD ASSY BFF80
Halstead part no. BK801785		 £261.11
0   INSUL. COMB. CHAMBER REAR BFF100/115
Halstead part no. BK801791		 £11.30
0   BURNER SUPPORT BRACKET
Halstead part no. BK801588		 £7.19
0   BOILER ACCESS DOOR ASSY BFF40/50/60
Halstead part no. BK801600		 £123.72
0   FLUE HOOD ASSY BFF50
Halstead part no. BK801599		 £260.35
0   SEALING STRIP-FRONT/BACK BFF40/50/60
Halstead part no. BK801603		 £10.71
0   SEALING STRIP-SIDES BFF40/50/60/80/100/115
Halstead part no. BK801601		 £10.71
0   INSULATION COMB. CHAMBER REAR BFF40/50/60
Halstead part no. BK801596		 £13.99
0   TOP PANEL FOR BUCK 4
Halstead part no. BK801594		 £337.28
0   HEAT SHIELD BFF40/50/60
Halstead part no. BK801598		 £59.14
0   FITTING KIT BFF40/50/60
Halstead part no. BK801597		 £292.38
0   C/CHAMB DOOR-SPARE BFF100/115
Halstead part no. BK800120		 £54.00
0   SCREW-M4X12MM MS PN REC
Halstead part no. EDS12780		 £10.71
1   GAS VALVE
Halstead part no. BK801590		 £255.68
1   GAS VALVE SIT SIGMA
Halstead part no. BK801797		 £201.30
2   FAN - HA 50FF
Halstead part no. BK801591
2   FAN H/A 80 - 115FF
Halstead part no. BK801769		 £297.54
3   AIR PRESSURE SWITCH
Halstead part no. BK801764
3   OBSOLETE AIR PRESS. SWITCH C4065FH1115
Halstead part no. BK802047
3   AIR PRESSURE SWITCH
Halstead part no. BK801992		 £42.04
4   THERMISTOR
Halstead part no. BK801788
4   THERMISTOR
Halstead part no. BK801787		 £52.68
5   ELECTRODE
Halstead part no. BKS202635		 £8.28
7 Part number BK801758, CONTROL KNOB ASSY CONTROL KNOB ASSY
Halstead part no. BK801758
8   INJECTOR-3.4MM HOLE BFF40
Halstead part no. BKSK7218		 £10.41
8   NJTR-BURNER BFF50
Halstead part no. BKS205729		 £6.96
8   INJECTOR BFF60
Halstead part no. BK801747		 £11.30
8   INJECTOR BFF80
Halstead part no. BK801766		 £4.63
8   INJECTOR BFF115
Halstead part no. BKS205746		 £11.30
8   INJECTOR BFF100
Halstead part no. BK801793		 £5.04
10   OBSOLETE PCB MICRON 30-50
Halstead part no. BK801990
10   NOW USE BK802494 PCB BFF40/50/60/80
Halstead part no. BK802100
10   PCB
Halstead part no. BK802494		 £410.11
10   OBSOLETE P.C.B. (NO T.P.O.) BFF40/50/60/80
Halstead part no. BKS227030
10   OBSOLETE PCB BFF110/115
Halstead part no. BK801798
11   BURNER BFF80
Halstead part no. BK801767		 £143.39
11   BURNER BFF40
Halstead part no. BK801818		 £187.26
11   BURNER BFF50/60
Halstead part no. BK801587		 £261.57
11   BURNER BFF100
Halstead part no. BK801796		 £163.52
