SIME HALSTEAD TRIO COMBI - (Boiler Assembly 2)
Appliance Code: 47-283-01

Appliance Diagram


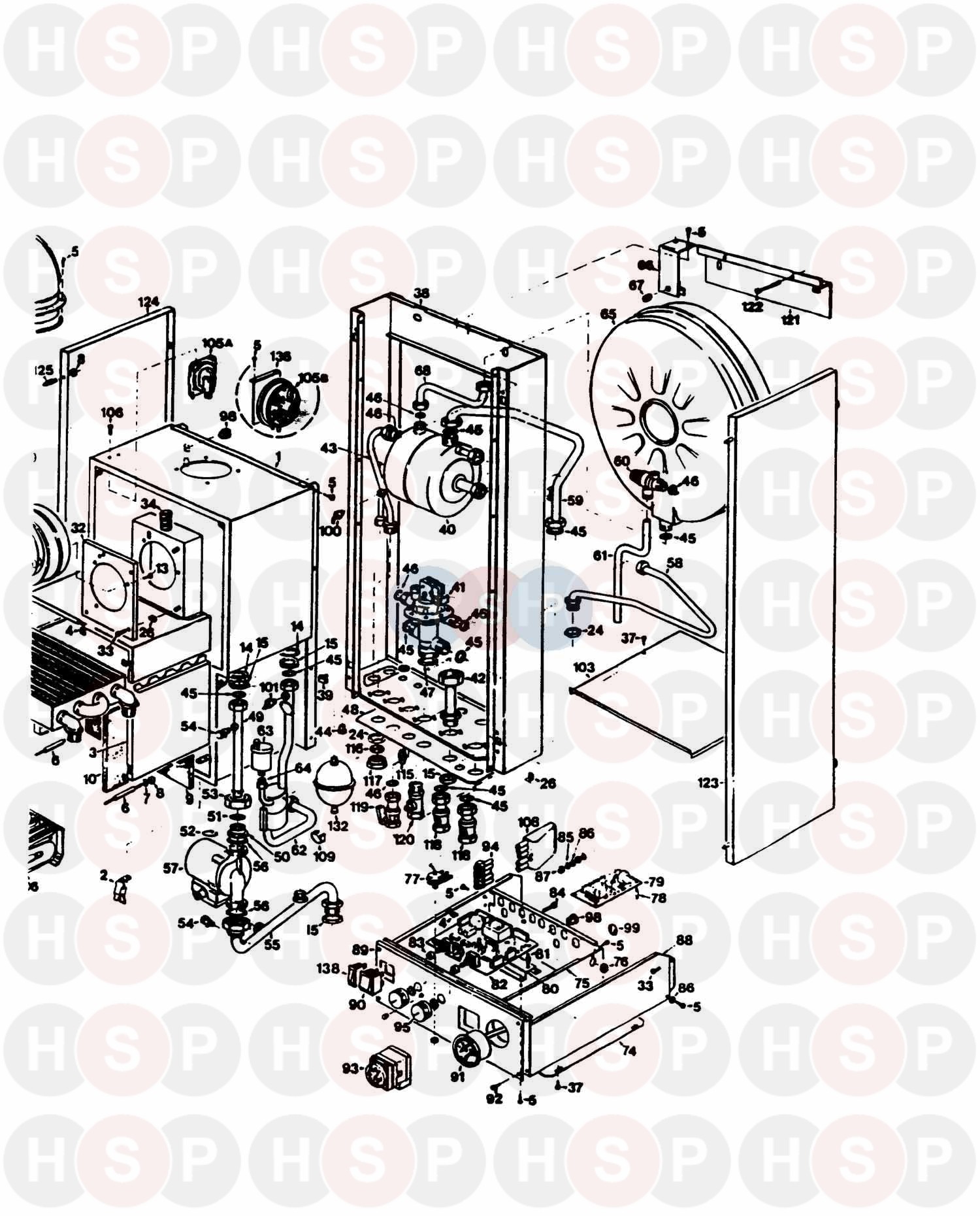

Boiler Assembly 2 diagram for Halstead Sime Halstead Trio CombiClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   TRIO MICROSWITCH
Halstead part no. 862036		 £21.95
0   COVER FOR DIV VALVE
Halstead part no. 500576		 £0.67
1   OBSOLETE CHAMBER ASSEMBLY - INNER
Halstead part no. 860001
2   OBSOLETE TOGGLE-ACTION CLAMP USMSS-23
Halstead part no. 860501
3   OBSOLETE TRIO COMBUSTION CHAMBER REAR
Halstead part no. 860002
4   OBSOLETE FASTENER FOR SELF TAPPING SCREW U18/11/9
Halstead part no. 860502
5   OBSOLETE SELF TAPPING SCREW NO.8 X 12MM
Halstead part no. 860503
6   OBSOLETE TRIO BURNER LOCATION PIN
Halstead part no. 860504
8   M5 HX FULL NUT BZP
Halstead part no. 200502		 £0.82
10   OBSOLETE COMBUSTION CHAMBER SIDE INSULATION
Halstead part no. 861002
11   OBSOLETE TRIO MAIN HEAT EXCHANGER
Halstead part no. 861501
12 Part number 862001, NOW USE 851010 LIMIT STAT NOW USE 851010 LIMIT STAT
Halstead part no. 862001
12 Part number 851010, 85 C THERMOSTAT (BLUE) 85 C THERMOSTAT (BLUE)
Halstead part no. 851010		 £29.53
13   OBSOLETE SELF DRILLING SCREW TCB M3X6
Halstead part no. 860509
14   OBSOLETE BRASS WASHER 0 26 8/35 OT
Halstead part no. 860510
15   OBSOLETE 3/4 BRASS LOCKNUT
Halstead part no. 860511
16   TRIO MAIN BURNER FOR N/G
Halstead part no. 861502		 £99.81
17   OBSOLETE COPPER INJECTOR WASHER
Halstead part no. 860155
18   INJECTOR 1.3 MM
Halstead part no. 701514		 £1.04
19   OBSOLETE TRIO PILOT BURNER
Halstead part no. 861504
20   TRIO PILOT BURNER INJECT
Halstead part no. 861505		 £5.29
21   OBSOLETE TRIO FRONT BURNER SHIELD
Halstead part no. 860003
22   OBSOLETE BURNER MANIFOLD RING
Halstead part no. 860512
23   OBSOLETE PLAIN WASHER 0 21X37 ZINC
Halstead part no. 860513
24   OBSOLETE TRIO BRASS NUT 1/2 OT
Halstead part no. 860514
25   OBSOLETE FLUE COLLECTOR HOOD ASSEMBLY
Halstead part no. 860004
26   OBSOLETE M4 LOCK NUT
Halstead part no. 860515
27 Part number 862002, TRIO FAN UNIT (SIFAN) TRIO FAN UNIT (SIFAN)
Halstead part no. 862002		 £540.65
27   OBSOLETE FAN UNIT (SALMSON) EL 5 - 98 DR 240V - 50HZ
Halstead part no. 862003
28   OBSOLETE FAN OUTLET SEAL
Halstead part no. 861003
29   OBSOLETE VENTURI FOR FAN OUTLET
Halstead part no. 860516
30   OBSOLETE VENTURI PIPE COVER
Halstead part no. 861004
31   OBSOLETE FAN PRESSURE PIPE CONNECTION
Halstead part no. 860517
32   OBSOLETE FAN MOUNTING PLATE
Halstead part no. 860005
33   OBSOLETE SCREW TCB M4X1 OAISI 304
Halstead part no. 860518
34   OBSOLETE SPIRAL SPRING P1653/A
Halstead part no. 860519
35   OBSOLETE COMBUSTION CHAMBER FRONT INSULATION
Halstead part no. 861005
36   OBSOLETE COMBUSTION CHAMBER FRONT PANEL
Halstead part no. 860006
37   OBSOLETE SELF TAPPING SCREW TCB 8PX3/8 ZINC
Halstead part no. 860520
38   OBSOLETE MAIN FRAME ASSAY.
Halstead part no. 860007
39   OBSOLETE TRIO STRAIN RELIEF BUSH
Halstead part no. 860521
40   TRIO CALORIFIER
Halstead part no. 861506
41 Part number 862004, TRIO DIVERTER VALVE TRIO DIVERTER VALVE
Halstead part no. 862004
42   OBSOLETE TRIO C.H. FLOW PIPE
Halstead part no. 862005
43   OBSOLETE TRIO D.H.W FLOW PIPE
Halstead part no. 862006
44   OBSOLETE PLUG- 131N-ZINC PLATE
Halstead part no. 860522
45   OBSOLETE GASKET 0 17/24 X 2
Halstead part no. 861006
46   OBSOLETE GASKET 0 5/18 5 X 2
Halstead part no. 861007
47   OBSOLETE GASKET 0 22/30 X 2
Halstead part no. 861008
48   OBSOLETE PROTECTION PLATE
Halstead part no. 860008
49   OBSOLETE TRIO HT/EX RETURN PIPE
Halstead part no. 861507
50   OBSOLETE PUMP SWIVEL CONNECTION
Halstead part no. 861508
51   OBSOLETE PUMP SWIVEL O RING
Halstead part no. 861009
52   OBSOLETE PUMP SWIVEL SPRING
Halstead part no. 860523
54   OBSOLETE MANUAL AIR VENT 1/4IN - CALEFFI 337
Halstead part no. 862007
55   OBSOLETE TRIO C.H. RETURN PIPE
Halstead part no. 862008
57   OBSOLETE WILD PUMP (GREEN)
Halstead part no. 861509
57   OBSOLETE PUMP - SALMSON GOLDSTAR P3K
Halstead part no. 861516
58   OBSOLETE TRIO D.H.W. COLD INLET
Halstead part no. 861510
59   OBSOLETE TRIO CALORIFIER W/OUTLET
Halstead part no. 861511
60   OBSOLETE SAFETY VALVE - CALEFFI CA3141
Halstead part no. 862009
61 Part number 450908, AUTOMATIC AIR VENT AUTOMATIC AIR VENT
Halstead part no. 450908		 £38.65
61 Part number 862011, NOW USE 450908 auot air vent NOW USE 450908 AUOT AIR VENT
Halstead part no. 862011
62   OBSOLETE TRIO H/EXCH. OUTLET PIPE
Halstead part no. 861512
64   OBSOLETE GASKET 0 10 2/15 X 2
Halstead part no. 861015
65   OBSOLETE TRIO EXPANSION VESSEL
Halstead part no. 861513
66   OBSOLETE EXPANSION VESSEL SUPPORT
Halstead part no. 860009
67   OBSOLETE HEX SOCKET HEADLESS SCREW MSXL6 BR
Halstead part no. 860525
68   OBSOLETE TRIO CALOR/EXPANS PIPE
Halstead part no. 861514
69   TRIO NOVA 827 GAS VALVE
Halstead part no. 862012		 £283.79
70   OBSOLETE GASKET NPR 24X35X4 FOR GAS VALVE
Halstead part no. 861011
71   OBSOLETE TRIO GAS INLET PIPE
Halstead part no. 862013
72   OBSOLETE GAS CONT/BUNER MANIFOLD
Halstead part no. 862014
73   OBSOLETE SCREW TCB M5XL 0 ZINC
Halstead part no. 860526
74   OBSOLETE LOWER CONTROL PANEL SUPPORT
Halstead part no. 860010
75   OBSOLETE CONTROL PANEL PARTITION
Halstead part no. 860011
76   OBSOLETE CABLE LEAD THROUGH PL10 DK 8/14/18-1
Halstead part no. 860527
77 Part number 862015, TRIO RESET OVERHEAT STAT TRIO RESET OVERHEAT STAT
Halstead part no. 862015		 £62.20
79 Part number 862016, TRIO IGNITION P.C.B TRIO IGNITION P.C.B
Halstead part no. 862016		 £224.62
80   OBSOLETE PCB SUPPORT STAY
Halstead part no. 860556
81   OBSOLETE SPACER HNST4-625-1
Halstead part no. 860529
82   OBSOLETE TRIO DRIVER P.C.B
Halstead part no. 862017
83   OBSOLETE SPACERO15X5
Halstead part no. 860530
84   OBSOLETE SCREW HEX HEAD M4X16 ZINC
Halstead part no. 860531
85   OBSOLETE EXTERNAL GRIP WASHER 0 4 3 ZINC
Halstead part no. 860532
86   OBSOLETE PLAIN WASHER 0 4 3X9 ZINC
Halstead part no. 860533
87   OBSOLETE NUT M4 ZINC
Halstead part no. 860534
88   OBSOLETE CONTROL PANEL
Halstead part no. 860012
89   OBSOLETE FASCIA PANEL
Halstead part no. 860013
90   TRIO SUMMER/WINT SWTCH
Halstead part no. 860535		 £6.80

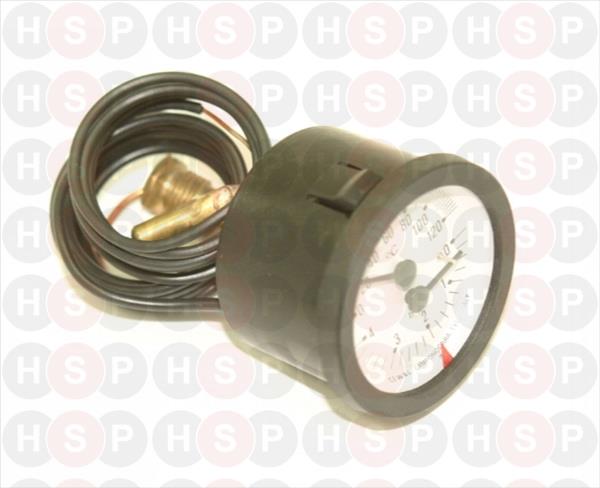

91 Part number 862018, TRIO TEMP/PRESSURE GAUGE TRIO TEMP/PRESSURE GAUGE
Halstead part no. 862018
92   OBSOLETE SELF TAPPING SCREW TCB 6P X 114INCH ZINC
Halstead part no. 860536
93   OBSOLETE TIME CLOCK - GRASSLIN UNI45TE
Halstead part no. 955021
94   OBSOLETE FIVE-PIN PLUG WIELAND ST 18/5 5
Halstead part no. 860537
95   OBSOLETE TRIO CONTROL KNOB 1764
Halstead part no. 860538
96 Part number 862019, TRIO IGNITION ELECTRODE TRIO IGNITION ELECTRODE
Halstead part no. 862019
97   OBSOLETE SILICONE PILOT PIPE SEAL
Halstead part no. 861012
98   OBSOLETE HEYCO STRAIN RELIEF SR-6P-4
Halstead part no. 860539
99   OBSOLETE BLANKING PLUG
Halstead part no. 860540
101   OBSOLETE THERMISTOR
Halstead part no. 862021
102   OBSOLETE FAN SUPPLY LEAD SEAL
Halstead part no. 861013
103   OBSOLETE CONTROL PANEL COVER
Halstead part no. 860014
104   OBSOLETE TRIO PILOT SUPPLY TUBE
Halstead part no. 862022
105 Part number 862023, TRIO PRESSURE SWITCH TRIO PRESSURE SWITCH
Halstead part no. 862023		 £99.74
105   OBSOLETE AIR PRESSURE SWITCH (HUBA)
Halstead part no. 862024
106   OBSOLETE SELF THREADING SCREW TCB M4 X 6
Halstead part no. 860541
107   OBSOLETE SELF TAPPING SCREW TCB 8P X 3/4INCH
Halstead part no. 860542
108   OBSOLETE MAINS SUPPLY SOCKET
Halstead part no. 860543
109   OBSOLETE RETAINING SPRING TYPE C 3750
Halstead part no. 860544
111   OBSOLETE SIGHT GLASS
Halstead part no. 860545
112   TRIO SIGHT GLASS TRIM
Halstead part no. 860016		 £4.02
113   OBSOLETE SCREW TCB M3*8ZINC
Halstead part no. 860546
114   OBSOLETE NUT M3 OT
Halstead part no. 860547
115   OBSOLETE TRIO CABLE CLAMP
Halstead part no. 860548
116   OBSOLETE OLIVE 15MM COPPER
Halstead part no. 860549
117   OBSOLETE COMPRESSION RING
Halstead part no. 860550
118 Part number 860551, OBSOLETE TRIO BALL VALVE 3/4 OBSOLETE TRIO BALL VALVE 3/4
Halstead part no. 860551

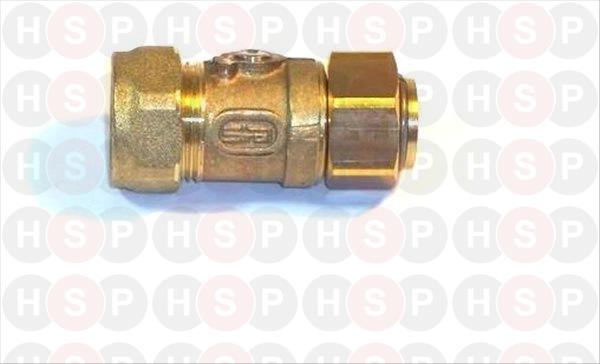

119   TRIO BALL VALVE 1/2
Halstead part no. 860552		 £12.05
120   OBSOLETE TRIO GAS COCK 1/2
Halstead part no. 860553
121   OBSOLETE BOILER SUPPORT BRACKET
Halstead part no. 860017
122   OBSOLETE PRECISION SCREW M5 X 35 HEXAGON HEAD STEE
Halstead part no. 860054
123   OBSOLETE TRIO RIGHT HAND CASING
Halstead part no. 860018
124   OBSOLETE TRIO LEFT HAND CASING
Halstead part no. 860019
125   OBSOLETE SNAP FIXING PIN
Halstead part no. 860557
126   OBSOLETE TRIO FRONT CASING PNL
Halstead part no. 860020
127   OBSOLETE SNAP FIXING CLIP
Halstead part no. 860558
128   OBSOLETE TRIO FLUE O RING
Halstead part no. 861014
129   OBSOLETE ALUMINIUM FLUE TRIM
Halstead part no. 860021
130   OBSOLETE SCREW HEX. M5 X 20 ZINC
Halstead part no. 860559
131   OBSOLETE AIR-FLUE DUCT WITH TERMINAL
Halstead part no. 860022
132   OBSOLETE DHW EXPANSION VESSEL (UPON REQUEST)
Halstead part no. 861515
133 Part number 862025, OBSOLETE TRIO MODULATOR SOLENOID OBSOLETE TRIO MODULATOR SOLENOID
Halstead part no. 862025
134 Part number 862026, TRIO/DUO SOLENOID COIL TRIO/DUO SOLENOID COIL
Halstead part no. 862026		 £45.37
135   OBSOLETE PRESSURE GOVERNOR SPRING FOR SIT NOVA 827
Halstead part no. 860560
136   OBSOLETE SMOKE PRESSURE SWITCH BRACKET
Halstead part no. 860023
138   TRIO CLOCK O/RIDE SWITCH
Halstead part no. 860562		 £6.56
