HAMWORTHY
PUREWELL VARIHEAT 65,85,105,125(HE) 70,95,110,140,180 (C) - (Base Assembly - Non-Condensing Models)
Appliance Code: VARIHEAT

Appliance Diagram

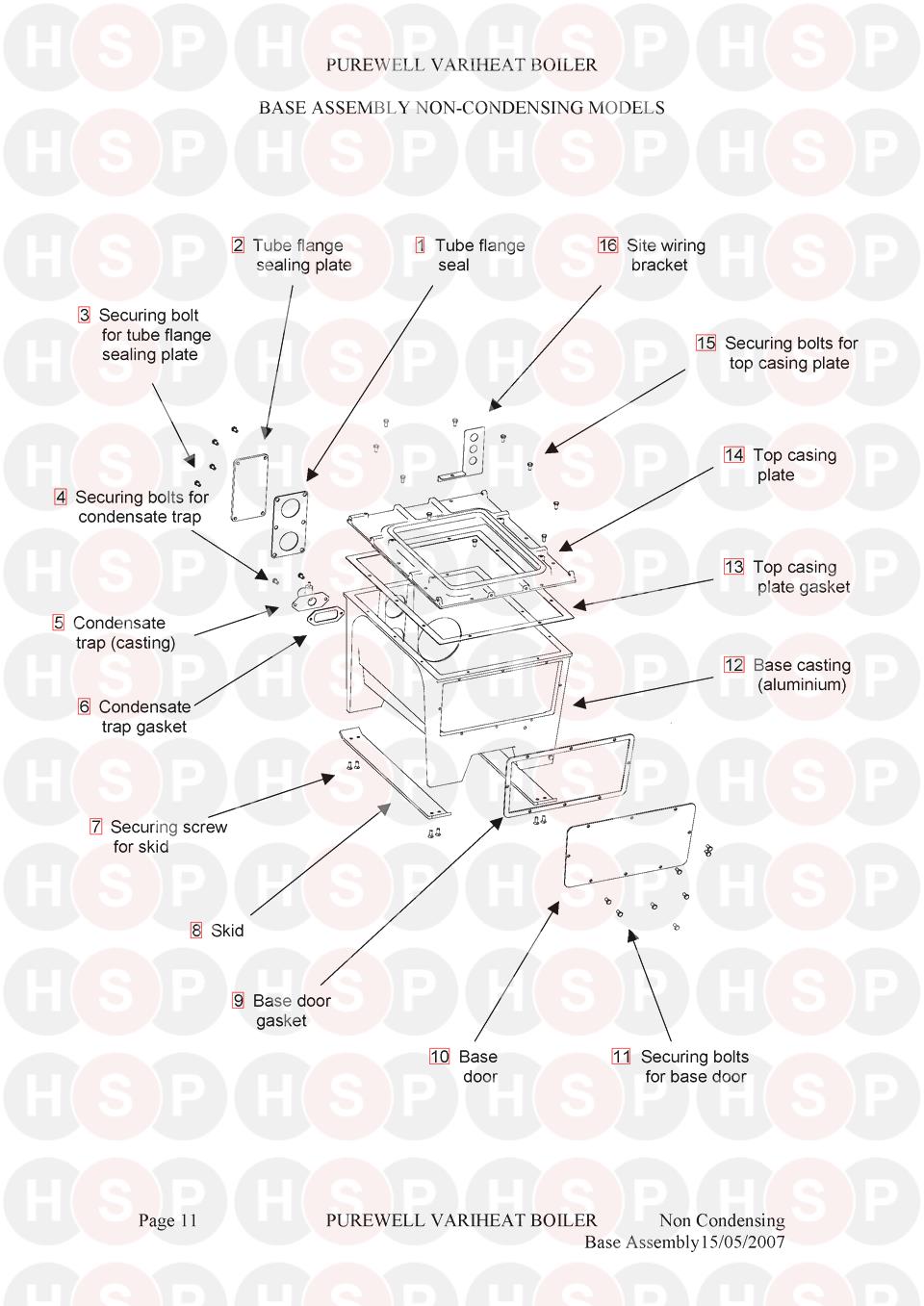

Base Assembly - Non-Condensing Models diagram for Hamworthy Purewell Variheat 65,85,105,125(HE) 70,95,110,140,180 (C)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   TUBE FLANGE SEAL
Hamworthy part no. 531201119
£13.77
3   SCREW HX HD M8X16 A2
Hamworthy part no. 531601024
£12.43
4   SCREW HX HD M8X16 A2
Hamworthy part no. 531601024
£12.43
5   CONDENSATE TRAP
Hamworthy part no. 530105094
£103.41
6   GASKET CONDENSATE TRAP MOUNT TO CAN WS
Hamworthy part no. 531201076
£20.61
9   HE DOOR SEAL
Hamworthy part no. 531201117
£19.27
11   SCREW HX HD M8X16 A2
Hamworthy part no. 531601024
£12.43
12   PV CASE BASE GRAVITY DIE EXECUTION
Hamworthy part no. 524120053
£440.17
13   GASKET REAR TUBE PLATE WELDED BAFFLES
Hamworthy part no. 531201115
£25.93
13   GASKET FOR HORIZONTAL MANIFOLD WSXM
Hamworthy part no. 531201145
£28.90
15   SCREW HX HD M8X16 A2
Hamworthy part no. 531601024
£12.43
