HERMANN
ICON 23 T - (EXPLODED VIEW)

Appliance Diagram

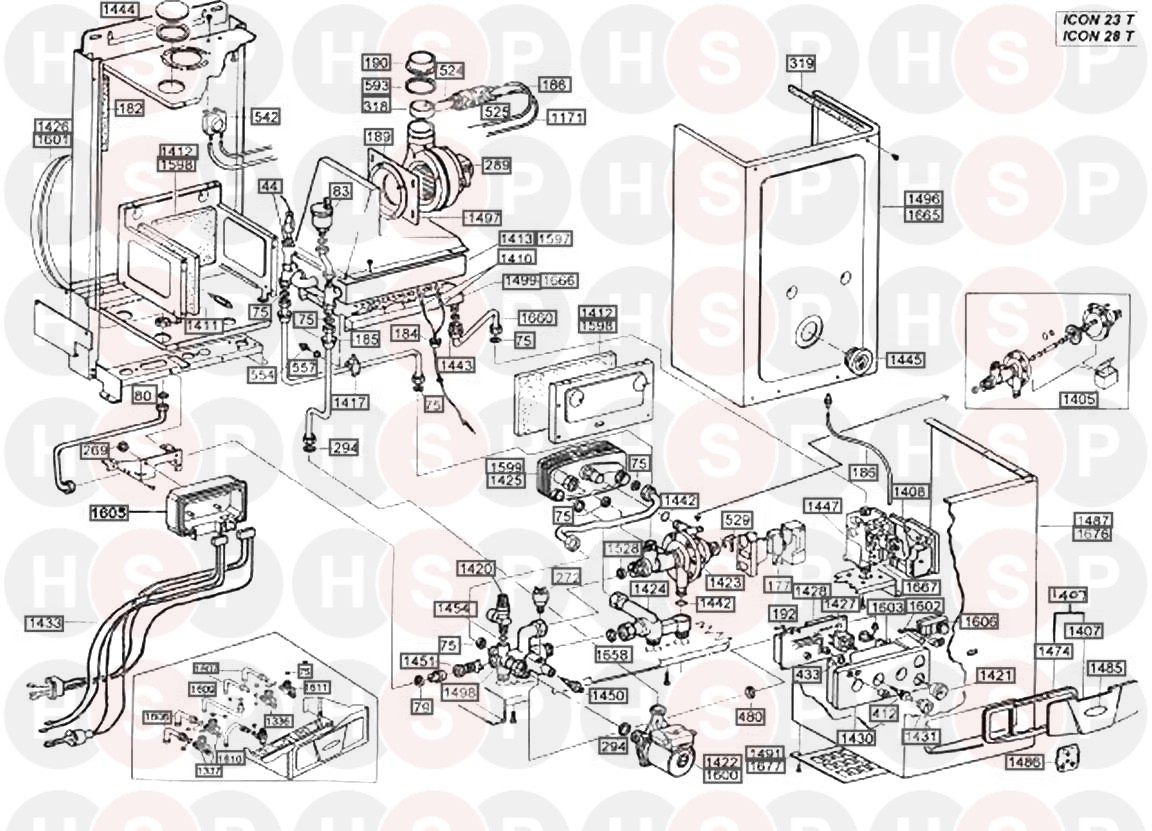

EXPLODED VIEW diagram for Hermann icon 23 TClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

44 Part number S048000764, Thermostat THERMOSTAT
Saunier Duval part no. S048000764
£12.87
75 Part number S153172420, GASKET GASKET
Saunier Duval part no. S153172420
£4.17
79 Part number S135051120, GASKET GASKET
Saunier Duval part no. S135051120
£4.17
80 Part number S135081420, Gasket, 8 X 15.5 X 2 GASKET, 8 X 15.5 X 2
Saunier Duval part no. S135081420
£4.17
83 Part number S021000363, OBSOLETE AUTOMATIC AIR VENT OBSOLETE AUTOMATIC AIR VENT
Saunier Duval part no. S021000363

182 Part number S180001504, Insulation, strip 520mm INSULATION, STRIP 520MM
Saunier Duval part no. S180001504
£4.17
184 Part number S032000116, OBSOLETE SILICON GROMMET OBSOLETE SILICON GROMMET
Saunier Duval part no. S032000116

185 Part number S032000128, OBSOLETE SILICON GROMMET OBSOLETE SILICON GROMMET
Saunier Duval part no. S032000128

186 Part number S164070040, OBSOLETE SILICON DUCTS OBSOLETE SILICON DUCTS
Saunier Duval part no. S164070040

189 Part number S032000117, Gasket GASKET
Saunier Duval part no. S032000117
£5.28
190 Part number S032000114, OBSOLETE SILICON GASKET OBSOLETE SILICON GASKET
Saunier Duval part no. S032000114

269 Part number S040000342, OBSOLETE ALUMINIUM NUT OBSOLETE ALUMINIUM NUT
Saunier Duval part no. S040000342

272 Part number S049000710, Pressure safeguard PRESSURE SAFEGUARD
Saunier Duval part no. S049000710
£28.17
289 Part number S035000999, FAN FAN
Saunier Duval part no. S035000999
£126.11
294 Part number S135223020, Gasket GASKET
Saunier Duval part no. S135223020
£4.17
318 Part number S011001865, OBSOLETE DIFFERENTIAL INSERT OBSOLETE DIFFERENTIAL INSERT
Saunier Duval part no. S011001865

319 Part number S180001502, Insulation, strip (900mm) INSULATION, STRIP (900MM)
Saunier Duval part no. S180001502
£4.17
412 Part number S040001199, OBSOLETE POTENTIOMETER FITTING ICON 23T OBSOLETE POTENTIOMETER FITTING ICON 23T
Saunier Duval part no. S040001199

524 Part number S011001406, SENSING TUBE SENSING TUBE
Saunier Duval part no. S011001406
£17.40
525 Part number S011001408, SENSING TUBE SENSING TUBE
Saunier Duval part no. S011001408
£8.98
542 Part number S049001529, Pressure safeguard PRESSURE SAFEGUARD
Saunier Duval part no. S049001529
£36.76
554 Part number S144000120, OBSOLETE INJECTOR G20 OBSOLETE INJECTOR G20
Saunier Duval part no. S144000120

557 Part number S129060910, OBSOLETE INJECTOR COPPER WASHER OBSOLETE INJECTOR COPPER WASHER
Saunier Duval part no. S129060910

593 Part number S000001553, Ring RING
Saunier Duval part no. S000001553
£5.57
1171 Part number S164071040, OBSOLETE RED SILICON TUBE ICON OBSOLETE RED SILICON TUBE ICON
Saunier Duval part no. S164071040

1337 Part number S013002189, NOW USE 2000803114 CH ISOLATING COCK NOW USE 2000803114 CH ISOLATING COCK
Saunier Duval part no. S013002189

1337 Part number 2000803114, Valve VALVE
Saunier Duval part no. 2000803114
£31.83
1407 Part number S040002452, OBSOLETE COVER ICON 23T OBSOLETE COVER ICON 23T
Saunier Duval part no. S040002452

1410 Part number S055002706, Electrode ELECTRODE
Saunier Duval part no. S055002706
£9.78
1411 Part number S060002500, OBSOLETE SIDE CERAMIC PANEL-ICON 23T OBSOLETE SIDE CERAMIC PANEL-ICON 23T
Saunier Duval part no. S060002500

1412 Part number S060002499, Insulation, combustion chamber INSULATION, COMBUSTION CHAMBER
Saunier Duval part no. S060002499
£11.44
1413 Part number S015002477, PRIMARY HEAT EXCHANGER 23T PRIMARY HEAT EXCHANGER 23T
Saunier Duval part no. S015002477
£160.98
1417 Part number S045002485, Sensor SENSOR
Saunier Duval part no. S045002485
£24.78
1420 Part number S155600001, Pressure relief valve, 1/2 (3 bar) PRESSURE RELIEF VALVE, 1/2 (3 BAR)
Saunier Duval part no. S155600001
£25.00
1421 Part number S048002353, Pressure gauge PRESSURE GAUGE
Saunier Duval part no. S048002353
£40.57
1422 Part number S149100103, Pump PUMP
Saunier Duval part no. S149100103
£117.74
1425 Part number S015002479, Heat exchanger DHW HEAT EXCHANGER DHW
Saunier Duval part no. S015002479
£131.29
1426 Part number S004002563, Expansion vessel EXPANSION VESSEL
Saunier Duval part no. S004002563
£92.96
1430 Part number S040002918, Cover, control box COVER, CONTROL BOX
Saunier Duval part no. S040002918
£114.31
1431 Part number S040002454, OBSOLETE KNOB ICON 23T OBSOLETE KNOB ICON 23T
Saunier Duval part no. S040002454

1433 Part number S050002487, Wiring harness WIRING HARNESS
Saunier Duval part no. S050002487
£57.11
1443 Part number S032002498, OBSOLETE SILICON GROMMET FOR TUBE-23T OBSOLETE SILICON GROMMET FOR TUBE-23T
Saunier Duval part no. S032002498

1444 Part number S032002492, OBSOLETE NEOPRENE GASKET ICON 23T OBSOLETE NEOPRENE GASKET ICON 23T
Saunier Duval part no. S032002492

1445 Part number S032002497, OBSOLETE SILICON SEAL WITH GLASS 23T OBSOLETE SILICON SEAL WITH GLASS 23T
Saunier Duval part no. S032002497

1450 Part number S011002579, OBSOLETE DRAIN VALVE ICON 23T OBSOLETE DRAIN VALVE ICON 23T
Saunier Duval part no. S011002579

1451 Part number S021002580, Bypass BYPASS
Saunier Duval part no. S021002580
£7.82
1454 Part number S140002056, OBSOLETE O-RING ICON 23T OBSOLETE O-RING ICON 23T
Saunier Duval part no. S140002056

1485 Part number S042002712, OBSOLETE BADGE ICON 23T OBSOLETE BADGE ICON 23T
Saunier Duval part no. S042002712

1486 Part number S040002727, OBSOLETE SCREEN PRINTED COVER 23T OBSOLETE SCREEN PRINTED COVER 23T
Saunier Duval part no. S040002727

1487 Part number S000002516, OBSOLETE OUTER CASE ICON 23T OBSOLETE OUTER CASE ICON 23T
Saunier Duval part no. S000002516

1496 Part number S000002440, Casing, combustion chamber CASING, COMBUSTION CHAMBER
Saunier Duval part no. S000002440
£78.73
1497 Part number S000002446, OBSOLETE FAN PLATE ICON 23T OBSOLETE FAN PLATE ICON 23T
Saunier Duval part no. S000002446

1498 Part number S010002728, NOW USE 0020038527 PUMP BLOCK ICON 23T NOW USE 0020038527 PUMP BLOCK ICON 23T
Saunier Duval part no. S010002728

1498 Part number 0020038527, Pump bloc PUMP BLOC
Saunier Duval part no. 0020038527
£139.71
1499 Part number S020002482, BURNER G20 ICON 23T BURNER G20 ICON 23T
Saunier Duval part no. S020002482
£115.69
1605 Part number S005002722, OBSOLETE GAS/COLD WATER INLET PIPE OBSOLETE GAS/COLD WATER INLET PIPE
Saunier Duval part no. S005002722

1605 Part number S040002919, Back panel, control box BACK PANEL, CONTROL BOX
Saunier Duval part no. S040002919
£39.38
1606 Part number 0020038529, Time switch TIME SWITCH
Saunier Duval part no. 0020038529
£92.86
1606 Part number S047002909, NOW USE 0020038529 TIMECLOCK NOW USE 0020038529 TIMECLOCK
Saunier Duval part no. S047002909

1609 Part number S005002724, OBSOLETE DHW FLOW PIPE HERMANN OBSOLETE DHW FLOW PIPE HERMANN
Saunier Duval part no. S005002724

1610 Part number S005002725, OBSOLETE SAFETY VALVE DISCHARGE PIPE OBSOLETE SAFETY VALVE DISCHARGE PIPE
Saunier Duval part no. S005002725

1611 Part number S013002462, OBSOLETE GAS COCK HERMANN OBSOLETE GAS COCK HERMANN
Saunier Duval part no. S013002462

1660 Part number S005002471, OBSOLETE GAS VALVE/BURNER PIPE OBSOLETE GAS VALVE/BURNER PIPE
Saunier Duval part no. S005002471
