IDEAL
FALCON GTE - (Boiler)
Appliance Code: Falcon GTE

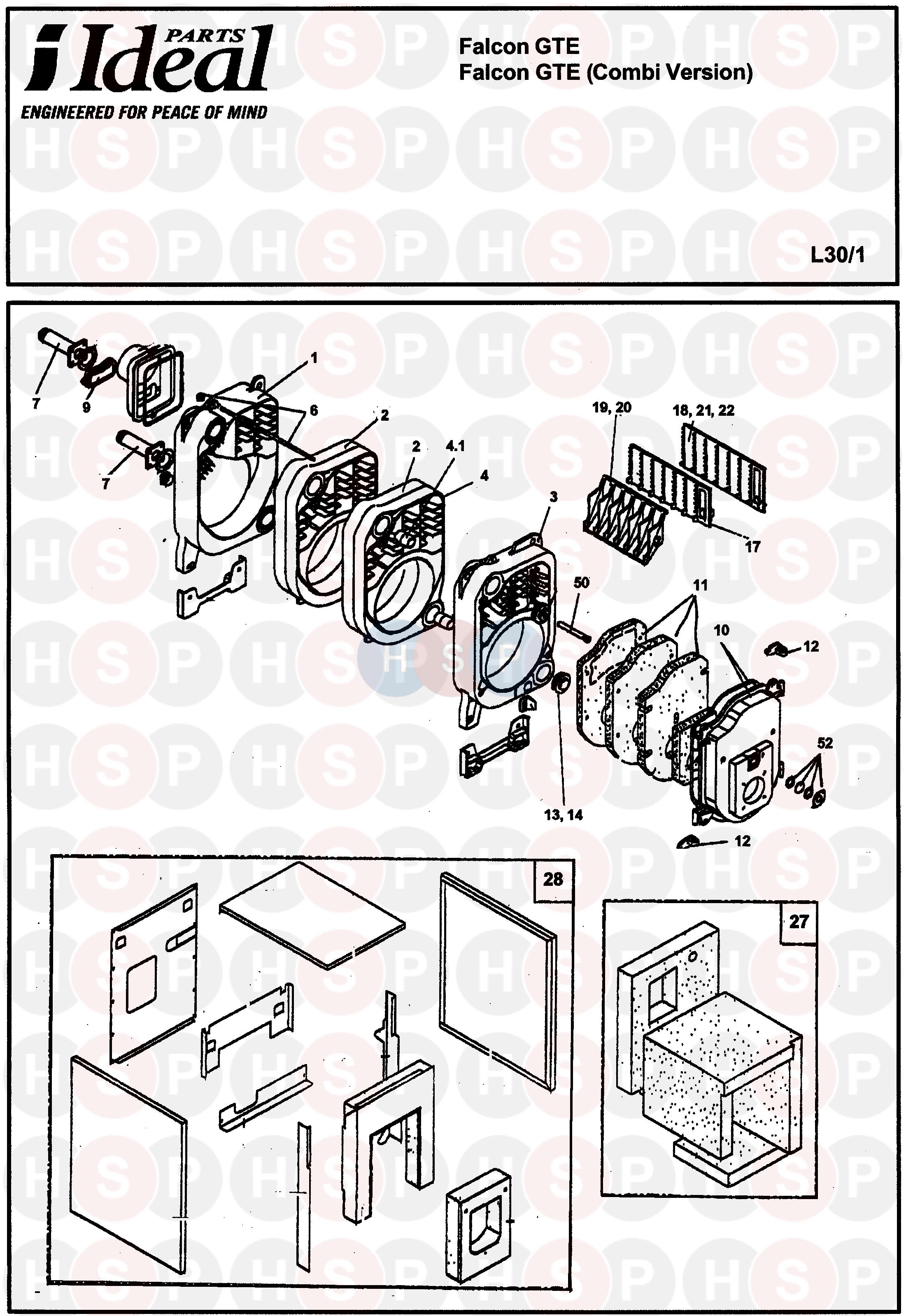

Appliance Diagram


Boiler diagram for Ideal Falcon GTEClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

4   OBSOLETE SECT SET NIPPLES CONC 390-550
Ideal part no. 079924
4   8 MM SILICONE COATED GLASS ROPE 95086036
Ideal part no. 153436		 £16.28
4   THERMOCORD SEAL 10 DIA 95086032
Ideal part no. 170133		 £34.83
5   SET OF TUBES & PLUGS 82275503
Ideal part no. 153437		 £213.93
6   M8-700 ASSEMBLY ROD 6 SECT 82275508
Ideal part no. 153440		 £23.81
6   M8-820 ASSEMBLY ROD 7 SECT 82275509
Ideal part no. 153441		 £23.42
6   M8-1000 ASSEMBLY ROD 8 SECT 82275510
Ideal part no. 153442		 £24.36
6   M8-580 ASSEMBLY ROD 5 SECT 82275507
Ideal part no. 153439		 £19.64
6   M8-440 ASSEMBLY ROD 4 SECT 82275506
Ideal part no. 153438		 £16.85
7   1 1/2 INCH O/LET/RTN TUBE 6/8 97549133
Ideal part no. 153445		 £39.33
7   1 1/4 INCH O/LET/RTN TUBE 4/5 97549135
Ideal part no. 153444		 £35.40
8   150 DIA PAINTED NOZZLE 4/5 SECT 82278503
Ideal part no. 153446		 £88.78
8   180 DIA PAINTED NOZZLE 4/5 SECT 82278504
Ideal part no. 153447		 £130.87
9   SWEEPING TRAP + SEAL 82275511
Ideal part no. 153448		 £31.48
10   COMPLETE FURNACE DOOR 4/5 SECT 82278531
Ideal part no. 153450		 £467.77
10   FURNACE DOOR 6/8 SECT 82278532
Ideal part no. 153451		 £482.14
11   COMP FURNACE DOOR INS 4/5 SECT 82275504
Ideal part no. 153452		 £155.84
11   COMP FURNACE DOOR INS 6/8 SECT 82275505
Ideal part no. 153453		 £209.74
12   ADJUSTABLE PAINTED HINGE 82270201
Ideal part no. 153457		 £21.16
13   1 1/2 INCH PLUG 81060030
Ideal part no. 153458		 £8.85
14   1 1/2IN PLUG WITH 1/2IN TAPPING 81060031
Ideal part no. 153459		 £12.42
15   1/2IN T/STAT POCKET 85000027
Ideal part no. 153460		 £43.43
16   3/4 INCH DRAINING TUBE 97549137
Ideal part no. 153462		 £31.48
17   375MM LONG CENTRAL BAFFLE 82270011
Ideal part no. 153463
18   300MM LONG CENTRAL BAFFLE 82270017
Ideal part no. 153464
19   LEFT HAND BAFFLE 82270012
Ideal part no. 153465		 £59.40
20   LEFT HAND BAFFLE 7/8 SECT 82270020
Ideal part no. 153466		 £52.97
21   375MM LONG RIGHT HAND BAFFLE 82270018
Ideal part no. 153467		 £56.84
22   300MM LONG RIGHT HAND BAFFLE 82270019
Ideal part no. 153468
23   GT210 PAINTED HEIGHT CONVERTER 82270202
Ideal part no. 153469		 £54.14
24   OBSOLETE ADJUSTABLE FOOT 94982110
Ideal part no. 153470
25   BAG OF FASTENERS FOR BODY 82278502
Ideal part no. 153474		 £90.00
26   HOOK FOR BAFFLES 96020671
Ideal part no. 153475		 £3.99
27   COMPLETE BODY INSULATION 4 SECT 82275512
Ideal part no. 153476		 £224.71
27   COMPLETE BODY INSULATION 7 SECT 82275515
Ideal part no. 153479		 £262.26
27   COMPLETE BODY INSULATION 6 SECT 82275514
Ideal part no. 153478		 £256.17
27   COMPLETE BODY INSULATION 5 SECT 82275513
Ideal part no. 153477		 £245.76
27   COMPLETE BODY INSULATION 8 SECT 82275516
Ideal part no. 153480		 £266.02
28   COMPLETE CASING 4 SECT 82278514
Ideal part no. 153481		 £1,195.86
28   COMPLETE CASING 5 SECT 82278515
Ideal part no. 153482		 £1,239.82
28   COMPLETE CASING 8 SECT 82278518
Ideal part no. 153485		 £1,400.29
28   COMPLETE CASING 6 SECT 82278516
Ideal part no. 153483		 £1,403.28
28   COMPLETE CASING 7 SECT 82278517
Ideal part no. 153484		 £1,351.29
29   COMPLETE SIDE PANEL 4 SECT 82278524
Ideal part no. 153486		 £196.74
29   COMPLETE SIDE PANEL 7 SECT 82278527
Ideal part no. 153489		 £231.48
29   COMPLETE SIDE PANEL 5 SECT 82278525
Ideal part no. 153487		 £215.15
29   COMPLETE SIDE PANEL 6 SECT 82278526
Ideal part no. 153488		 £125.81
29   COMPLETE SIDE PANEL 8 SECT 82278528
Ideal part no. 153490		 £258.32
30   LOWER SIDE PIECE 6 SECT 82278015
Ideal part no. 153493		 £19.53
30   LOWER SIDE PIECE 8 SECT 82278017
Ideal part no. 153495		 £21.73
30   LOWER SIDE PIECE 7 SECT 82278016
Ideal part no. 153494		 £20.96
30   LOWER SIDE PIECE 5 SECT 82278014
Ideal part no. 153492		 £16.52
30   LOWER SIDE PIECE 4 SECT 82278005
Ideal part no. 153491		 £14.97
31   COMPLETE REAR UPPER CROSS BAR 82278543
Ideal part no. 153496		 £55.50
32   COMPLETE COVER 6 SECT 81998841
Ideal part no. 153499		 £133.69
32   COMPLETE COVER 5 SECT 81998831
Ideal part no. 153498		 £143.35
32   COMPLETE COVER 4 SECT 81998830
Ideal part no. 153497		 £123.86
32   COMPLETE COVER 8 SECT 82278530
Ideal part no. 153501		 £148.66
32   COMPLETE COVER 7 SECT 82278529
Ideal part no. 153500		 £137.63
33   SINGLE PIECE REAR PANEL 82278558
Ideal part no. 153502		 £134.87
34   PAINTED FURNACE DOOR 82270504
Ideal part no. 153503		 £29.98
35   COMPLETE GT210 FRT PANEL 82278512
Ideal part no. 153504
36   PAINTED LOWER PANEL 82278544
Ideal part no. 153505		 £86.56
37   BAG OF FASTENERS FOR CASING 82278513
Ideal part no. 153506		 £65.22
38   COMPLETE CONTROL PANEL 81998916
Ideal part no. 153507
39   COMPLETE COMPONENT SUPPORT 81998917
Ideal part no. 153508		 £310.03
40   ELECTROMAGNETICAL FRT PLATE 97509009
Ideal part no. 153509		 £22.79
41 Part number 153510, TWO POLE GREEN ON/OFF SWITCH 95325027 TWO POLE GREEN ON/OFF SWITCH 95325027
Ideal part no. 153510		 £20.41
42   6.3 AT FUSE 95340249
Ideal part no. 153513
43   CLIP-IN FUSE HOLDER (4.8 X 0.5)96550069
Ideal part no. 153514		 £11.21
44   CONTROL STAT (85000004)
Ideal part no. 067559		 £193.70
44 Part number 067558, CONTROL STAT 95365574 (was 85000002) CONTROL STAT 95365574 (WAS 85000002)
Ideal part no. 067558		 £142.40
45   THERMOMETER 95365157
Ideal part no. 153518		 £67.59
46   CP ELECTRICAL CIRCUIT 81994906
Ideal part no. 153519		 £195.46
47   SENSOR ELECRICAL CIRCUIT 81994907
Ideal part no. 153520		 £73.87
48   BURNER CABLE 81994908
Ideal part no. 153521		 £54.99
49   FASTENERS+ACC FOR CONT. PANEL 81998984
Ideal part no. 153522		 £25.10
50 Part number 065868, T/STAT ES 85000031 BUCC T/STAT ES 85000031 BUCC
Ideal part no. 065868		 £311.55
50   THERMOSTAT POCKET 1/2 95365611
Ideal part no. 065861		 £39.44
52 Part number 065898, SIGHT GLASS & GASKETS 80157700 SIGHT GLASS & GASKETS 80157700
Ideal part no. 065898		 £31.23
506   THERMOMETER 8500-0014
Ideal part no. 171085		 £62.04
524   LIMIT THERMOSTAT 8801-4700
Ideal part no. 171105
