BOILING WATER DISPENSER 2.5 LTR - (Exploded View)
Appliance Code: 2.5 LTR

Appliance Diagram

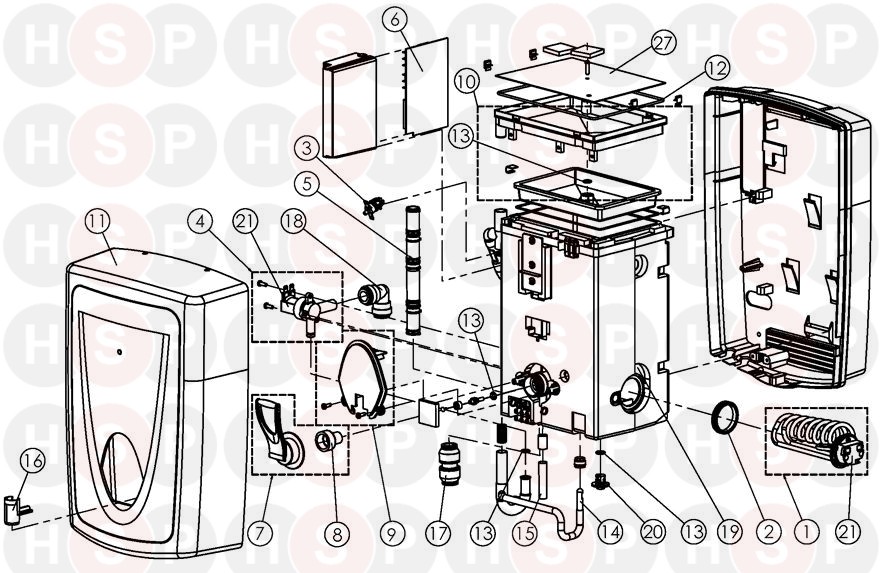

Exploded View diagram for Main Boiling Water Dispenser 2.5 LTRClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   NOW USE 7787840 ELEMENT ASSEMBLY (INCORPORATING START DRY CUTOUT)
Main part no. 95607952
1   ELEMENT ASSY CUTOUT
Main part no. 7787840		 £88.52

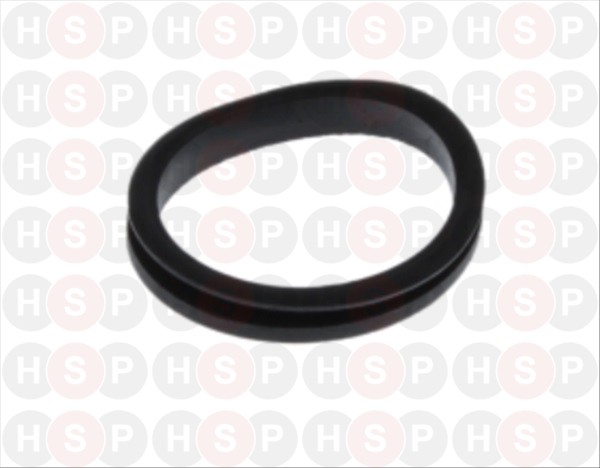

2 Part number 95611816, GASKET ELMT ASSY SEAL GASKET ELMT ASSY SEAL
Main part no. 95611816		 £7.18
3 Part number 95612001, CUT OUT PRIMARY CONDENSER CUT OUT PRIMARY CONDENSER
Main part no. 95612001		 £6.18
4 Part number 95605877, SOLENOID VALVE ASSY SOLENOID VALVE ASSY
Main part no. 95605877		 £54.31
5   LEVEL SENSOR ASSY 2.5L
Main part no. 95606971		 £60.86
6 Part number 95615007, NOW USE 95615076 CIRCUIT BOARD NOW USE 95615076 CIRCUIT BOARD
Main part no. 95615007
6 Part number 95615076, PCB 2.5L 5.0L 7.5L SUPREME PCB 2.5L 5.0L 7.5L SUPREME
Main part no. 95615076		 £65.98

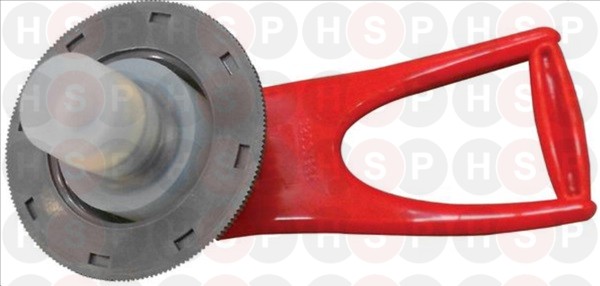

7 Part number 95605071, OUTLET TAP HEADWORK INC HANDLE OUTLET TAP HEADWORK INC HANDLE
Main part no. 95605071		 £36.29
8 Part number 95611731, SEAL TAP CUP OUTLET SINGLE SEAL TAP CUP OUTLET SINGLE
Main part no. 95611731		 £20.76
9   BEZEL FOR TAP & COVER
Main part no. 95605072		 £4.65
10   CONDENSER STEAM ASSY
Main part no. 95607015		 £40.09
11   MAIN BOILING WATER COVER ASSY
Main part no. 95614310		 £40.99
12 Part number 95611817, SEAL CONDENSER STEAM SEAL CONDENSER STEAM
Main part no. 95611817		 £7.11
13   KIT O RING
Main part no. 95611002		 £6.55
14   MANIFOLD ASSY 2.5L
Main part no. 95607206		 £51.05
15 Part number 95604668, SPOUT TAP INNER SPOUT TAP INNER
Main part no. 95604668		 £6.18
16   SPOUT OUTLET - COVER
Main part no. 95604001		 £6.84
17 Part number 95607509, CONNECTOR 15mm PUSH FIT POU CONNECTOR 15MM PUSH FIT POU
Main part no. 95607509		 £12.45
18 Part number 95607510, CONNECT ELBOW 90D 15MM P/FIT CONNECT ELBOW 90D 15MM P/FIT
Main part no. 95607510		 £14.93
19   TANK SUPREME 140 02 / QUADRO
Main part no. 95608926		 £108.48
20 Part number 95608929, DRAIN PLUG SUPREME / QUADRO DRAIN PLUG SUPREME / QUADRO
Main part no. 95608929		 £4.44
21 Part number 95612691, ELEMENT CUT OUT ELEMENT CUT OUT
Main part no. 95612691		 £29.33
22 Part number 95605839, COIL VALVE SOLENOID COIL VALVE SOLENOID
Main part no. 95605839		 £15.01
23   KIT FITTNG SS SUPREME 150`05
Main part no. 95607024		 £8.24

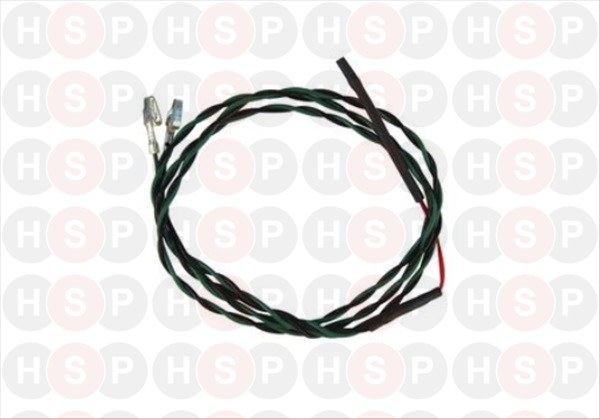

24   HARNESS WIRING 4WAY INC DIODES
Main part no. 95612006		 £5.95
25   30AMP POWER RELAY-ALL ELECMAX
Main part no. 95607209		 £32.84
26 Part number 95612696, CONTROL THERMISTOR CONTROL THERMISTOR
Main part no. 95612696		 £34.68
27   2.5L STEAM PLATE
Main part no. 7030857		 £22.54
