MAIN
ECO COMPACT 25 COMBI - (Heat Exchanger)
Appliance Code: 47-467-14

Appliance Diagram

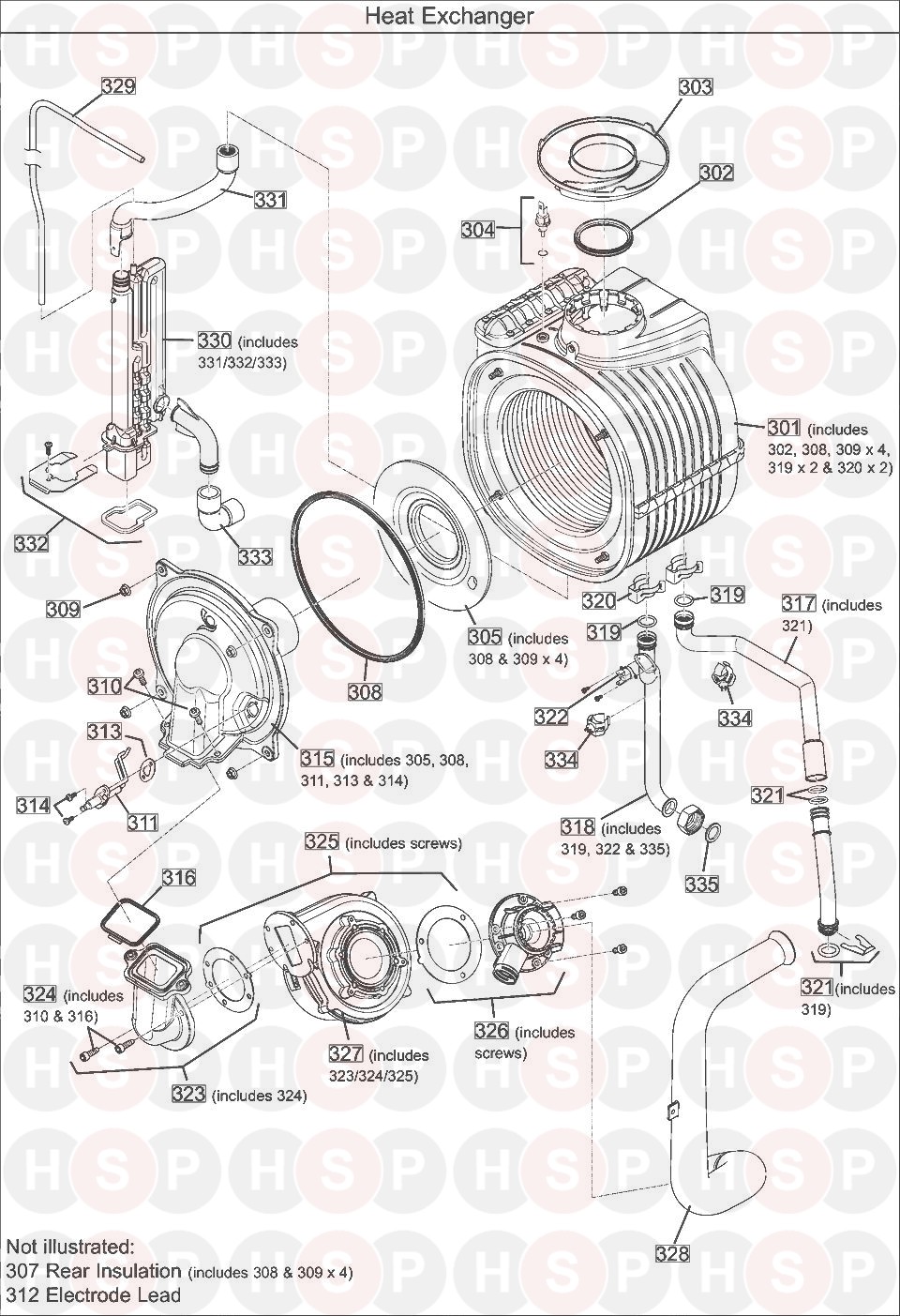

Heat Exchanger diagram for Main Eco Compact 25 CombiClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

301 Part number 7661748, HEAT EXCHANGER ASSY HEAT EXCHANGER ASSY
Main part no. 7661748
£404.15
302   SEAL 60MM HEAT EX TO FLUE
Main part no. 7662116
£13.39
303   KIT DRIP TRAY
Main part no. 7683854
£13.67
304   NTC SENSOR INC SEAL
Main part no. 7662034
£24.27
305   FRONT INSULATION ASSY
Main part no. 7661745
£61.30
307   REAR INSULATION ASSY
Main part no. 7661741
£68.09
308   FLANGE GASKET
Main part no. 7662076
£14.34
309   NUT WITH FLANGE M6
Main part no. 710116001
£2.24
310   SCREW M6X20 TORX (PACK OF 2)
Main part no. 7663232
£1.91
311   IGNITION ELECTRODE
Main part no. 7686344
£57.78

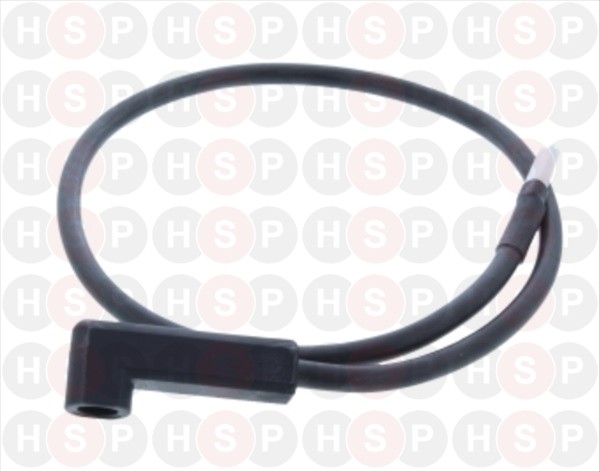

312 Part number 720766201, IGNITION ELECTRODE CABLE IGNITION ELECTRODE CABLE
Main part no. 720766201
£26.77
313   GASKET - ELECTRODE
Main part no. 7662110
£8.83
314   SCREW M4X10 TORX (PK 2)
Main part no. 7661812
£2.44
315   KIT BURNER DOOR ASSY
Main part no. 7686323
£184.34
316   SEAL - COMBUSTION UNIT
Main part no. 7662082
£5.29
317   KIT RETURN PIPE ASSY
Main part no. 7683913
£48.60
318   KIT FLOW PIPE ASSY
Main part no. 7683915
£42.86
319   O-RING
Main part no. 248428
£3.44
320   FIXING CLIP
Main part no. 5114690
£4.04
321   KIT RET PIPE O-RINGS AND CLIP
Main part no. 7683914
£5.99

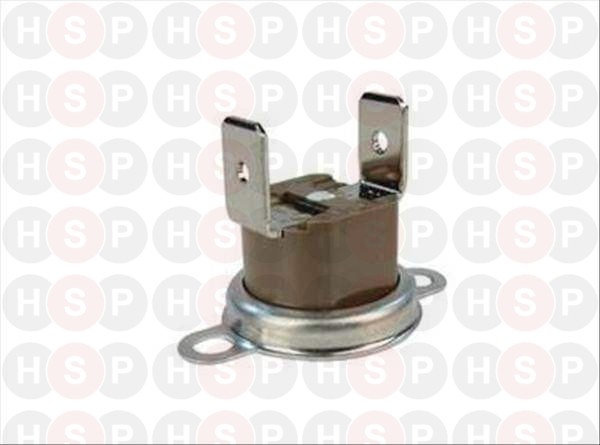

322 Part number 720765301, LIMIT THERMOSTAT 105C LIMIT THERMOSTAT 105C
Main part no. 720765301
£15.92
323   KIT MANIFOLD ASSY
Main part no. 7683916
£60.86
324   KIT MANIFOLD SCREWS AND SEAL
Main part no. 7683862
£27.37
325   KIT FAN ASSEMBLY
Main part no. 7683926
£134.71
326   VENTURI 24 - 28 KW
Main part no. 7211858
£83.29
327   KIT FAN ASSEMBLY COMPLETE
Main part no. 7683928
£200.56
328   AIR INLET TUBE INC SILENCER
Main part no. 7715923
£15.58
329   NOW USE 7814596 KIT RAIN DRIP PIPE
Main part no. 7683855

329   KIT 9MM CON TRAP ASSY CW APAPT
Main part no. 7814596
£80.78
330   KIT 9MM CON TRAP ASSY CW APAPT
Main part no. 7814596
£80.78
330   NOW USE 7814596 KIT CONDENSATE TRAP ASSY
Main part no. 7683856

331   KIT CONDENSATE PIPE
Main part no. 7683857
£24.44
332   KIT TRAP PLATE-GASKET-SCREWS
Main part no. 7683912
£10.31
333   NOW USE 7787376 ELBOW - CONDENSATE PIPE
Main part no. 7210676

333   ELBOW - CONDENSATE PIPE
Main part no. 7787376
£11.60
334 Part number 720747101, THERMODISC SENSOR - PACK OF 2 THERMODISC SENSOR - PACK OF 2
Main part no. 720747101
£18.62
335   G3/4 FIBRE WASHER
Main part no. 720910201
£15.79
