MAIN
MULTIPOINT BF WATER HEATER - (Case Assembly)
Appliance Code: 52-467-01

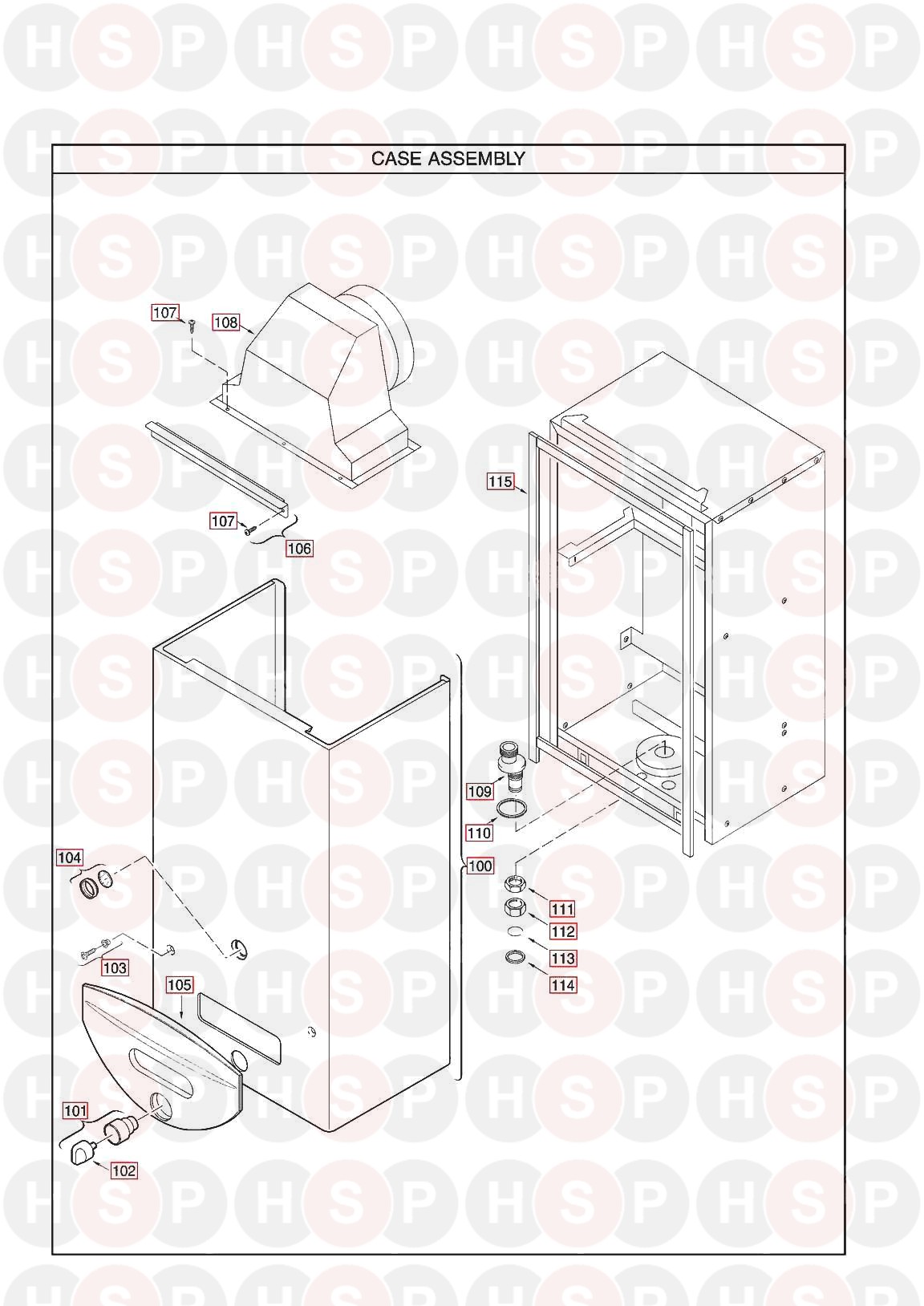

Appliance Diagram


Case Assembly diagram for Main Multipoint BF Water HeaterClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

100   OUTER CASE
Main part no. 5110843
£299.62

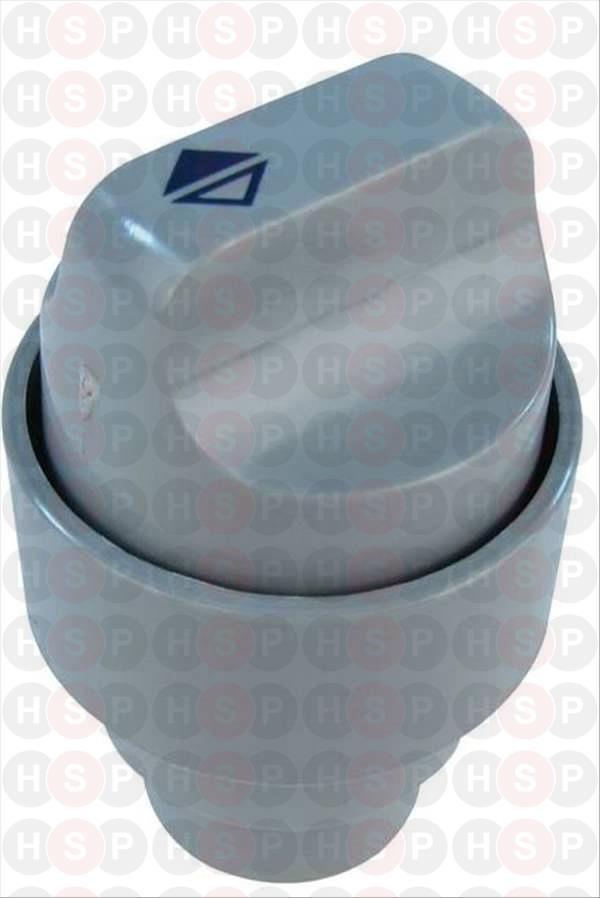

101 Part number 5110844, KNOB & BEZEL KNOB & BEZEL
Main part no. 5110844
£17.75
102   KNOB
Main part no. 5110845
£15.32
103   SCREW (PACK 10)
Main part no. 5110846
£20.74
104 Part number 5110847, VIEWING WINDOW VIEWING WINDOW
Main part no. 5110847
£17.22
105   FACIA
Main part no. 5110848
£42.88
106   ANGLE BRACKET
Main part no. 5110849
£35.31
107   SCREW M4.2 X 9.5 (PACK 10)
Main part no. 5110850
£4.46
108   FLUE GAS COLLECTOR
Main part no. 5110851
£158.99
109   CONNECTOR
Main part no. 5110852
£39.14
110   WASHER 45 X 39X 1.5MM
Main part no. 5110853
£14.73
111   NUT M28 X 1.5
Main part no. 5110854
£9.97
112   NUT M30 X 1.5
Main part no. 5110855
£5.24
113   WIRE FORM SPRING
Main part no. 5110856
£5.91
114   WASHER 1"
Main part no. 5110857
£5.91
115 Part number 5110858, CASE SEAL CASE SEAL
Main part no. 5110858
£70.99
