MYSON
MIDAS SI > S/N 797052 DATE 9103 1991 - (Appliance Overview)
Appliance Code: 47-494-02

Appliance Diagram


Appliance Overview diagram for Myson Midas SI > S/N 797052 Date 9103 1991Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

3   OBSOLETE OUTER CASE ASSY
Myson part no. 404A050
5 Part number S/108/12, OBSOLETE SCREW NO.8X3/8 PN HD POZI OBSOLETE SCREW NO.8X3/8 PN HD POZI
Myson part no. S/108/12
7   OBSOLETE L.H.PANEL ASSY.
Myson part no. 404A010
8   OBSOLETE R.H.SIDE PANEL ASSY.
Myson part no. 404A011
10   OBSOLETE OUTER CASE BASE PLATE ASS
Myson part no. 404A199
13   OBSOLETE ASSY.S/W INNER CASE FRONT
Myson part no. 404A016
14   OBSOLETE 8 X 1/2 STEEL SCREW
Myson part no. 168S
17 Part number 402A2476, OBSOLETE ASSY.WINDOW OBSOLETE ASSY.WINDOW
Myson part no. 402A2476
19   OBSOLETE BURNER ASSY.
Myson part no. 404A006
20   OBSOLETE BURNER.
Myson part no. 404S278
21   OBSOLETE SHIELD PILOT
Myson part no. 402C2509
27 Part number 404A921, OBSOLETE ASSY SPARK ELECTRODE OBSOLETE ASSY SPARK ELECTRODE
Myson part no. 404A921
30   OBSOLETE ASSY FLUE HOOD
Myson part no. 404A686
33   OBSOLETE FLUE HOOD BAFFLE
Myson part no. 404C062
34   OBSOLETE SCREW
Myson part no. 11/11592
35 Part number 404A277, OBSOLETE ASSY FAN & PLUG OBSOLETE ASSY FAN & PLUG
Myson part no. 404A277
36   GASKET
Myson part no. 404C209
37   OBSOLETE GASKET
Myson part no. 404C317
37   OBSOLETE PLATE FAN MOUNTING
Myson part no. 404C196
39 Part number 404A213, ASSY AIR FLOW SENSOR ASSY AIR FLOW SENSOR
Myson part no. 404A213		 £96.86
43   OBSOLETE TUBE PRESSURE
Myson part no. 404C194
44   OBSOLETE TUBE OUTER FLUE.
Myson part no. 404C488
46   OBSOLETE COMBUSTION CHAMBER FRONT PLA
Myson part no. 404C074
49   OBSOLETE ASSY RIVBUSH AIR GUIDE L.
Myson part no. 404A455
50   OBSOLETE INSULATION C/CHMB FRONT-BAGGED
Myson part no. 404C202
51   OBSOLETE INSULATION C/CHMB REAR- BAGGED
Myson part no. 404C203
54   OBSOLETE MIDAS 110 FIN
Myson part no. 404A915
55   OBSOLETE NUT 22MM UNION
Myson part no. 402C168
56   OBSOLETE 22MM OLIVE.
Myson part no. 402C169
57   OBSOLETE LOCKNUT 22MM
Myson part no. 402C066
58   OBSOLETE WASHER M27
Myson part no. 403C148
65   OBSOLETE GASKET
Myson part no. 404C252
67   OBSOLETE SEALING PLATE.
Myson part no. 404C264
69 Part number 404C187, NOW USE 307C798 FOAM SEAL. NOW USE 307C798 FOAM SEAL.
Myson part no. 404C187
69 Part number 307C798, FOAM SEAL FOAM SEAL
Myson part no. 307C798		 £18.94
70   OBSOLETE PLATE RETAINING
Myson part no. 402C1658
71   OBSOLETE GASKET
Myson part no. 404C519
82   OBSOLETE SWITCH 2 WAY
Myson part no. 208S647
83   OBSOLETE ASSY FACIA PANEL
Myson part no. 404A627
87   OBSOLETE WIRING HARNESS & POTENTIOMETER
Myson part no. 404A041
88   OBSOLETE ASSY CONTROL KNOB
Myson part no. 404A039
99   OBSOLETE ASSY TRANS WIRING HARNESS
Myson part no. 404A049
101   OBSOLETE ASSY TERMINAL BLOCK 10 W
Myson part no. 404A923
111   OBSOLETE ASSY WIRE HARNESS
Myson part no. 404A748
112   OBSOLETE ASSY WIRE HARNESS
Myson part no. 404A700
116   OBSOLETE CROSS TIE
Myson part no. 404C714
120 Part number 404C111, OBSOLETE SENSOR D.H.W. INLET (BLUE) OBSOLETE SENSOR D.H.W. INLET (BLUE)
Myson part no. 404C111
121 Part number 404C112, OBSOLETE SENSOR C.H. FLOW (GREY) OBSOLETE SENSOR C.H. FLOW (GREY)
Myson part no. 404C112		 £33.00
122 Part number 404C622, OBSOLETE SENSOR D.H.W. FLOW (RED) OBSOLETE SENSOR D.H.W. FLOW (RED)
Myson part no. 404C622
125 Part number 404S122, SAFETY VALVE COMP WITH BUNG & SAFETY VALVE COMP WITH BUNG &
Myson part no. 404S122		 £55.16
127   OBSOLETE HEAT EXCHANGER DOMESTIC WATER
Myson part no. 404A007
138   OBSOLETE NUT COMPRESSION M20
Myson part no. 403C098
139   OBSOLETE OLIVE 15MM I/D
Myson part no. 403C102
140   OBSOLETE LOCKNUT M20
Myson part no. 403C097
141   OBSOLETE WASHER M20
Myson part no. 403C147
142   OBSOLETE ASSY INLET PIPE D/W HT/EX
Myson part no. 404A030
143   OBSOLETE NUT UNION 22 DIA
Myson part no. 404C176
144   OBSOLETE FLANGE COMPRESSION 22 DI
Myson part no. 404C178
146   OBSOLETE TAP
Myson part no. 403S267
147   OBSOLETE NUT PUMP UNION
Myson part no. 404S168
148   OBSOLETE GASKET
Myson part no. 404C588
148   OBSOLETE NON RETURN VALVE 404S463
Myson part no. 69001805
149   OBSOLETE WASHER.
Myson part no. 404C587
151   OBSOLETE PIPE BY PASS
Myson part no. 404C126
152   OBSOLETE NUT COMPRESSION
Myson part no. 404C182
153   OBSOLETE OLIVE COMPRESSION
Myson part no. 404C183
154   OBSOLETE ASSY FLOW PIPE
Myson part no. 404A027
154   OBSOLETE ISOLATING VALVE 22MM
Myson part no. 404S452
156   OBSOLETE ASSY SAFETY VALVE OUTLET
Myson part no. 404A028
165   OBSOLETE WASHER
Myson part no. 404C499
166   OBSOLETE ASSY EXPANSION PIPE
Myson part no. 404A022
173   OBSOLETE COCK GAS
Myson part no. 305S899
176   OBSOLETE ASSY OUTLET MANIFOLD
Myson part no. 404A024
178   OBSOLETE GASKET
Myson part no. 402C387
179   OBSOLETE INJECTOR BURNER 515 001 1
Myson part no. 404S172
180 Part number 402S3387, NOW USE 402944 OLIVE 4.0MM NOW USE 402944 OLIVE 4.0MM
Myson part no. 402S3387
180   PILOT OLIVE 4MM (STD)
Myson part no. 402944		 £5.71
182   OBSOLETE GASKET
Myson part no. 404C208
184   OBSOLETE EXPANSION VESSEL
Myson part no. 404S114
187   OBSOLETE ASSY RETURN PIPE
Myson part no. 404A033
192   OBSOLETE ASSY.RBUSH BOILER MTG.PLA
Myson part no. 404A195
194   OBSOLETE GASKET.
Myson part no. 309C440
194   OBSOLETE CLAMP RING HALF
Myson part no. 402C1514
197 Part number 402A1304, INNER TERMINAL ASSY. INNER TERMINAL ASSY.
Myson part no. 402A1304		 £120.27
197   OBSOLETE INNER TERMINAL ASSY.
Myson part no. 402A1303
197 Part number 402A1306, OBSOLETE INNER TERMINAL ASSY. OBSOLETE INNER TERMINAL ASSY.
Myson part no. 402A1306
197 Part number 402A1305, OBSOLETE INNER TERMINAL ASSY. OBSOLETE INNER TERMINAL ASSY.
Myson part no. 402A1305
197   OBSOLETE INNER TERMINAL ASSY.
Myson part no. 402A1302

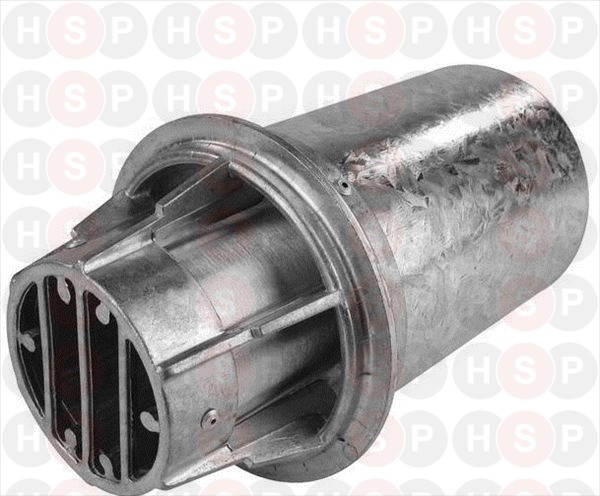

198 Part number 402A1307, OUTER TERMINAL ASSY. OUTER TERMINAL ASSY.
Myson part no. 402A1307
198 Part number 402A1311, OBSOLETE OUTER TERMINAL ASSY. OBSOLETE OUTER TERMINAL ASSY.
Myson part no. 402A1311
198 Part number 402A1308, OBSOLETE OUTER TERMINAL ASSY. OBSOLETE OUTER TERMINAL ASSY.
Myson part no. 402A1308
198 Part number 402A1309, OBSOLETE OUTER TERMINAL ASSY. OBSOLETE OUTER TERMINAL ASSY.
Myson part no. 402A1309

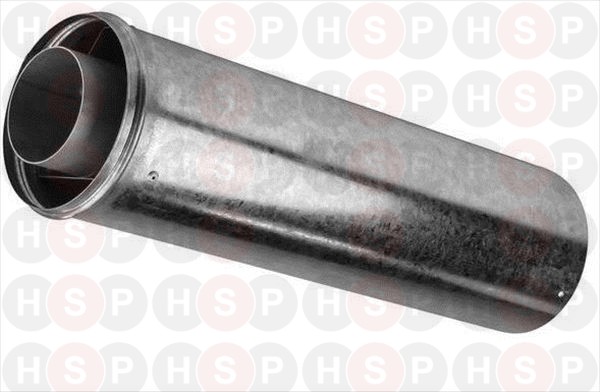

198 Part number 402A1310, OUTER TERMINAL ASSY. OUTER TERMINAL ASSY.
Myson part no. 402A1310		 £213.78
200   OBSOLETE SEALING TAPE
Myson part no. 402C1396
201   OBSOLETE PLATE SEALING OUTER
Myson part no. 402C1327
202   OBSOLETE ASSY OUTER WALL PLATE
Myson part no. 402A1325
204   OBSOLETE EXTENDED FLUE TERMINAL
Myson part no. THL062128
205   OBSOLETE SEALS PACK SPARES ONLY
Myson part no. 404A491
220   OBSOLETE PRESSURE GAUGE
Myson part no. 800S102

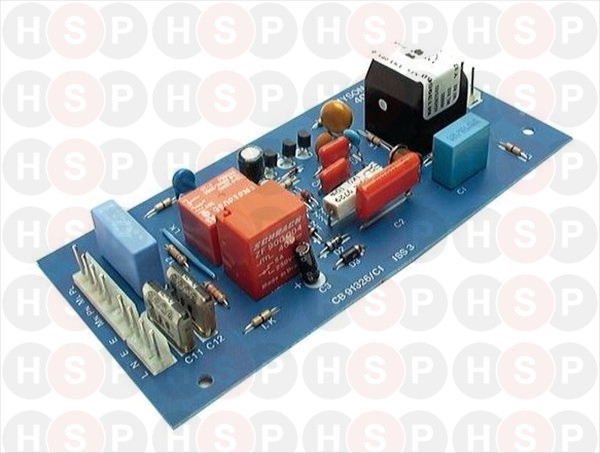

221 Part number 404S670, OBSOLETE PCB ELECTRONIC IGNITION OBSOLETE PCB ELECTRONIC IGNITION
Myson part no. 404S670
222   MIDAS SFI FINAL ASSEMBLY
Myson part no. 404C656		 £427.25
223   OBSOLETE PRESSURE SWITCH
Myson part no. 404S667
224   CLOCK PROGRAMMER
Myson part no. 404S634
224   CLOCK ELECTRO/MECHANICAL
Myson part no. 10/19114
227   OBSOLETE ASSY DOM WATER OUTLET PIP
Myson part no. 404A673
229   OBSOLETE MOULDING FACIA SCREEN PR
Myson part no. 404A628
230   OBSOLETE ASSY MANIFOLD
Myson part no. 404A688
231   OBSOLETE 15.0MM ISOLATING VALVE.
Myson part no. 404S798
233   OBSOLETE ASSY PIPE VENT
Myson part no. 404A638
237   OBSOLETE INDICATOR LIGHT
Myson part no. 404S671
239   SWITCH ROCKER 3 POS"N
Myson part no. 404S684
240   OBSOLETE WATER FILTER
Myson part no. 403C263
243   OBSOLETE PUSH ROD.
Myson part no. 404C919
245   OBSOLETE SILICONE SLEEVE.
Myson part no. 404C920
248   OBSOLETE INSTALLATION & SERVICE INSTRUCTIONS
Myson part no. 404C781
