POTTERTON COMMERCIAL
SIRIUS 2 FS 90/110 - (Exploded View)
Appliance Code: Sirius 2 FS 90/110

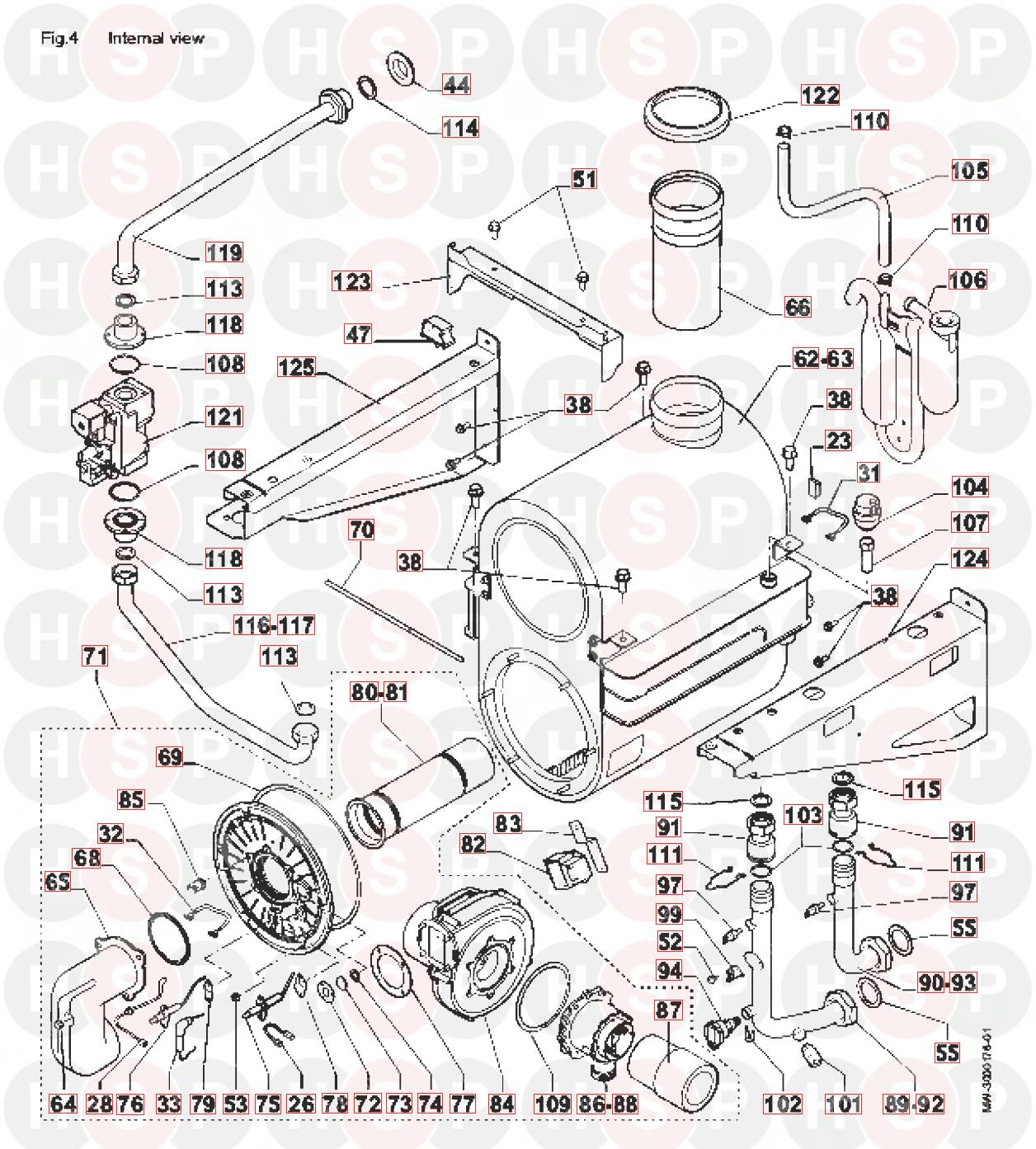

Appliance Diagram


Exploded View diagram for Potterton Commercial Sirius 2 FS 90/110Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   O-RING D:33.05X1.78
Potterton part no. 5132328
£0.85
0   HIGH TEMPERATURE BURNER GASKET
Potterton part no. 5142390
£5.80
0   IGNITION ELECTRODE
Potterton part no. 5142399
£33.16
0   IONISATION PROBE
Potterton part no. 5142400
£26.26
0   FLANGE GASKET
Potterton part no. 5142402
£13.09
0   SERVICE KIT - SIRIUS TWO FS
Potterton part no. 7679647
£71.05
23   THERMAL FUSE
Potterton part no. 5142401
£12.85
26   EARTH CABLE LENGTH 270MM
Potterton part no. 5142395
£4.49
28   SENSOR CABLE (X1)
Potterton part no. 5142448
£32.63
31   THERMAL FUSE HARNESS
Potterton part no. 5142459
£16.19
32   SAFETY THERMOSTAT HARNESS
Potterton part no. 5142469
£13.43
33   IGNITION CABLE
Potterton part no. 5142356
£13.99
38   SCREW H-SERRATED FLG M6-16(X10
Potterton part no. 5142495
£7.15
44   SHEET NUT G1"
Potterton part no. 5142494
£16.32
51   FLANGE SCREW H M8X18 8.8
Potterton part no. 5142485
£0.82
52   SCREW CBL Z ST 2.9-6.5 C ZN
Potterton part no. 5142486
£0.82
53   SERRATED FLANGE NUT H M6
Potterton part no. 5142487
£0.94
55   GREEN GASKET 44X32X2
Potterton part no. 5142482

62   DUO EXCHANGER-90
Potterton part no. 5142343
£2,370.70
63   DUO EXCHANGER-110
Potterton part no. 5142344
£2,113.51
64   NUT M6X75
Potterton part no. 5142388
£7.77
65   AIR/GAS CONVEYOR
Potterton part no. 5141474
£70.46
66   FLUE GAS EXTENSION D:100MM
Potterton part no. 5142413
£62.10
68   HIGH TEMPERATURE BURNER GASKET
Potterton part no. 5142390
£5.80
69   FLANGE GASKET
Potterton part no. 5142402
£13.09
70   GLASS FIBRE D:6, LENGTH 615MM
Potterton part no. 5142348
£4.51
71   COMPLETE BURNER-90
Potterton part no. 5142411
£689.48
71   COMPLETE BURNER-110
Potterton part no. 5142425
£856.07
72   SIGHT GLASS FLANGE
Potterton part no. 5142366
£0.82
73   SIGHT GLASS
Potterton part no. 5142364
£2.92
74   GASKET FOR SIGHT GLASS
Potterton part no. 5142365
£2.33
75   IGNITION ELECTRODE
Potterton part no. 5142399
£33.16
76   IONISATION PROBE
Potterton part no. 5142400
£26.26
77   VENTURI GASKET
Potterton part no. 5142367
£6.14
78   SPARK PLUG GASKET
Potterton part no. 5142369
£19.45
79   IONISATION PROBE GASKET
Potterton part no. 5142368
£19.45
80   BURNER-110
Potterton part no. 5142383
£317.69
81   BURNER-90
Potterton part no. 5142384
£208.78
82   2V IGNITOR
Potterton part no. 5142355
£23.04
83   IGNITER BRACKET
Potterton part no. 5142376
£15.35
84   FAN
Potterton part no. 5142387
£434.64
85   SAFETY THERMOSTAT 260OC
Potterton part no. 5142403
£11.83
86   MIXER WITH BI-VALVE D:38MM
Potterton part no. 5142385
£86.52
87   FLUE GAS SILENCER
Potterton part no. 5142394
£31.83
88   MIXER WITH BI-VALVE D:34MM
Potterton part no. 5142386
£89.97
89   COMPLETE OUTLET PIPE-90
Potterton part no. 5142417
£61.26
90   COMPLETE INLET PIPE-110
Potterton part no. 5142422
£66.01
91   DUO TUBE EXCH FITTING D:28MM
Potterton part no. 5142371
£29.28
91   DUO FITTING G1
Potterton part no. 5142389
£26.77
92   COMPLETE OUTLET PIPE-110
Potterton part no. 5142418
£68.65
93   COMPLETE INLET PIPE-110
Potterton part no. 5142422
£66.01
94   NOW USE 7745954 PRESSURE SENSOR
Potterton part no. 5142362

94   PRESSURE SENSOR
Potterton part no. 7745954
£35.76
97   NTC SENSOR S011021 SMD
Potterton part no. 5142370
£11.26
99   THERMOSTAT 105O
Potterton part no. 5142391
£7.74
101   DRAIN VALVE
Potterton part no. 5142479
£12.36
102   CLIP
Potterton part no. 5142163
£0.99
103   O RING D:28.24X2.62
Potterton part no. 5142349
£1.03
104   AIR VENT 3/8"
Potterton part no. 5142353
£18.00
105   CONDENSATE PIPE
Potterton part no. 5142429
£8.00
106   COMPLETE SIPHON/GASKET
Potterton part no. 5142447
£27.15
107   NIPLE M/F 3/8" L40
Potterton part no. 5142442
£21.91
108   O-RING D:33.05X1.78
Potterton part no. 5132328
£0.85
109   O-RING D:69.44X3.53
Potterton part no. 5142341
£0.85
110   SPRING CLAMP D:18.2MM
Potterton part no. 5142467
£12.47
111   CLIP
Potterton part no. 5142347
£7.91
113   GREEN GASKET
Potterton part no. 5142337

114   GASKET G1"
Potterton part no. 5142336
£4.21
115   GREEN GASKET
Potterton part no. 5142337

115   GREEN GASKET 38X27X2
Potterton part no. 5142481
£0.65
116   COMPLETE GAS PIPE - 90
Potterton part no. 5142436
£33.83
117   COMPLETE GAS PIPE - 110
Potterton part no. 5142437
£32.99
118   GAS VALVE FITTING G1
Potterton part no. 5142164
£22.50
119   COMPLETE GAS INLET PIPE
Potterton part no. 5142435
£67.02
121   GAS VALVE
Potterton part no. 5142342
£155.52
122   CONDENSATE TRAY GASKET
Potterton part no. 5142372
£9.57
123   RIVETED BASE FRAME CROSS BAR
Potterton part no. 5142433
£28.75
124   COMPLETE RIGHT BRACKET FOR DUO
Potterton part no. 5142414
£59.19
125   COMPLETE LEFT BRACKET FOR DUO
Potterton part no. 5142415
£60.75
