POTTERTON
PERFORMA 12 HE SYSTEM - (Secondary Heat Exchanger)
Appliance Code: 41-591-24

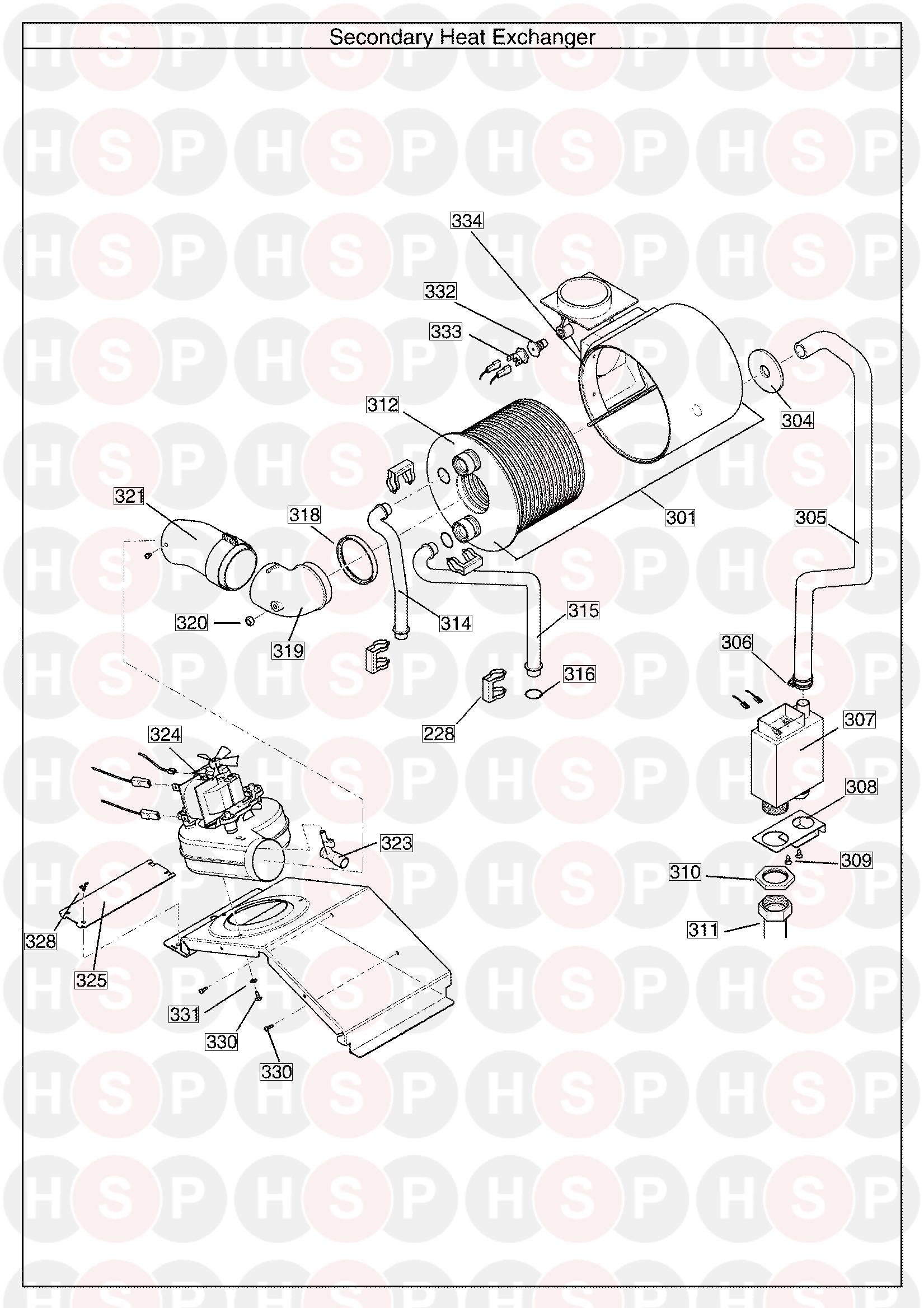

Appliance Diagram


Secondary Heat Exchanger diagram for Potterton Performa 12 HE SystemClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

301 Part number 5112388, SECONDARY HEAT EXCHANGER SECONDARY HEAT EXCHANGER
Potterton part no. 5112388		 £293.93
304 Part number 5112387, GASKET DRAIN CONDENSATE PIPE GASKET DRAIN CONDENSATE PIPE
Potterton part no. 5112387		 £6.05
305 Part number 5112403, CONDENSATE DISCHARGE PIPE CONDENSATE DISCHARGE PIPE
Potterton part no. 5112403		 £18.39
306 Part number 5112404, TOP SPRING CONDENSING PIPE TOP SPRING CONDENSING PIPE
Potterton part no. 5112404		 £3.36
307 Part number 5111978, ASSY CONDENSATE TRAP ASSY CONDENSATE TRAP
Potterton part no. 5111978		 £24.10
308 Part number 5112405, BRACKET SUPPORT TRAP BRACKET SUPPORT TRAP
Potterton part no. 5112405
309   SCREW NO8X9.5 BPAN POZ SZ#
Potterton part no. 670047		 £1.49
310 Part number 244738, KIT FIBRE WASHER AND LOCKNUT KIT FIBRE WASHER AND LOCKNUT
Potterton part no. 244738		 £10.86
311   NUT OUTLET 1" BSP
Potterton part no. 7683432		 £6.05
311 Part number 242820, NOW USE 7683432 NUT OUTLET 1" BSP NOW USE 7683432 NUT OUTLET 1" BSP
Potterton part no. 242820
312 Part number 5112390, FRONT COVER/EXCHANGER ASSY FRONT COVER/EXCHANGER ASSY
Potterton part no. 5112390		 £164.57
314   PIPE CH OUTLET SYSTEM 12/18HE
Potterton part no. 5113292		 £10.43
315 Part number 5112400, RETROFIT INLET CH PIPE RETROFIT INLET CH PIPE
Potterton part no. 5112400		 £19.61
316 Part number 248021, O RING 17.86 x 2.62 O RING 17.86 X 2.62
Potterton part no. 248021		 £3.26
318 Part number 5112391, WASHER 58DIA FRONT BEND WASHER 58DIA FRONT BEND
Potterton part no. 5112391		 £4.71
319   INLET BEND RETROFIT
Potterton part no. 5112392		 £17.94
320   NUT-HEXAGON-M5-STEEL-
Potterton part no. 062440		 £3.11
320   NOW USE 062440 NUT M5
Potterton part no. S/294/5
321 Part number 5112603, BEND-FAN OUTLET 80 HE BEND-FAN OUTLET 80 HE
Potterton part no. 5112603		 £9.58
323 Part number 247417, PRESSURE SENSING VENTURI PRESSURE SENSING VENTURI
Potterton part no. 247417		 £7.37
324 Part number 5113278, FAN - 12/18HE FAN - 12/18HE
Potterton part no. 5113278		 £95.01
325 Part number 248197, DEFLECTOR - AIR DEFLECTOR - AIR
Potterton part no. 248197		 £6.05
328   CLIP - FIXING - DEFLECTOR
Potterton part no. 248198		 £3.26
330   SCREW NO8X9.5 BPAN POZ SZ#
Potterton part no. 670047		 £1.49
331 Part number 617414, WASHER SHAKEPROOF INT M4 S WASHER SHAKEPROOF INT M4 S
Potterton part no. 617414		 £2.32
332 Part number 5112396, SUPPORT-OVERHEAT FLUE STAT SUPPORT-OVERHEAT FLUE STAT
Potterton part no. 5112396		 £3.39
333 Part number 5112395, OVERHEAT FLUE THERMOSTAT OVERHEAT FLUE THERMOSTAT
Potterton part no. 5112395		 £7.37
334 Part number 5112389, WASHER FRONT RETROFIT 152DIA WASHER FRONT RETROFIT 152DIA
Potterton part no. 5112389
