VOKERA
MYNUTE 24 SE REV 8 (07/2014) - (Hydraulics 2)
Appliance Code: 41-094-73

Appliance Diagram


Hydraulics 2 diagram for Vokera Mynute 24 SE Rev 8 (07/2014)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 20029826, NOW USE 20138101 Expansion vessel Rep 20024419 NOW USE 20138101 EXPANSION VESSEL REP 20024419
Vokera part no. 20029826

1 Part number 20138101, 8 Litre Expansion Vessel - Replaced 20029826 8 LITRE EXPANSION VESSEL - REPLACED 20029826
Vokera part no. 20138101
£100.70
2 Part number 10028603, Pipe PIPE
Vokera part no. 10028603
£12.85
3 Part number 10027571, NOW USE 20185332 Pump NOW USE 20185332 PUMP
Vokera part no. 10027571

3   ERP PUMP - REPLACED 10027571 10027258 20039926 & 20005582
Vokera part no. 20185332
£202.10
4 Part number 10025485, Auto air vent bottle (Pump) AUTO AIR VENT BOTTLE (PUMP)
Vokera part no. 10025485
£19.12
7   PIPE
Vokera part no. 20011421
£17.51
7   PIPE
Vokera part no. 20083257

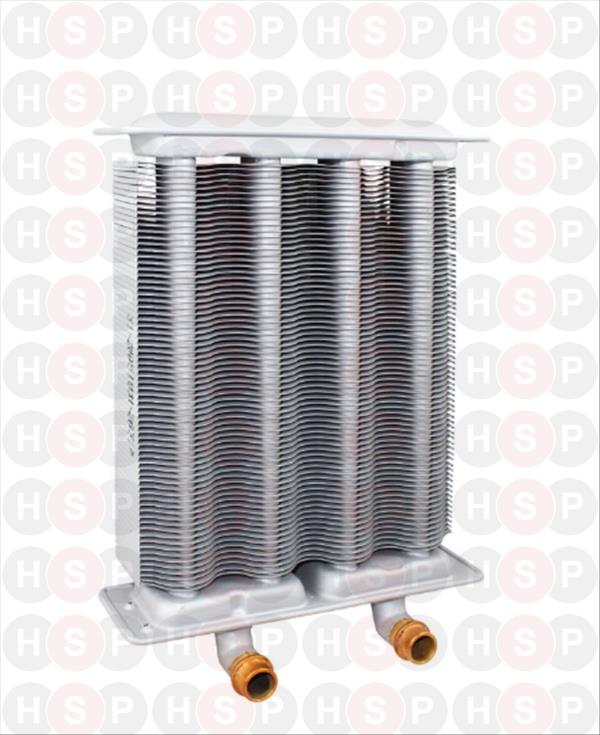

8 Part number 20052578, Main Heat Exchanger Replaced 20011419 MAIN HEAT EXCHANGER REPLACED 20011419
Vokera part no. 20052578
£296.02
8   NOW USE 20185017 HEAT EXCHANGER
Vokera part no. 20067305

8   HEAT EXCHANGER - REPLACED 20067305
Vokera part no. 20185017
£239.88
9   PIPE
Vokera part no. 20011420
£29.71
9   PIPE
Vokera part no. 20083256

200 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023
£0.43
290 Part number 10027757, Locking Pin LOCKING PIN
Vokera part no. 10027757
£0.77
290 Part number 2165, NOW USE 10027757 LOCKING PIN NOW USE 10027757 LOCKING PIN
Vokera part no. 2165

299   WASHER
Vokera part no. 10022726
£2.91
302 Part number 5025, WASHER WASHER
Vokera part no. 5025
£0.92
520 Part number 10027352, Thermistor/NTC Sensor (20004978) THERMISTOR/NTC SENSOR (20004978)
Vokera part no. 10027352
£13.58
624 Part number 5472, Thermostat Clip THERMOSTAT CLIP
Vokera part no. 5472
£1.34
625 Part number 20005585, HIGH LIMIT STAT HIGH LIMIT STAT
Vokera part no. 20005585
£3.08
679   SPRING CLIP
Vokera part no. 20024086
£4.80
680 Part number 20024869, O RING O RING
Vokera part no. 20024869
£0.72
806 Part number 20067813, NTC Sensor NTC SENSOR
Vokera part no. 20067813
£7.49
