VOKERA
MYNUTE 24 SE REV 8 (07/2014) - (Casing Electrics)
Appliance Code: 41-094-73

Appliance Diagram

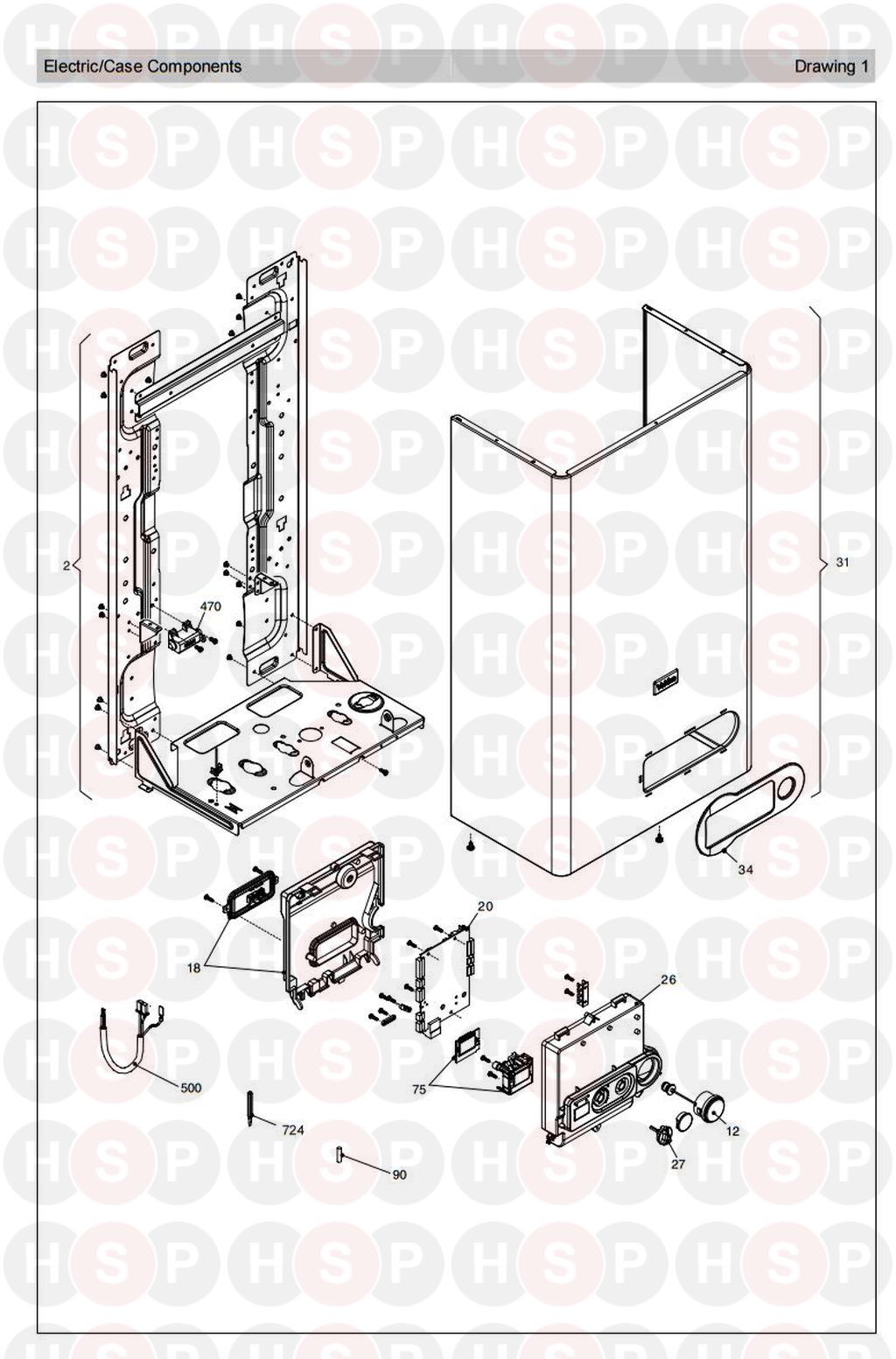

Casing Electrics diagram for Vokera Mynute 24 SE Rev 8 (07/2014)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   FRAME ASSEMBLY
Vokera part no. 20049618
£43.62
12 Part number 20005580, Quick primer pressure gauge QUICK PRIMER PRESSURE GAUGE
Vokera part no. 20005580
£12.49
18 Part number 20026055, CONTROL PANEL COVER CONTROL PANEL COVER
Vokera part no. 20026055
£23.03
20 Part number 20011424, Printed circuit board PRINTED CIRCUIT BOARD
Vokera part no. 20011424
£127.32
26   INSTRUMENTAL PANEL
Vokera part no. 20035501
£14.54
27 Part number 20014025, CONTROL KNOB CONTROL KNOB
Vokera part no. 20014025
£2.07
31   CASE ASSEMBLY
Vokera part no. 20048322
£80.64
34   FIXING FLANGE
Vokera part no. 20026728
£3.19
75 Part number 20011443, Printed circuit board kit PRINTED CIRCUIT BOARD KIT
Vokera part no. 20011443
£43.88
90 Part number 3478, 3 Amp Fuse (individual) 3 AMP FUSE (INDIVIDUAL)
Vokera part no. 3478
£2.05
470 Part number 10026031, Ignition transformer TR6 with wires IGNITION TRANSFORMER TR6 WITH WIRES
Vokera part no. 10026031
£12.17
724   SCREW DRIVER
Vokera part no. 2455
£0.90
800   3 CORE FLY LEAD
Vokera part no. 1547
£8.30
800   CN2 TO M3 MAINS CONNECTION, CLOCK HARNESS, PUMP & GAS VALVE (WITH TYCO LEAD) REPLACED 20005572
Vokera part no. 20035405
£60.74
800   LOW TENSION CABLE
Vokera part no. 20012544
£9.24
