VOKERA
MYNUTE 20 VHE - (Casing Electrics)
Appliance Code: 41-094-70

Appliance Diagram


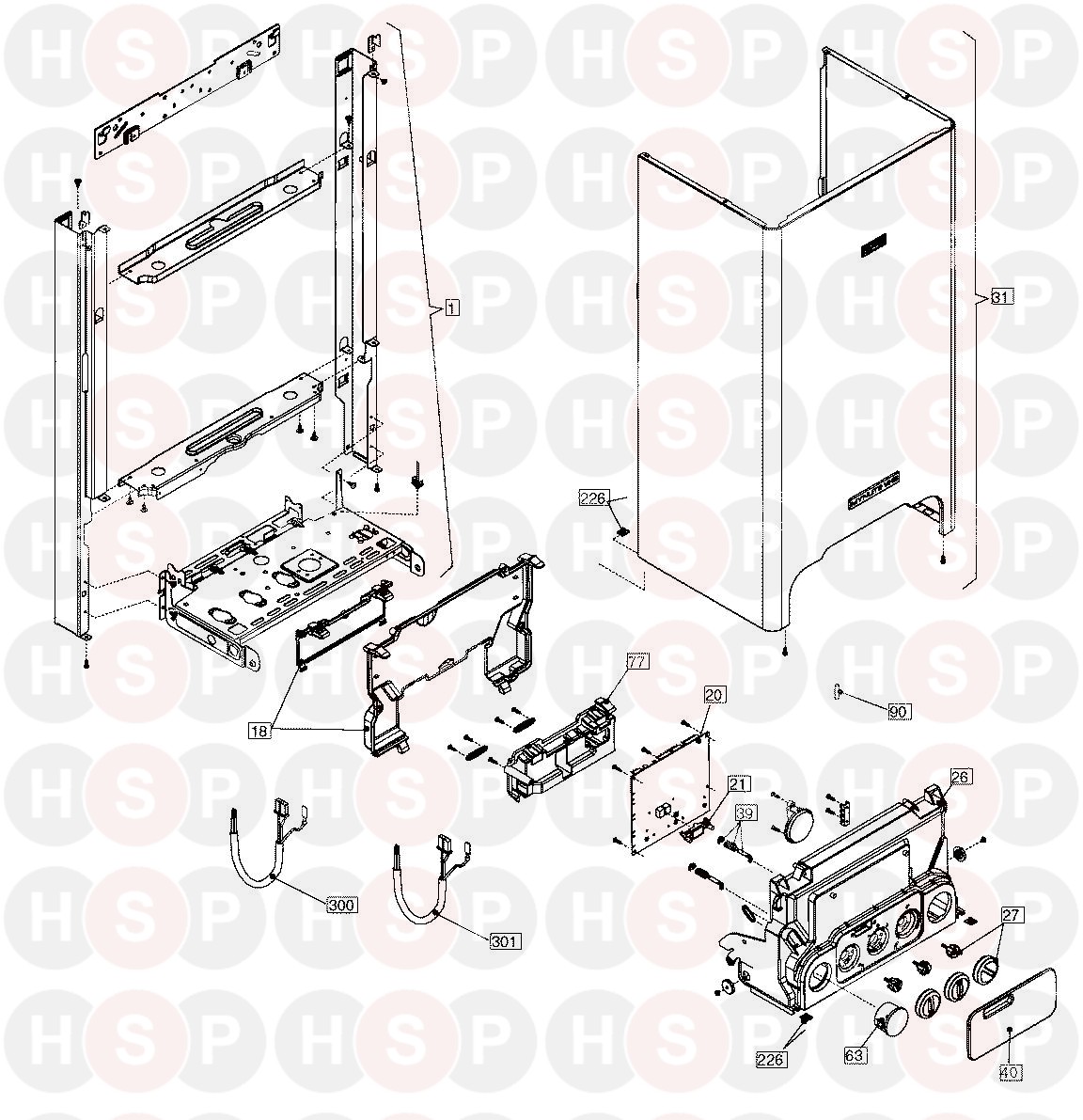

Casing Electrics diagram for Vokera Mynute 20 VHEClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   FRAME
Vokera part no. 01005496
18   COVER ASSEMBLY
Vokera part no. 10028554
£26.22
20 Part number 10029717, Main Printed Circuit Board MAIN PRINTED CIRCUIT BOARD
Vokera part no. 10029717
£194.17
21 Part number 10028557, LED light guide LED LIGHT GUIDE
Vokera part no. 10028557
£4.03
26   INSTRUMENT PANEL
Vokera part no. 10028551
£32.25
27 Part number 10028559, Knob assembly KNOB ASSEMBLY
Vokera part no. 10028559
£5.73
31   CASING
Vokera part no. 01005497
£84.88
39   HINGE ASSEMBLY
Vokera part no. 01005442
£5.92
40 Part number 10028553, NOW USE 10030136 Door panel NOW USE 10030136 DOOR PANEL
Vokera part no. 10028553

40 Part number 10030136, DOOR FLAP DOOR FLAP
Vokera part no. 10030136
£4.57
90 Part number 3478, 3 Amp Fuse (individual) 3 AMP FUSE (INDIVIDUAL)
Vokera part no. 3478
£2.05
300 Part number 10028596, Wiring CN1 to M5 room thermostat & M3 terminal block WIRING CN1 TO M5 ROOM THERMOSTAT & M3 TERMINAL BLOCK
Vokera part no. 10028596
£46.37
301   WIRING HARNESS
Vokera part no. 10029722
£9.02
