ARISTON
ACO 35 HP MFFI R8215284-01EN - EDITION 01 - 02/01/2006 - (Fan Sealed Case)
Appliance Code: 47-116-36

Appliance Diagram


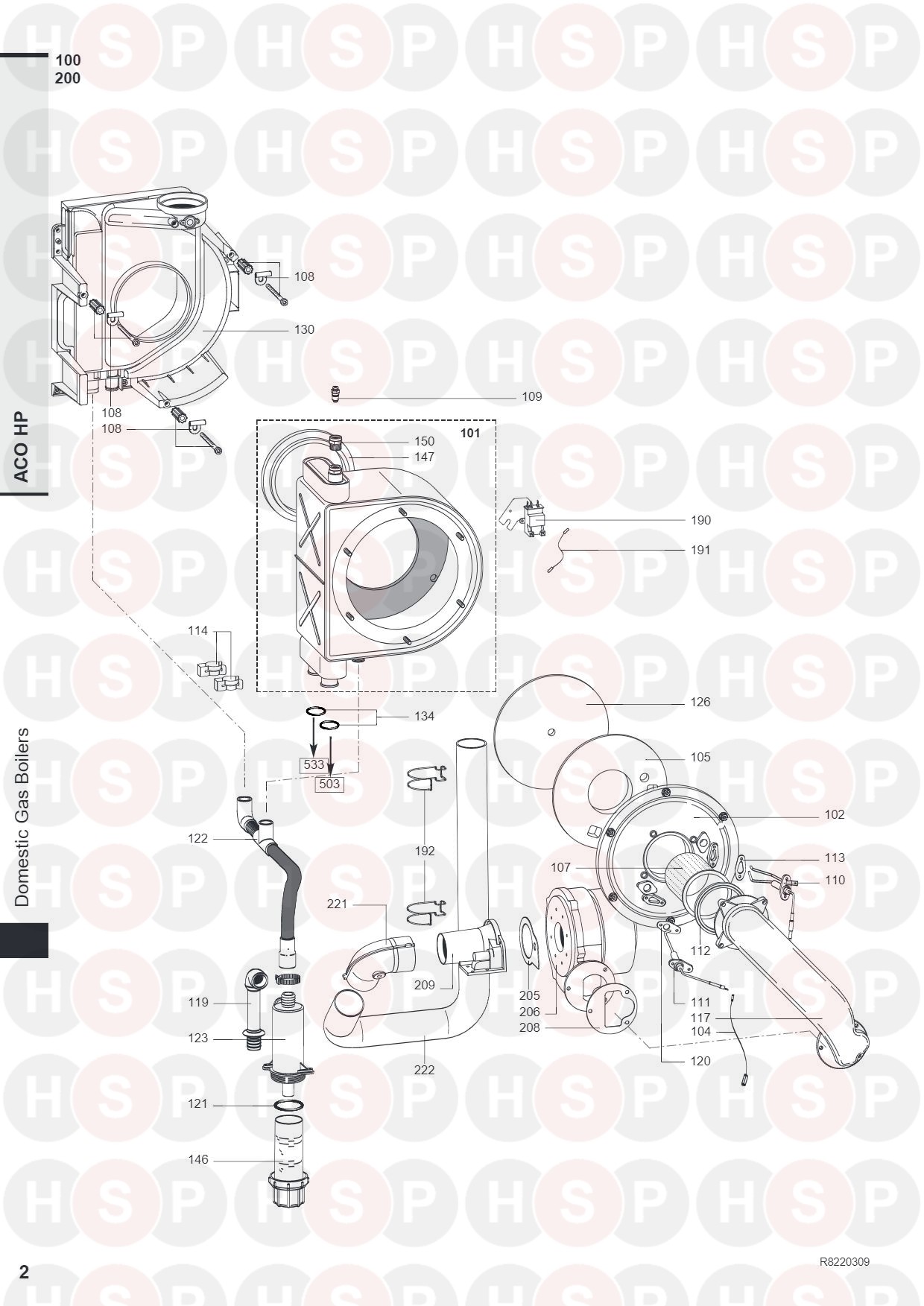

Fan Sealed Case diagram for Ariston ACO 35 HP MFFI R8215284-01EN - Edition 01 - 02/01/2006Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

101 Part number 65109673, EXCHANGER EXCHANGER
Ariston part no. 65109673		 £768.15
101 Part number 65103385, NOW USE 65109673 MAIN EXCHANGER NOW USE 65109673 MAIN EXCHANGER
Ariston part no. 65103385
102   PANEL (EXCHANGER - FRONT)
Ariston part no. 65102227		 £89.08
102   NOW USE 65102227 PANEL (EXCHANGER - FRONT)
Ariston part no. 65103376
104   CABLE (DETECTION ELECTRODE)
Ariston part no. 65103517		 £3.14

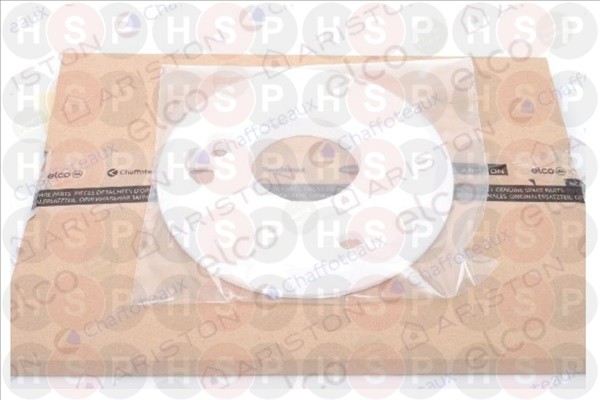

105 Part number 65103360, PANEL (INSULATION - FRONT) PANEL (INSULATION - FRONT)
Ariston part no. 65103360		 £23.35
107   BURNER
Ariston part no. 65103333		 £114.43
108   FIXING KIT
Ariston part no. 65103356		 £18.06
109 Part number 998564, AIR VALVE FITTING AIR VALVE FITTING
Ariston part no. 998564		 £2.65
110 Part number 61317432, IGNITION ELECTRODE IGNITION ELECTRODE
Ariston part no. 61317432		 £29.74
110 Part number 65103358, NOW USE 61317432 ELECTRODE (IGNITION) NOW USE 61317432 ELECTRODE (IGNITION)
Ariston part no. 65103358
111 Part number 61317433, IONISATION ELECTRODE IONISATION ELECTRODE
Ariston part no. 61317433		 £29.83
111 Part number 65103359, NOW USE 61317433 ELECTRODE (DETECTION) NOW USE 61317433 ELECTRODE (DETECTION)
Ariston part no. 65103359
112 Part number 61314753, GASKET D:85-66.5-2.5 (TO 08/11) GASKET D:85-66.5-2.5 (TO 08/11)
Ariston part no. 61314753		 £8.11
113 Part number 60000286-01, GASKET (IGNITION ELECTRODE) (FROM 04/06) GASKET (IGNITION ELECTRODE) (FROM 04/06)
Ariston part no. 60000286-01		 £6.25
113 Part number 65103367, NOW USE 60000286-01 GASKET (IGNITION ELECTRODE) NOW USE 60000286-01 GASKET (IGNITION ELECTRODE)
Ariston part no. 65103367
114 Part number 61307589, CLIP (TO 03/06) CLIP (TO 03/06)
Ariston part no. 61307589		 £2.72
117   GAS PIPE
Ariston part no. 65103520		 £56.56
119 Part number 65102245, DISCHARGE PIPE (CONDENSATE) (TO 06/05) DISCHARGE PIPE (CONDENSATE) (TO 06/05)
Ariston part no. 65102245		 £8.67
119   NOW USE 65102245 OUTSIDE PIPE (CONDENSATE)
Ariston part no. 65103491
120 Part number 65103476, GASKET (IONISATION ELECTRODE) GASKET (IONISATION ELECTRODE)
Ariston part no. 65103476		 £6.64
121 Part number 990695, O-RING (3175 EPDM D=44.9) O-RING (3175 EPDM D=44.9)
Ariston part no. 990695		 £3.38
122   DISCHARGE PIPE (CONDENSATE)
Ariston part no. 65103492		 £24.80
126 Part number 65103361, PANEL (INSULATION - REAR) PANEL (INSULATION - REAR)
Ariston part no. 65103361		 £18.68
130   PIPE (C.H. RETURN)
Ariston part no. 65103495		 £21.83
134 Part number 998424, O-RING O-RING
Ariston part no. 998424		 £1.09
147 Part number 61306030, GASKET D:129.4 (TO 03/06) GASKET D:129.4 (TO 03/06)
Ariston part no. 61306030		 £33.62
150   UNION (AIR RELEASE VALVE)
Ariston part no. 65103477		 £14.23
190   SPARK GENERATOR
Ariston part no. 65103516		 £11.49
191   EARTH CABLE (SPARK GENERATOR)
Ariston part no. 65103518		 £2.86
192   PIPE (SILENCER) SPRING
Ariston part no. 65103515		 £3.00
205   GASKET
Ariston part no. 64201334		 £3.59
205 Part number 61307587, NOW USE 64201334 GASKET NOW USE 64201334 GASKET
Ariston part no. 61307587
206 Part number 61314434, FAN ASSY FAN ASSY
Ariston part no. 61314434		 £208.13
208 Part number 61306072, GASKET GASKET
Ariston part no. 61306072		 £1.92
209   VENTURI D:24
Ariston part no. 61315540		 £55.32
221   ELBOW (FAN SUCTION SILENCER)
Ariston part no. 65103507		 £17.73
222 Part number 65107476, PIPE (SILENCER) PIPE (SILENCER)
Ariston part no. 65107476		 £25.27
222 Part number 990669, NOW USE 65107476 PIPE (SUCTION SILENCER) NOW USE 65107476 PIPE (SUCTION SILENCER)
Ariston part no. 990669
