ARISTON
MICROSYSTEM 10 RFFI EDITION 1 (FROM SERIAL NO 2320021100001 TO 2320024900001) - (Exploded View)
Appliance Code: 41-116-04

Appliance Diagram


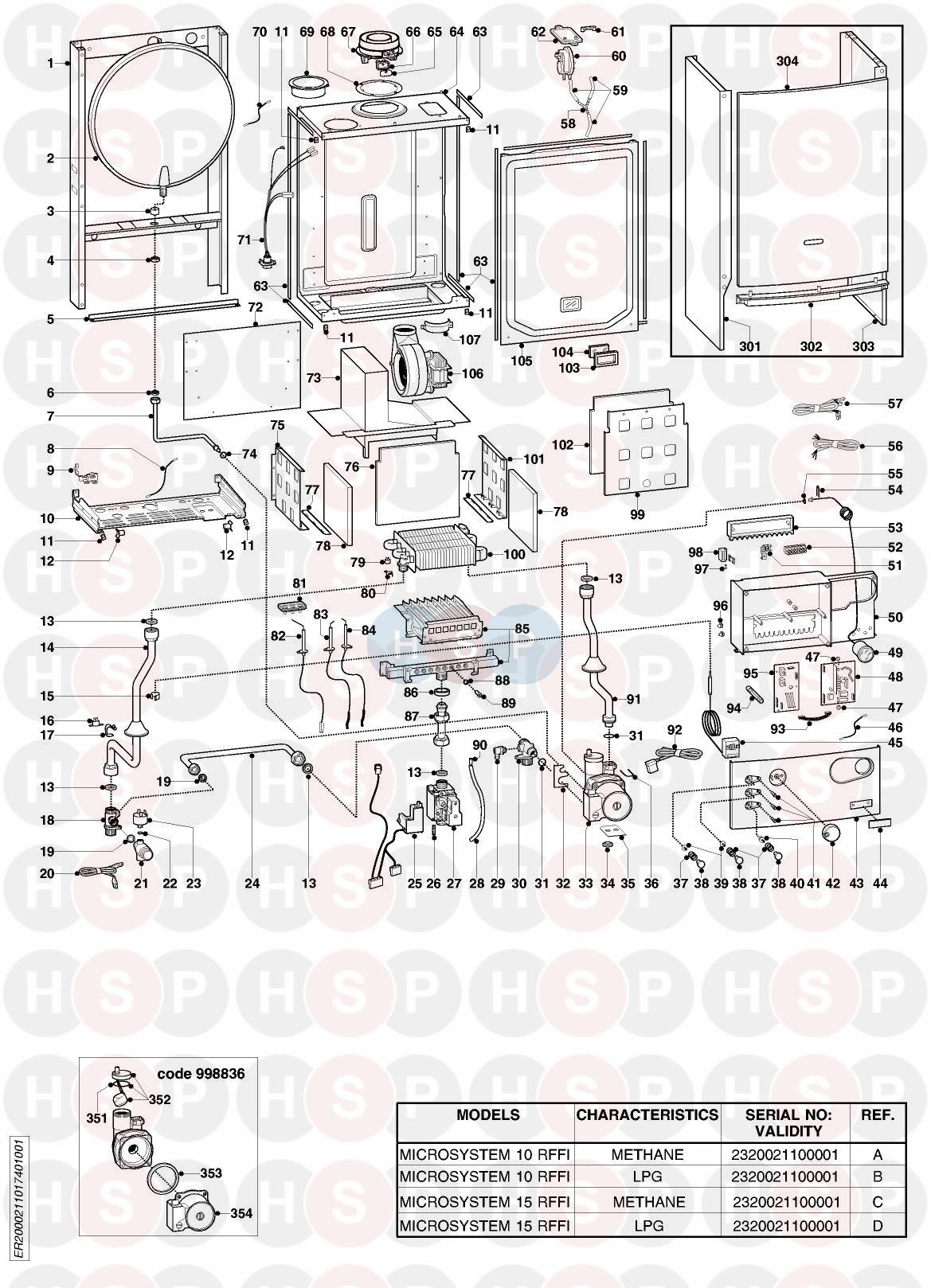

Exploded View diagram for Ariston Microsystem 10 RFFI Edition 1 (From Serial No 2320021100001 To 2320024900001)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2 Part number 998616, EXPANSION VESSEL 6L EXPANSION VESSEL 6L
Ariston part no. 998616		 £82,16
3 Part number 998776, BUSH (EXPANSION VESSEL) BUSH (EXPANSION VESSEL)
Ariston part no. 998776		 £6,63
4 Part number 998581, LOCK NUT 3/8" LOCK NUT 3/8"
Ariston part no. 998581		 £4,54
5   OBSOLETE FRAME SUPPORT
Ariston part no. 999594
6 Part number 573521, GASKET 3/8" GASKET 3/8"
Ariston part no. 573521		 £0,94
7 Part number 999525, PIPE (EXPANSION VESSEL) PIPE (EXPANSION VESSEL)
Ariston part no. 999525		 £12,25
8 Part number 999547, EARTH CABLE (P.C.B.) EARTH CABLE (P.C.B.)
Ariston part no. 999547		 £5,91
9   CABLE HOLDER
Ariston part no. 998580		 £1,91
11 Part number 570717, SPRING (FASTENING) SPRING (FASTENING)
Ariston part no. 570717		 £4,21
12 Part number 995492, PIVOT PIVOT
Ariston part no. 995492		 £5,30
12 Part number 998569, NOW USE 995492 PIVOT NOW USE 995492 PIVOT
Ariston part no. 998569
13 Part number 573520, GASKET 3/4" GASKET 3/4"
Ariston part no. 573520		 £0,94
14   OBSOLETE PIPE (C.H. FLOW)
Ariston part no. 999528
15 Part number 571565, FIXING SPRING (PRESSURE GAUGE) FIXING SPRING (PRESSURE GAUGE)
Ariston part no. 571565		 £5,80
16 Part number 570760, THERMOSTAT (ANTI-FROST) THERMOSTAT (ANTI-FROST)
Ariston part no. 570760		 £9,38
17   FIXING SPRING (THERMOSTAT)
Ariston part no. 999557		 £2,96
18 Part number 998612, FLOW GROUP FLOW GROUP
Ariston part no. 998612		 £78,26
19 Part number 573528, GASKET 1/2" GASKET 1/2"
Ariston part no. 573528		 £1,13
20   OBSOLETE CABLE-LOW H2O PRESSURE SWITCH
Ariston part no. 999552
21 Part number 998447, SAFETY VALVE SAFETY VALVE
Ariston part no. 998447		 £14,74
22 Part number 569390, GASKET 1/4 GASKET 1/4
Ariston part no. 569390		 £1,16
23 Part number 995903, LOW PRESSURE SWITCH LOW PRESSURE SWITCH
Ariston part no. 995903		 £15,96
23 Part number 998627, NOW USE 995903 LOW PRESSURE SWITCH NOW USE 995903 LOW PRESSURE SWITCH
Ariston part no. 998627
24   OBSOLETE BY-PASS PIPE
Ariston part no. 998590
25   OBSOLETE SPARK GENERATOR
Ariston part no. 999542
26 Part number 574279, GASKET (SPARK GENERATOR) GASKET (SPARK GENERATOR)
Ariston part no. 574279		 £1,45
27 Part number 999474, GAS VALVE GAS VALVE
Ariston part no. 999474		 £147,78
28 Part number 573576, COMPENSATION TUBE COMPENSATION TUBE
Ariston part no. 573576		 £7,22
29 Part number 998809, DRAIN VALVE DRAIN VALVE
Ariston part no. 998809		 £6,06
30   RETURN GROUP
Ariston part no. 999476		 £17,55
31 Part number 998424, O-RING O-RING
Ariston part no. 998424		 £1,09
32 Part number 999162, PUMP BRACKET PUMP BRACKET
Ariston part no. 999162		 £3,84
33 Part number 996614, KIT FOR REAR PUMP ATTACHMENT KIT FOR REAR PUMP ATTACHMENT
Ariston part no. 996614		 £256,70
33 Part number 998836, NOW USE 996614 PUMP (GOLD 50) NOW USE 996614 PUMP (GOLD 50)
Ariston part no. 998836
34 Part number 999100, LOCK WASHER LOCK WASHER
Ariston part no. 999100		 £0,79
35 Part number 999602, SPACER PLATE (PUMP) SPACER PLATE (PUMP)
Ariston part no. 999602		 £5,81
36 Part number 997153, U-CLIP U-CLIP
Ariston part no. 997153		 £1,47
37 Part number 999603, SPRING (PUSH BUTTON) SPRING (PUSH BUTTON)
Ariston part no. 999603		 £6,71
38 Part number 999469, PUSH BUTTON PUSH BUTTON
Ariston part no. 999469		 £6,28
39 Part number 999442, SPINDLE (PUSH BUTTON) SPINDLE (PUSH BUTTON)
Ariston part no. 999442		 £6,71
40 Part number 999444, RESET BUTTON INSERT RESET BUTTON INSERT
Ariston part no. 999444		 £6,27
41 Part number 997714, L.E.D. (POWER INDICATOR) L.E.D. (POWER INDICATOR)
Ariston part no. 997714		 £5,45
42   CONTROL KNOB
Ariston part no. 999456		 £2,84
43 Part number 999459, CONTROL PANEL (FRONT) CONTROL PANEL (FRONT)
Ariston part no. 999459		 £9,09
44   OBSOLETE NAME BADGE
Ariston part no. 997824
45   THERMOSTAT (REGULATION)
Ariston part no. 999578		 £16,40
46   OBSOLETE CABLE (P.C.B. - TERMINAL BOARD)
Ariston part no. 999544
47 Part number 569711, NYLON BUSH (10mm) NYLON BUSH (10MM)
Ariston part no. 569711		 £3,21
48 Part number 65101255, PRINTED CIRCUIT BOARD (CB3-FFI02) PRINTED CIRCUIT BOARD (CB3-FFI02)
Ariston part no. 65101255		 £145,54
48 Part number 999499, NOW USE 65101255 PRINTED CIRCUIT BOARD (CBM2 AT-FFI2X) NOW USE 65101255 PRINTED CIRCUIT BOARD (CBM2 AT-FFI2X)
Ariston part no. 999499
49 Part number 65100695, PRESSURE GAUGE PRESSURE GAUGE
Ariston part no. 65100695		 £13,55
49 Part number 999245, NOW USE 65100695 PRESSURE GAUGE NOW USE 65100695 PRESSURE GAUGE
Ariston part no. 999245
54 Part number 571548, U-CLIP U-CLIP
Ariston part no. 571548		 £4,35
55 Part number 998517, O-RING O-RING
Ariston part no. 998517		 £1,00
56   CABLE (POWER SUPPLY)
Ariston part no. 995325		 £6,80
56   NOW USE 995325 CABLE (POWER SUPPLY)
Ariston part no. 999549
57   CABLE (THERMOSTAT)
Ariston part no. 996108		 £7,00
57   NOW USE 996108 CABLE (EARTH)
Ariston part no. 999551
58 Part number 573327, Y PIECE (AIR PRESSURE) Y PIECE (AIR PRESSURE)
Ariston part no. 573327		 £6,24
59 Part number 571575, NOW USE 573576 SILICONE PIPE (POSITIVE SIGNAL) NOW USE 573576 SILICONE PIPE (POSITIVE SIGNAL)
Ariston part no. 571575
60 Part number 998484-01, AIR PRESSURE SWITCH 55 Pa AIR PRESSURE SWITCH 55 PA
Ariston part no. 998484-01		 £36,99
60 Part number 998484, NOW USE 998484-01 AIR PRESSURE SWITCH 40 Pa NOW USE 998484-01 AIR PRESSURE SWITCH 40 PA
Ariston part no. 998484
61 Part number 573329, AIR INTAKE COVER AIR INTAKE COVER
Ariston part no. 573329		 £6,22
62 Part number 997203, SUPPORT PLATE SUPPORT PLATE
Ariston part no. 997203		 £6,35
63 Part number 65102772, GASKET (ADHESIVE - 14X6 mm) GASKET (ADHESIVE - 14X6 MM)
Ariston part no. 65102772		 £10,13
63 Part number 998516, NOW USE 65102772 SEAL (COMBUSTION CHAMBER - 10X6) NOW USE 65102772 SEAL (COMBUSTION CHAMBER - 10X6)
Ariston part no. 998516
65 Part number 998565, COVER (FLUE TEST POINT) (TO 03/06) COVER (FLUE TEST POINT) (TO 03/06)
Ariston part no. 998565		 £3,28
66 Part number 998636, GASKET (FLUE TEST POINT) (TO 03/06) GASKET (FLUE TEST POINT) (TO 03/06)
Ariston part no. 998636		 £5,17
67 Part number 999561, FLUE (EXHAUST MANIFOLD / HEADER) FLUE (EXHAUST MANIFOLD / HEADER)
Ariston part no. 999561		 £21,62
68 Part number 998637, GASKET (FLUE COLLAR) GASKET (FLUE COLLAR)
Ariston part no. 998637		 £1,65
69 Part number 998595, PLUG (AIR INTAKE) PLUG (AIR INTAKE)
Ariston part no. 998595		 £6,47
70 Part number 999925, EARTH CABLE (FAN) EARTH CABLE (FAN)
Ariston part no. 999925		 £5,25
70 Part number 999553, NOW USE 999925 EARTH CABLE (SEALED CHAMBER) NOW USE 999925 EARTH CABLE (SEALED CHAMBER)
Ariston part no. 999553
71   CABLE (SEALED CHAMBER)
Ariston part no. 995894		 £7,15
71   CABLE (SEALED CHAMBER)
Ariston part no. 999548		 £19,14
71   NOW USE 995894 CABLE (SEALED CHAMBER)
Ariston part no. 999906
72   OBSOLETE PANEL (COMBUSTION PANEL - REAR)
Ariston part no. 999461
73   FLUE HOOD
Ariston part no. 65101379		 £33,03
73   NOW USE 65101379 FLUE HOOD
Ariston part no. 999466
74 Part number 997182, GASKET GASKET
Ariston part no. 997182		 £1,74
75   PANEL (L.H. SIDE)
Ariston part no. 995893		 £7,58
75   NOW USE 995893 PANEL (COMBUSTION CHAMBER - L/H SIDE)
Ariston part no. 998600
76   PANEL (INSULATION - REAR)
Ariston part no. 999441		 £3,50
77   OBSOLETE PANEL (COMBUSTION CHAMBER - LOWER)
Ariston part no. 999464
78 Part number 998639, PANEL (INSULATION - SIDE) PANEL (INSULATION - SIDE)
Ariston part no. 998639		 £7,19
79 Part number 999538, OVERHEAT THERMOSTAT (100C - 80C) OVERHEAT THERMOSTAT (100C - 80C)
Ariston part no. 999538		 £7,35
80 Part number 998583, FIXING SPRING (OVERHEAT THERM.) FIXING SPRING (OVERHEAT THERM.)
Ariston part no. 998583		 £1,86
81 Part number 998147, IGNITION ELECTRODE CABLE RUBBER IGNITION ELECTRODE CABLE RUBBER
Ariston part no. 998147		 £4,28
82 Part number 998624, IONISATION ELECTRODE IONISATION ELECTRODE
Ariston part no. 998624		 £6,30
83 Part number 65100250, IGNITION ELECTRODE (L.H.) IGNITION ELECTRODE (L.H.)
Ariston part no. 65100250		 £6,32
83 Part number 998622, NOW USE 65100250 ELECTRODE (IGNITION L.H.) NOW USE 65100250 ELECTRODE (IGNITION L.H.)
Ariston part no. 998622
84 Part number 65100251, IGNITION ELECTRODE (R.H.) IGNITION ELECTRODE (R.H.)
Ariston part no. 65100251		 £6,32
84 Part number 998623, NOW USE 65100251 ELECTRODE (IGNITION R.H.) NOW USE 65100251 ELECTRODE (IGNITION R.H.)
Ariston part no. 998623
85   BURNER 8 RAMP (N.G.)
Ariston part no. 999479		 £55,39
85   BURNER 8 RAMP (L.P.G.)
Ariston part no. 999685		 £65,38
85   BURNER 6 RAMP (L.P.G.)
Ariston part no. 999686		 £139,06
85   OBSOLETE BURNER 6 RAMP (NATURAL GAS)
Ariston part no. 999481
86 Part number 569443, SILICONE SEAL SILICONE SEAL
Ariston part no. 569443		 £6,30
87 Part number 65100432, GAS PIPE GAS PIPE
Ariston part no. 65100432		 £16,01
87 Part number 998729, NOW USE 65100432 PIPE (GAS VALVE) NOW USE 65100432 PIPE (GAS VALVE)
Ariston part no. 998729
88 Part number 572138, BURNER JET WASHER BURNER JET WASHER
Ariston part no. 572138		 £0,87
89 Part number 998433, BURNER JET (NG 1.30) BURNER JET (NG 1.30)
Ariston part no. 998433		 £1,60
89 Part number 998434, BURNER JET (L.P.G. 0.77) BURNER JET (L.P.G. 0.77)
Ariston part no. 998434		 £1,49
90 Part number 573325, RIVET RIVET
Ariston part no. 573325		 £0,98
91   PIPE (C.H. RETURN)
Ariston part no. 999529		 £13,73
92 Part number 995906, CABLE (PUMP) CABLE (PUMP)
Ariston part no. 995906		 £8,00
92 Part number 999580, NOW USE 995906 CABLE (PUMP) NOW USE 995906 CABLE (PUMP)
Ariston part no. 999580
93   OBSOLETE CABLE (P.C.B.)
Ariston part no. 999546
94 Part number 999458, LEVER (P.C.B.) LEVER (P.C.B.)
Ariston part no. 999458		 £5,83
95 Part number 999501, PRINTED CIRCUIT BOARD (CT1) PRINTED CIRCUIT BOARD (CT1)
Ariston part no. 999501		 £56,65
96 Part number 569720, BLIND GROMMET BLIND GROMMET
Ariston part no. 569720		 £2,44
97 Part number 60054442, FUSE 250V 2A FUSE 250V 2A
Ariston part no. 60054442		 £1,85
97 Part number 950030, NOW USE 60054442 FAST FUSE 2A NOW USE 60054442 FAST FUSE 2A
Ariston part no. 950030
98   TERMINAL BOARD (ONE-POLE) + FUSE-HOLDER
Ariston part no. 572860		 £6,33
99   PANEL (COMBUSTION CHAMBER - FRONT)
Ariston part no. 995986		 £16,47
99   NOW USE 995986 PANEL (COMBUSTION CHAMBER - FRONT)
Ariston part no. 999460
100 Part number 999486, MAIN EXCHANGER MAIN EXCHANGER
Ariston part no. 999486		 £199,49
101   OBSOLETE PANEL (COMBUSTION CHAMBER - R.H.SIDE)
Ariston part no. 998599
102   PANEL (INSULATION - FRONT)
Ariston part no. 995997		 £16,72
102   NOW USE 995997 PANEL (INSULATION - FRONT)
Ariston part no. 999440
103 Part number 65105371, SIGHT GLASS - GASKET SIGHT GLASS - GASKET
Ariston part no. 65105371		 £6,02
103 Part number 998076, NOW USE 65105371 GASKET (SIGHT GLASS) NOW USE 65105371 GASKET (SIGHT GLASS)
Ariston part no. 998076
104 Part number 65105371, SIGHT GLASS - GASKET SIGHT GLASS - GASKET
Ariston part no. 65105371		 £6,02
104 Part number 998075, NOW USE 65105371 SIGHT GLASS NOW USE 65105371 SIGHT GLASS
Ariston part no. 998075
105 Part number 65105370, PANEL (FRONT - SEALED CHAMBER) PANEL (FRONT - SEALED CHAMBER)
Ariston part no. 65105370		 £36,59
105 Part number 65101606, NOW USE 65105370 PANEL (FRONT - SEALED CHAMBER) NOW USE 65105370 PANEL (FRONT - SEALED CHAMBER)
Ariston part no. 65101606
105 Part number 999151, NOW USE 65105370 PANEL (FRONT - SEALED CHAMBER) NOW USE 65105370 PANEL (FRONT - SEALED CHAMBER)
Ariston part no. 999151
106 Part number 995322, FAN FAN
Ariston part no. 995322		 £72,40
106 Part number 999487, FAN FAN
Ariston part no. 999487		 £40,99
106 Part number 999488, NOW USE 995322 FAN NOW USE 995322 FAN
Ariston part no. 999488
107 Part number 998566, FIXING CLAMP (FAN) FIXING CLAMP (FAN)
Ariston part no. 998566		 £2,57
301   CASE PANEL (L.H. SIDE)
Ariston part no. 998477		 £161,57
302 Part number 991944, FRONT PANEL CROSS BAR FRONT PANEL CROSS BAR
Ariston part no. 991944		 £4,53
302 Part number 998596, NOW USE 991944 FRONT PANEL CROSS BAR NOW USE 991944 FRONT PANEL CROSS BAR
Ariston part no. 998596
303   CASE PANEL (R.H. SIDE)
Ariston part no. 998476		 £140,70
304   CASE PANEL (FRONT)
Ariston part no. 998442		 £56,95
351 Part number 998644, O-RING (PUMP) O-RING (PUMP)
Ariston part no. 998644		 £4,79
352 Part number 998643, AUTO AIR VENT + O-RING AUTO AIR VENT + O-RING
Ariston part no. 998643		 £18,41
353 Part number 998738, GASKET (PUMP HEAD) GASKET (PUMP HEAD)
Ariston part no. 998738		 £3,94
354 Part number 996615, KIT (MOTOR PUMP) KIT (MOTOR PUMP)
Ariston part no. 996615		 £256,70
354 Part number 998961, NOW USE 996615 PUMP HEAD NOW USE 996615 PUMP HEAD
Ariston part no. 998961
361 Part number 998716, BURNER JET FULL KIT (NG) BURNER JET FULL KIT (NG)
Ariston part no. 998716		 £23,12
362 Part number 998717, BURNER JET FULL KIT (LPG) BURNER JET FULL KIT (LPG)
Ariston part no. 998717		 £25,61


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2025 Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter/X
